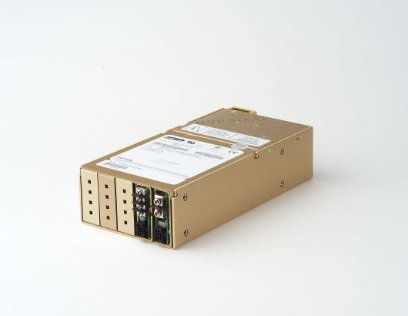

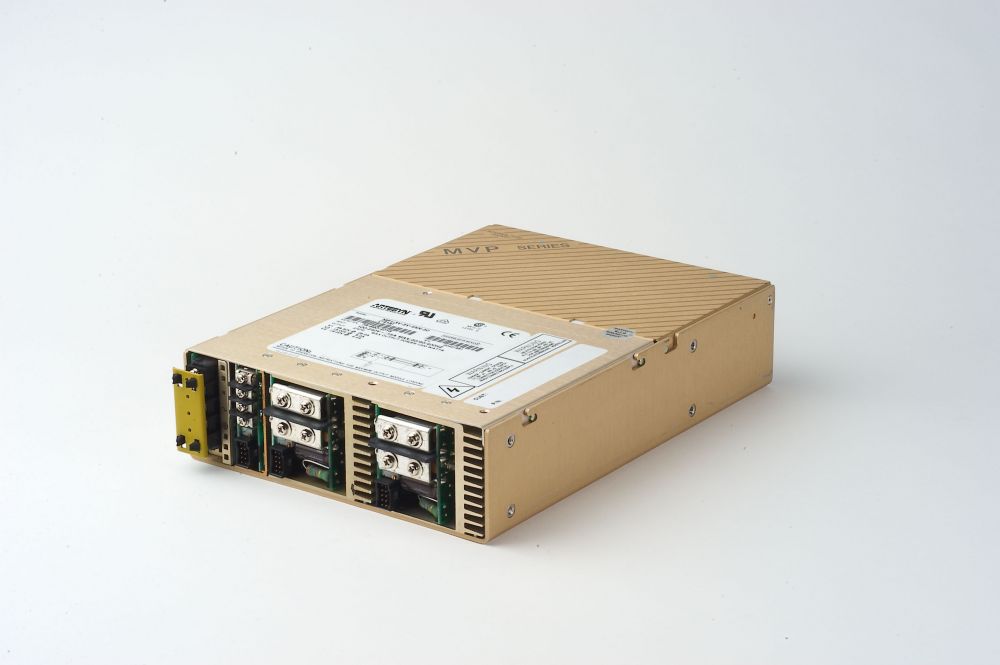

iMP1 Series

Active

1200 to 1500 W Configurable AC-DC Power Supplies

The iMP1 series is an AC input to DC output configurable power system consisting of a microprocessor-controlled PFC front end providing seven slots that accept intelligent DC-DC converter modules with single, dual or triple outputs ranging from 2 V to 60 V. Single output modules come in four power ranges that can be mixed and matched and connected in parallel or series to obtain thousands of output combinations customized to any application. User-configurable functions include current limit and output sequencing, as well as input and output OK signals and indicators. Capable of delivering up to 1,500 W and with up to 21 isolated outputs, the iMP1 series carries full medical safety approvals and is an extremely flexible and versatile multi-output power solution.

These digitally controlled power supplies feature a PMBus®-compliant I2C serial interface that enables parameters such as the voltage, current limit and enable/inhibit status of individual outputs to be programmed via an intuitive user GUI. The serial interface also allows remote monitoring of voltage, current and temperature.

Features

  • Current Share on all outputs greater than 10A
  • Field Demonstrated MTBF to 550K Hours
  • Industrial Shock/Vib (>50G's)
  • Industrial Temp Range (40 to 70C)
  • Intelligent I2C control
  • Isolated 5V @ 1A Standby Output
  • Remote Sense on all outputs greater than 2A
  • Efficiency 85% typical depending on configuration
  • Inrush Current 40A Peak (Soft Start)
  • Frequency 47-440 Hz
  • Input Range 85-264 VAC; 120-350 VDC
  • Input Fuse 25A
  • ACOK >5mS early warning
  • Holdover Storage 20 mSec min
  • Radiated EMI CISPR 22/EN55022 Level B
  • Leakage Current 300uA Max
  • EMI Filter CISPR 22/EN55022 Level B
  • Turn-on Time AC 2,0 sec; Inhibit 150mS
  • Power Factor 0.99 typ @ full case load
  • Recovery Time To within 1% in <300uSec
  • Reverse Voltage Protection 100% of rated output
  • Dynamic Response <2% or 100mV, 25% load step
  • Ripple RMS 0.1%; P-P 1.0% to 20MHz
  • Overall Regulation 0.4% or 20mV max
  • Margining +/-4-6% of Nominal
  • Programming Accuracy +/- 5%
  • Factory Set Point Accuracy +/- 1%
  • Adjust Range +/-10% Manual; Full Range Programmable
  • DCOK +/-5% of nominal - Programmable
  • Single Wire Parallel Share within 2% of total rated load
  • Remote Sense Compensates up to 0.5V
  • Output/Output Isolation >1 Megohm, 500V
  • Safety Meets EN60950 and EN60601
  • Module Switching Frequency 250kHz accepts external sync signal

Benefits

  • ACOK signal
  • Active PFC
  • Configurable Output Sequencing
  • Digital monitor of Voltage, Current and Temp (Both Input and Output)
  • Downloadable GUI
  • EMI Conducted and Radiated to Class B
  • External Switching Frequency Sync Input
  • Field Replacable Intelligent Fan
  • Full Medical Approval
  • Global DCOK and Inhibit/Enable (Logic Programmable)
  • Margin and Remote Voltage Programming
  • Module DCOK and Inhibit (Logic Programmable)
  • Optional Conformal Coating
  • Optional Extended holdup module
  • Optional extra holdup module
  • Optional VME Timing and System DCOK/Reset Module
  • Overload Protection on all outputs
  • Programmable voltage, current limit, fan speed, Foldback or Constant Current operation
  • Voltage Adjustment on all outputs (Manual or Programmable)
  • OCP Programmable
  • OVP Programmable
  • Thermal Protection OTP/OTW Programmable

Specifications

Output Power (W): 1500
Length (Inches): 11
Width (Inches): 8
Height (Inches): 2.5
Mounting Type: Configurable
Minimum Output Current (A): 0
Maximum Output Current (A): 300
Output Voltage Range (V): 2V to 60V
All Specifications Collapse Specifications

Introducing ConfigPro

Advanced Energy’s Revolutionary Online Power Configurator

With over 3 million configurable power supply combinations, this power solution algorithm optimizes cost and guides you to the ideal solution for MP, IMP, IVS, and MICROMP (UMP) configurable power supply families.
Get Started

Accessories

iMP Software Package

The iMP software is designed to make the iMP Power Supply Unit (PSU) accessible to the user. It is intended to provide information gathered from the PSU and interactive controls to the basic capabilities of iMP power supply.

Technical Documentation

Title Type
iMP Series Data Sheet (3 MB) Data Sheet
73-690-0001I RoHS2 CoC (27 KB) RoHS Certificate
73-690-5094I RoHS2 CoC (27 KB) RoHS Certificate
73-690-6063I (IMP1-5L0-1N0-4ED0-07-B-663) RoHS2 CoC (95 KB) RoHS Certificate
73-690-9077I RoHS2 CoC (53 KB) RoHS Certificate
73-690-9272I (iMP1-5Y2-00-A) RoHS2 CoC (95 KB) RoHS Certificate
73-690-9282I (iMP1-3R0-1L0-1L0-4ED0-4ZZ0-01-B) RoHS2 CoC (95 KB) RoHS Certificate
73-690-9286I RoHS2 CoC (53 KB) RoHS Certificate
iMP1_CB Certificate (ITE) (235 KB) Safety Certificate
iMP1_CCC Certificate (Cavite) (1 MB) Safety Certificate
iMP1_CCC Certificate (Laguna) (1 MB) Safety Certificate
iMP1_CE Declaration of Conformity (168 KB) Safety Certificate
iMP1_TUV CB Certificate (MED) (731 KB) Safety Certificate
iMP1_UKCA Declaration of Conformity (159 KB) Safety Certificate
iMP1_UL (Medical) Certificate ver 3.1 (128 KB) Safety Certificate
iMP1_UL/CSA ITE Certificate (400 KB) Safety Certificate
iMP1_UV Certificate (ITE & MED) (626 KB) Safety Certificate
iMP GUI Software Technical Reference Note (2 MB) Technical Reference
iMP Series I2C Protocol (780 KB) Technical Reference
iMP Series Technical Reference Note (11 MB) Technical Reference
Marketing Bulletin_MP Series (603 KB) Technical Reference
Marketing Bulletin_MP Series End of Life (584 KB) Technical Reference
Understanding the real benefits of flexibility and configurability in power systems design - Chinese Version (1 MB) White Paper
Understanding the real benefits of flexibility and configurability in power systems design - Korean Version (1 MB) White Paper
