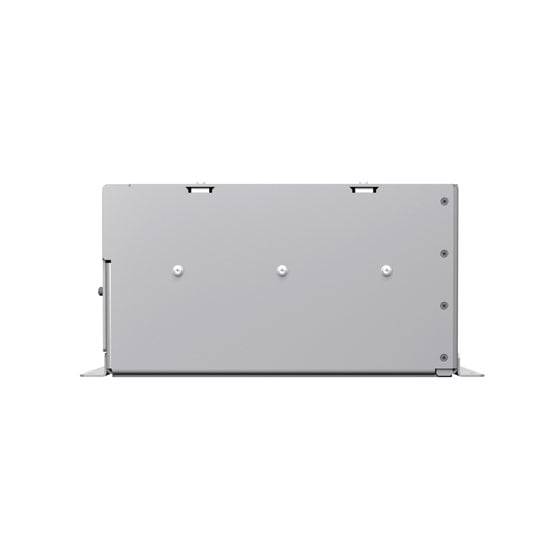

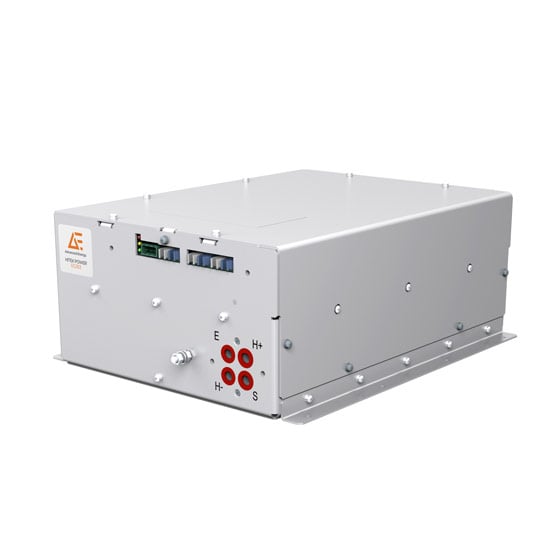

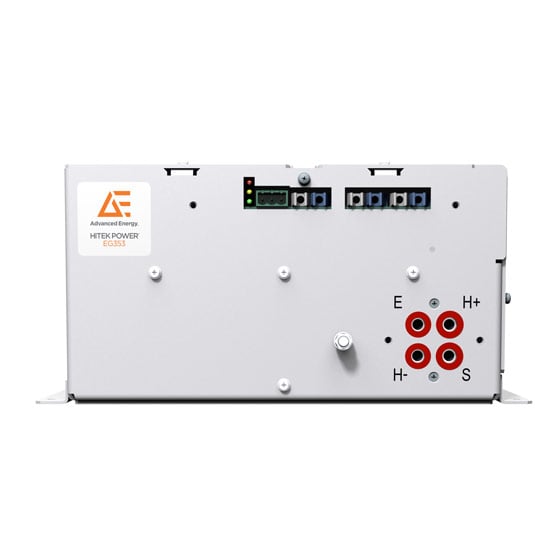

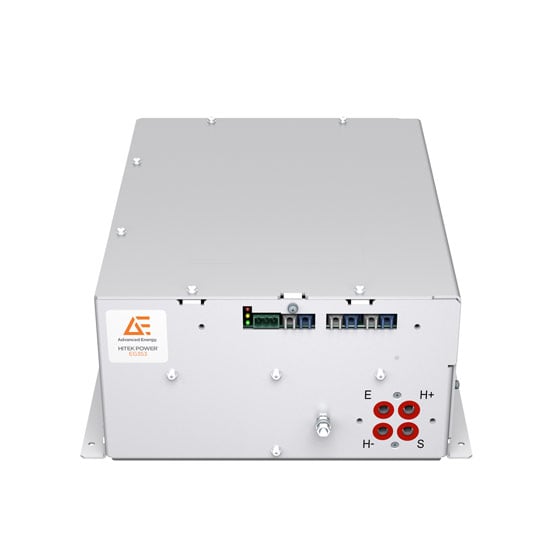

EG353 Series
Active
35 kV High Voltage Power Supply for Scanning Electron Microscopes
Advanced Energy’s EG353 series offers dependable, high-stability power supplies for scanning electron microscopes (SEM) with built-in flexibility to accommodate various electron gun configurations. The EG353 series includes Advanced Energy’s Direct Drive Digital Control (D3C) which enables a smaller footprint and improves MTBF and reliability. Via a proven design and power-conversion technologies, EG353 power supplies can help maximize image quality and repeatability.
特点
- Low ripple (< 1.6 ppm, accelerator) and high stability (< 10 ppm, accelerator) for resolutions to 1 nm
- Market-leading reliability and performance enabled by Advanced Energy’s Direct Drive Digital Control (D3C) technology
- Choice of mechanical format — small-footprint module or 19-inch rack-mounted unit
- Customer-defined derivatives and connection options available upon request
- Easy-to-use digital control and monitoring; additional grounded outputs can be added
益处
- Enable better efficiency, more consistent operation, low variance-to-component change, greater reliability, and easier testing
- Easily install with flexible module and rack-mount options
- Customize with standard and specialized accessories
- Minimize setup and configuration times with Direct Drive Digital Control (D3C) technology
规格
| 输出功率（瓦）: | 6, 4, 0.1, 15 |
|---|---|
| 波纹（ppm）: | <2, <30 |
| 最大输出电流 (A): | 0.0001, 0.0002, 0.0004, 3 |
| 输出电流范围 (mA): | 0.2, 0.4, 0.1, 3000 |
