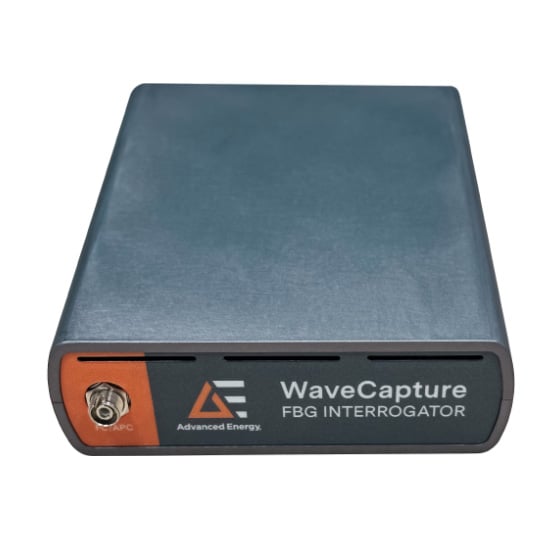

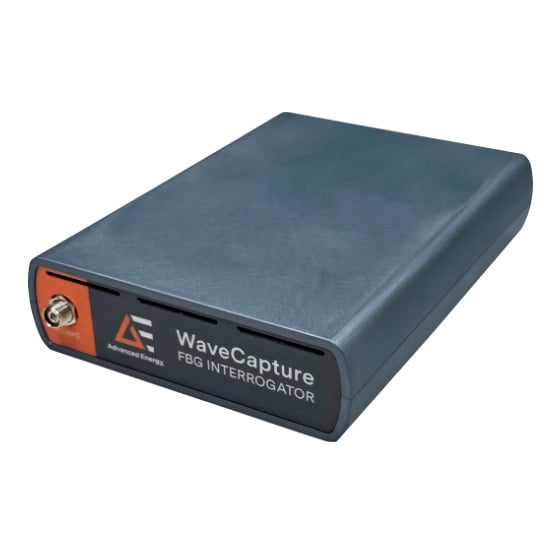

WaveCapture FBG Interrogator System

Active

Fiber Bragg Grating Interrogation System with Integrated Light Source

Advanced Energy's WaveCaptureTM Fiber Bragg Grating system is an interrogation system with an integrated light source that monitors multiple wavelengths from multiple channels. Precise fiber bragg grating (FBG) sensor system measurements are achieved with high end of life (EOL) wavelength accuracy at high-frequency response times.

特点

  • Ultra-fast response time (up to 5 Hz)
  • Excellent wavelength repeatability and resolution
  • High speed data acquisition and transmission using USB 2.0 communications
  • RS-232 available at lower speeds
  • Low power consumption

益处

  • Achieve high reliability with no moving parts, including in harsh environments
  • Gain precise fiber optic sensor measurements
  • Take advantage of the all-solid-state electronics
  • Leverage the included integrated broadband light source with 1, 4, 8, and 16 port options

规格

工作温度范围 (°C): -5 to 75
波长范围(纳米): 1510 to 1590
光学接口: FC/APC connector (or specified)
波长读出分辨率(pm): 1
通道数: 1, 4, or 16
准确性: +/-5 pm
噪音(°C): 1 pm
测量速率(赫兹): 1 Hz to 5 kHz
所有规格 折叠规格
