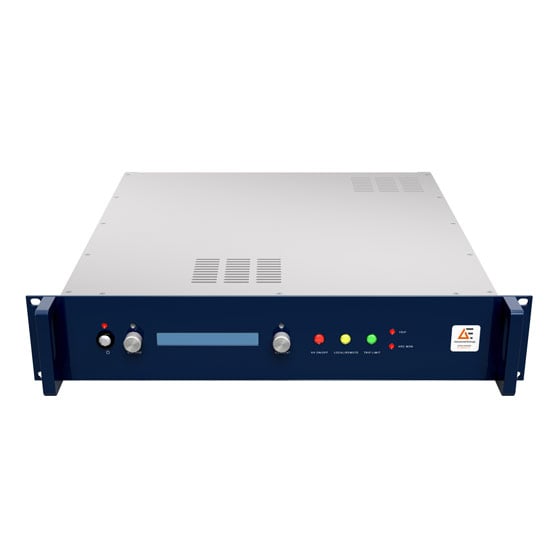

OL400W Series
Active
Rack-Mount, 400 W Single-Output, AC-to-HVDC Power Supplies
The OL400W series delivers outstanding performance in the most challenging electrical environments. Access efficient and reliable operation via power switching IGBTs. Operate at full power when close-mounted thanks to 1U construction (2U for built-to-order 80 kV units). And save valuable rack space for large systems. The OL400W series features Advanced Energy's proprietary Arc Count and Extinguish (ACE) system for managing systems where load arcing is possible, allowing you to protect your OL400W unit and load from damage caused by excessive arcing.
特点
- Choice of nine different models or customer-defined derivatives upon request (minimum unit quantity limits)

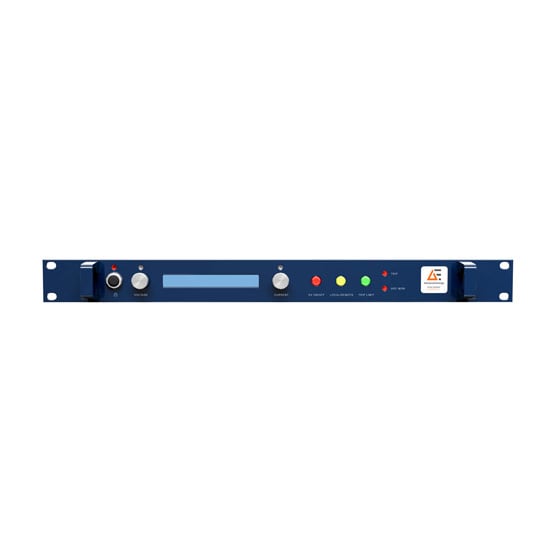

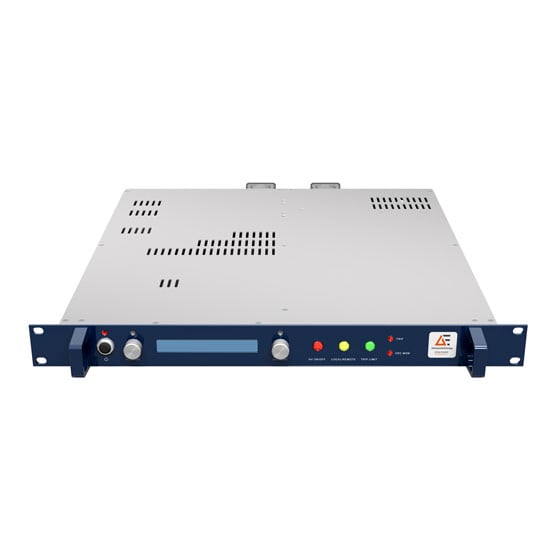

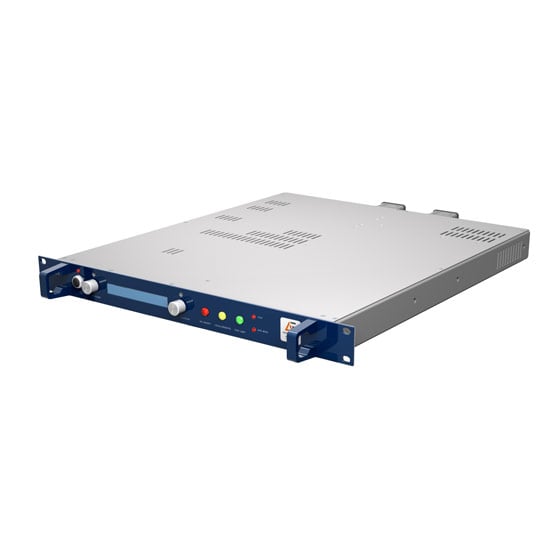

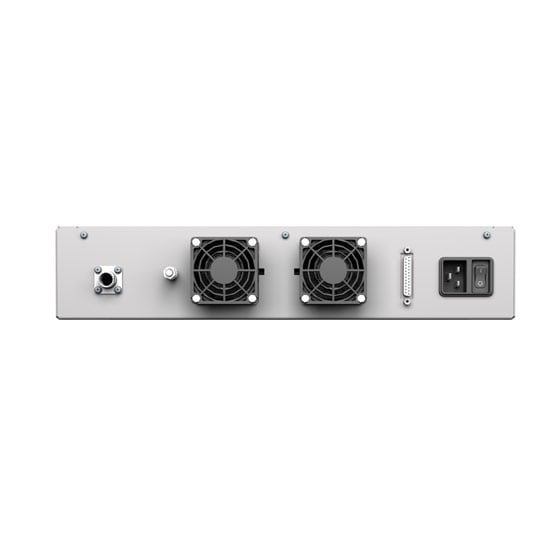

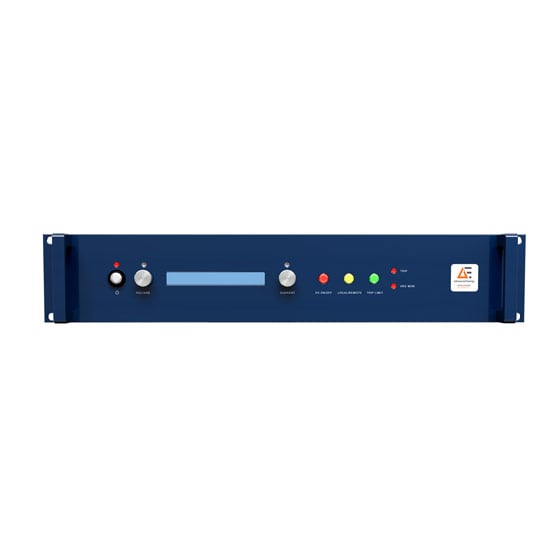

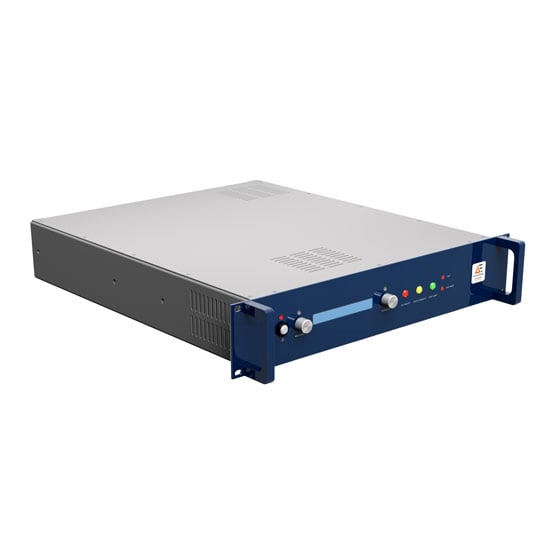

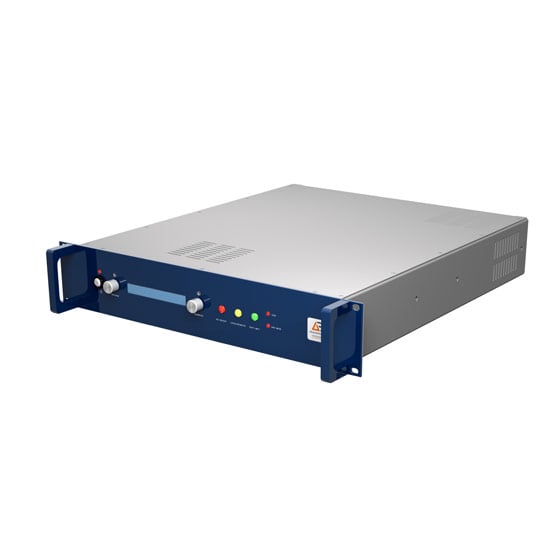

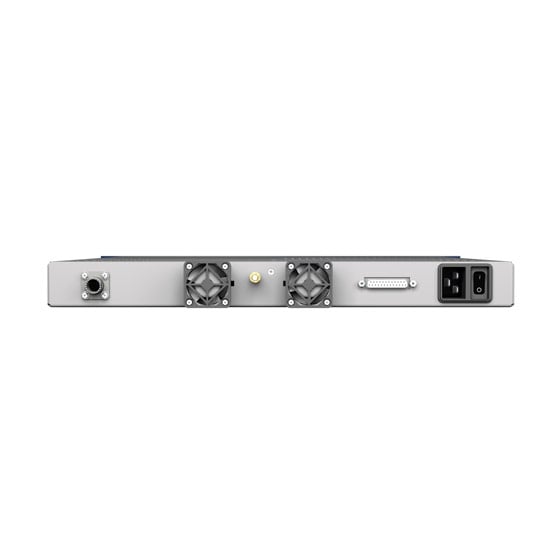

- High power density — 60 kV, 400 W in 1U format; 80 kV 400 W in 2U format (custom only, built-to-order)
- Unique Arc Count and Extinguish (ACE) system for managing load arcing
- Efficient and reliable operation
- RoHS Compliant to EU Directive 2011/65/EU
益处
- Enable significant rack space savings thanks to the OL400W series' compact construction
- Reduce maintenance and safety risks with innovative arcing self-protection system
- Ideally solve for 24 x 7 production processes where high reliability and performance are paramount
- Reduce costs with flexible output options
规格
| 输出功率（瓦）: | 400 |
|---|---|
| 波纹（ppm）: | <1000 |
| 最大输出电流 (A): | 0.4 |
| 压摆率（伏/毫秒）: | - |
| 输出电流范围 (mA): | 5, 400 |
| 输出电压范围 (V): | 1000 to 60000 |
技术文档
比较
| Model | OL400W Series | OL600W Series | OL1K Series |
|---|---|---|---|
| 输出功率（瓦） | 400 | 600 | 1000 |
| 波纹（ppm） | <1000 | <1000 | <1000 |
| 输出电压范围 (V) | 1000 to 60000 | 1000 to 60000 | 1000 to 60000 |
