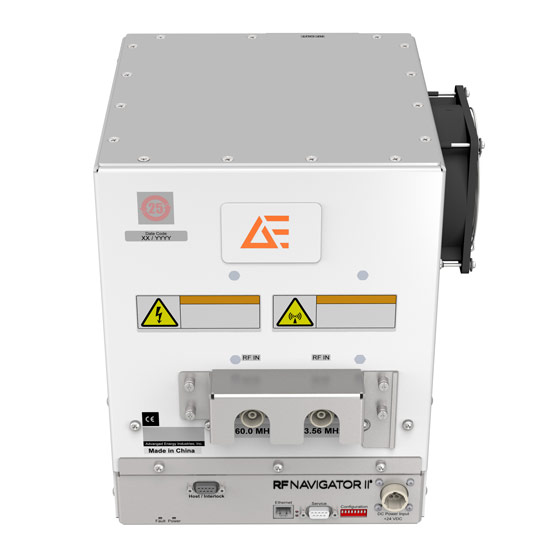

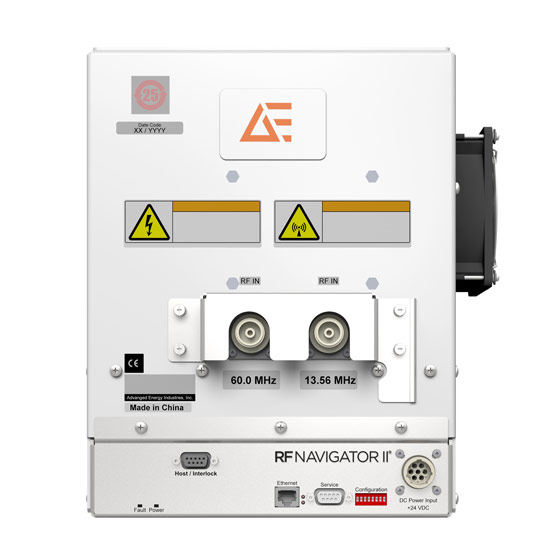

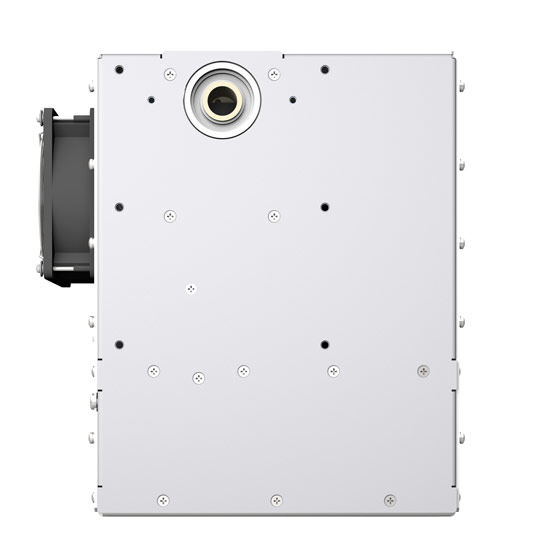

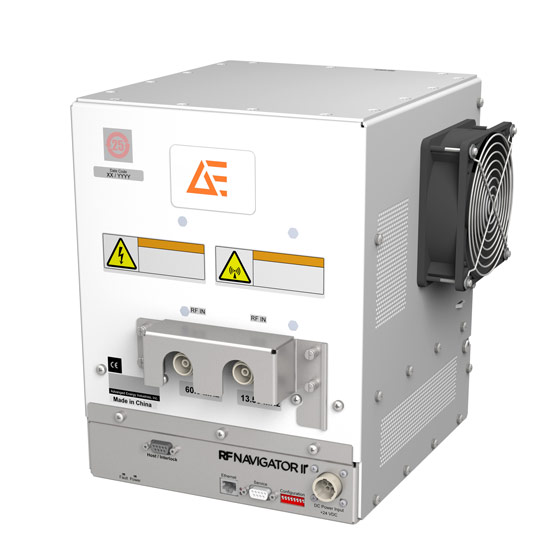

Navigator II

Active

Rapid, Accurate, and Reliable Digitally-Tuned Matching

The Navigator® ll is equipped with microprocessor-controlled, stepper-motor drives, and advanced tuning algorithms, enabling optimized RF power. An optional internal Z’Scan® II RF sensor provides real-time analysis of process power and impedance, allowing you to quickly identify and significantly reduce process variability. Optional Virtual Front Panel software is available for monitoring and control through a user’s computer.

特点

  • Digital architecture with enhanced tuning algorithms
  • Pulsed-RF power delivery
  • Sweep-frequency operation
  • Intermodulation distortion (IMD) immunity for multi-frequency applications
  • Real-time process power and impedance measurement

益处

  • Speeds tuning/matching response time
  • Tightens process control
  • Helps increase tool throughput and product yield

规格

冷却: Hybrid (air and water)
输出频率(兆赫、千赫): 400 kHz to 60 MHz
输入电压 (V): 110 VAC
功率等级(千瓦): 1 to 60 kW
机架宽度: N/A, chamber mounted
通信接口: EtherCAT, Ethernet, DeviceNet, RS-232
高级功能: Pulsing, CEX
流程应用: Etch, PECVD, PVD, Chamber Clean, HDP-CVD, PEALD, ALE
所有规格 折叠规格

服务

Total Service Package

We offer customized service bundles that include calibration, alignment, and extended warranty. Services will include scheduled calibration with adjustment and repairs as needed. Any software/firmware upgrades are also made available for customers.

Agreement Term Options

Service Agreements

Reduce annual maintenance costs and simplify forecasting by building a custom service agreement into your annual operating plan. We have the capability, expertise, and capacity to provide repair services, upgrades, refurbishments, exchange, and other service offerings to support maintenance and use of AE Products. We offer multi-year contracts and provide faster turnaround time for covered products.

Agreement Term Options

Field services and On-Site Training

Our field service engineers are available to support your on-site needs. We can properly secure and mount products, hook up your electrical connections, validate alignment and calibrate, and test to your specifications.

PowerInsight

Power your process with data using PowerInsight by Advanced Energy™, transforming data into actionable intelligence with advanced analytics and machine learning, enabling you to improve yield and reduce unplanned downtime.
