Thyro-PX Power Controller
Advanced SCR Power Controller Supports Load Currents Up to 5000 A and 690 V

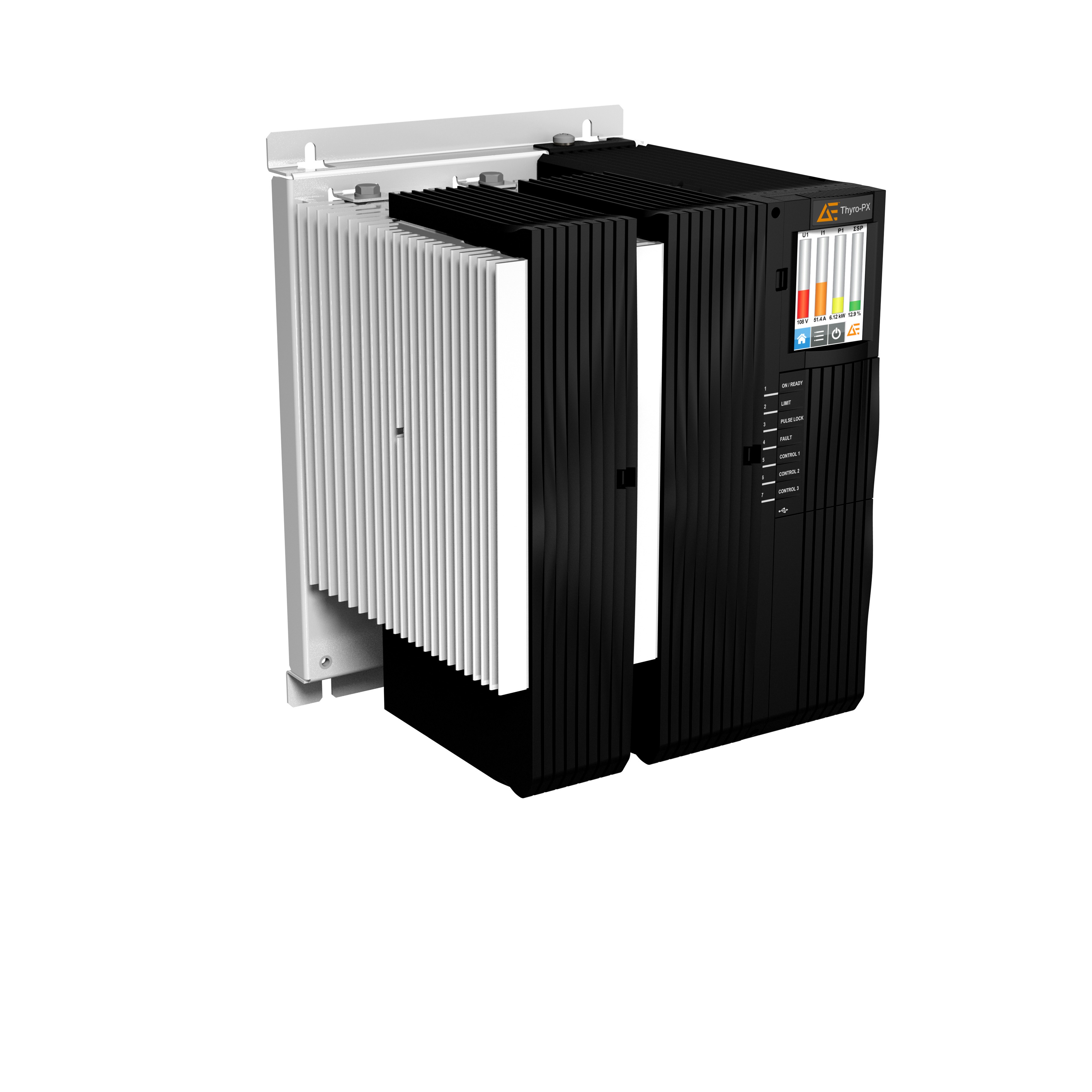

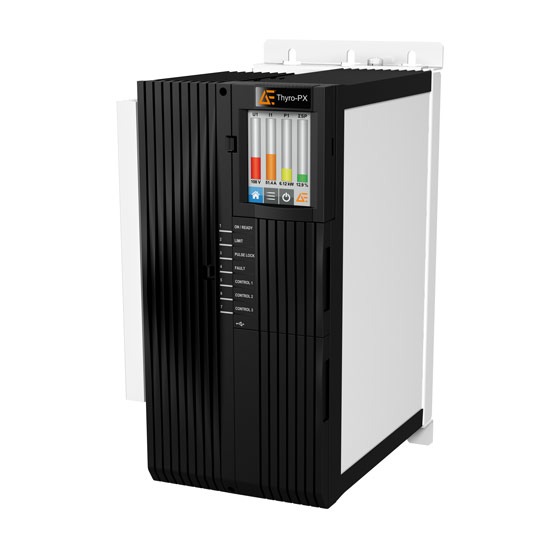

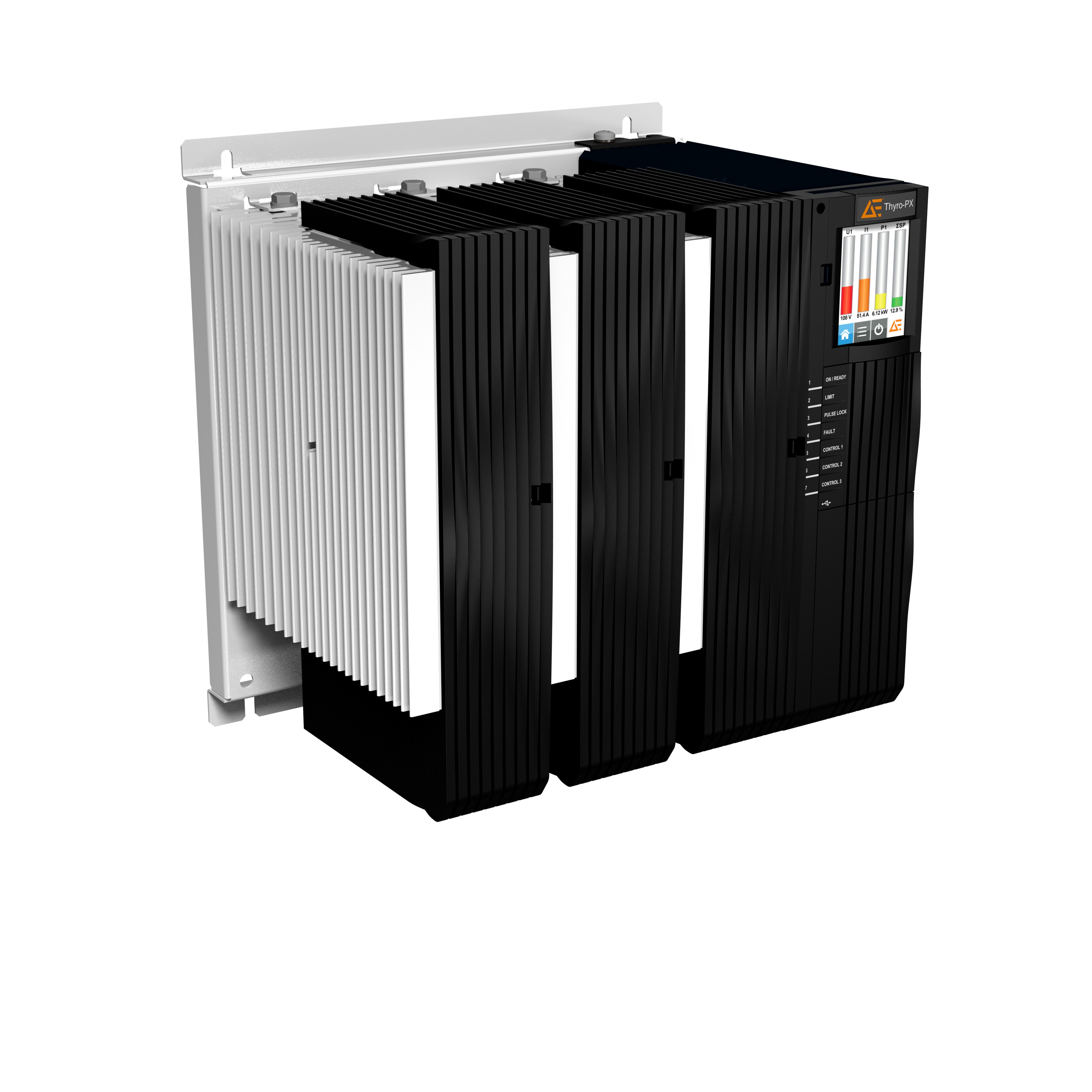

50 years of experience are infused in the Thyro-PX® series’ design and functionality. The SCR power controller is available in single-, dual-, and three-phase units, supports voltages up to 690 V and 5000 A, and offers superior interface options. Integrate operating modes and parameters seamlessly with the 2.8-inch, LED Thyro-Touch display. And enable efficient system parameters, loading, and storage via an on-board SD-card. Thyro-PX power controller is ideally suited for your transformer and resistive loads for glass, metal, and ceramic manufacturing. It is optimal for heating elements in electric furnaces.
Coming soon. Thyro-PX® series supporting voltages of 1000 V and 1000A.
For any further current extension we are offering water cooled stacks as well. Please ask your sales represantative for more information

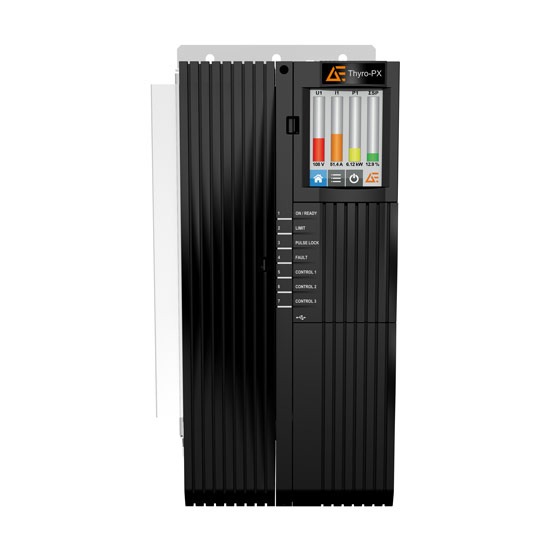

- Large 2.8 in (71.1 mm) LED graphic display with integrated process data recorder and SD card
- Digital and analog I/O options, with integrated memory for error tracking and energy consumption
- Mains-load optimization features dynamic digital control and power monitoring
特点
- 32-bit micro, 1.5 M measurements per sec, and 15-bit resolution, better than 0.5% accuracy
- Integrated mains-load optimization (dASM) with digital control
- Integrated soft starting for operation with downstream transformer
- Integrated Thyro-Touch display
- Seamless integration to Rockwell Automation® Studio5000® automation software via available add-on profiles (AOPs); simplify setup and commissioning using predefined tags
益处
- Minimize peak kVA demand via MoSi and TAKT load management
- Precisely regulate power, including load management, for optimal control and energy consumption
- Customize faults, alarms, status, limits, and set points to easily integrate with existing control systems
- Intuitively set up and commission using an integrated touch-screen display
规格
频率(赫兹): | 47 to 63 |
---|---|
保险丝: | Integrated semiconductor fuse |
运行模式: | TAKT, VAR, VSC, Soft start, soft down |
额定电流 (A): | Up to 5000 A |
额定电压 (V): | Up to 690 V |
安全认证: | CE, UL 508 (8 – 350A), Canadian C22.2 No. 14 |
通信接口: |
USB interface for Thyro-Tool Software
RS232 interface for Thyro-Touch Display |
配件
Thyro-Touch Display
Integrated Process Data Recording with Easy Operation via Touch Display

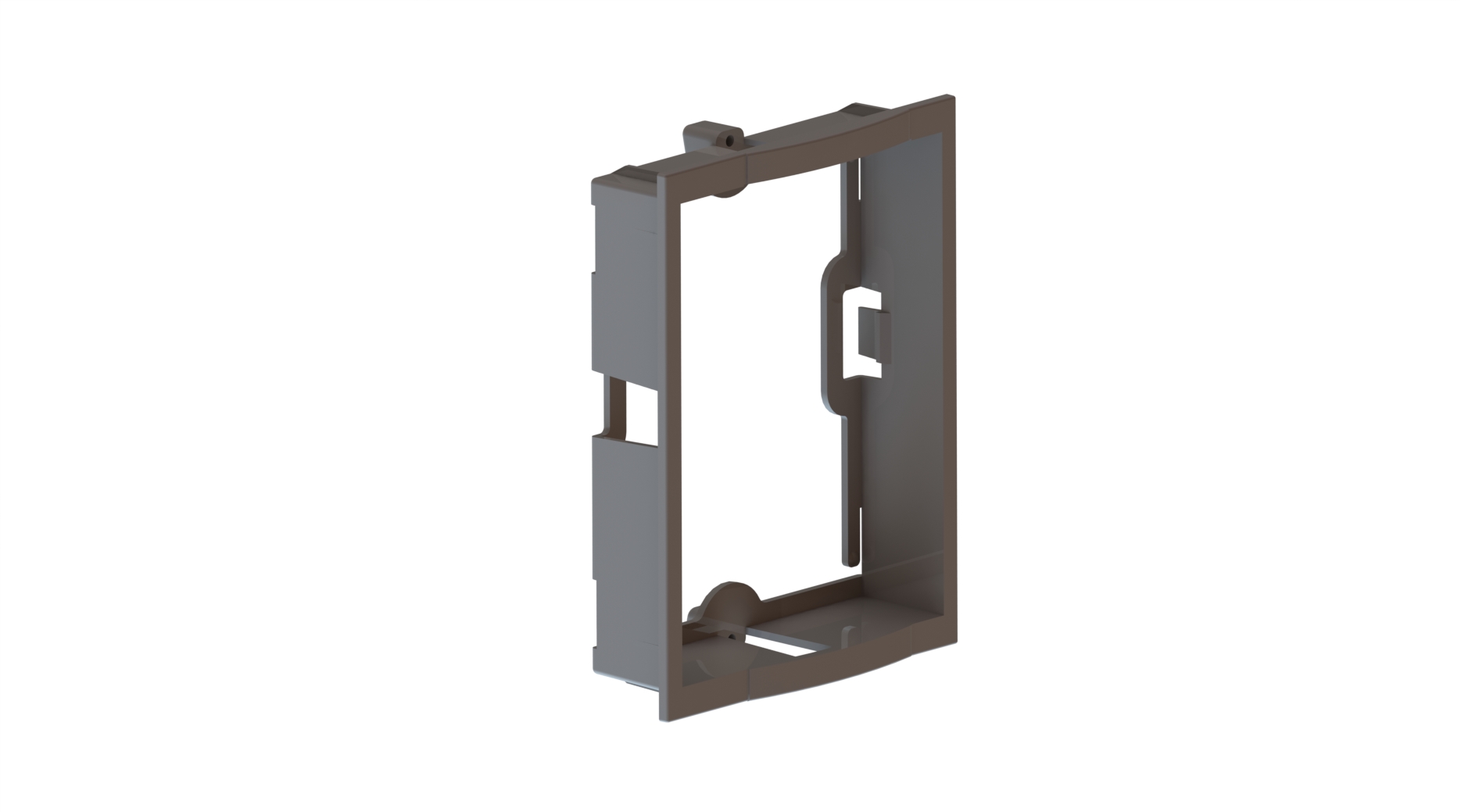

Thyro-Touch Frame Kit
Frame Kit for display front door assembly

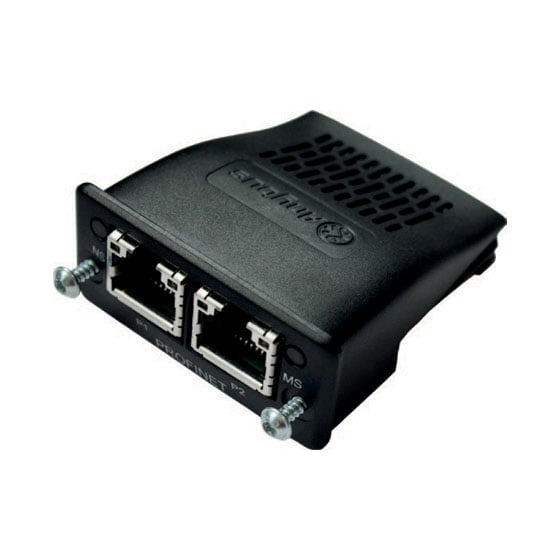

Thyro Anybus Module - Profibus
Communication Module Adds the Profibus Interface
Thyro Anybus Module - EtherNet/IP
Communication Module Adds EtherNet/IP Interface
Thyro Anybus Module - EtherCAT
Communication Module Adds Another Interface
Thyro Anybus Module - Profinet
Communication Module Adds Profinet Interface
Thyro Anybus Module - Modbus
Communication Module Adds Modbus TCP Interface
Thyro GSD Software
Download Thyro GSD files
- Thyro GSD CANopen (Thyro-S, -A, -AX) (13 KB)
- Thyro GSD DeviceNet (Thyro-A, -AX) (47 KB)
- Thyro GSD EtherCAT (Thyro-PX) (13 KB)
- Thyro GSD EthernetIP (Thyro-PX) (11 KB)
- Thyro GSD EthernetIP (Thyro-S, -A, -AX) (4 KB)
- Thyro GSD Profibus (Thyro-PX) (10 KB)
- Thyro-PX ProfiNet Software (Thyro-PX) (16 KB)
- Thyro-PX ProfiNet Software (Thyro-S, -A, -AX) (14 KB)
Thyro Tool Pro
Thyro Tool software is custom software made for Thyro SCR Power Controllers
技术文档
比较
Model | Thyro-PX Power Controller | Thyro-S Power Controller | Thyro-A Power Controller | Thyro-A+ Power Controller |
---|---|---|---|---|
频率(赫兹) | 47 to 63 | 47 to 63 | 47 to 63 | 47 to 63 |
保险丝 | Integrated semiconductor fuse | Integrated semiconductor fuse | Integrated semiconductor fuse | Integrated semiconductor fuse |
运行模式 | TAKT, VAR, VSC, Soft start, soft down | TAKT and with optional BasicBusModule | TAKT, VAR, QTM, and with optional BasicBusModule | TAKT, VAR, QTM, VT Mode and with optional BasicBusModule |
额定电流 (A) | Up to 5000 A | Up to 350 A | Up to 1500 A | Up to 650 A |
额定电压 (V) | Up to 690 V | Up to 500 V | Up to 500 V | Up to 500 V |
通信接口 |
USB interface for Thyro-Tool Software
RS232 interface for Thyro-Touch Display |
Micro-USB connector for Thyro-Tool Pro PC software connection BasicBusModule with Anybus Digital Interface Card |
Micro-USB connector for Thyro-Tool Pro PC software connection
BasicBusModule with Anybus Digital Interface Card |
Display for Thyro-A+ configuration with optional SD memory card and process data recorder
BasicBusModule with Anybus Digital Interface Card Micro-USB connector for Thyro-Tool Pro PC software connection |
