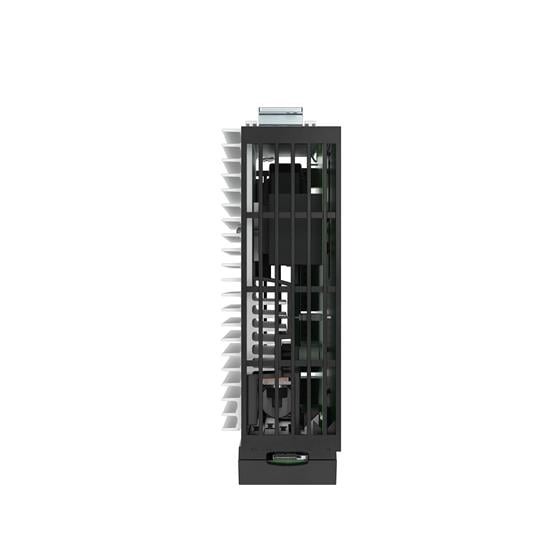

Thyro-A+ Power Controller
Precise, digital SCR power controller that supports currents up to 650 A and voltages up to 500 V
- Display or Thyro-Tool Pro software to easily visualize, commission or set parameters
- Increase performance control accuracy to maximize end process repeatability
- Easy fieldbus integration with optional BasicBus Module and available bus protocols
特点
- Save space and simplify installation with a compact unit footprint and a DIN-rail mountable design (up to 60 A system rating)
- Precisely regulate power, including load management, for optimal control and energy consumption
- Easily integrate with existing control systems; customize faults, alarms, status, limits, and set points
- Increase process efficiency; optimize load control with five control types and three operating modes
益处
- Scalable PLC/PAC integration for closed-loop control; optional system interface connects up to 8 power controllers to BasicBus Module (Profibus DPV1, CANopen, Profinet, Modbus TCP/IP, EtherNet/IP, EtherCAT)
- Securely separate control and power units and optimize load control; use up to five control methods and three operating modes

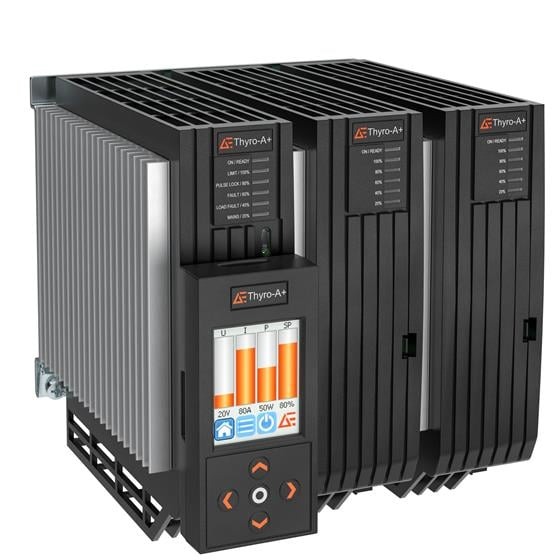

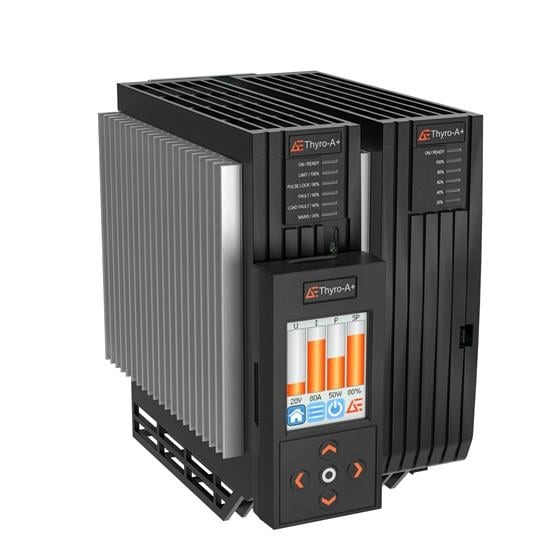

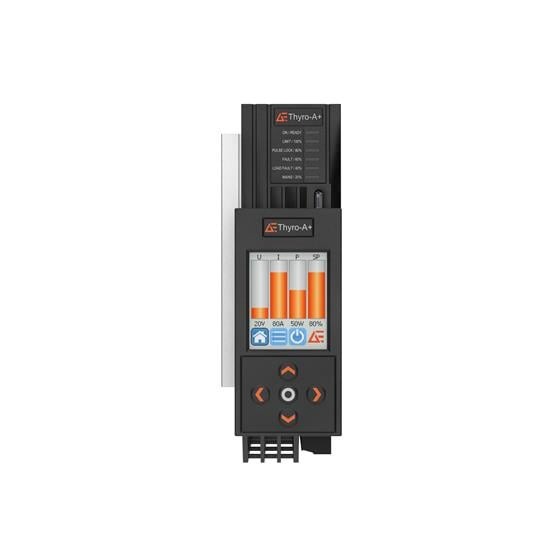

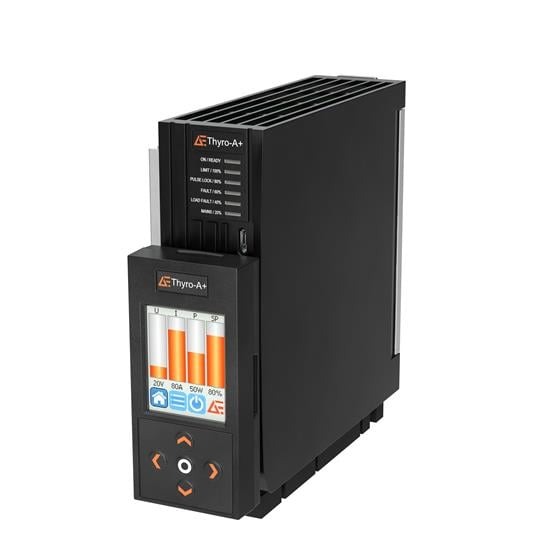

- 1-, 2-, or 3-phase versions (2-phase version for 3-phase load without deploying neutral conductor)
- Securely separate control and power units and optimize load control; use up to five control methods and three operating modes
- Mains-load optimization using optional dASM with optional BasicBus Module; support digital and dynamic mains-load optimization (up to eight Thyro-A+ SCR power controllers)
- Seamless integration to Rockwell Automation® Studio5000® automation software via add-on profiles (AOPs): simplify setup and commissioning using predefined tags
- 1-, 2-, or 3-phase versions (2-phase version for 3-phase load without deploying neutral conductor)
规格
频率(赫兹): | 47 to 63 |
---|---|
保险丝: | Integrated semiconductor fuse |
运行模式: | TAKT, VAR, QTM, VT Mode and with optional BasicBusModule |
额定电流 (A): | Up to 650 A |
额定电压 (V): | Up to 500 V |
安全认证: | CE, UL 508 (8 – 350A), Canadian C22.2 No. 14 |
通信接口: |
Display for Thyro-A+ configuration with optional SD memory card and process data recorder
BasicBusModule with Anybus Digital Interface Card Micro-USB connector for Thyro-Tool Pro PC software connection |
配件

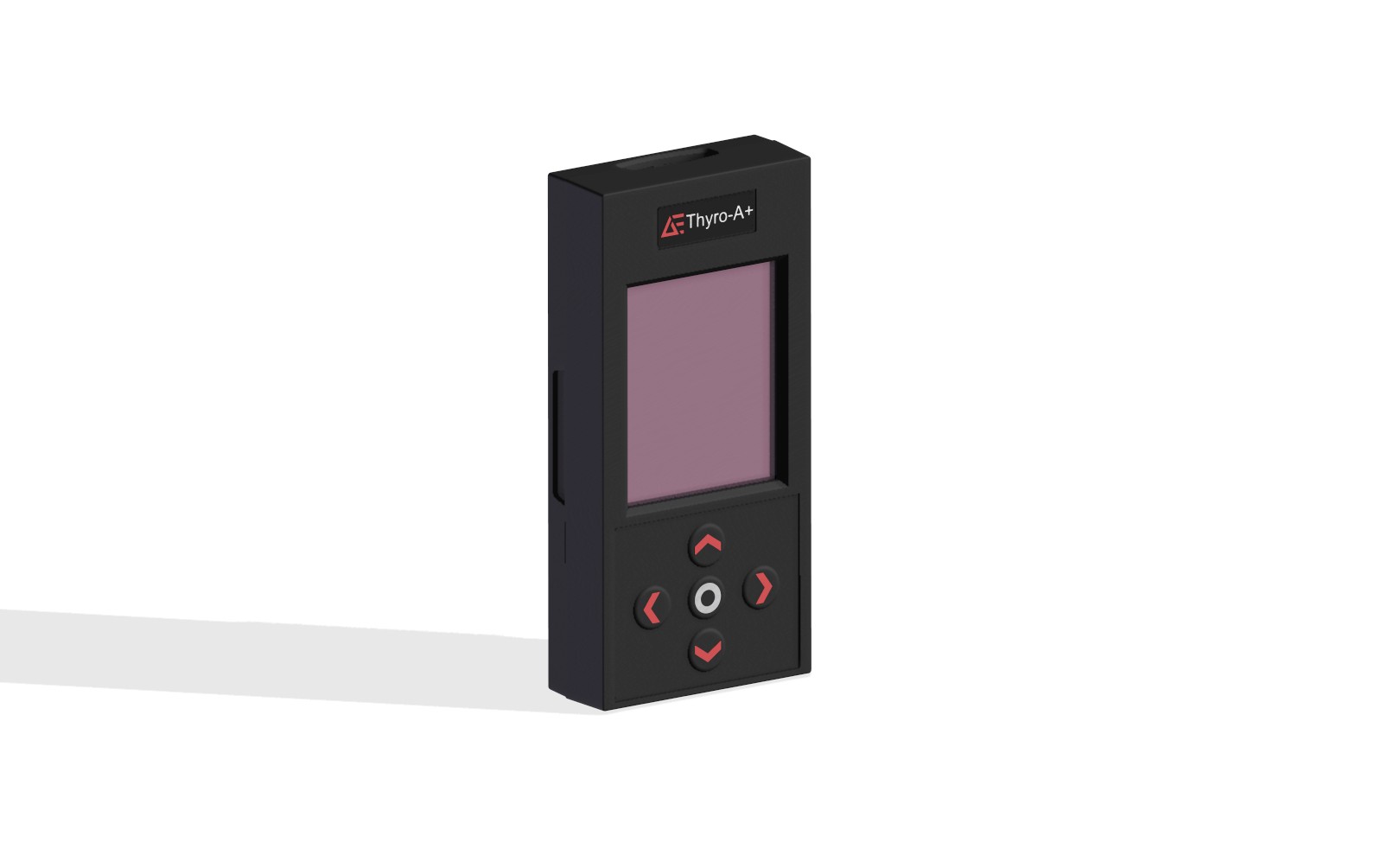

Thyro-A+ Display
Display on board information access

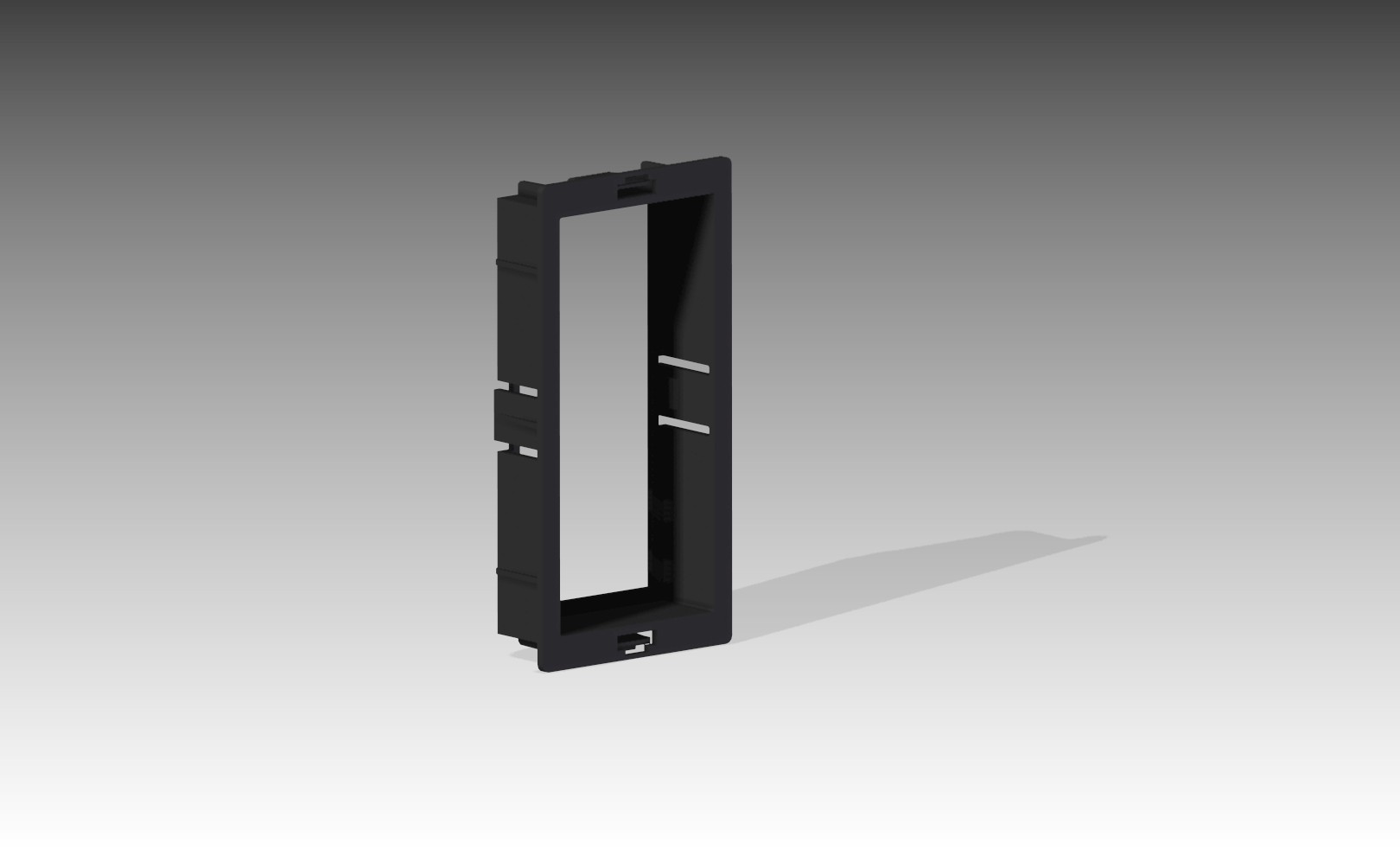

Thyro-A+ Frame Kit
Frame Kit for display front door assembly
Thyro Basic Bus Module
Bus module for connection of up to 8 power controllers, optional dASM
- Basic Bus Module Anybus Profibus Manual (1 MB)
- BasicBusModule EtherCAT Software (32 KB)
- BasicBusModule EthernetIP Software (13 KB)
- BasicBusModule Profibus Software (7 KB)
- BasicBusModule Profinet Software (38 KB)
- Thyro Basic Bus Module Operating Manual (1 MB)
- Thyro Basic Bus Module Software (466 MB)
- Thyro Family Accessories Brochure (2 MB)
Thyro Anybus Module - EtherNet/IP
Communication Module Adds EtherNet/IP Interface
Thyro Anybus Module - EtherCAT
Communication Module Adds Another Interface
Thyro Anybus Module - Profibus
Communication Module Adds the Profibus Interface
Thyro Anybus Module - Profinet
Communication Module Adds Profinet Interface
Thyro Anybus Module - Modbus
Communication Module Adds Modbus TCP Interface
Thyro GSD Software
Download Thyro GSD files
- Thyro GSD CANopen (Thyro-S, -A, -AX) (13 KB)
- Thyro GSD DeviceNet (Thyro-A, -AX) (47 KB)
- Thyro GSD EtherCAT (Thyro-PX) (13 KB)
- Thyro GSD EthernetIP (Thyro-PX) (11 KB)
- Thyro GSD EthernetIP (Thyro-S, -A, -AX) (4 KB)
- Thyro GSD Profibus (Thyro-PX) (10 KB)
- Thyro-PX ProfiNet Software (Thyro-PX) (16 KB)
- Thyro-PX ProfiNet Software (Thyro-S, -A, -AX) (14 KB)
Thyro Tool Pro
Thyro Tool software is custom software made for Thyro SCR Power Controllers
技术文档
软件
比较
Model | Thyro-A+ Power Controller | Thyro-S Power Controller | Thyro-A Power Controller | Thyro-PX Power Controller |
---|---|---|---|---|
频率(赫兹) | 47 to 63 | 47 to 63 | 47 to 63 | 47 to 63 |
保险丝 | Integrated semiconductor fuse | Integrated semiconductor fuse | Integrated semiconductor fuse | Integrated semiconductor fuse |
运行模式 | TAKT, VAR, QTM, VT Mode and with optional BasicBusModule | TAKT and with optional BasicBusModule | TAKT, VAR, QTM, and with optional BasicBusModule | TAKT, VAR, VSC, Soft start, soft down |
额定电流 (A) | Up to 650 A | Up to 350 A | Up to 1500 A | Up to 5000 A |
额定电压 (V) | Up to 500 V | Up to 500 V | Up to 500 V | Up to 690 V |
通信接口 |
Display for Thyro-A+ configuration with optional SD memory card and process data recorder
BasicBusModule with Anybus Digital Interface Card Micro-USB connector for Thyro-Tool Pro PC software connection |
Micro-USB connector for Thyro-Tool Pro PC software connection BasicBusModule with Anybus Digital Interface Card |
Micro-USB connector for Thyro-Tool Pro PC software connection
BasicBusModule with Anybus Digital Interface Card |
USB interface for Thyro-Tool Software
RS232 interface for Thyro-Touch Display |
