Trek 344 Series

Active

Precision, Non-Contacting Electrostatic Voltmeter for Surface Voltage Measurements 0 to ±2 kV DC or Peak AC

The Trek® 344 is a precision electrostatic voltmeter for making non-contacting surface voltage measurements in the range of 0 to ±2 kV DC or peak AC. It employs a field-nulling technique that achieves high stability regardless of probe-to-surface spacing changes. The Trek® 344 also features a patented probe design to eliminate the need for close tolerance components. This significantly improves noise and drift performance in the presence of contaminating particulates, under high humidity conditions, and wide temperature ranges.

特点

  • Low noise and drift performance
  • Various probes available for different installation requirements
  • Precision voltage monitor output
  • Easy-to-read LED display

益处

  • Operate via a benchtop, or, with optional hardware, in a standard 19-inch rack. A rack adapter allows you to mount two 344 units together
  • Use low-voltage replica of the measured electrostatic potential for monitoring purposes, or use as a feedback signal in a closed-loop system
  • Turn high voltage power supply on or off using a remote device
  • Easily use for automated or computer-controlled systems

规格

工作温度范围 (°C): 0 to 40
测量范围: 0 to ±2000 V
测量精度 (%): ±0.05%
响应速度(毫秒): <3

配件

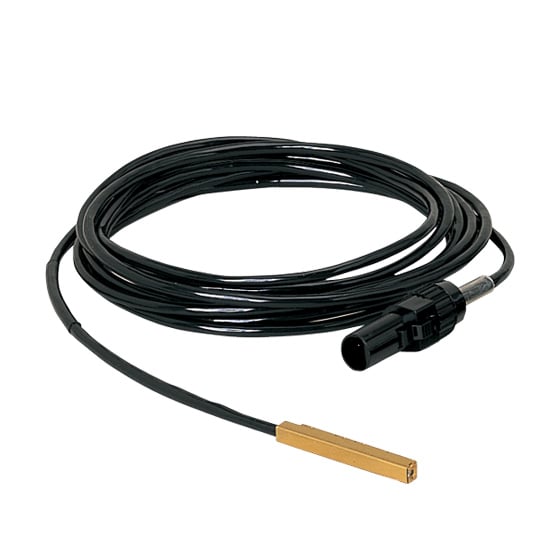

Trek Non-Contacting Voltmeter Probes

We offer an assortment of probes with multiple views, shapes, and aperture sizes available. You can also choose from high temperature and resolution probes for extreme temperatures and critical measurements.

技术文档

服务

Calibration and Alignment

Advanced Energy has the tools and processes to ensure your equipment continues to meet its original specifications.  Our products are calibrated at global AE service sites with proprietary technology designed to exceed industry standards​.
