SL Power™

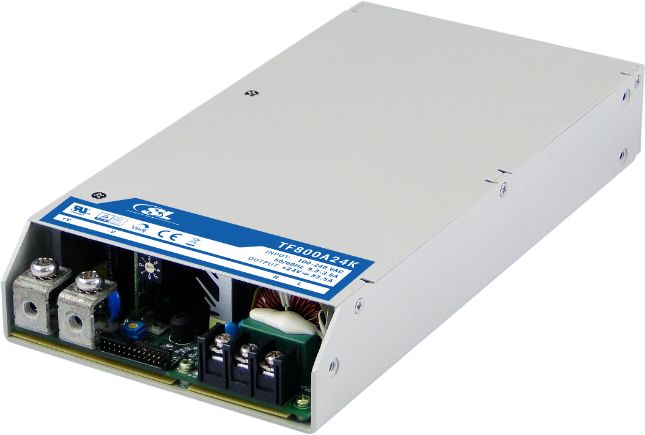

TF800 Series

Active

800 W Single Output Industrial Grade

Advanced Energy’s SL Power TF800 series of industrial grade AC-DC fan-cooled power supply comprises seven output models. All models feature industrial safety approvals and accept a universal input of 90 to 264 VAC. These compact switch-mode power supplies feature output overvoltage, overtemperature, overload protection, with short-circuit protection on all output models. TF800 series power supplies provide up to 800 W of output power with remote setting multiple PSU and global control function.

特点

  • 800 W Fan-cooled (Load & Temperature Controlled)
  • Programmable output Voltage (0% to 105%)
  • Programmable output Current (0% to 105%)
  • Selectable +5 V / 0.5 A or +9 V / 0.3 A auxiliary output

益处

  • Certified to EN/IEC/cUL62368-1
  • PMBus and Control Functionality
  • Digital Monitoring Features
  • Forced current sharing at parallel operation
  • Constant current limit
  • Remote setting multiple PSU via RS232, RS485 & I²C
  • Power OK signal
  • Remote ON / OFF, Remote sense function
  • Protection: OVP, OLP, OTP, Fan failure

规格

输出功率(瓦): 800
长度(英寸): 9.8
宽度(英寸): 5
高度(英寸): 1.6
安装类型: Embedded PSU
最小输出电流 (A): 13.4
最大输出电流 (A): 66.7
输出电压范围 (V): 12V to 60V
所有规格 折叠规格

库存检查

型号
最小值电压 (V) 最大电压电压 (V) 电流 (A) 标称电压 (V) 输出数量 样品 购买
TF800A12K 活动,有库存
12V @ 66.7A
0 12.6 66.7 12 1 要求 购买
TF800A15K 活动,有库存
15V @ 53.4A
0 15.75 53.4 15 1 要求 购买
TF800A24K Active, 联系我们
24V @ 33.5A
0 25.2 33.5 24 1 联系我们 购买
TF800A48K 活动,有库存
48V @ 16.7A
0 50.4 16.7 48 1 要求 购买
TF800A60K Active, 联系我们
60V @ 13.4A
0 63 13.4 60 1 联系我们 购买
