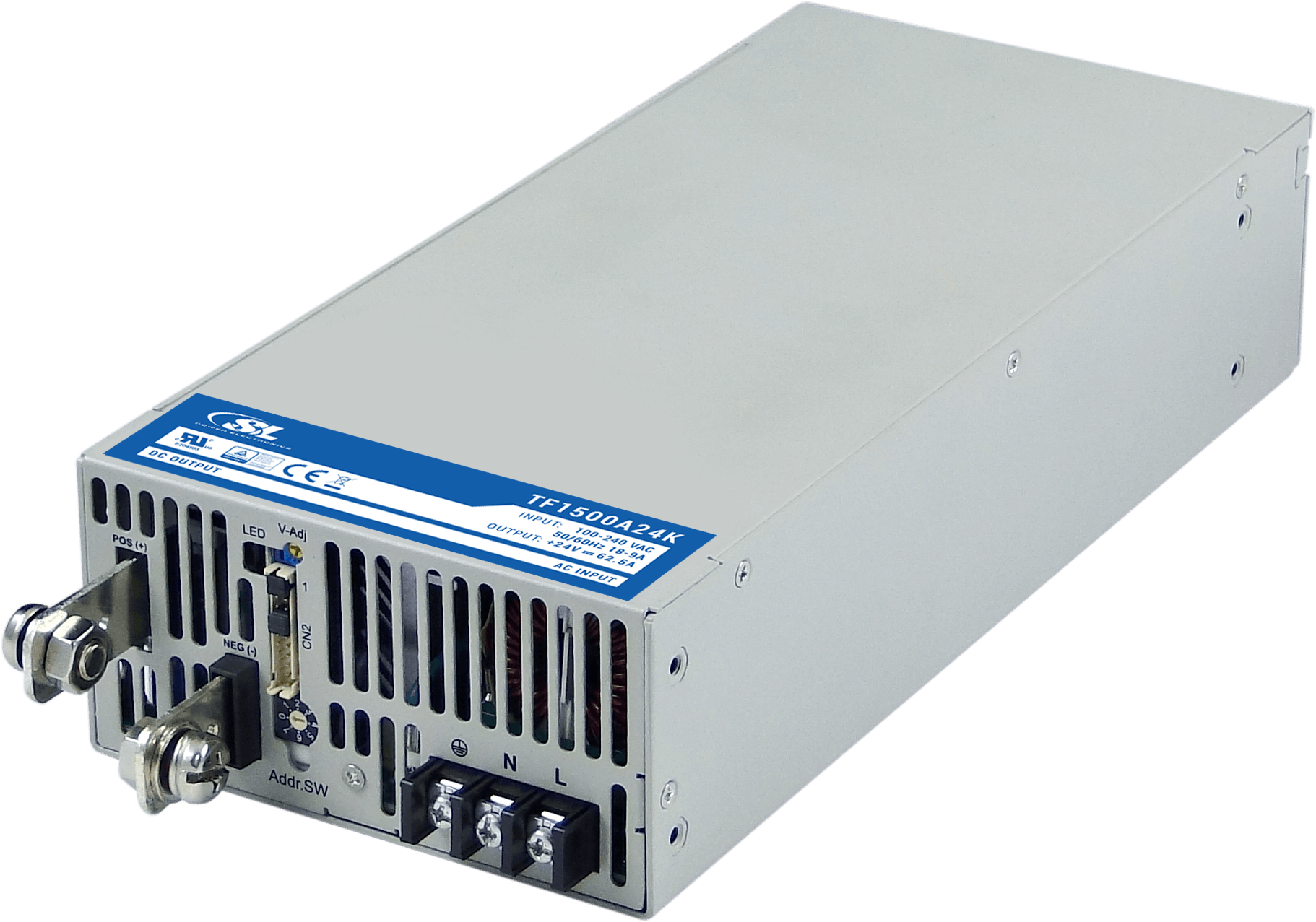

SL Power™
TF1500 Series
Active
1500 W Single Output Industrial Grade
Advanced Energy’s SL Power TF1500 series of industrial grade AC-DC fan-cooled power supply comprises seven output models. All models feature industrial safety approvals and accept a universal input of 90 to 264 VAC. These compact switch-mode power supplies feature output overvoltage, overtemperature, overload protection, with short-circuit protection on all output models. TF1500 series power supplies provide up to 1500 W of output power with remote setting multiple PSU and global control function.
特点
- 1500 W Fan-cooled (Load & Temperature Controlled)
- Programmable output Voltage (0% to 105%)
- Programmable output Current (0% to 105%)
- Selectable +5 V / 0.5 A or +9 V / 0.3 A auxiliary output
益处
- Certified to EN/IEC/cUL62368-1
- Forced current sharing at parallel operation
- Constant current limit
- Remote setting multiple PSU via RS232, RS485 & I²C
- Power OK signal
- Remote ON / OFF, Remote sense function
- Protection: OVP, OLP, OTP, Fan failure
- 3 Year Warranty
- RoHS Compliant
规格
| 输出功率（瓦）: | 1500 |
|---|---|
| 长度（英寸）: | 11.02 |
| 宽度（英寸）: | 5 |
| 高度（英寸）: | 2.5 |
| 安装类型: | Embedded PSU |
| 最小输出电流 (A): | 25 |
| 最大输出电流 (A): | 125 |
| 输出电压范围 (V): | 12V to 60V |
技术文档
Product Information Documents
Safety & Compliance Certificates
Guides & Manuals
Engineering Resources
Insights & Studies
技术视频
TF Series High Power
2月 13, 2024
Advanced Energy’s SL Power TF family was designed for power-hungry applications such as automatic test, semiconductor test, and industrial imaging just to name a few. These applications require power supplies that are flexible, compact, and reliable, beyond simple considerations of input and output.
