Artesyn™

iLS600-R Series

Active

Intelligent Laboratory Power 600 W Bench Programmable Power Supplies

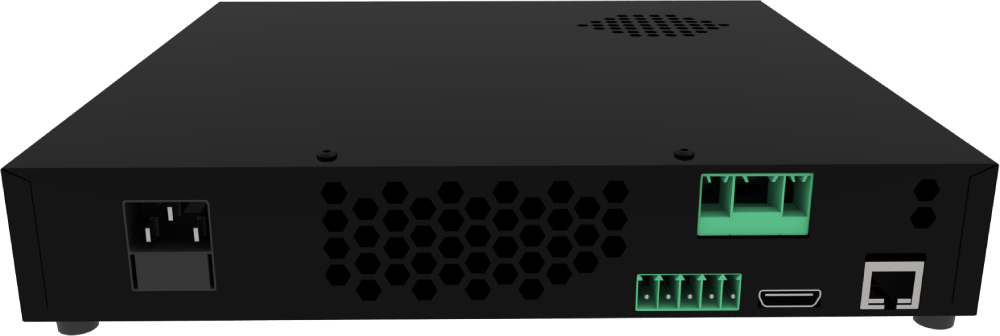

Advanced Energy’s Artesyn iLS600-R series are programmable DC power supplies with a single output that offers output power to 600 W. With 12-bit D/A & A/D converters embedded, the power supplies come with the capability of reporting voltage and current very accurately. The iLS600-R series provide convenient digital rotary controls for voltage and current adjustment and the power supplies also come with rear ports that allow remote control via USB, Ethernet, and analog control inputs. iLS600-R series are LXI certified, details for using this interface can be found in our Programming Manual.

特点

  • 5 models: up to 400V and 33A
  • 600W with extended range
  • Small, highdensity 1U package
  • Input Voltage 100 - 240 Vac
  • #of Outputs 1
  • Total Power 600 Watts
  • Output Voltage 30 - 400 V
  • Output Current 2.5- 33 A
  • RMS Constant Voltage 20 - 150 mV
  • P - P Constant Voltage 60 - 200 mV
  • Load: 10-90% - Voltage 15 - 200 mV
  • Load: 10-90% - Current 15 mV
  • Line: 180-260 VAC Input2,3 - Voltage 15 - 200 mV
  • Line: 180-260 VAC Input2,3 - Current 15 mV
  • Weight 6 lbs. (2.7 Kg)

益处

  • Built-in voltage and current measurement
  • Full OCP and OVP protection
  • LXI certified
  • Series and parallel operation
  • Wireless digital remote sense

规格

输出功率(瓦): 600
长度(英寸): 10.3
宽度(英寸): 8.82
高度(英寸): 1.73
安装类型: Rack-mount
最小输出电流 (A): 2.5
最大输出电流 (A): 33
输出电压范围 (V): 30V to 400V
所有规格 折叠规格

库存检查

型号
最小值电压 (V) 最大电压电压 (V) 电流 (A) 标称电压 (V) 输出数量 样品 购买
iLS600-10-R Active, 联系我们 100 100 10 100 1 联系我们 购买
iLS600-20-R 活动,有库存 200 200 5 200 1 要求 购买
iLS600-3-R 活动,有库存 30 30 33 30 1 要求 购买
iLS600-40-R 活动,有库存 400 400 2.5 400 1 要求 购买
iLS600-5-R 活动,有库存 50 50 20 50 1 要求 购买
