Artesyn™

AEE 50W High I/P Version Series

Active

50 W Isolated DC-DC Converters

The AEE series of 50 W isolated DC-DC converters features a 4:1 wide input voltage range of 18 VDC to 75 VDC and typical efficiency of 92%. Designed for use with nominal 48 V supplies in ruggedized applications, including industrial automation, instrumentation, test and measurement, and telecommunications, the series comprises models with single-output voltages of 3.3, 5, 12, 15, and 24 VDC. The 3.3 VDC model is rated at 33 W output.

Standard features include 1500 VDC input/output isolation, protection against overvoltage, overcurrent and overtemperature conditions, and remote on/off. Operating temperature range is -40 to +80℃ without derating.

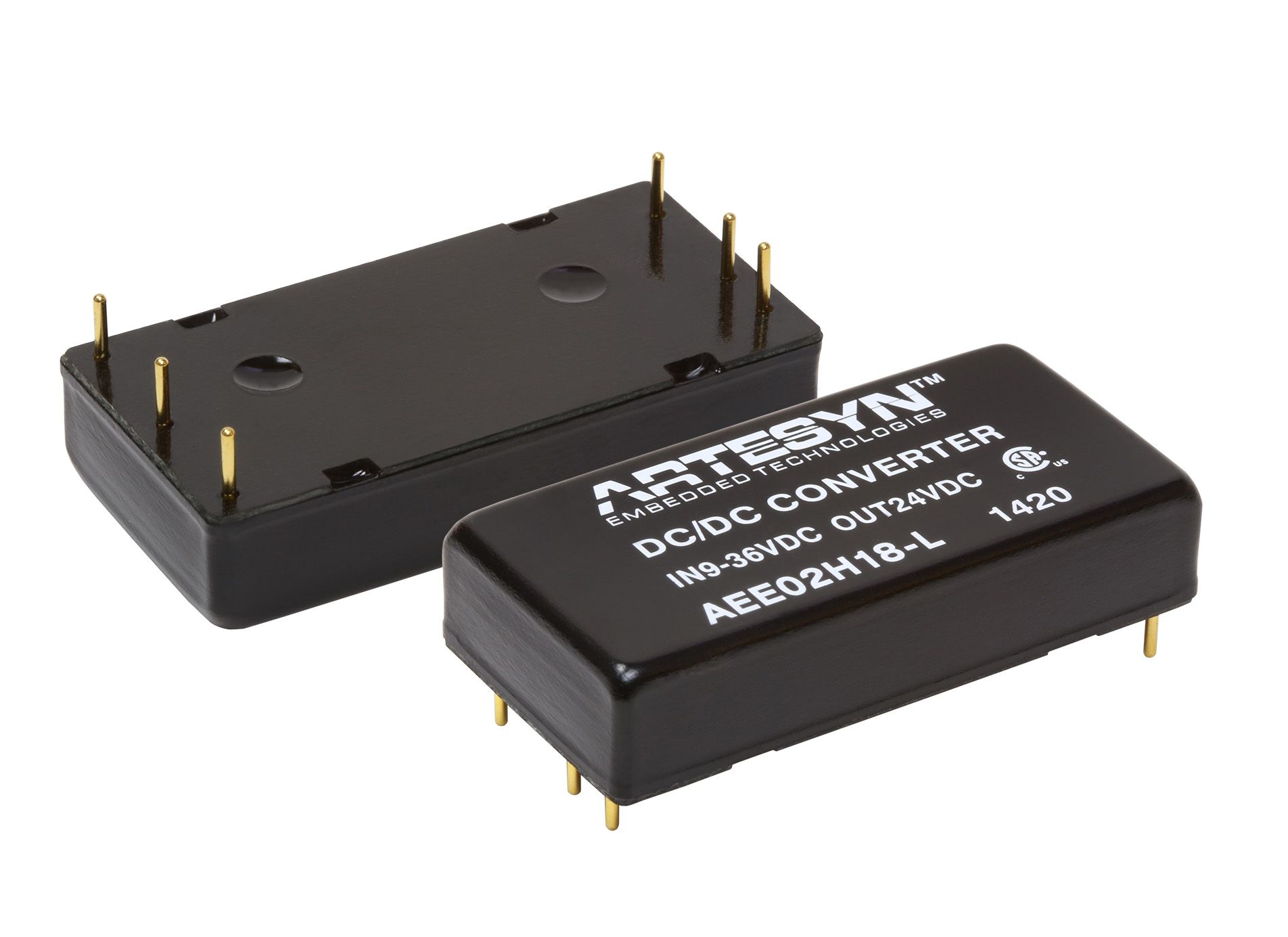

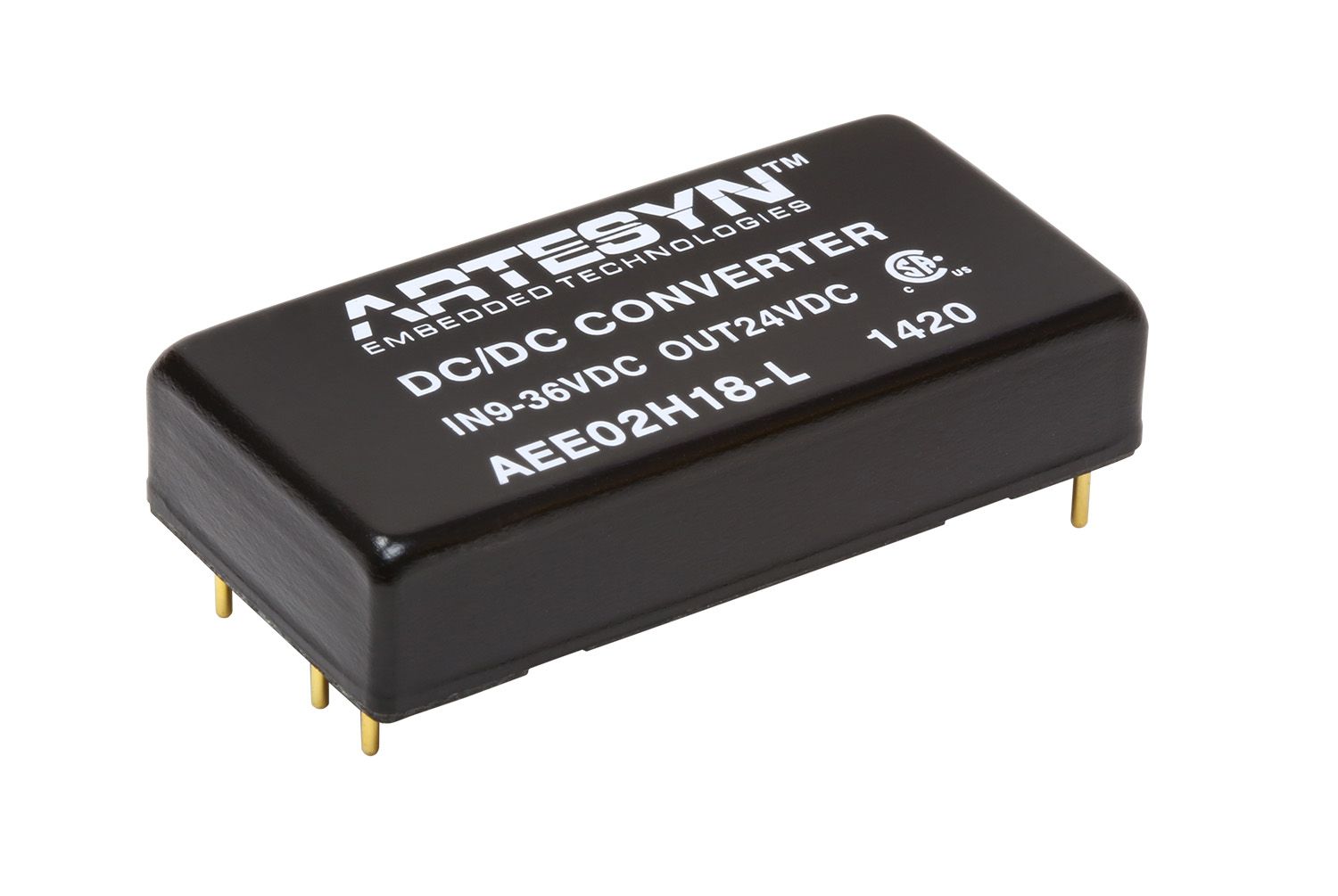

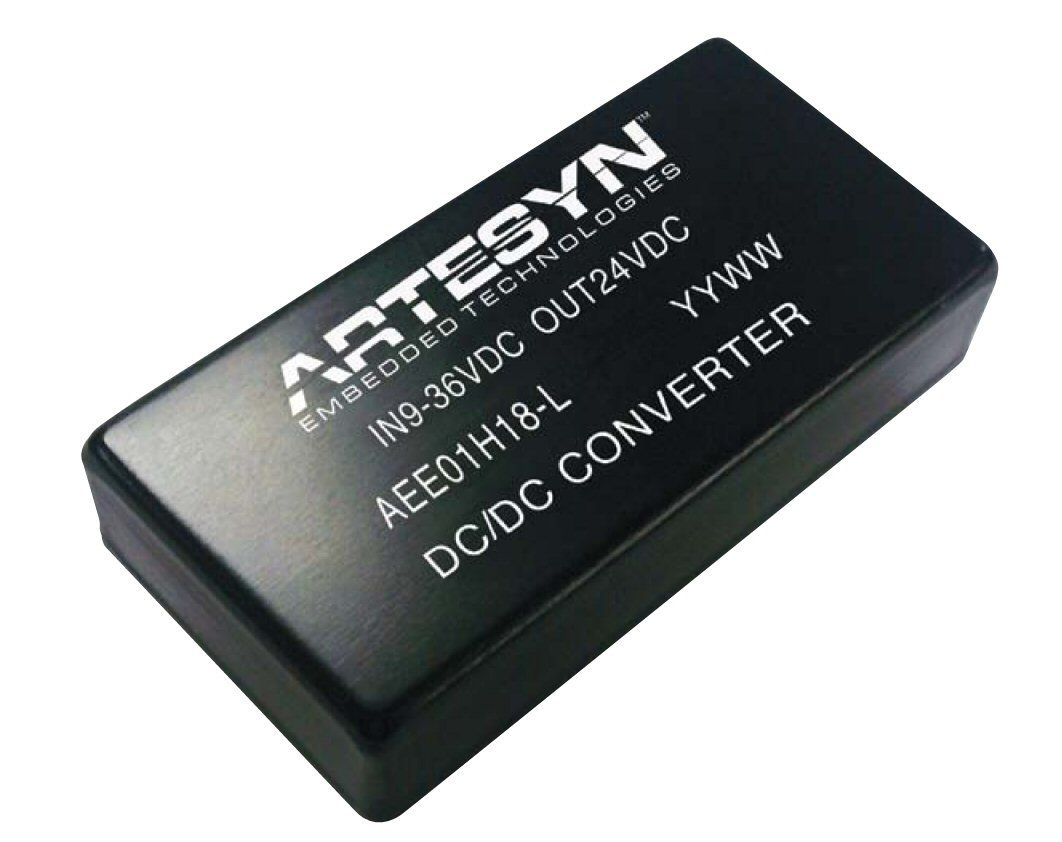

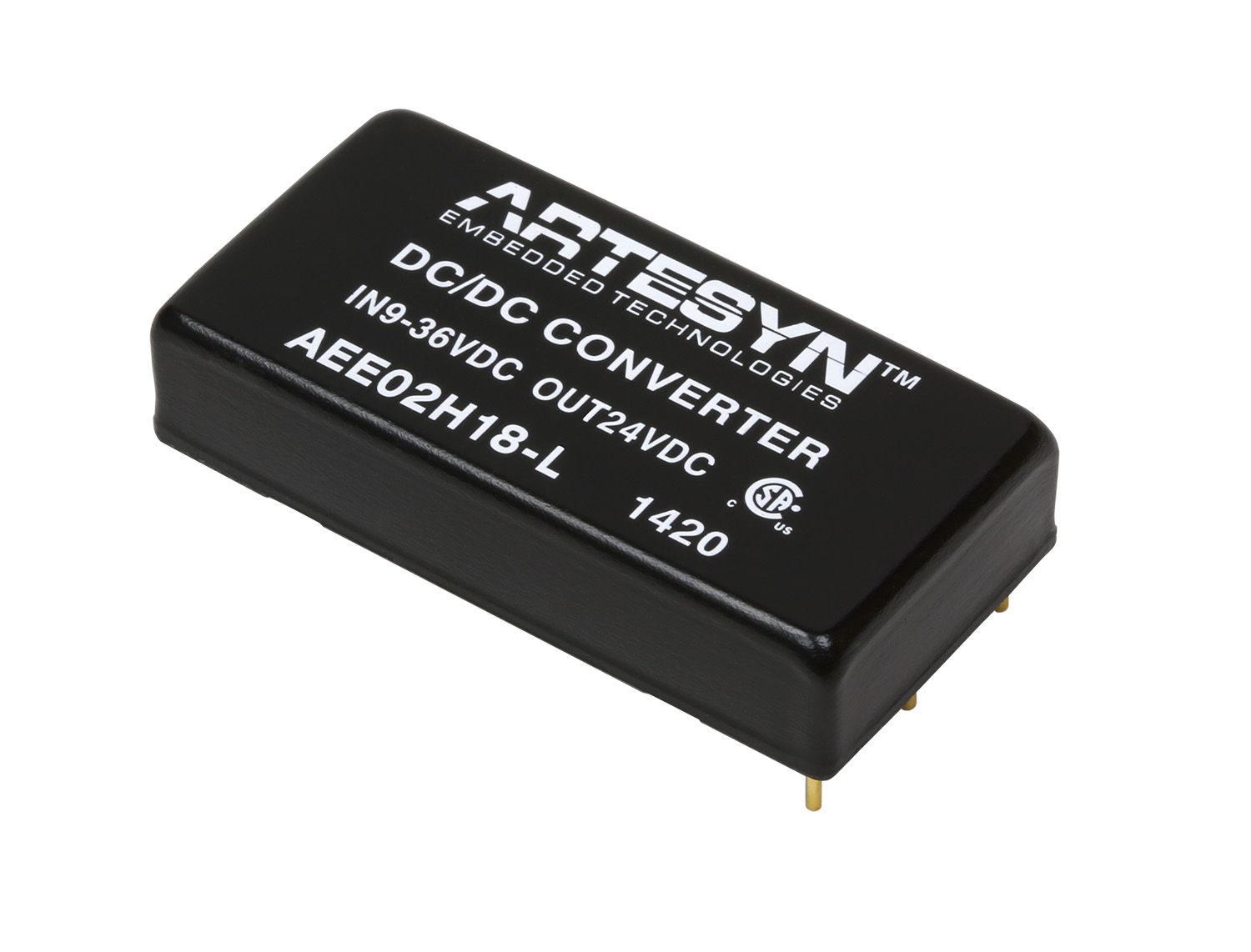

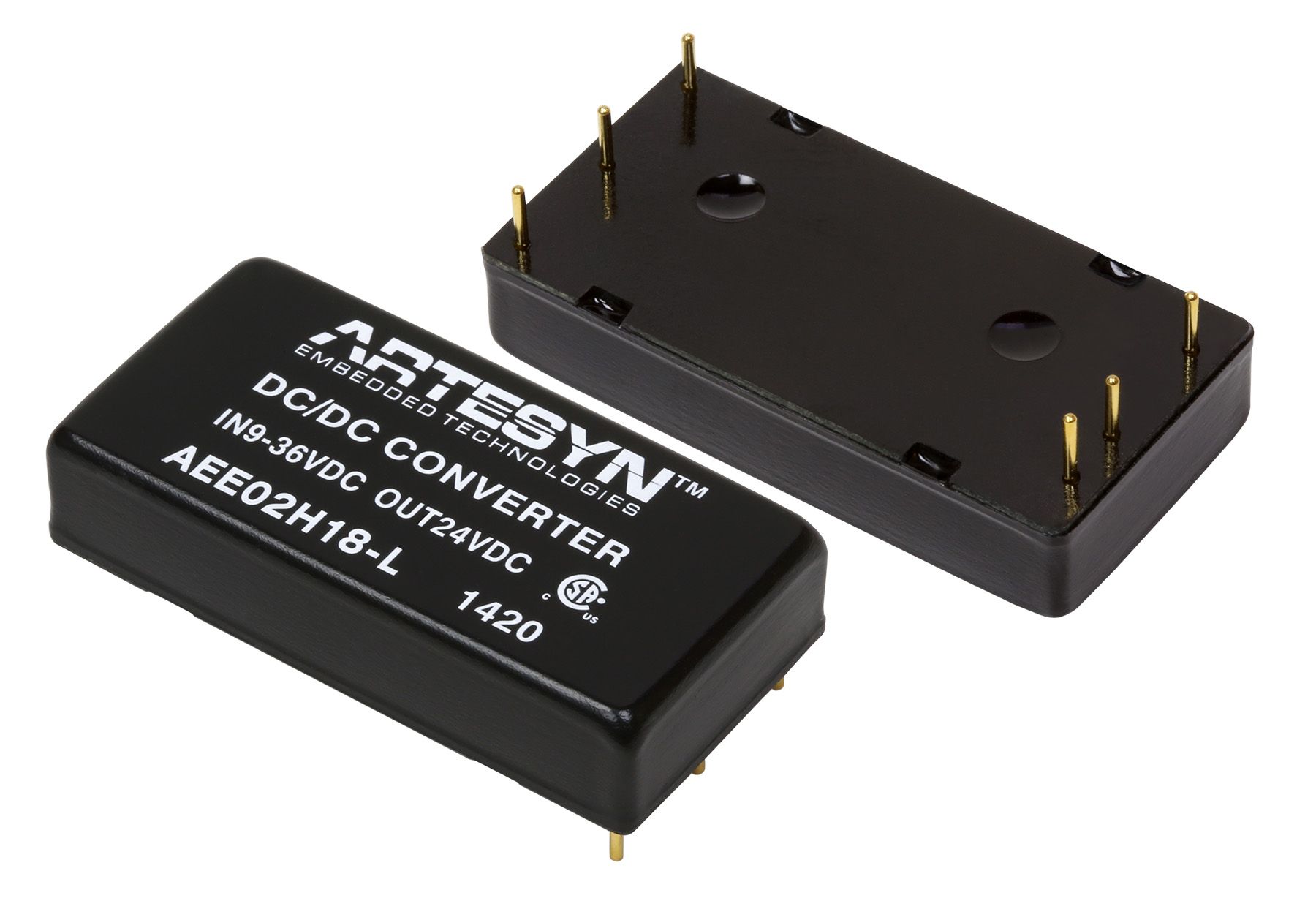

The fully potted, metal-cased construction is 1 x 2 x 0.4 inches (25.4 x 50.8 x 10.2 mm), with the 24 VDC model taller at 0.43 inch (11 mm).


特点

  • Input voltage 18 to 75Vdc
  • Output voltage 3V3, 5V, 12V, 15V, 24V
  • Isolation 1500Vdc
  • Mechanical 2 inch by 1 inch

益处

  • Construction Metal case, fully potted
  • Mechanical Heatsink option

规格

输出功率(瓦): 50
长度(英寸): 2
宽度(英寸): 1
高度(英寸): 0.4
安装类型: BMP; Through Hole
最小输出电流 (A): 0
最大输出电流 (A): 10
输出电压范围 (V): 3V to 28.8V
所有规格 折叠规格

库存检查

型号
最小值电压 (V) 最大电压电压 (V) 电流 (A) 标称电压 (V) 输出数量 样品 购买
AEE02H36-L 活动,有库存 21.6 28.8 2.08 24 1 要求 购买
AEE03C36-L 活动,有库存 13.5 16.5 3.33 15 1 要求 购买
AEE04B36-L 活动,有库存 10.8 13.2 4.17 12 1 要求 购买
AEE10A36-L 活动,有库存 4.5 5.5 10 5 1 要求 购买
AEE10F36-L 活动,有库存 3 3.6 10 3.3 1 要求 购买
