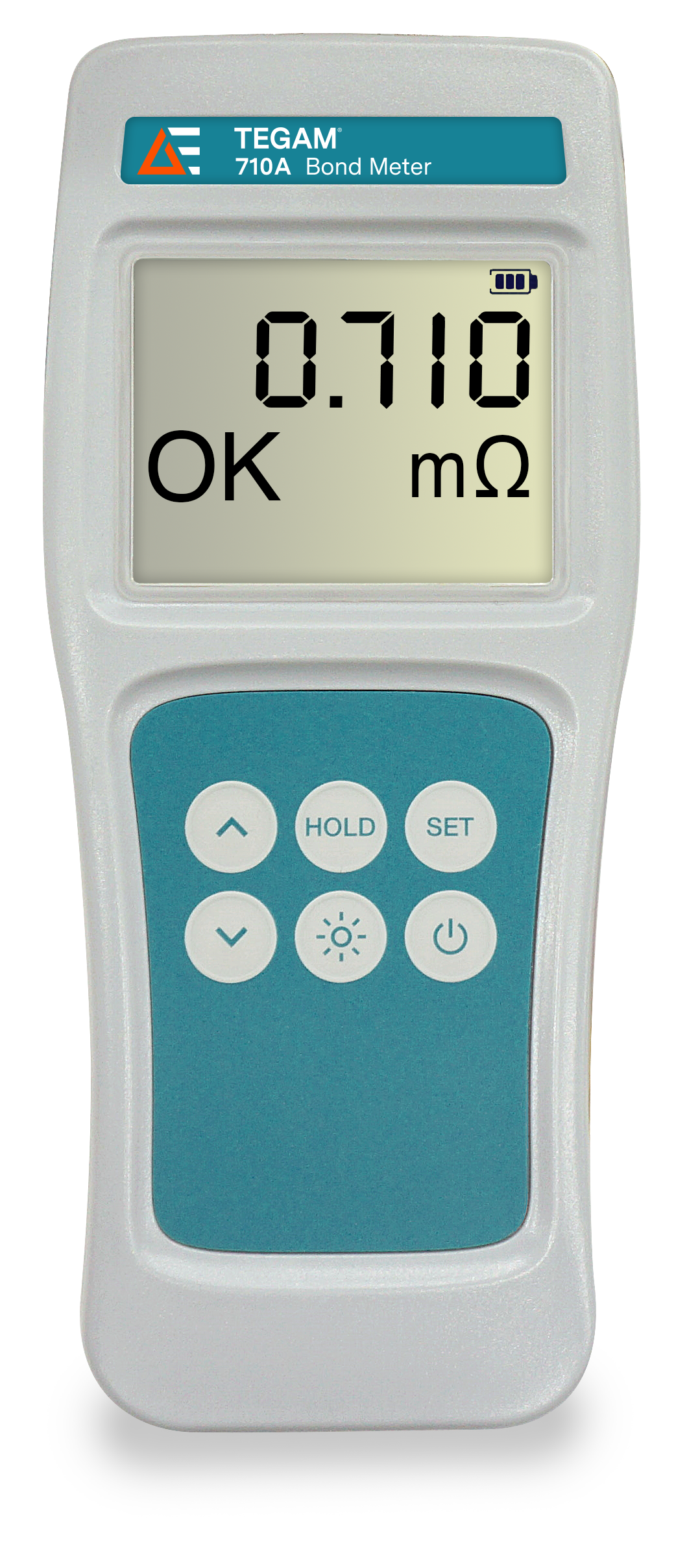

710A Bond Meter / Milli-Ohmmeter

Active

Superior accuracy, 100-hour battery life, and a 3-year warranty

TRUST is an essential feature in any measurement tool and TEGAM’s new 700 Series bond meters and milli-ohmmeters are instruments you can rely on every day with confidence. These new models are designed with the clearest and most informative displays for mistake-free measurements. They quickly produce accurate readings to reduce the time spent measuring.

TEGAM Bond Meters for Your Industry

  • Aerospace: Verify mechanical and electrical bonds for safety, conductivity, mechanical integrity, RF shielding and lightning protection. TEGAM is the largest provider of bond meters/milli-ohmmeters to the US Armed Forces.
  • Alternative Energy: Solar arrays and wind turbines are prone to lightning strikes. The integrity of their grounds must be maintained and restored after an event. A small increase in the resistance translates into a dangerous voltage when thousands of amps are flowing.
  • Automotive: Battery Electric Vehicles contain many high current interconnections and over current protection. Verifying the low resistance is essential to preventing fires and poor performance. Conventional ICE engines also rely on many electric systems that are verified with TEGAM instruments.
  • Electronics: Validate circuit board elements and traces with low resistance measurements that can detect thin or undersized conductors. Check connections and current limiting resistors in situ.
  • Electrical Systems: The 710A milli-ohmmeter is sensitive enough to detect loose bus bars, damaged shunts, failing fuses and poor cable terminations.

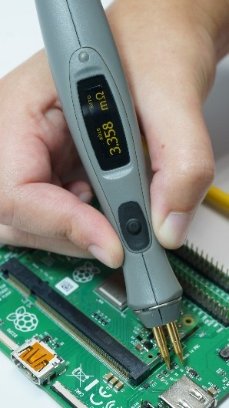

4-WIRE PROBES are often more important than the instrument. No one has a wider range of configurations to meet and adapt to your needs. From tight spacing to piercing paint, we have a tip configuration to make your job easier. The dual connector system permits a Kelvin Clip on one lead for secure ground connection while the ergonomic tri-shape probe on the second lead can be used for accessing multiple points with one hand. Designed for one-handed operation, these tools are comfortable to carry and use for extended periods of time.

Like all TEGAM products, the 700 Series bond meters and milli-ohmmeters are designed, assembled and tested in the United States.  TEGAM backs this durable instrument with a 3-year warranty to assure you that your investment is sound.




特点

  • Bond Meter Accuracy: ±(0.2% Reading + 0.02 Range), 18 to 28°C
  • Temperature Range : -10 to 55 °C / 14 to 131°F
  • Reading Rate: 3 Readings per second
  • Connector Type : M12
  • Battery: 3AA (IEC LR6, ANSI 15) Alkaline
  • 100 Hour Battery Life
  • 4-digit Auto-Ranging with Backlight and Function Annunciators
  • Creative Ergonomic Design
  • Three-Year Parts & Workmanship Warranty
  • Calibration: Standard Calibration, 17025 Compliant Calibration.
  • Included Accessories: 3AA Batteries, Quick Start Guide, Certificate of Traceability
  • Optional Accessories: Foam-Filled Hard Carry Case, SureGrip Cover, Tilt Stand / Magnetic / Hanger
  • CE, Complies with 47 CFR Part 15 of the FCC rules, Class B
  • Assembled in the USA

益处

  • Superior accuracy for use in the most demanding measurement applications
  • Accuracy remains consistent over the entire operating range
  • Smallest and lightest handheld bond meter make it easy to use in tight or hard-to-reach situations
  • 100-hour battery life and convenient replacement options means these maters are always ready
  • Backlit display allows measurements to be read in poorly lit locations
  • Supported by a wide range of test probe and tip styles

规格

准确性: ±(0.2% rdg + 0.02% rng)
Connector Type: M12
Datalogging: No
Intrinsically Safe: No
Max. Resolution: 1 µΩ
Maximum Test Current: 100 mA
测量范围: 1 µΩ to 100 Ω
工作温度(°C): -10 to 55 ⁰C
所有规格 折叠规格

库存检查

型号
Connector Type Datalogging Intrinsically Safe Maximum Test Current Measurement Range 购买
710A Active, 联系我们
Handheld Bond Meter
M12 No No 100 mA 1 µΩ to 100 Ω 购买
OPT-700-17025 Active, 联系我们
17025 Calibration Option 700 Bondmeter Series
购买

Accessories Stock Check

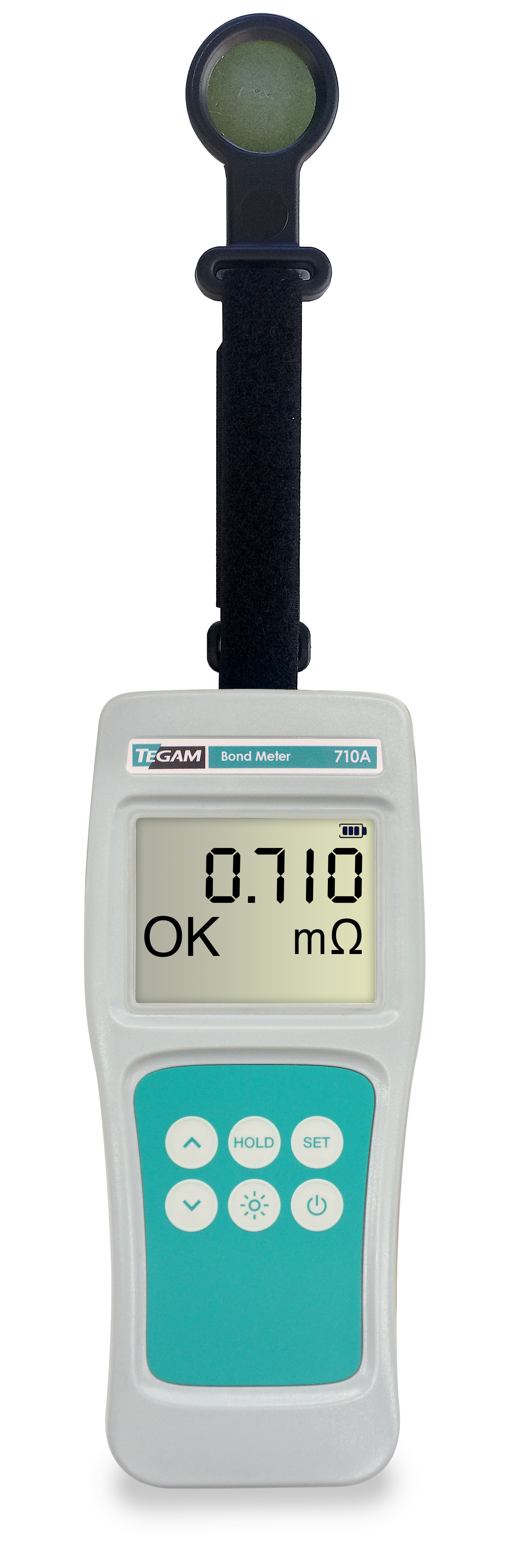

Tilt Stand / Strap Hanger/Magnet (Factory Installed)

Make your 710A Bond Meter & Milli-Ohmmeter even more versatile with this combination tilt stand, hanging magnet, and carrying strap (700-910) for work, display and storage options. The tilt stand locks securely to the back of the 710A when not in use. Hang the 710A anywhere you can stick a magnet. Securely and comfortably hold the 710A with the carrying strap that can also function as a belt loop.

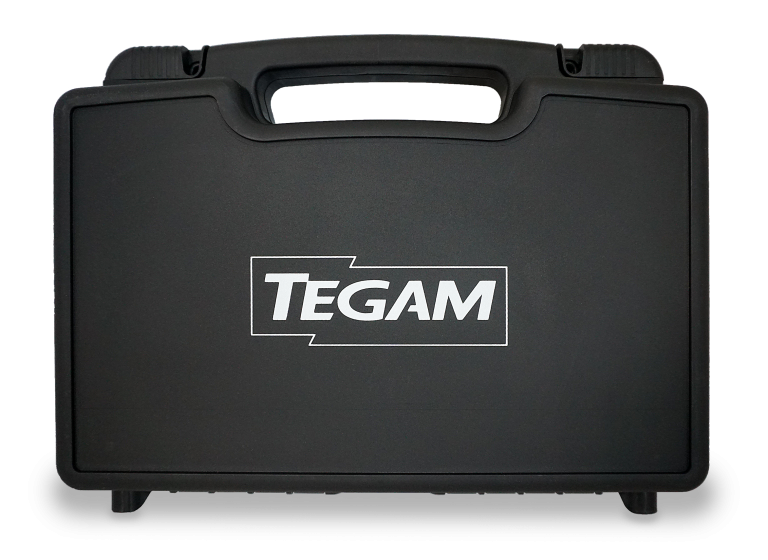

Foam-Filled Hard Plastic Carry Case
Tilt Stand / Strap Hanger/Magnet (User Installed)

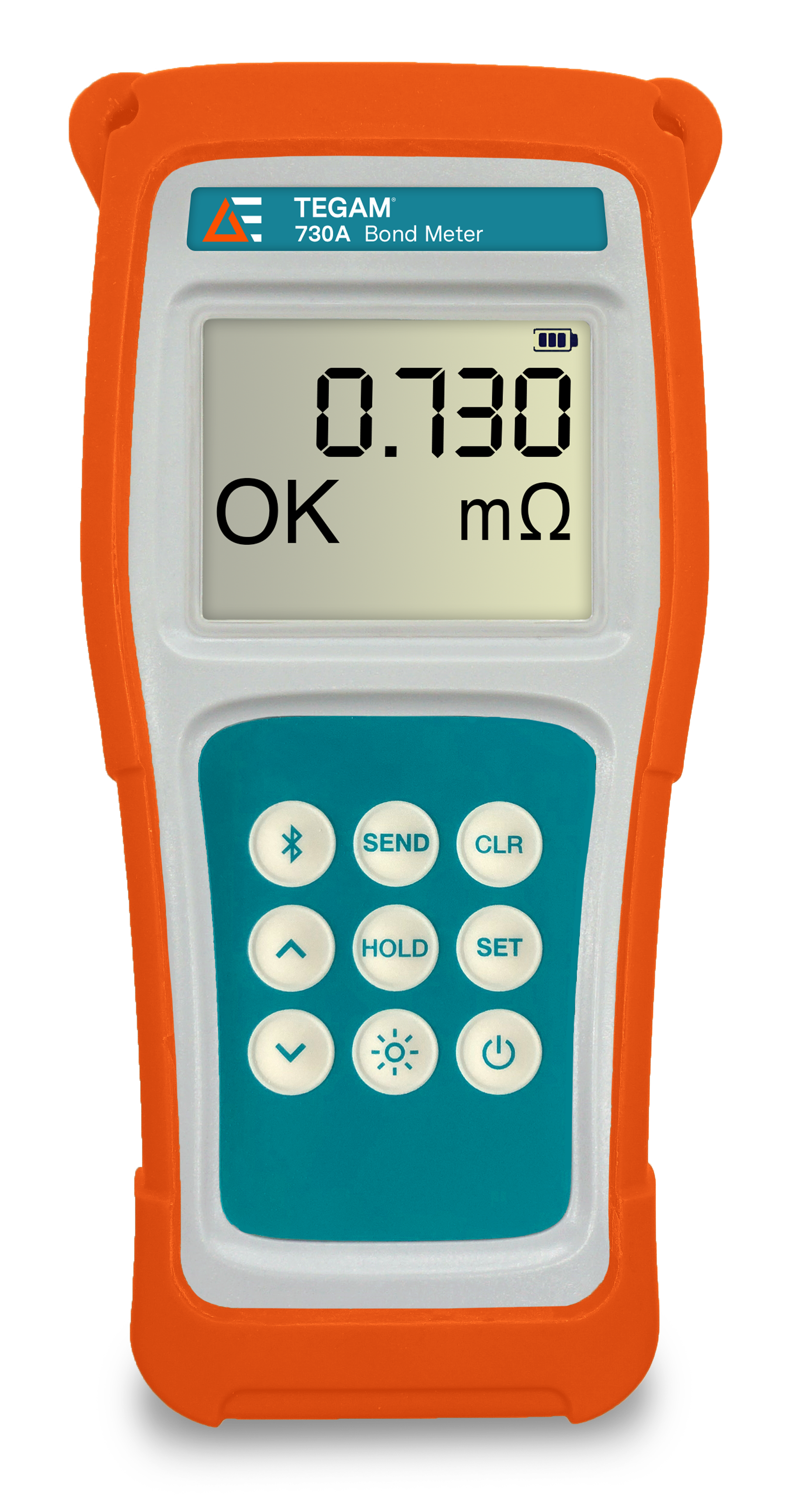

SureGrip Cover with "S" Clip

TEGAM’s SureGrip Cover is designed for a more secure grip to prevent instrument damage from dropping, and possesses elastic properties from non-silicone elastomer which also protect airframes and vehicles from tooling damage due to accidental impacts.
The SureGrip Cover fits our 700 Series non-intrinsically safe Bond Meters and 900 Series Digital Thermometers.& Calibrators
Technical Specifications
Made of non-silicone elastomer for use around composites
SureGrip Cover fits 700 Series Bond Meters and 900 Series Thermometers
Hi-visibility orange to reduce foreign object damage
Lanyard attachment points
Does not interfere with tilt stand/magnet/hanger accessory (Sold separately, Model 700-910)

Iso 17025 Calibration Option, 700 Series Bond Meters

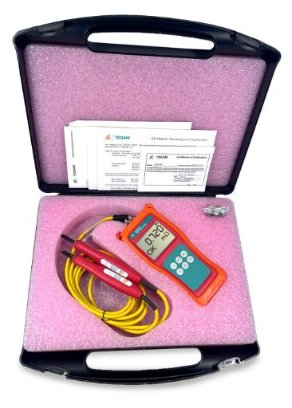

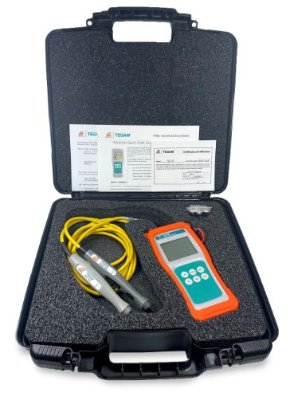

Bond Meter Accessories

Bond Meter Accessories
