Impac 600 Series Pyrometers

Active

Digital, Modular Pyrometers with Exchangeable Sensor Heads for Non-contact Temperature Measurement of Various Surfaces in Different Temperature Ranges Between -40 and 2500 °C.

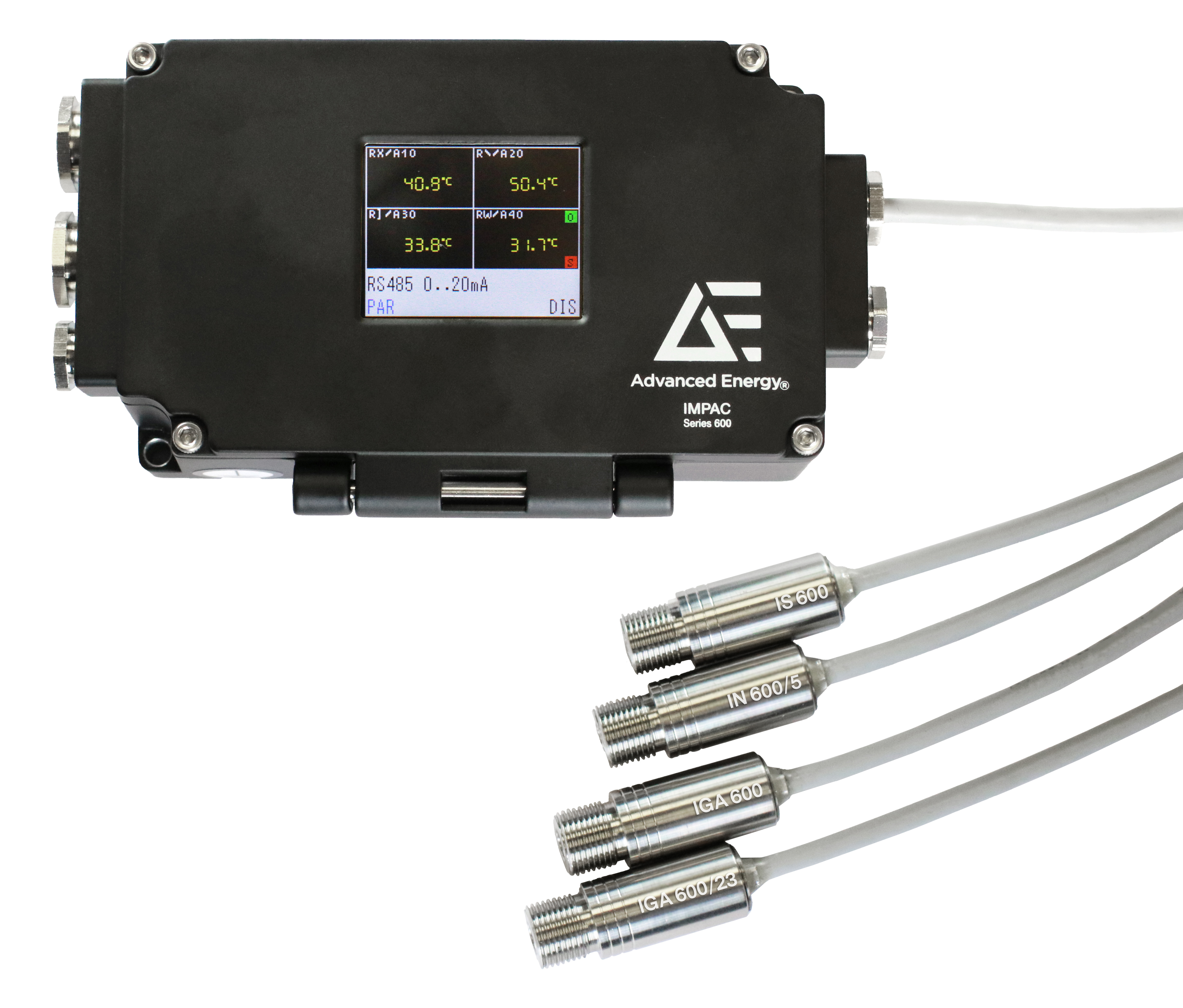

The Impac® 600 series is a digital, modular pyrometer that provides a highly customizable design with easy installation and maintenance. The long-wavelength IN 600 is best suited for non-contact temperature measurement on non-metallic or coated metallic objects. The IS 600, IGA 600, and IGA 600/23 use short wavelengths for measurements of metals, ceramics, or graphite. The IN 600/5 is specifically designed to measure the temperature of glass surfaces.

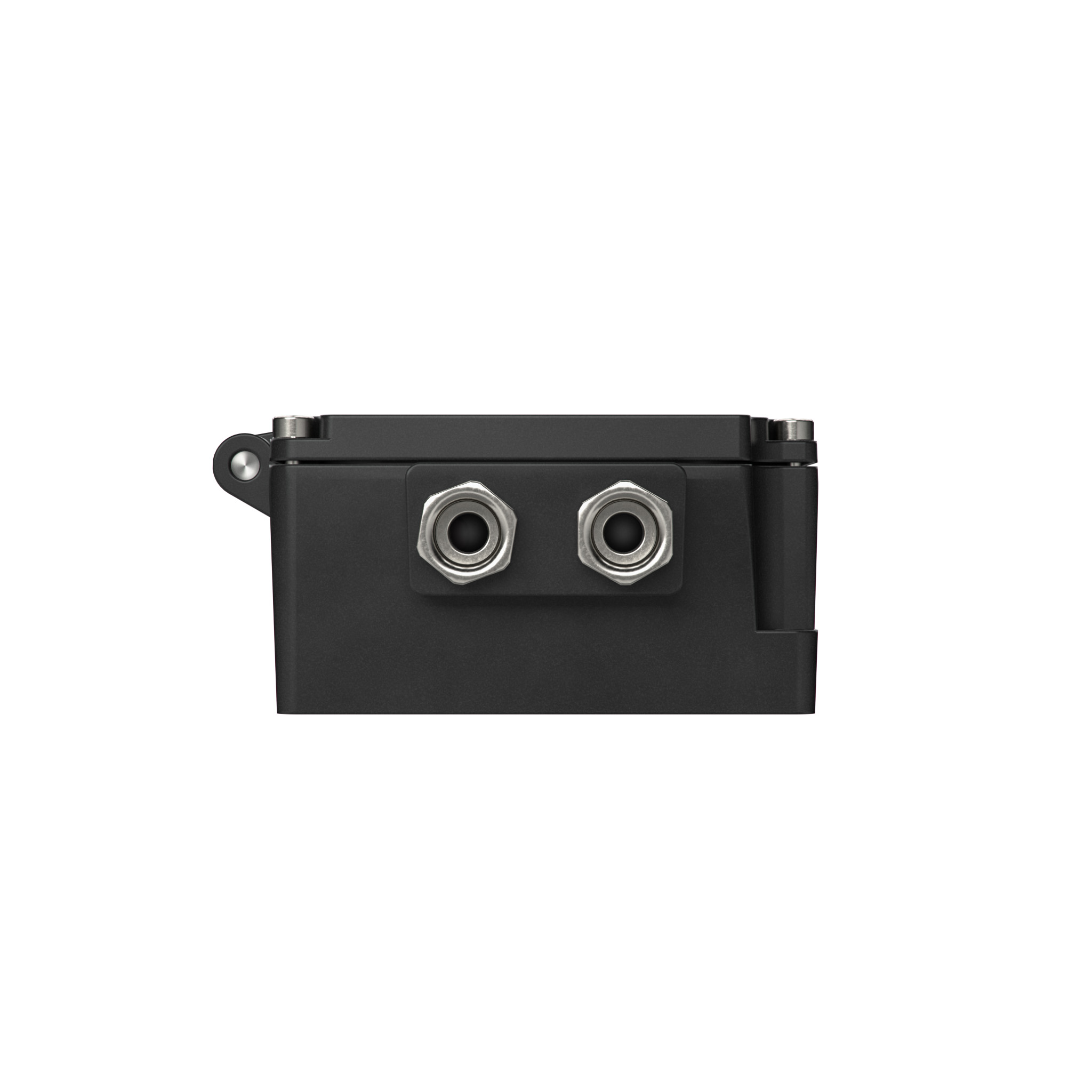

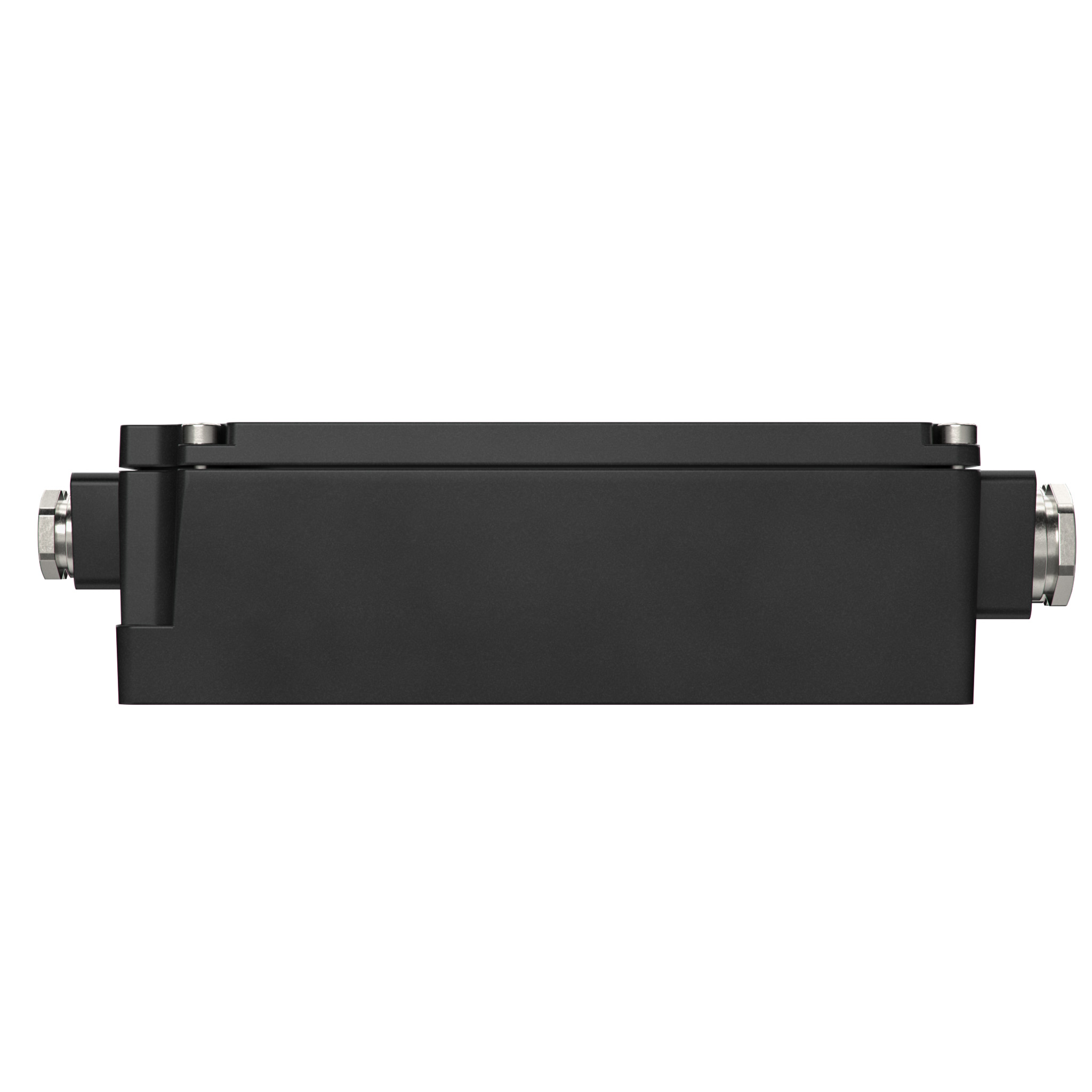

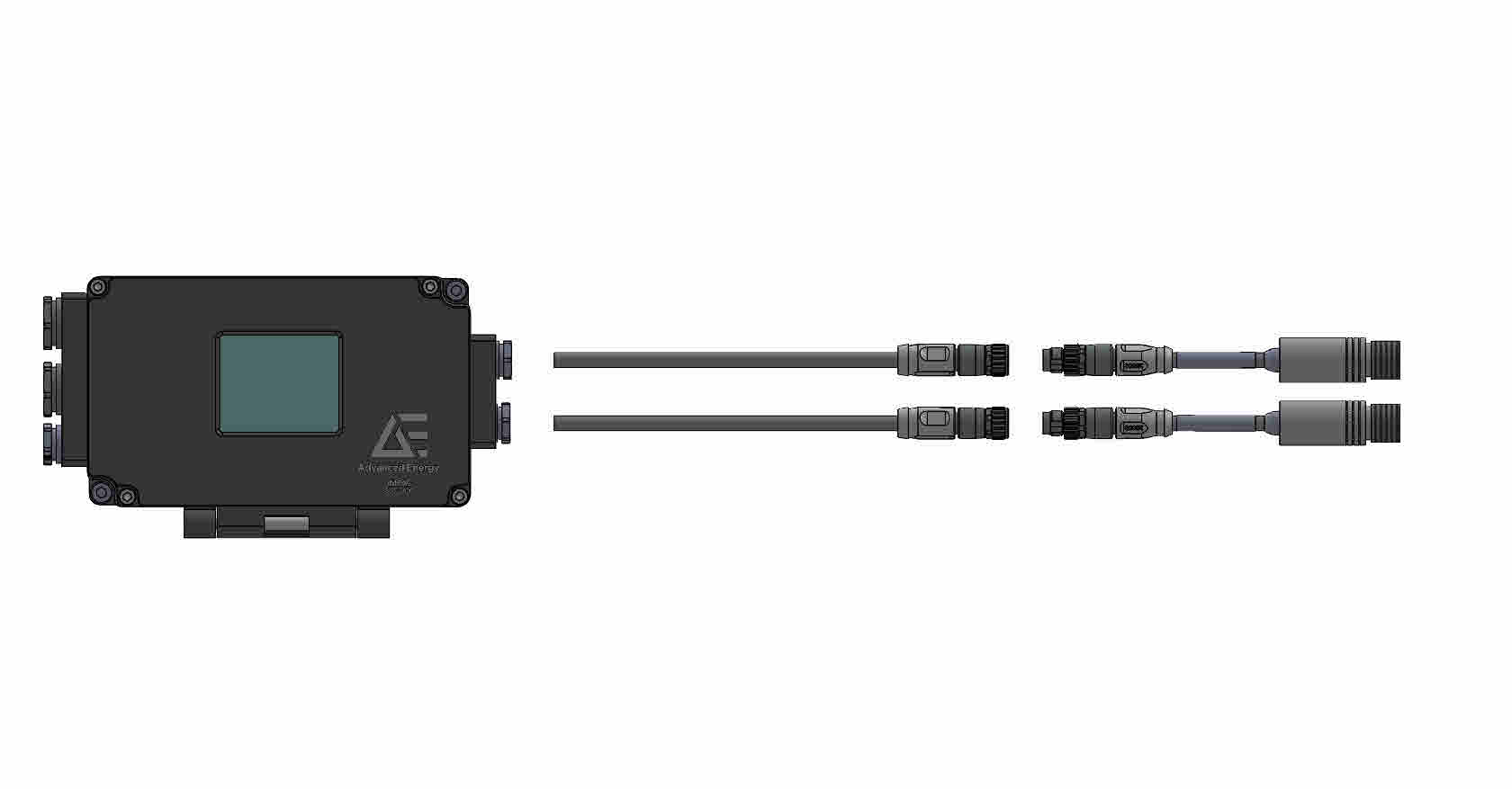

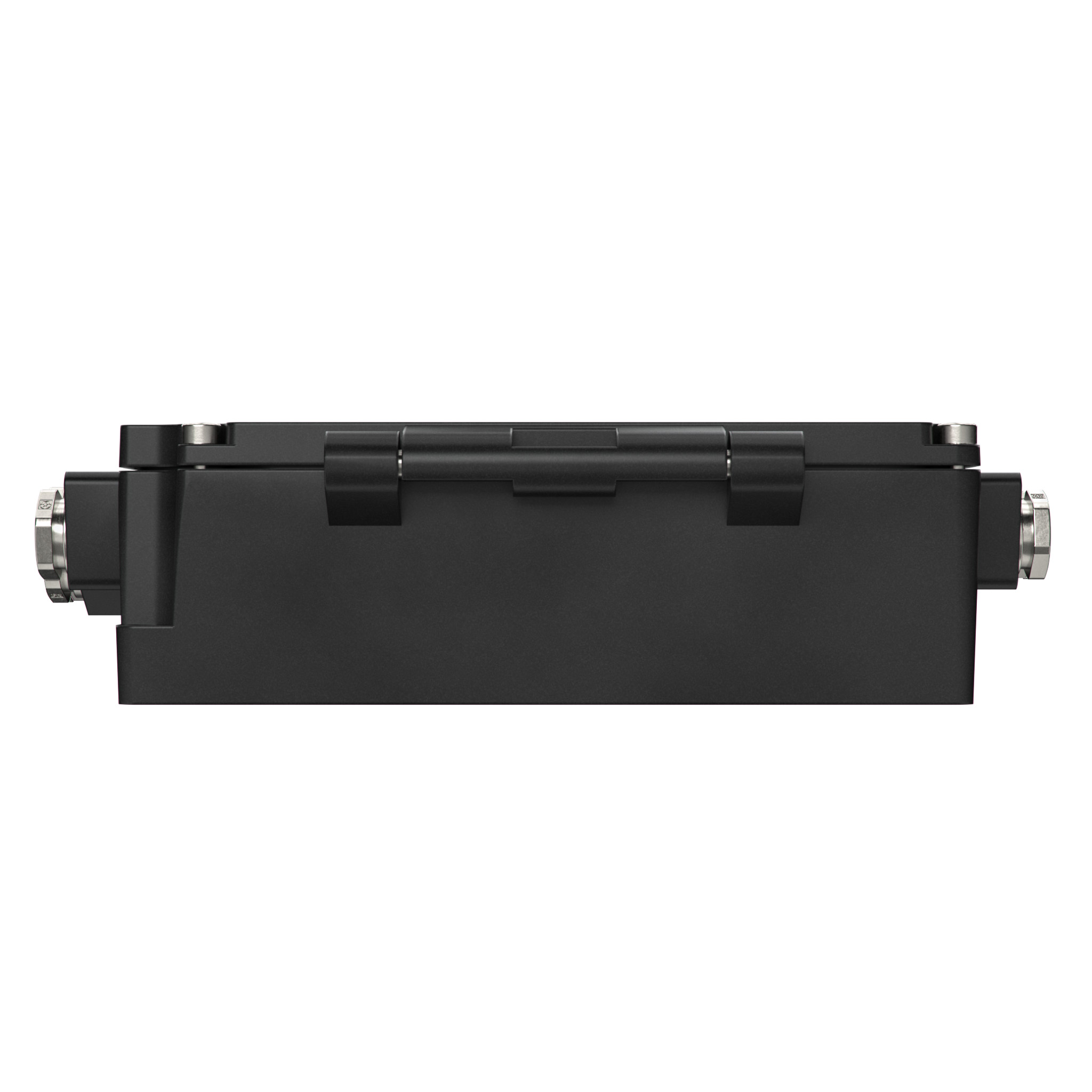

The modular concept allows for various combinations of system components: converter box, sensor heads, and multi-sensor box. The standard configuration includes an electronic converter box, a sensor cable, and a removable sensor head to allow for easy exchange. Each converter box can connect up to two sensor heads or up to two optional multi-sensor boxes that connect up to four sensor heads each. To ensure maximum flexibility, the system allows for any combination of the available sensor heads, even with different wavelengths.

特点

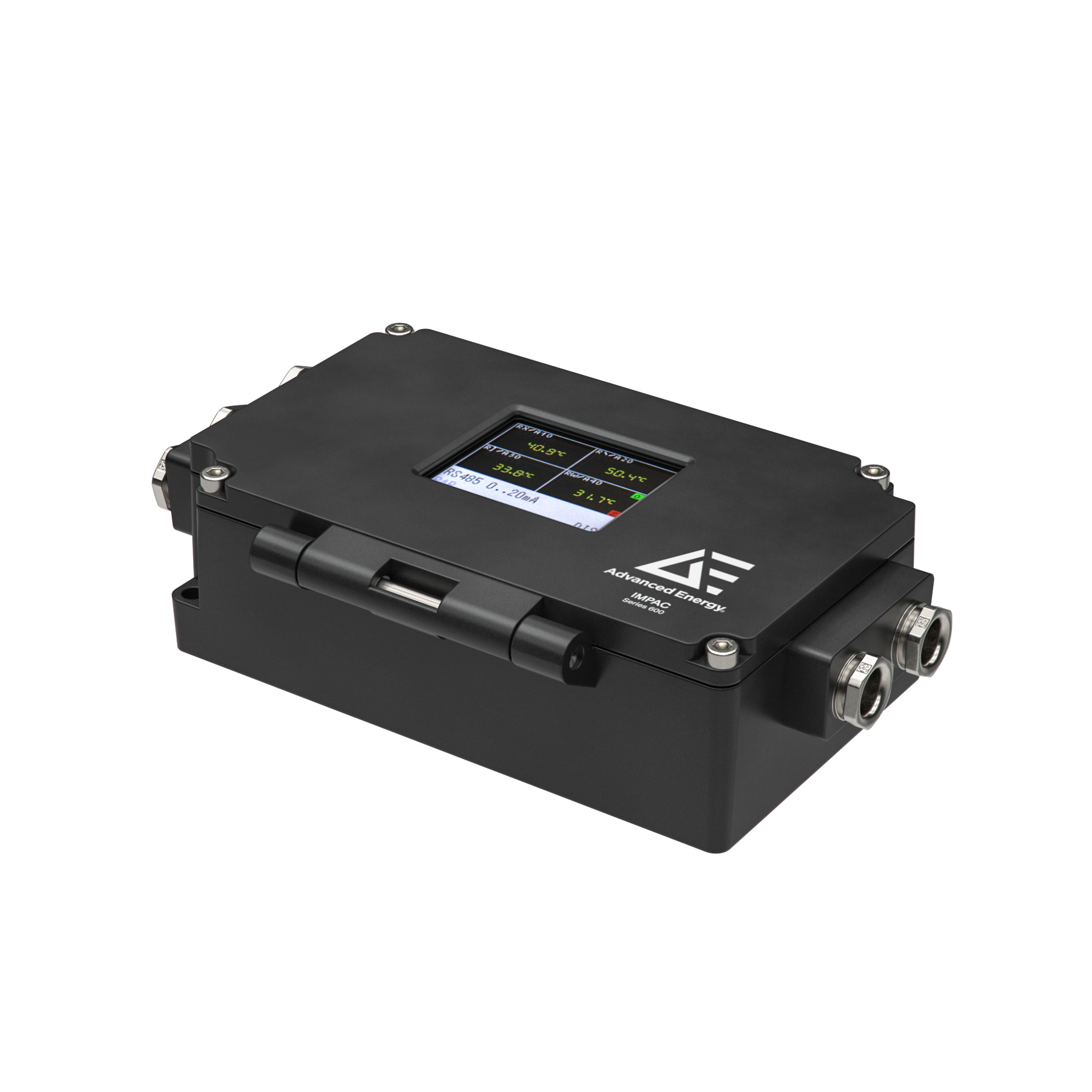

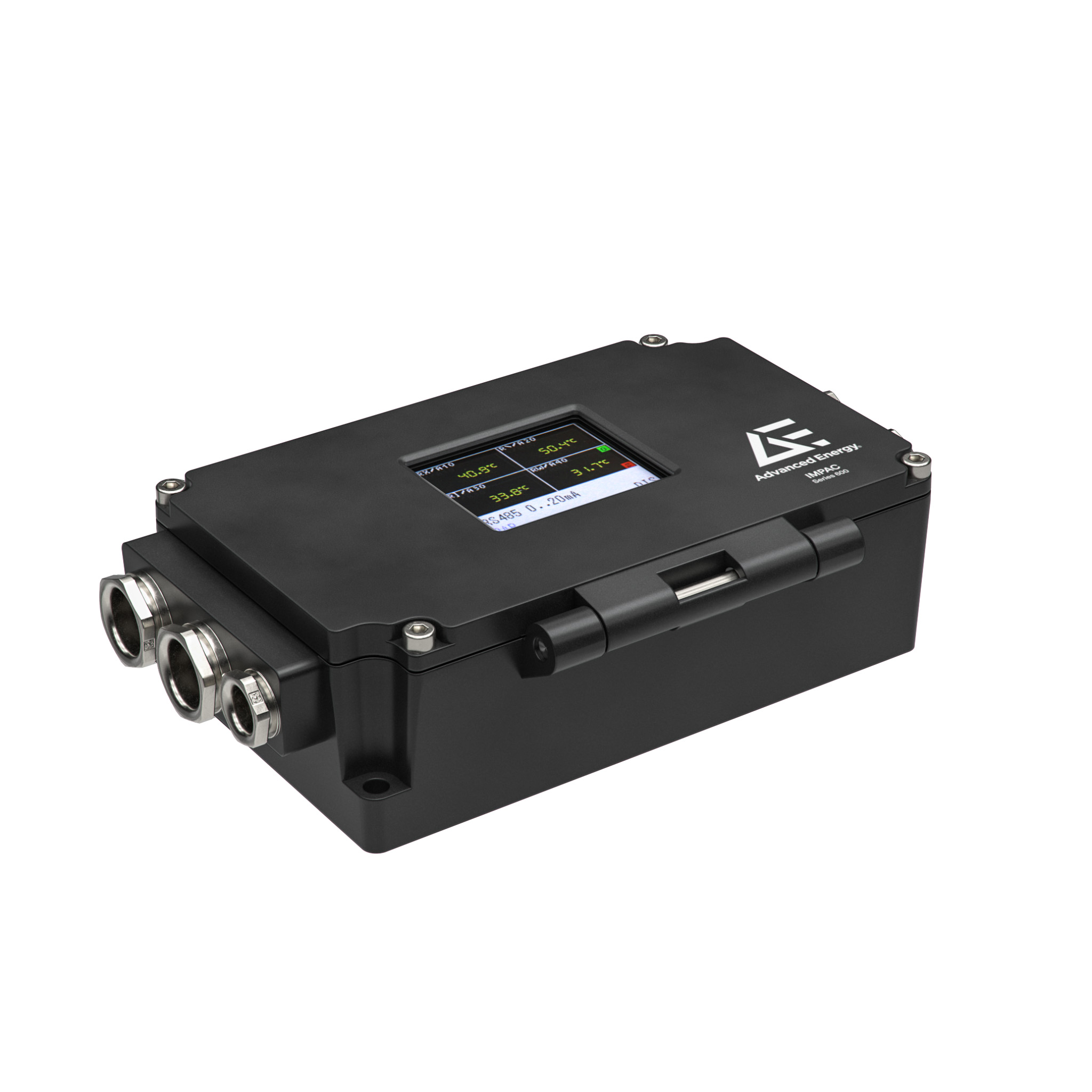

  • Converter box available with or without display
  • Optional multi-sensor box
  • Optional communications: analog and/or RS-232/RS-485 and/or Profinet

益处

  • Install in harsh industrial environments
  • Removeable sensor heads for easy exchange without the need to remove the complete sensor cable and without recalibration

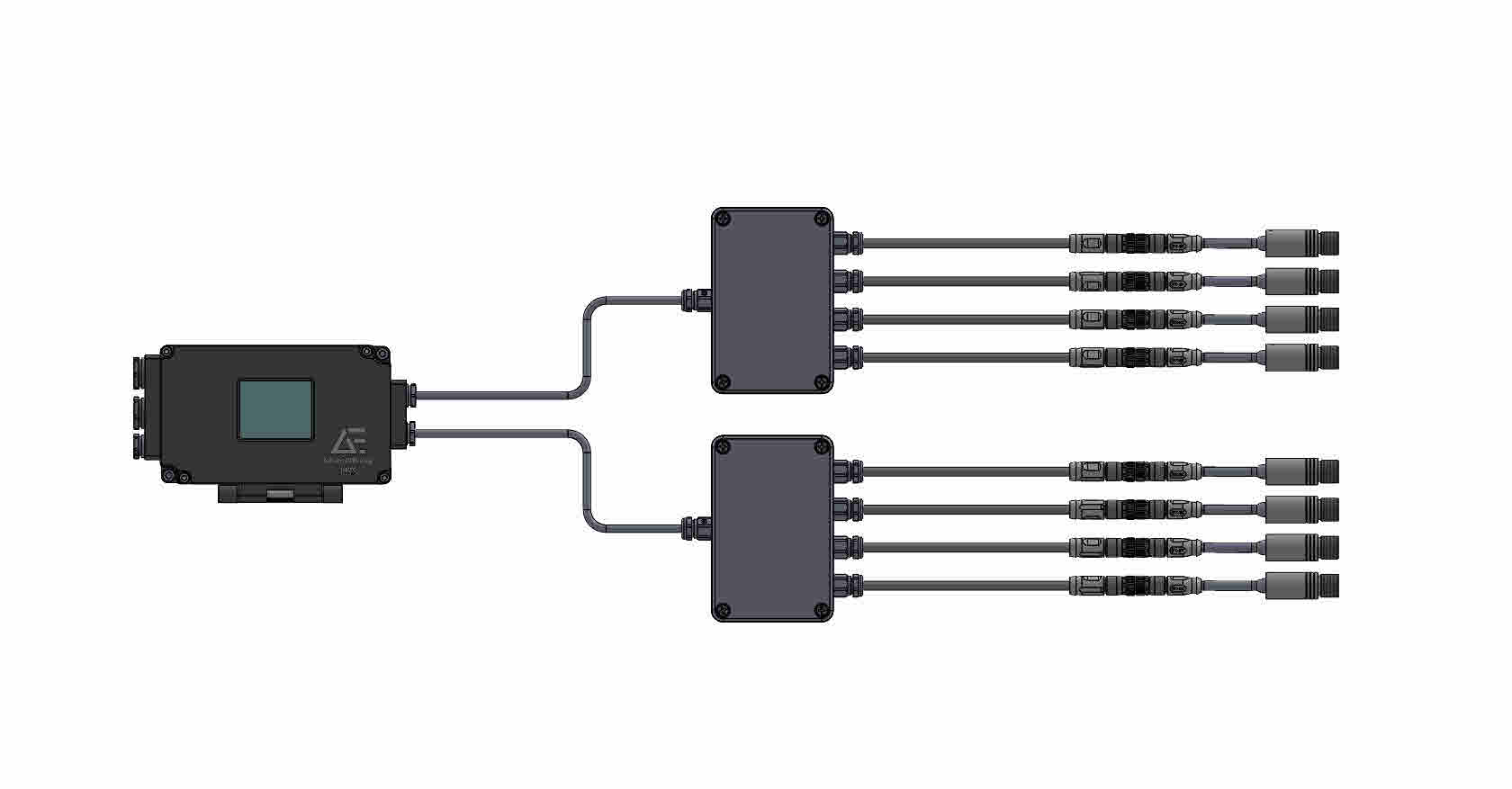

  • Connection of up to 8 sensor heads to one converter box (8 measuring points in one pyrometer system). If wanted, sensor heads with different wavelengths can be connected to the same converter box

规格

工作温度范围 (°C): -40 and 2500 °C (10 ranges in between)
光谱范围(微米): 0.7 and 14 (5 ranges in between)
测量不确定性(°C): From 0.5% oR or 0.8 °C
光学器件(毫米): Fixed optics
视场角(最小光斑尺寸)(毫米): Min. 70:1
校准/瞄准: None
接口/输出(毫安): 0/4 to 20 mA
曝光时间 t90(毫秒): Multiple specifications. Please refer to Datasheet.
所有规格 折叠规格

库存检查

型号
输出类型 光学 响应时间 最低温度温度 (°C) 最高温度温度 (°C) 应用 样品 购买
3 917 010 Active, 联系我们 0/4 to 20 mA 联系我们 购买
3 917 020 Active, 联系我们 0/4 to 20 mA / RS232 / RS485 联系我们 购买
3 917 040 Active, 联系我们 0/4 to 20 mA, Profinet 联系我们 购买
3 917 080 Active, 联系我们 0/4 to 20 mA 联系我们 购买
3 917 090 Active, 联系我们 0/4 to 20 mA / RS232 / RS485 联系我们 购买
3 917 110 Active, 联系我们 0/4 to 20 mA, Profinet 联系我们 购买
3 917 160 Active, 联系我们 0/4 to 20 mA 联系我们 购买
3 917 170 Active, 联系我们 0/4 to 20 mA 联系我们 购买
3 917 200 Active, 联系我们 Fixed 180 -40 700 Non-Metal Surfaces 联系我们 购买
3 917 210 Active, 联系我们 Fixed 180 -40 700 Non-Metal Surfaces 联系我们 购买
3 917 220 Active, 联系我们 Fixed 180 -40 700 Non-Metal Surfaces 联系我们 购买
3 917 260 Active, 联系我们 Fixed 10 550 1400 Metal / Ceramics / Graphite 联系我们 购买
3 917 270 Active, 联系我们 Fixed 10 650 1800 Metal / Ceramics / Graphite 联系我们 购买
3 917 280 Active, 联系我们 Fixed 10 700 2500 Metal / Ceramics / Graphite 联系我们 购买
3 917 290 Active, 联系我们 Fixed 10 250 1200 Metal / Ceramics / Graphite 联系我们 购买
3 917 300 Active, 联系我们 Fixed 10 350 1800 Metal / Ceramics / Graphite 联系我们 购买
3 917 310 Active, 联系我们 Fixed 10 400 2500 Metal / Ceramics / Graphite 联系我们 购买
3 917 320 Active, 联系我们 Fixed 10 100 1000 Metal / Ceramics / Graphite 联系我们 购买
3 917 330 Active, 联系我们 Fixed 10 150 1800 Metal / Ceramics / Graphite 联系我们 购买
3 917 420 Active, 联系我们 Fixed 180 100 1300 Glass Surfaces 联系我们 购买
3 917 430 Active, 联系我们 Fixed 180 100 1300 Glass Surfaces 联系我们 购买

配件

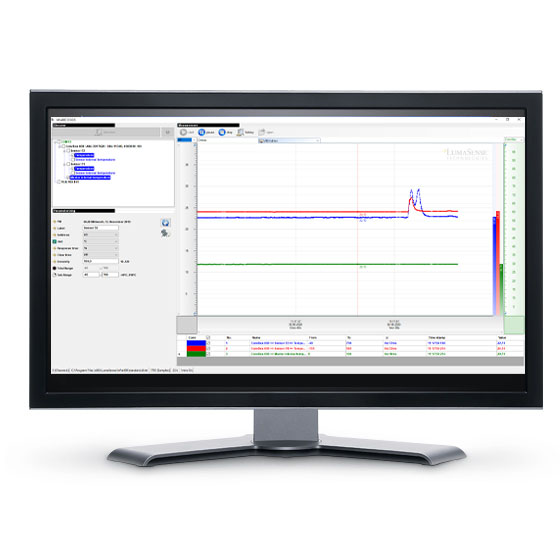

Impac Infra600 Software
