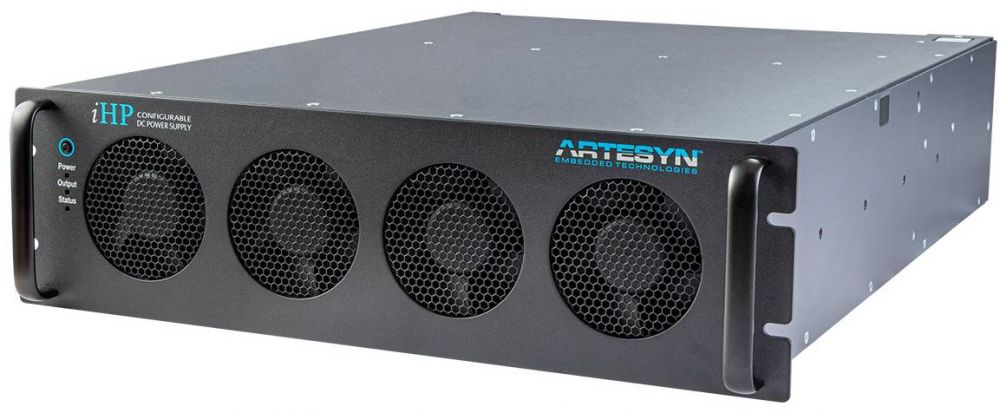

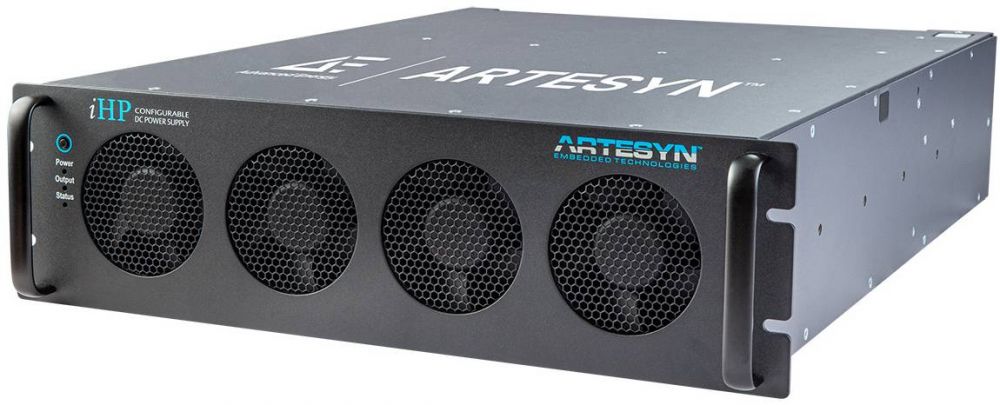

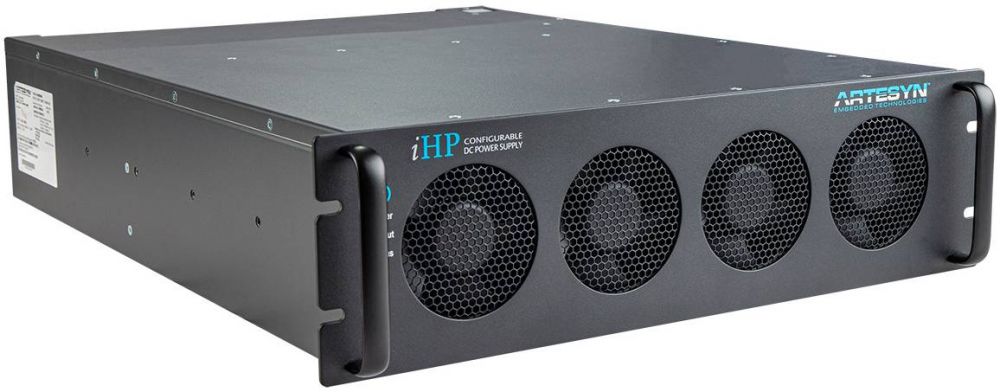

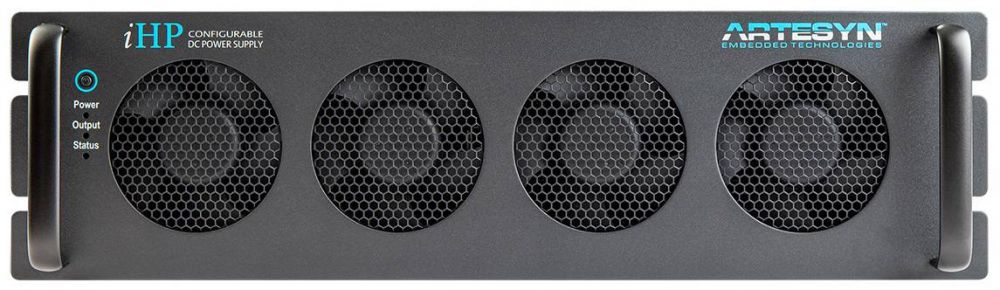

ARTESYN™
iHP, Air Cooled Series
Active
Precision High Power System
The iHP Air-Cooled Series accepts a wide range (0.6 VDC - 300.0 VDC in eight increments) of 3000 W single slot modules for up to eight different outputs for a total output power of 24 kW. For more power with fewer outputs (up to four), the 12 kW modules (2.5 VDC - 360.0 VDC in two increments), which occupy three slots each, provide 24 kW in six slots, leaving two slots available for 3000 W modules. At a nominal input of 480 VAC 3-Phase, these 12 kW module configurations provide up to 30 kW in the standard iHP 24 kW package. Additionally, the iHP12 kW case can be rated up to 15 kW under the same conditions.
This system offers accuracy, resolution, and stability as either a programmable voltage or current source for medical, industrial, lighting/horticulture, and semiconductor applications. It can be configured for up to eight outputs using a variety of plug-in modules to address a wide range of voltages and currents. This power supply has medical safety and industrial safety (SEMI F47) approvals and offers either an analog or a digital interface supporting standard protocols. A GUI eases configuration and user-dashboard creation. For horticulture, detailed scheduling and control software is available. We offer a smaller, lighter rack for non-medical applications.
This system offers accuracy, resolution, and stability as either a programmable voltage or current source for medical, industrial, lighting/horticulture, and semiconductor applications. It can be configured for up to eight outputs using a variety of plug-in modules to address a wide range of voltages and currents. This power supply has medical safety and industrial safety (SEMI F47) approvals and offers either an analog or a digital interface supporting standard protocols. A GUI eases configuration and user-dashboard creation. For horticulture, detailed scheduling and control software is available. We offer a smaller, lighter rack for non-medical applications.
특징
- 100% digital control
- Fast current slew rate up to 200 Hz
- High line 342 - 528 VAC 3 phase only for iHP30 and iHP15 models
- Low line 180 - 264 VAC single phase and 3 phase
- Outputs parallel up to 1600 A
- Outputs series up to 1000 V
- Semi F47 compliance
- Standard 19" rack
혜택
- Active power factor correction
- Air cooled
- Field upgradeable firmware
- Flexible control interfaces
- Medical safety approved - NO ISOLATION XFMR NEEDED
- Multi-output precision and modular high power system
- Outputs program as voltage or current source
- Programmable slew rate
- User-defined command profiles
- Versatile input configurable to:
- All input and output parameters: see datasheet
- All interface control: see datasheet
- All safety-related info: see datasheet
- Software programming: see user manual
사양
| 출력 전력(W): | 30000 |
|---|---|
| 길이(인치): | 27.8 |
| 너비(인치): | 17.6 |
| 높이(인치): | 5.22 |
| 마운팅 유형: | Configurable |
| 최소 출력 전류(A): | 0 |
| 최대 출력 전류(A): | 1600 |
| 출력 전압 범위(V): | 0.6 to 360 V |
ConfigPro 소개하기
Advanced Energy의
혁신적인 온라인 Power Configurator
3백만 개 이상의 구성 가능한 전원 공급 장치 조합을 갖춘 이 전원 솔루션 알고리즘은 비용을 최적화하고 MP, IMP, IVS 및 MICROMP(UMP) 구성 가능한 전원 공급 장치 제품군에 이상적인 솔루션을 안내합니다.
시작하기
기술 문서
Product Information Documents
Safety & Compliance Certificates
Guides & Manuals
Engineering Resources
Insights & Studies
기술 동영상
iHP Intelligent High Power System - introduction
10월 4, 2017
iHP intro video YouTube description
Artesyn’s iHP configurable intelligent power system provides accuracy, resolution and stability as either a programmable voltage or current source.
It can be configured for multiple outputs using a wide variety of plug-in modules that address a large range of voltages and currents.
The 24 kilowatt case supports up to eight outputs in 3 kilowatt increments while the 12 kilowatt case supports up to 4 outputs using the same modules.
The iHP system has been designed to meet the needs of a wide variety of medical and industrial applications.
Safety approvals secured by Artesyn eliminate the need for an isolation transformer in medical equipment and the multi-output modular structure provides all system power in a single unit.
The iHP power system also has industrial safety approvals and meets the SEMI F47 voltage sag tolerance standard for semiconductor processing equipment.
A provision for EtherCAT communication is also planned.
In horticultural LED lighting, bulk high voltage current sources eliminate the need for individual LED array drivers and reduce installation and operating costs.
For chemical processing and water treatment applications, the compact size and multi-rack paralleling of the iHP series can accommodate large installations up into the Megawatt range.
The unit’s software interface can be programmed to run sophisticated process flows.
Standard modules provide a wide range of bulk power as input to laser drivers.
For laboratory equipment, precision modules in development provide low noise and accurate control of voltage and current source with built-in wireless communication to a remote control panel.
For electroplating and etching applications, Artesyn is developing modules to provide enhanced programmable rise and fall times coupled with a high-level software interface that can be tailored to exact process requirements.
The iHP power system offers developers either an analog or digital interface to their system supporting standard communications protocols, while a software graphical user interface allows for easy configuration.
