AIF-500 Series

Active

500 W AC-DC Full Brick

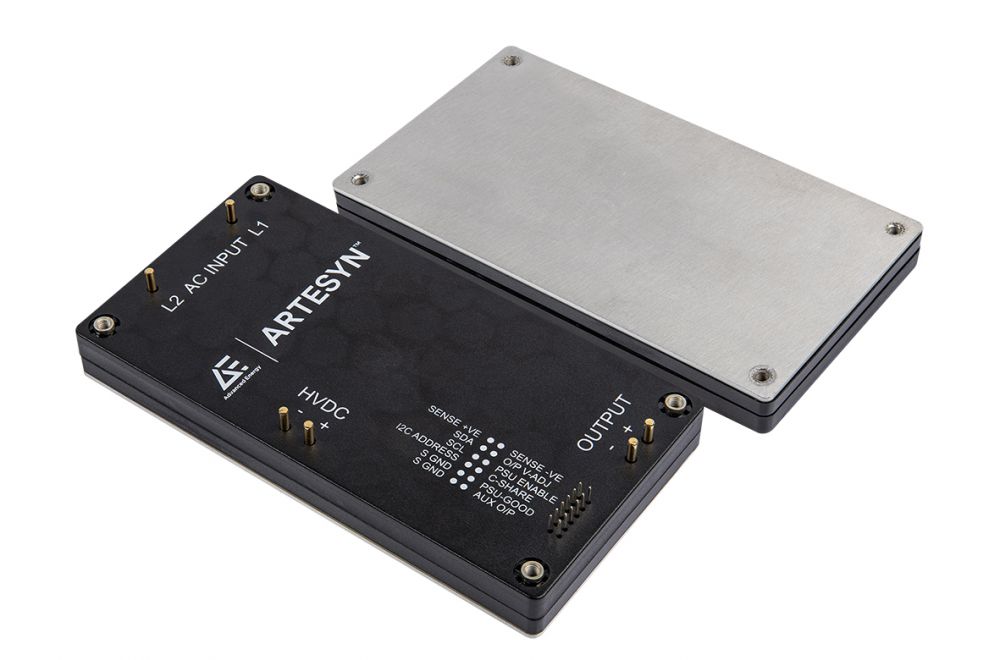

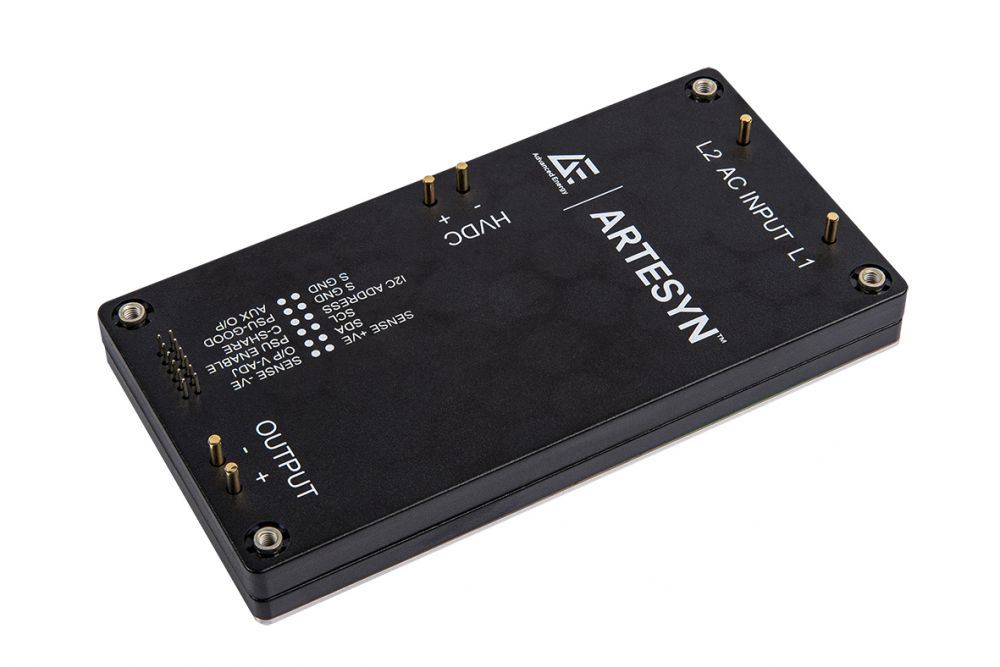

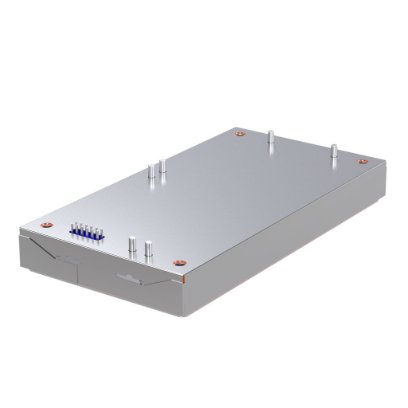

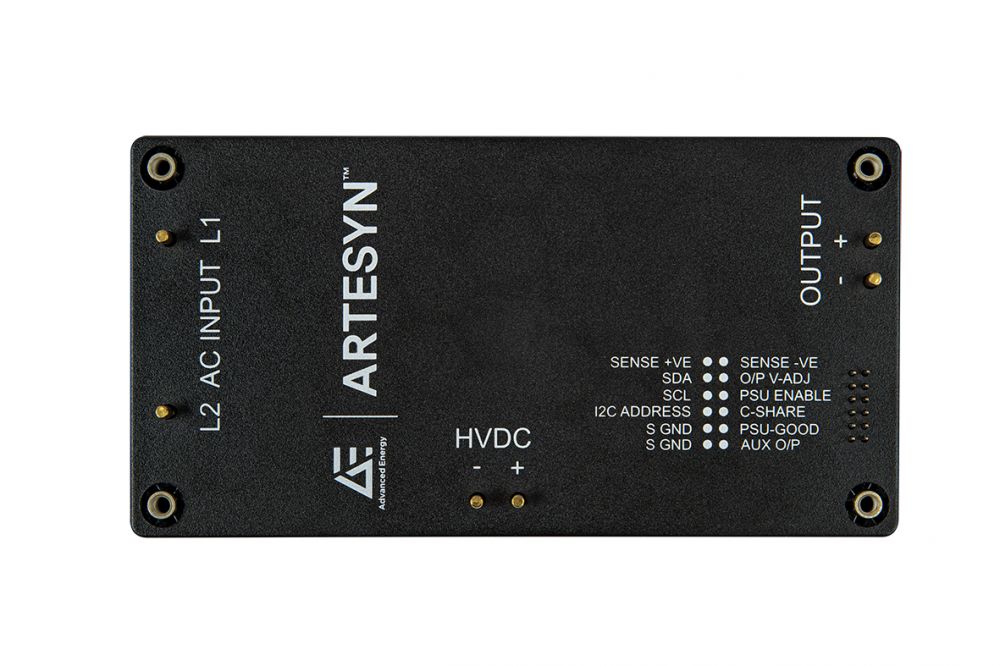

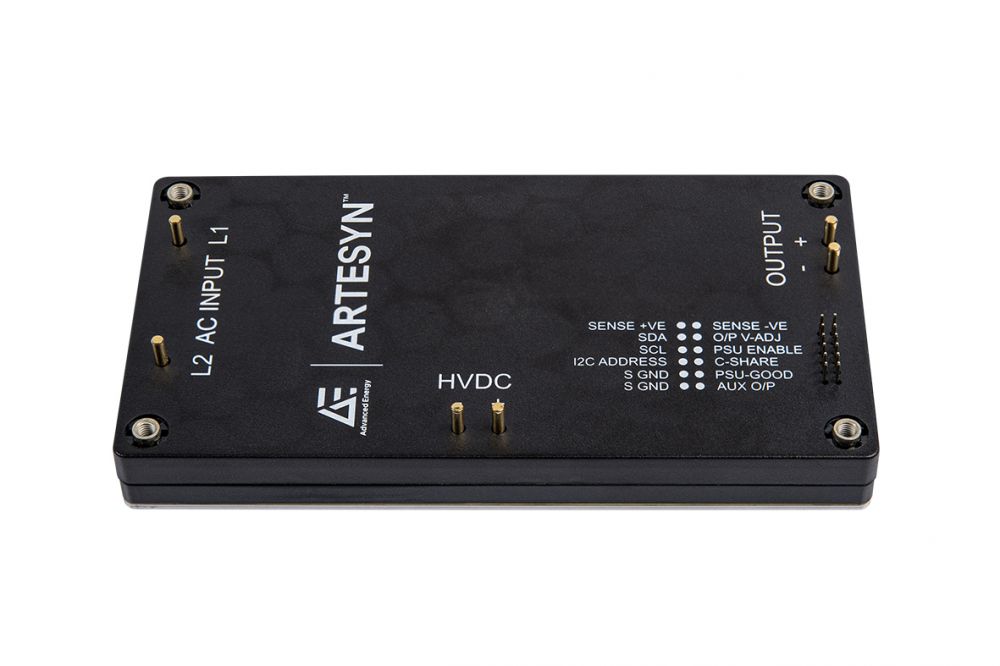

Advanced Energy’s Artesyn AIF42BAC-01N series full-brick module accepts a wide 90 to 264 VAC input. Rated at 504 W, the module has a high conversion efficiency of 93% typically and provides a nominal isolated output voltage of 12 VDC with a 10 V auxiliary output. Featuring an industry-standard 2.4 x 4.6 in fullbrick form factor and a height of only 0.55 in. This family of modules is particularly focused on providing contact-cooled applications such as I.P. sealed applications where the power converters are located inside the applications I.P. Sealed casing. The functions and features (such as internal inrush-limiting, active current-share, Auxiliary Output and PMBus) of this family have been provided to enable ease of use in applications with minimize external component requirements.

特点

  • Input voltage 90 - 264Vac
  • Input voltage Frequency 47hz to 63hz
  • Output Noise 120mV pk-pk max (12V version)
  • Output voltage 12 Volts
  • Output current 42 Amps
  • Auxilary Output 10V at 250mA
  • Hold-up HVDC 380Vdc
  • Control Output voltage Adjust -20% to +10% Vout
  • Isolation 4000Vdc Input to Output
  • Isolation 2500Vdc Input to Baseplate
  • Isolation 100Vdc Output to Baseplate
  • Efficiency >91.5% low-line input
  • Parallel unit capability Up to 10 units
  • Thermal Derating 100% power at 100degC baseplate
  • Efficiency >93.5% High-line input

益处

  • Input Inrush Internal Inrush limiting
  • Control PMBus interface
  • Control Output voltage sense
  • Control Active current share
  • Control PSU enable
  • Control PSU-Good signal

规格

输出功率(瓦): 500
长度(英寸): 4.6
宽度(英寸): 2.4
高度(英寸): 0.5
安装类型: BMP; Through Hole
最小输出电流 (A): 0
最大输出电流 (A): 42
输出电压范围 (V): 10.8V to 56.6V
所有规格 折叠规格

库存检查

型号
最小值电压 (V) 最大电压电压 (V) 电流 (A) 标称电压 (V) 输出数量 样品 购买
AIF11WAC-01N 活动,有库存
500W, 85-264Vin, Single, 48V@11A, Neg enable, 4.6" X 2.4" X 0.5" H, RoHS 6
44 56.6 11 48 1 要求 购买
AIF11WAC-01NT 活动,有库存
500W, 85-264Vin, Single, 48V@11A, Non-thread, 4.6" X 2.4" X 0.5" H, RoHS 6
44 56.6 11 48 1 要求 购买
AIF42BAC-01N 活动,有库存
500W, 85-264Vin, Single, 12V@42A, Neg enable, 4.6" X 2.4" X 0.5" H, RoHS 6
10.8 13.2 42 12 1 要求 购买
AIF42BAC-01NT 活动,有库存
500W, 85-264Vin, Single, 12V@42A, Non-thread, 4.6" X 2.4" X 0.5" H, RoHS 6
10.8 13.2 42 12 1 要求 购买

配件

Universal PMBus GUI Software Package

The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.
