NGB660 Series

Active

660 W Single Output Medical & Industrial Grade

Stock Check 联系销售数据表 3D Models

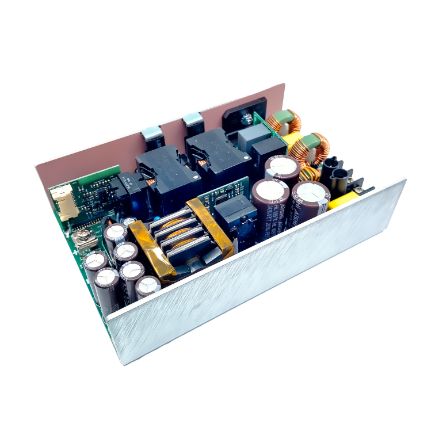

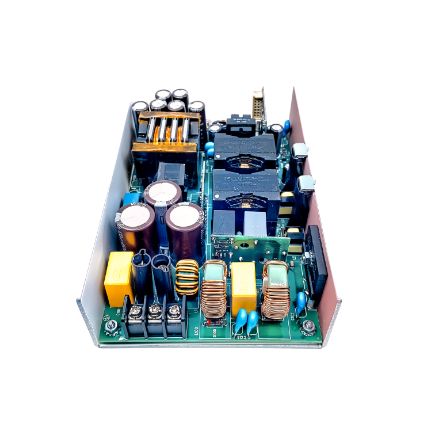

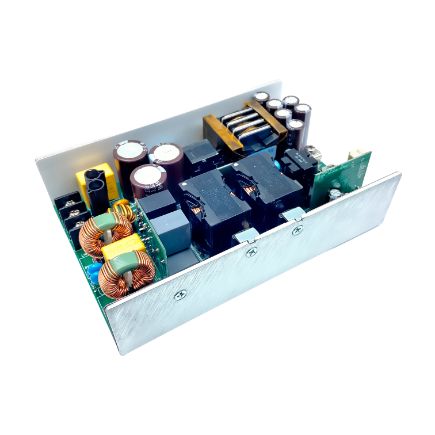

Advanced Energy’s SL Power NGB660 medically-approved AC-DC power supplies are available with a nominal main output of 12 V, 15 V, 24 V, or 48 V. NGB660 power supplies provide up to 660 W of output power with air flow and provide industry leading convection power ratings. All models have output overvoltage, short circuit and overload protection and a 4 x 6 x 1.6 inch form factor.

特点规格 Stock Check 技术文档 Videos Support

特点

Output Power of 660 W with airflow
440 W Convection Cooled
4” X 6” X 1.6” Size
Universal 85 to 264 VAC Input Range
-20 to 80ºC Operating Temperature Range
Less than 100 uA Leakage Current

益处

Meets Class B Emissions Levels
7+ Years Electrolytic Capacitor Life
UL/CSA/IEC/IEC60601-1, IEC62368-1 Approved
Meets 4th Edition/Heavy Industrial EMC
Class I and Class II Input versions available
3 Years Warranty

规格

输出功率（瓦）:	660
长度（英寸）:	6
宽度（英寸）:	4
高度（英寸）:	1.6
安装类型:	Embedded PSU
最小输出电流 (A):	13.6
最大输出电流 (A):	46.2
输出电压范围 (V):	12V to 48V
最小输出功率（瓦）:	560
最大输出功率（瓦）:	660
Minimum Input Voltage (V):	85
最大输入电压 (V):	264
保修期（年）:	3

所有规格折叠规格
