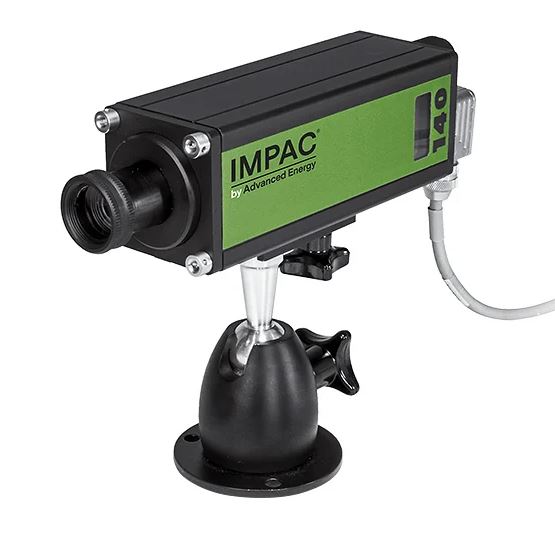

Impac IN 140/5 Series Pyrometers

Active

Digital pyrometer with focusable optics and integrated display for measurements on glass surfaces. Temperature ranges between 250 and 2500 °C.



The Impac® IN 140/5 digital pyrometers, specializing in non-contact temperature measurement, are perfect for gauging the temperatures of glass and quartz-glass surfaces within the range of 250 to 2500 °C. Known for their extremely small spot sizes and remarkably short response times, these pyrometers come in two specialized model variations. The IN 140/5-L, boasting an enhanced field-of-view with its optics 2-NL, and the high-speed IN 140/5-H, which impresses with a brief response time of only 10 ms.

特点

  • Thru-lens view finder or laser targeting light
  • Built-in digital display
  • Interface RS232 / RS485 switchable
  • Very short response time, minimum 10 ms
  • Extremely small spot sizes, minimum 0.9 mm

益处

  • Accurately measure fast-moving, small objects
  • Exactly align with laser targeting light or thru-lens finder
  • Use focusable optics to match application requirements
  • View temperature measurements via the built-in display or PC
  • Adjust pyrometer parameters on the instrument or PC using InfraWin Software

规格

工作温度范围 (°C): 250 and 2500 °C (4 ranges in between)
光谱范围(微米): 5.14
测量不确定性(°C): From 0.6% oR or 2 °C
光学器件(毫米): Fixed optics, Focusable optics
视场角(最小光斑尺寸)(毫米): Min 180:1 (0.9)
校准/瞄准: Laser targeting or through lens sighting
接口/输出(毫安): 0/4 to 20 mA
曝光时间 t90(毫秒): Multiple specifications. Please refer to Datasheet.
所有规格 折叠规格

库存检查

型号
光谱范围 输出类型 光学 对齐 响应时间 最低温度温度 (°C) 最高温度温度 (°C) 应用 样品 购买
3 877 360 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Laser Target 40 300 1600 Glass Surfaces 联系我们 购买
3 877 370 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Viewfinder 40 300 1600 Glass Surfaces 联系我们 购买
3 877 380 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Laser Target 40 250 1400 Glass Surfaces 联系我们 购买
3 877 390 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Viewfinder 40 250 1400 Glass Surfaces 联系我们 购买
3 877 400 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Laser Target 40 450 1500 Glass Surfaces 联系我们 购买
3 877 410 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Viewfinder 40 450 1500 Glass Surfaces 联系我们 购买
3 877 420 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Laser Target 40 500 2500 Glass Surfaces 联系我们 购买
3 877 430 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Viewfinder 40 500 2500 Glass Surfaces 联系我们 购买
3 877 460 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Laser Target 40 300 1600 Glass Surfaces 联系我们 购买
3 877 470 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Viewfinder 40 300 1600 Glass Surfaces 联系我们 购买
3 877 480 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Laser Target 40 250 1400 Glass Surfaces 联系我们 购买
3 877 490 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Viewfinder 40 250 1400 Glass Surfaces 联系我们 购买
3 877 500 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Fixed Laser Target 40 450 1500 Glass Surfaces 联系我们 购买
3 877 510 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Fixed Viewfinder 40 450 1500 Glass Surfaces 联系我们 购买
3 877 520 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Laser Target 40 500 2500 Glass Surfaces 联系我们 购买
3 877 530 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Viewfinder 40 500 2500 Glass Surfaces 联系我们 购买
3 877 560 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Laser Target 10 300 1600 Glass Surfaces 联系我们 购买
3 877 570 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Viewfinder 10 300 1600 Glass Surfaces 联系我们 购买
3 877 580 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Laser Target 10 250 1400 Glass Surfaces 联系我们 购买
3 877 590 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Viewfinder 10 250 1400 Glass Surfaces 联系我们 购买
3 877 600 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Laser Target 10 450 1500 Glass Surfaces 联系我们 购买
3 877 610 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Viewfinder 10 450 1500 Glass Surfaces 联系我们 购买
3 877 620 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Laser Target 10 500 2500 Glass Surfaces 联系我们 购买
3 877 630 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Viewfinder 10 500 2500 Glass Surfaces 联系我们 购买
3 877 900 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Laser Target 40 450 1500 Glass Surfaces 联系我们 购买
3 877 910 Active, 联系我们 5.14 0/4 to 20 mA / RS232 / RS485 Focusable Viewfinder 40 450 1500 Glass Surfaces 联系我们 购买

配件

Impac Other Electrical

Other Electrical Accessories Compatible With Impac Pyrometers

Impac DA 4000

Digital LED Display With 2-Wire Supply Voltage

Impac Mechanical Accessories

Other Mechanical Accessories Compatible With Impac Pyrometers

Impac MultiTempLogger

Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software

Impac Power Supplies

Impac Pyrometer DC and AC Power Supply Units

Impac PI 6000 Controller

Extremely Fast, Digital, and Programmable PID Controller

Impac DA 6000-N

LED digital display with RS232 or RS485 interface for digital pyrometers

Impac DA 6000

Digital LED Display With 2-Wire Supply Voltage

比较

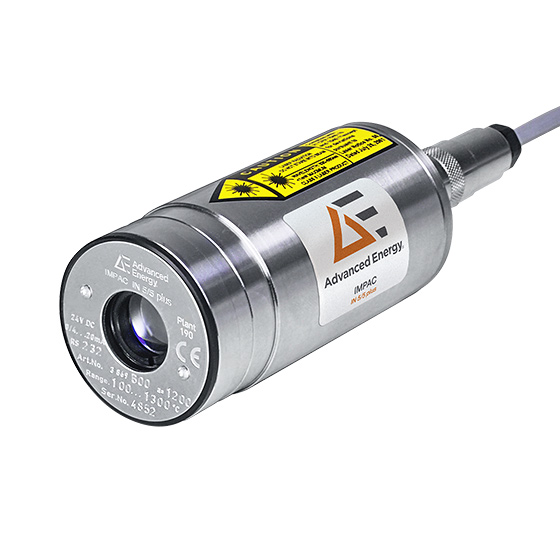

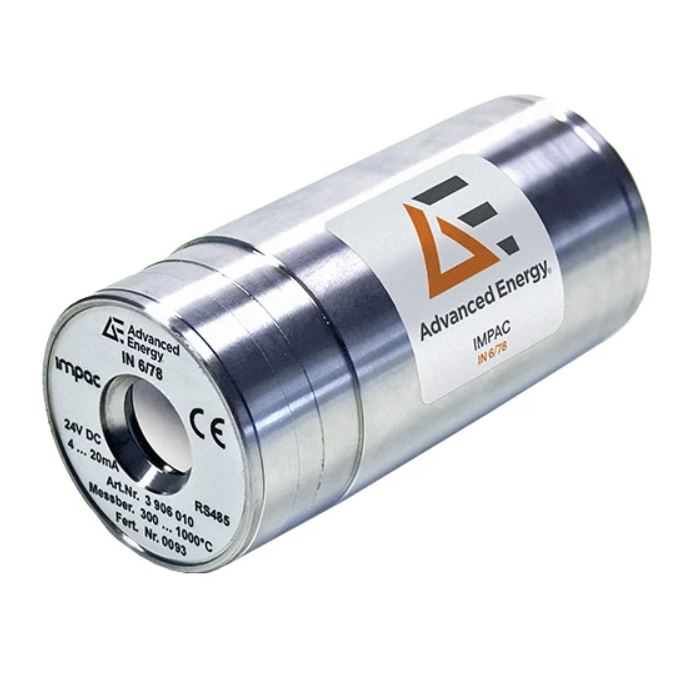

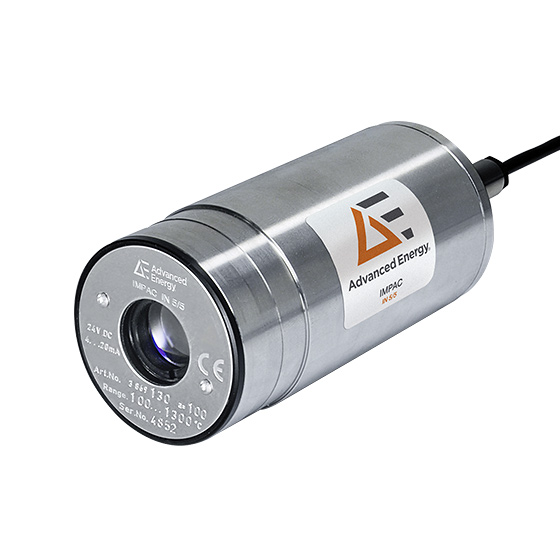

Model Impac IN 140/5 Series Impac IN 5/5 plus Series Impac IN 5/5 Series Series Impac IN 6/78 Impac 600 Series
光谱范围(微米) 5.14 5.14 5.14 7.8 0.7 and 14 (5 ranges in between)
测量不确定性(°C) From 0.6% oR or 2 °C From 0.6% oR or 2 °C From 0.6% oR or 2 °C 0.7% oR or 3.5 °C From 0.5% oR or 0.8 °C
光学器件(毫米) Fixed optics, Focusable optics Fixed optics Fixed optics Fixed optics Fixed optics
视场角(最小光斑尺寸)(毫米) Min 180:1 (0.9) Min. 100:1 (1.1) 50:1 (2.5) Min 75:1 (5) Min. 70:1
校准/瞄准 Laser targeting or through lens sighting Laser targeting None None None
接口/输出(毫安) 0/4 to 20 mA 0/4 to 20 mA 0/4 to 20 mA 0/4 to 20 mA 0/4 to 20 mA
曝光时间 t90(毫秒) Multiple specifications. Please refer to Datasheet. 80 ms Multiple specifications. Please refer to Datasheet. Multiple specifications. Please refer to Datasheet. Multiple specifications. Please refer to Datasheet.
显示屏 Illuminated LC display for temperature indication or parameter settings Color LCD, 262,000 colors (optional)
