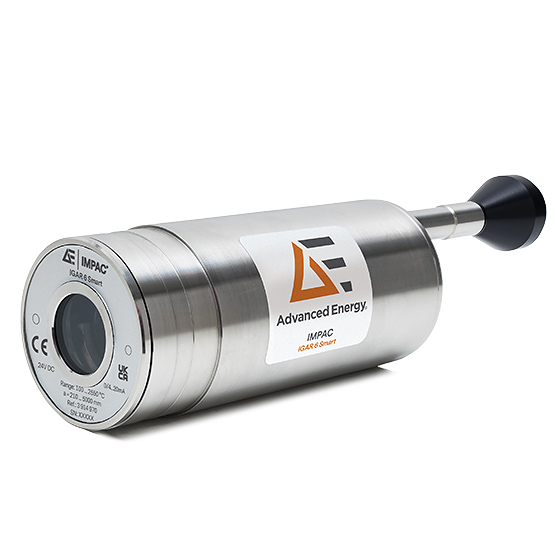

Impac IGAR 6 Series Pyrometers

Active

Highly accurate digital ratio pyrometer with possible combination of 1-color and 2-color measurement, focusable optics and integrated display. Temperature ranges between 100 and 2550 °C.

The Impac® IGAR 6 Smart pyrometer can operate in one-color mode (100 to 2550 °C), two-color mode (250 to 2550 °C), or special smart mode.

In two-color mode (ratio method), two adjacent wavelengths are used for temperature determination. Temperature measurement is largely independent of the object’s emissivity and, in wide ranges, unaffected by dust and other contaminants. The measuring object can be smaller than the spot size. You also can measure through dirty-viewing windows up to a certain contamination point.

In Smart mode, the measurements at lower temperatures will be taken in 1-color mode and the measurements at higher temperatures will be taken in 2-color mode (ratio method).

Via InfraWin, the user can set the temperature at which the instrument automatically transitions from 1-color mode to 2-color mode. The minimum transition temperature is 250 °C and the minimum transition temperature range is 30 °C.

特点

  • Complete digital core for sub-ranging and adopted analog output
  • High quality optics with manual focus capability
  • Robust, stainless steel sensor for harsh environments (IP65/NEMA4)
  • Four-digit LED display
  • Dirty-window warning

益处

  • Measure fast processes thanks to a 2 ms response time
  • Connect to a PC via an RS485 to USB connection
  • Adjust parameters and analyze data using InfraWin software
  • Automatically determine emissivity when using the two-color or smart mode

规格

工作温度范围 (°C): 100 to 2550 °C
光谱范围(微米): 1.5 and 2.5 (2 ranges in between)
测量不确定性(°C): From 0.4% oR + 2 °C
光学器件(毫米): Focusable optics
视场角(最小光斑尺寸)(毫米): Min 100:1 (2.1)
校准/瞄准: Built-in laser aiming light, through-lens sighting, or color TV camera
接口/输出(毫安): 0/4 to 20 mA
曝光时间 t90(毫秒): 2 ms
所有规格 折叠规格

库存检查

型号
输出类型 光学 对齐 响应时间 最低温度温度 (°C) 最高温度温度 (°C) 应用 样品 购买
3 914 700 Active, 联系我们 0/4 to 20 mA / RS232 / RS485 Manually Focusable Laser Target 2 100 2000 Metal / Ceramics / Graphite 联系我们 购买
3 914 710 Active, 联系我们 0/4 to 20 mA / RS232 / RS485 Manually Focusable Viewfinder 2 100 2000 Metal / Ceramics / Graphite 联系我们 购买
3 914 720 Active, 联系我们 0/4 to 20 mA / PAL / RS485 Manually Focusable Color TV Camera 2 100 2000 Metal / Ceramics / Graphite 联系我们 购买

配件

Impac Power Supplies

Impac Pyrometer DC and AC Power Supply Units

Impac PI 6000 Controller

Extremely Fast, Digital, and Programmable PID Controller

Impac Other Electrical

Other Electrical Accessories Compatible With Impac Pyrometers

Impac MultiTempLogger

Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software

Impac Mechanical Accessories

Other Mechanical Accessories Compatible With Impac Pyrometers

Impac DA 6000-N

LED digital display with RS232 or RS485 interface for digital pyrometers

Impac DA 6000

Digital LED Display With 2-Wire Supply Voltage

Impac DA 4000

Digital LED Display With 2-Wire Supply Voltage

比较

Model Impac IGAR 6 Series Impac IGAR 320 Series Impac ISR 320 Series Impac ISR 6 Series
光谱范围(微米) 1.5 and 2.5 (2 ranges in between) 1.5 and 2.5 (2 ranges in between) 0.9 and 1.05 (2 ranges in between) 0.9 and 1.05 (2 ranges in between)
测量不确定性(°C) From 0.4% oR + 2 °C 0.6% oR + 2 °C From 0.5% oR + 1 °C From 0.3% oR + 2 °C
光学器件(毫米) Focusable optics Fixed optics Fixed optics Focusable optics
视场角(最小光斑尺寸)(毫米) Min 100:1 (2.1) Min 100:1 (3) Min 100:1 (3) Min 350:1 (0.6)
校准/瞄准 Built-in laser aiming light, through-lens sighting, or color TV camera Built-in LED targeting light and LEDs for intensity alignment Built-in LED targeting light and LEDs for intensity alignment Built-in laser aiming light, through-lens sighting, or color TV camera
曝光时间 t90(毫秒) 2 ms 10 ms 10 ms 2 ms
显示屏 LED, 4 digit matrix, 5 mm high for 2-color or 1-color temperature signal or measuring distance LED, 4 digit matrix, 5 mm high for 2-color or 1-color temperature signal or measuring distance
发射率斜率 0.600 to 2.000 in 0.1% steps (2-color mode) 0.600 to 2.000 in 0.1% steps (2-color mode) 0.800 to 1.250 in 0.1% steps (2-color mode) 0.800 to 1.200 in 0.1% steps (2-color mode)
