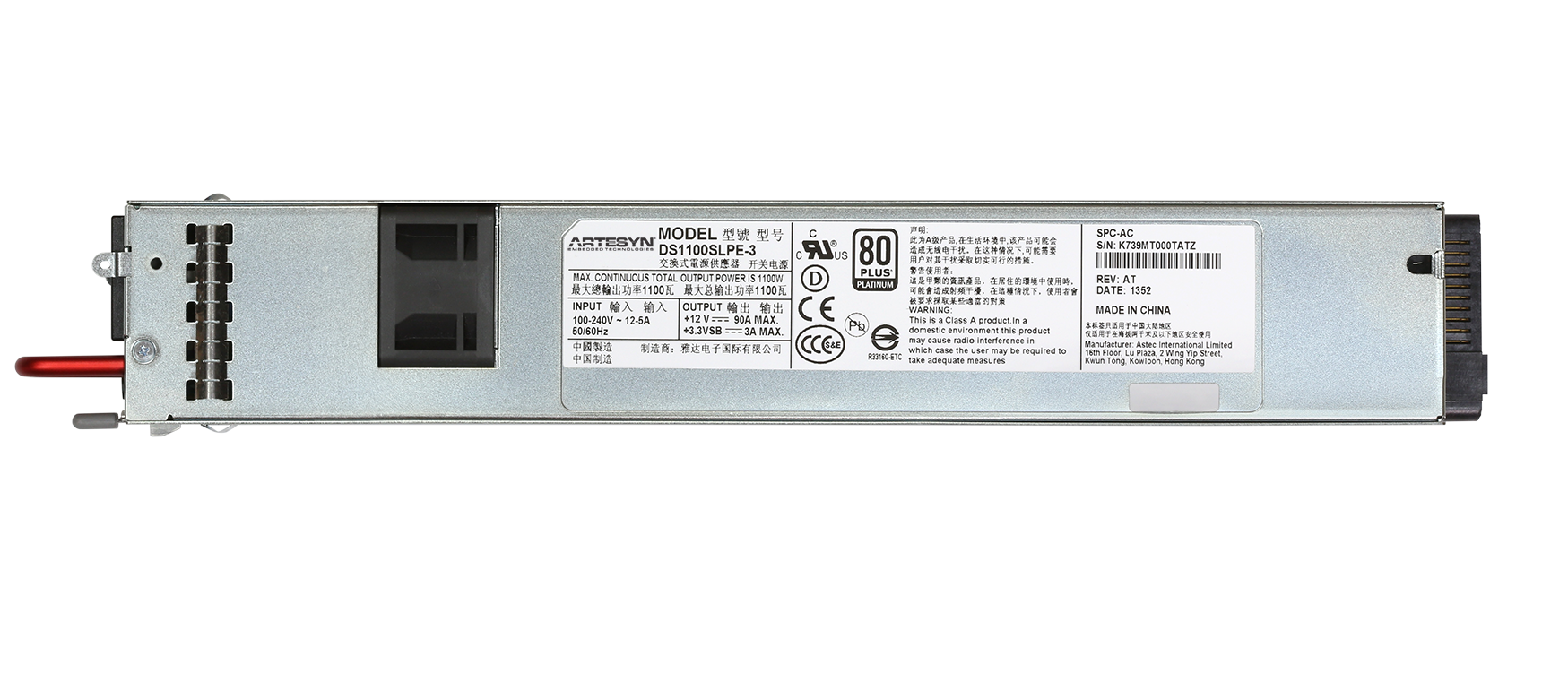

DS1100SLPE-3 Series


1100 W Front End AC-DC Power Supplies

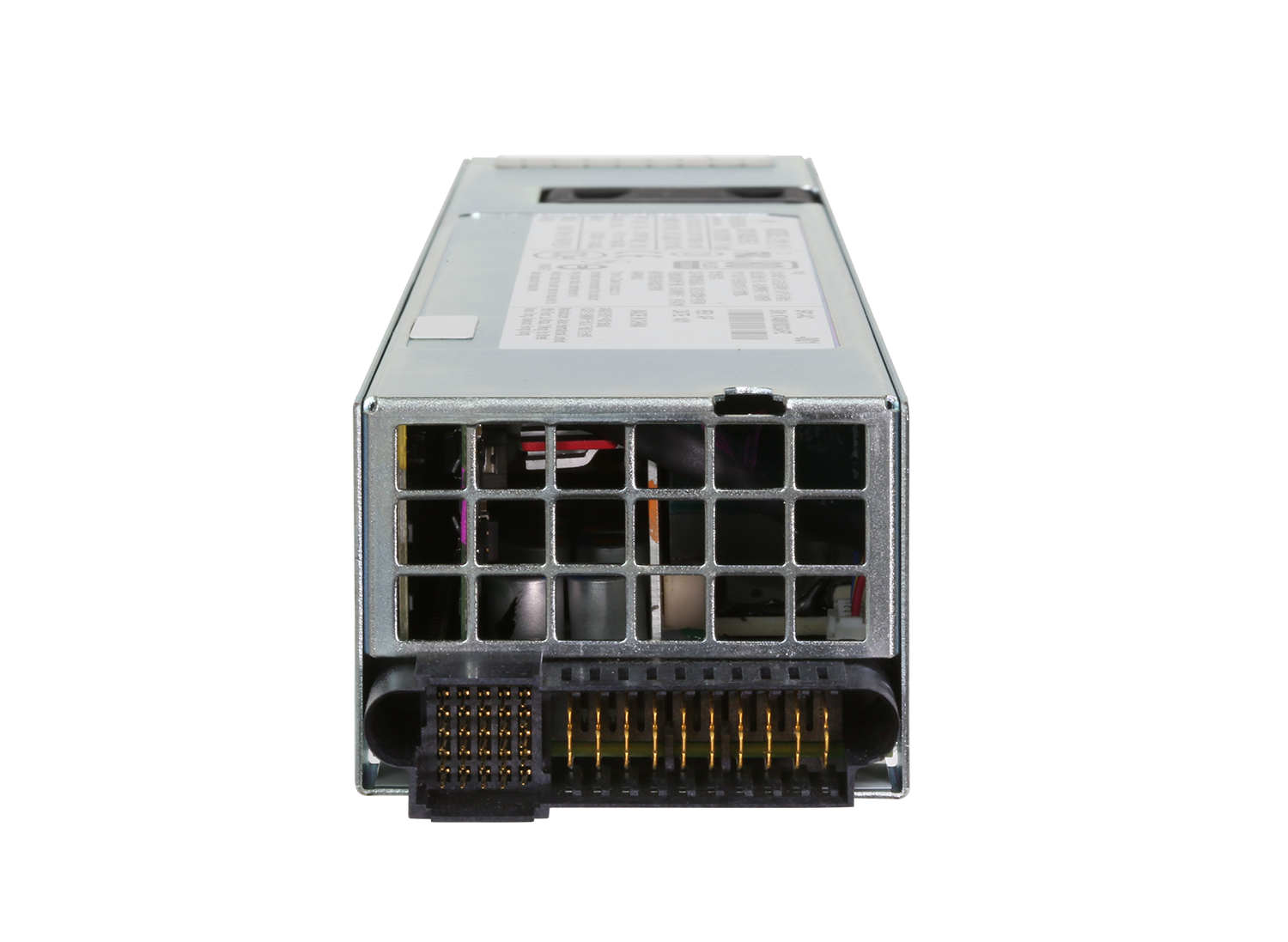

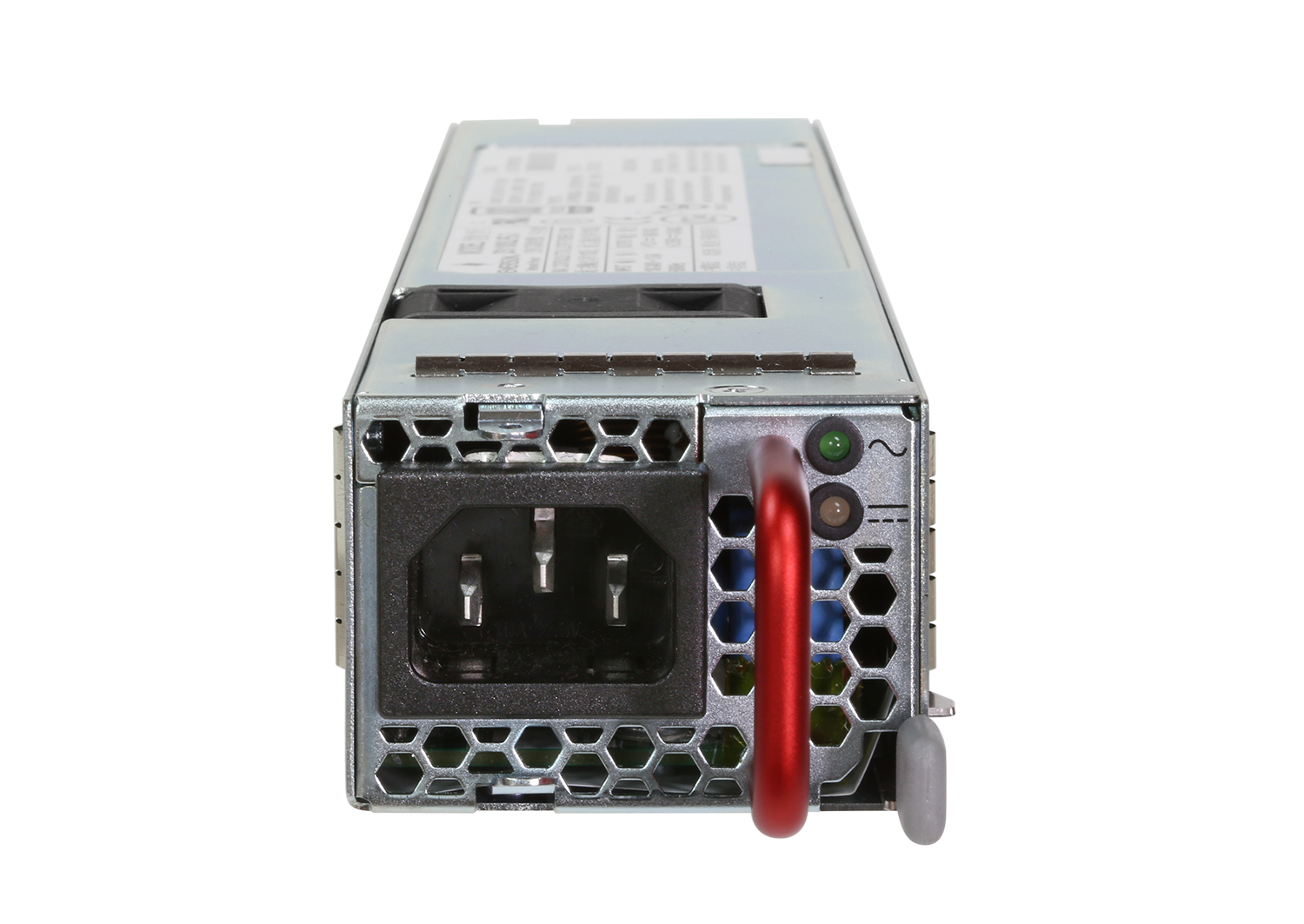

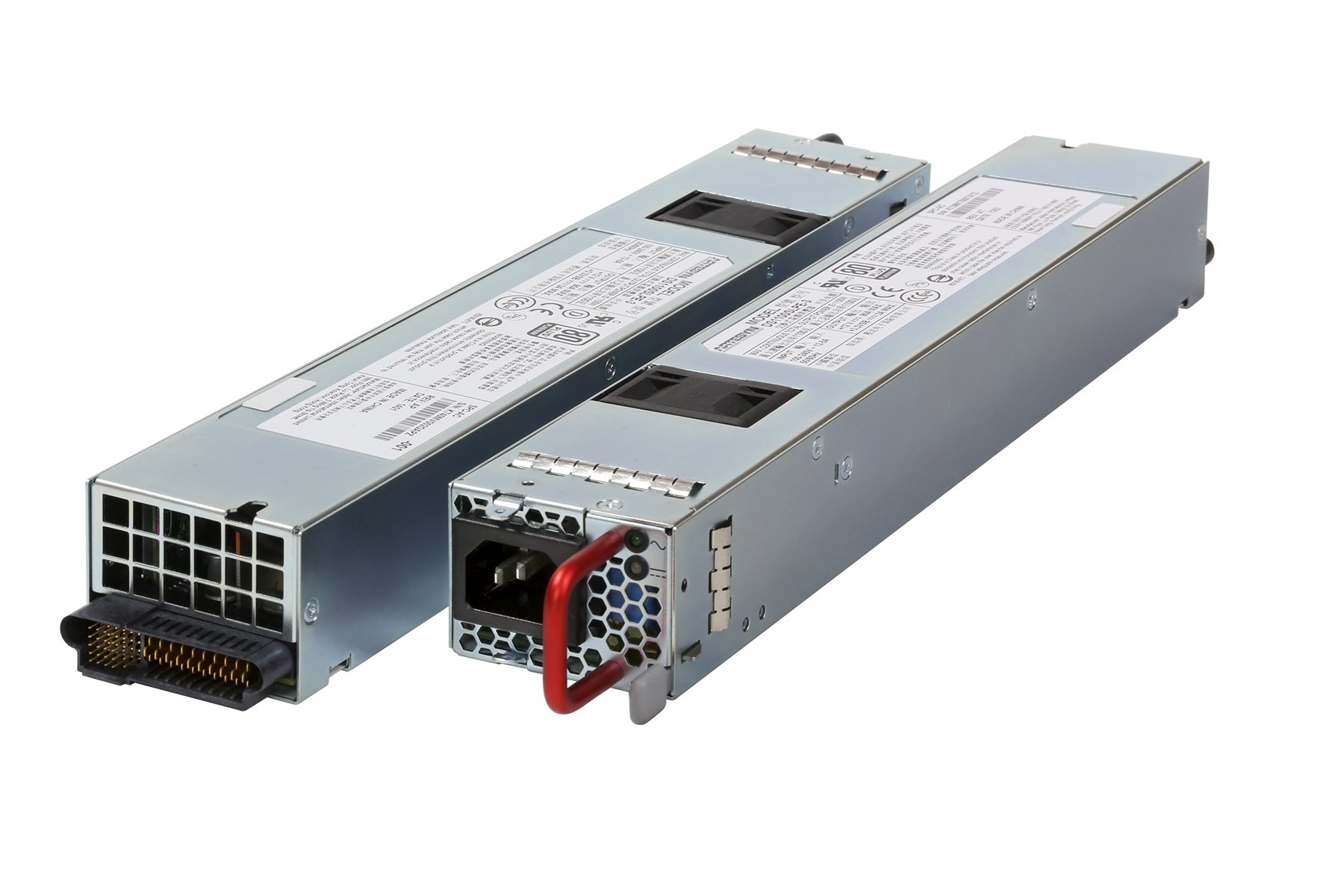

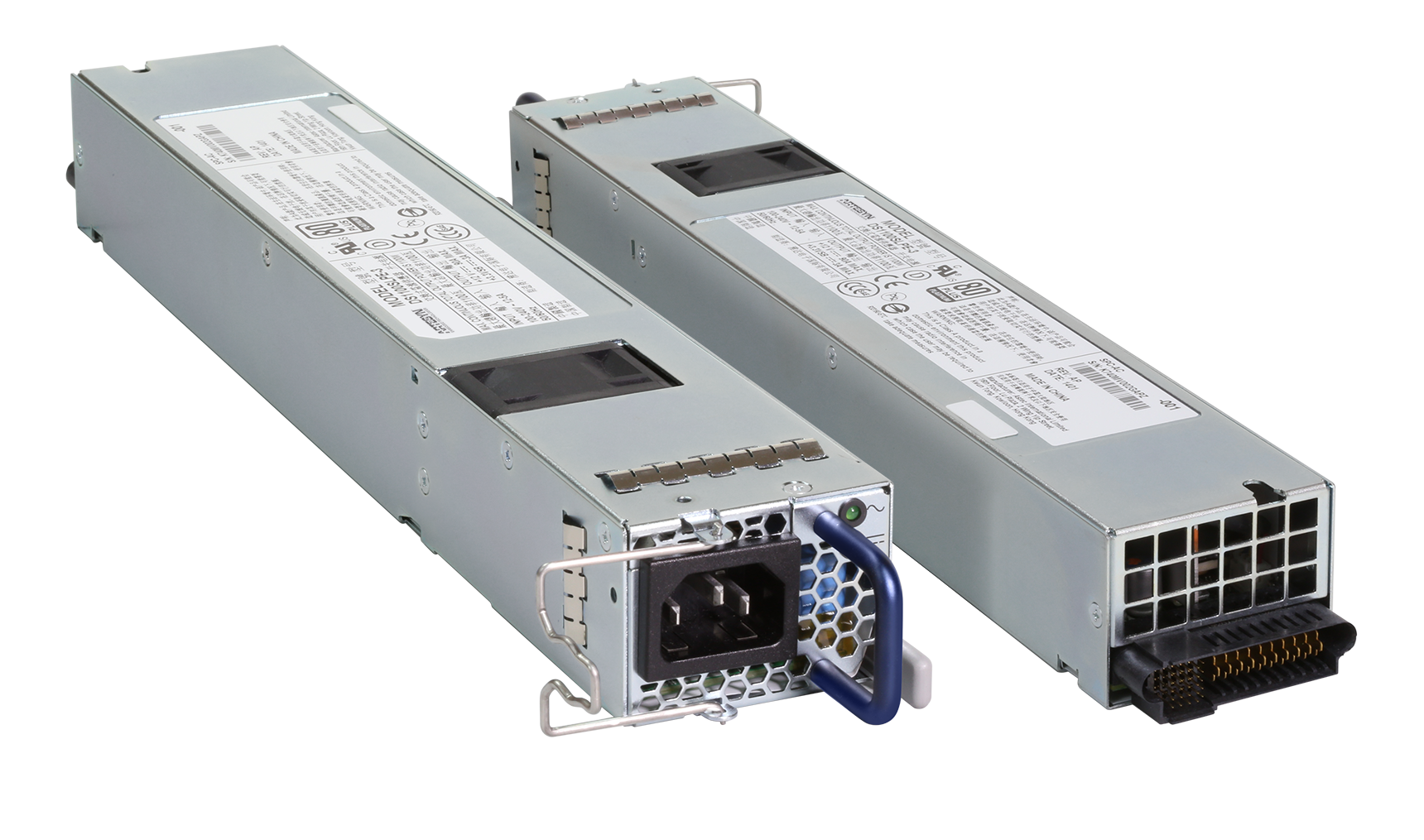

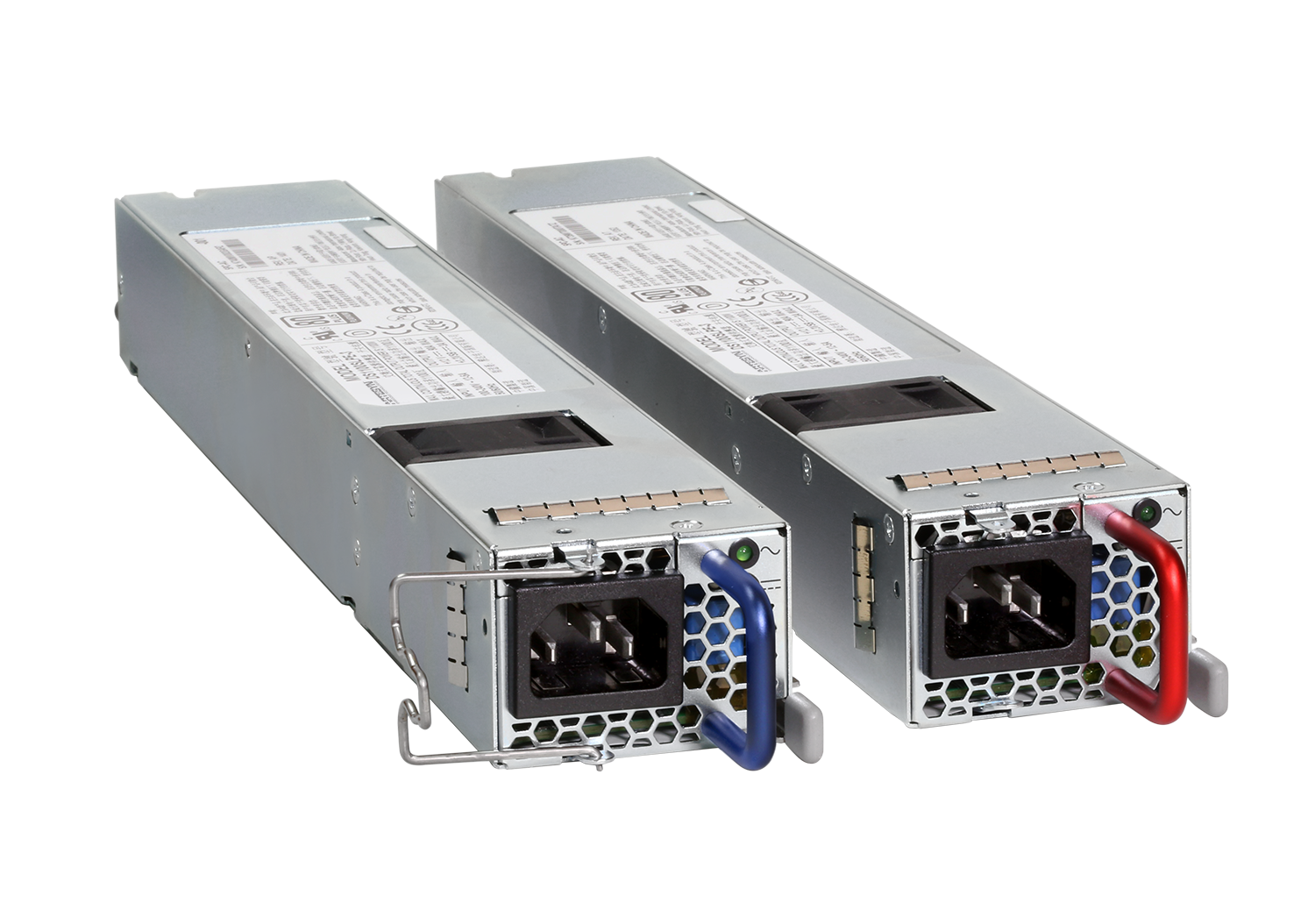

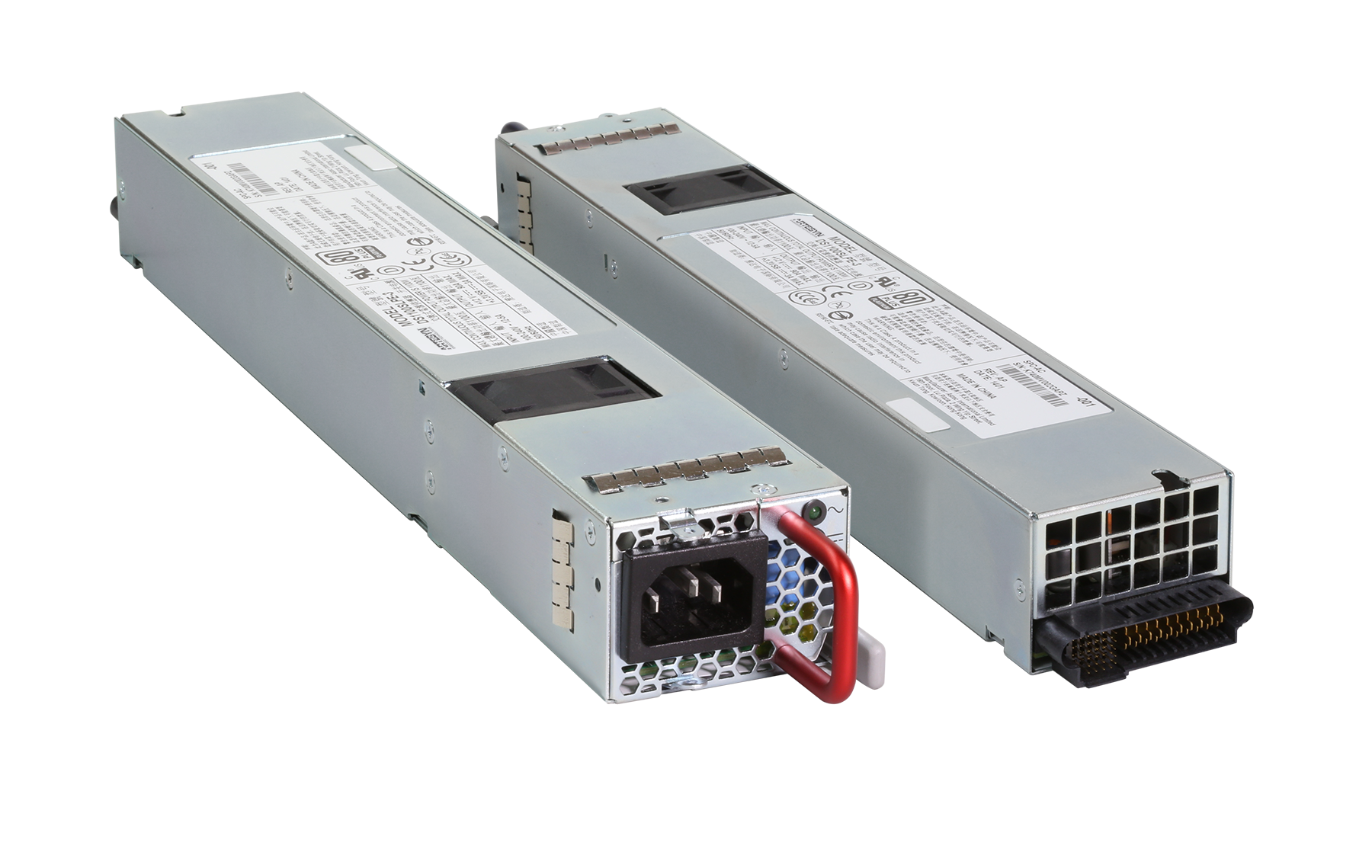

The DS1100SLPE series bulk front-end AC-DC power supply accepts a wide range of 90 to 264 VAC input and provides a main 12 V output plus a 3.3 V standby output. Rated at 1100 W it is an 80 Plus Platinum supply with a high peak efficiency of 94%. With an industry-standard 1U x 2.1-inch rack-mounting package housing, the power supply is ideal for space-constrained applications. This series comes in two airflow versions – DC-connector to AC-connector and vice versa. The main 12 V output can deliver up to 90 A and stays within regulation down to zero load, making it perfect for feeding downstream DC-DC converters in systems that use distributed power architectures (DPA). Active current sharing enables multiple supplies paralleled for high-current applications without additional components.


  • Input Range 90-264 VAC
  • Input Frequency 47 - 63 Hz
  • Efficiency 94% peak
  • Hold-up Time 16 ms
  • Power Factor 0.98 typical
  • Output Power 12V/90A and 3.3VSB/3.0A
  • Load Sharing Active load sharing with 6% at full load
  • Output Ripple 120 mVp-p


  • Protection OVP, OCP, Short Circuit, OTP
  • Remote On/Off Active Low
  • Power Good Active High
  • PS Interrupt Active Low


Output Power (W): 1100
Length (Inches): 12.66
Width (Inches): 2.15
Height (Inches): 1.57
Mounting Type: Rack-mount
Minimum Output Current (A): 0.5
Maximum Output Current (A): 90
Output Voltage Range (V): 3.14V to 12V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
DS1100SLPE-3 Active, In Stock
Slim 1.1kW Forward air
11.4 12 90 12.6 2 Request Buy
DS1100SLPE-3-001 Active, Contact Us 11.64 12.36 90 12 1 Contact Us Buy


Universal PMBus GUI Software Package

The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.

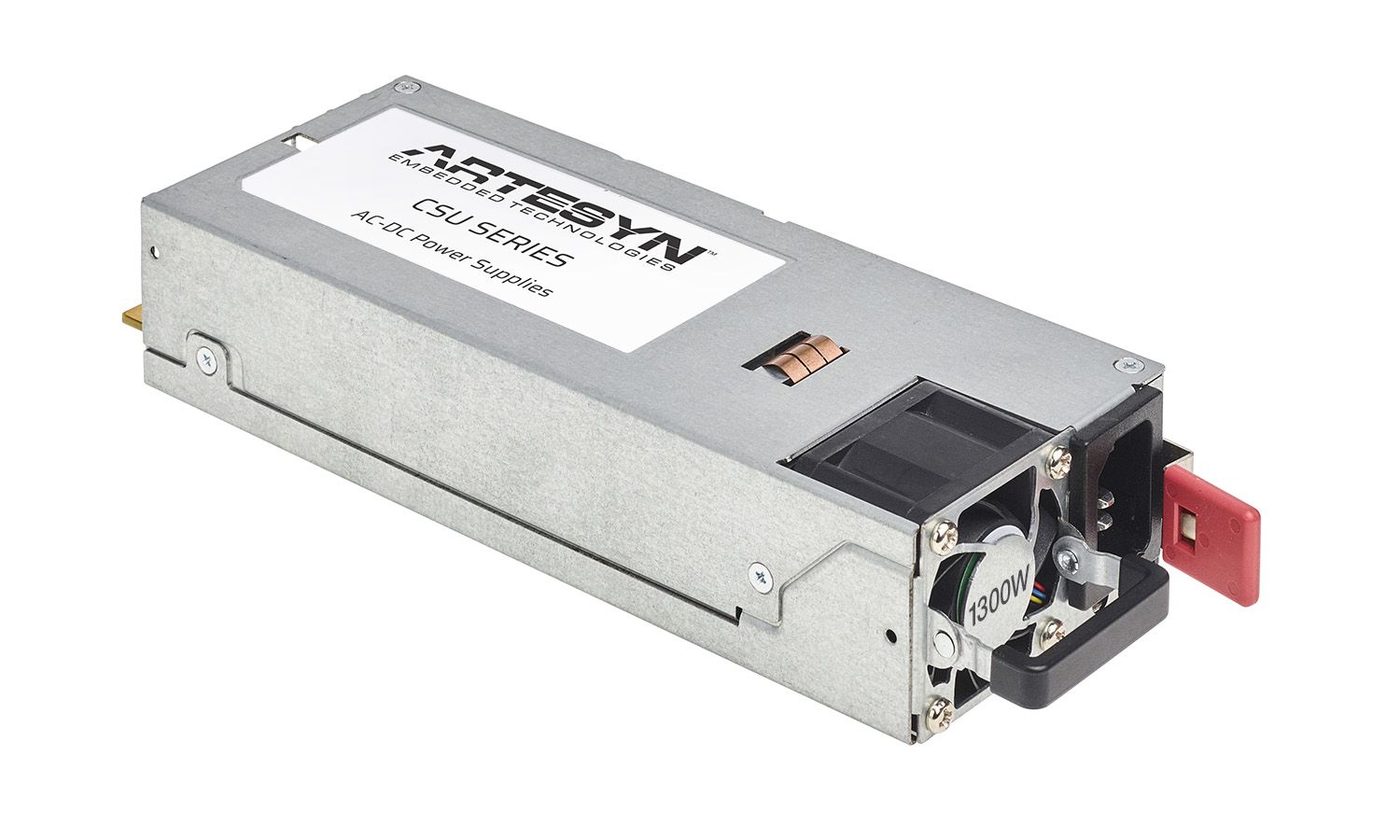

Model DS1100SLPE-3 CSU1300AP
Output Power (W) 1100 1300
Input Voltage (V)
Operating Temperature (°C)
Length (Inches) 12.66 7.28
Width (Inches) 2.15 2.89
Height (Inches) 1.57 1.57
Output Voltage Range (V) 3.14V to 12V 11.4V to 12.8V
