CSU2000ADC Series


2000 W Distributed Power

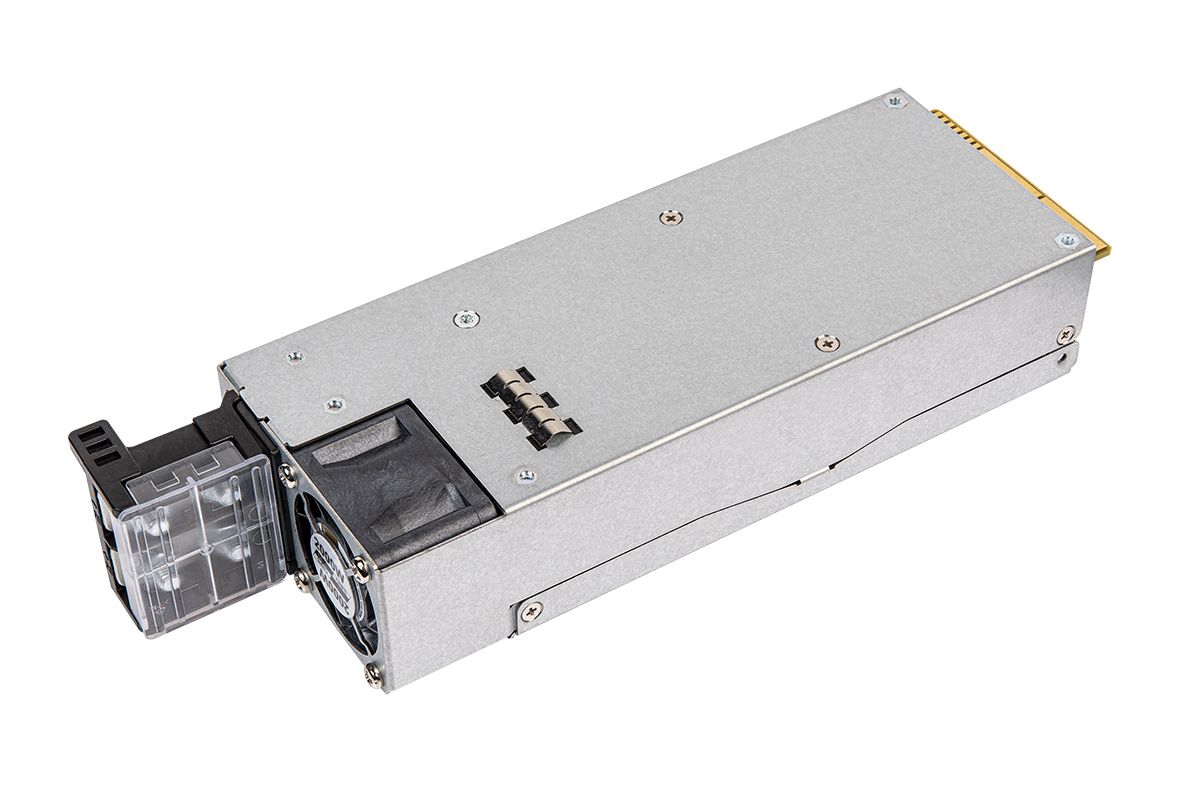

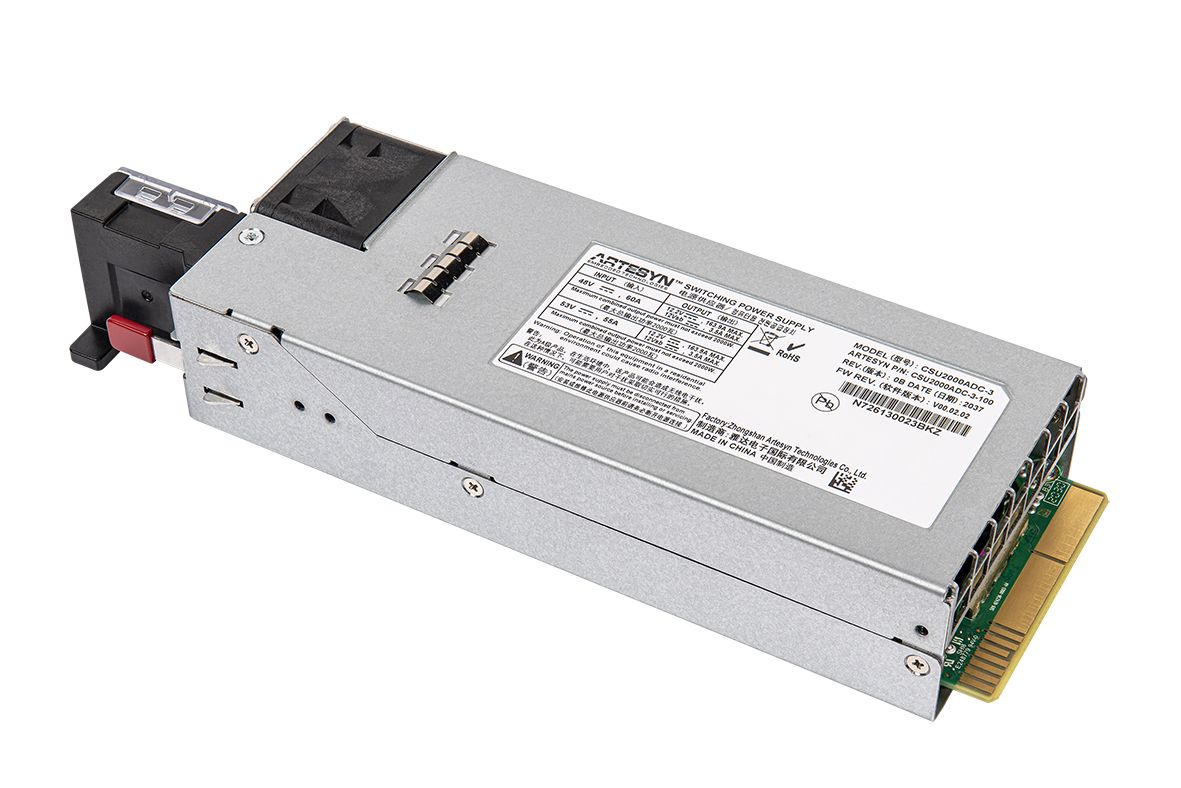

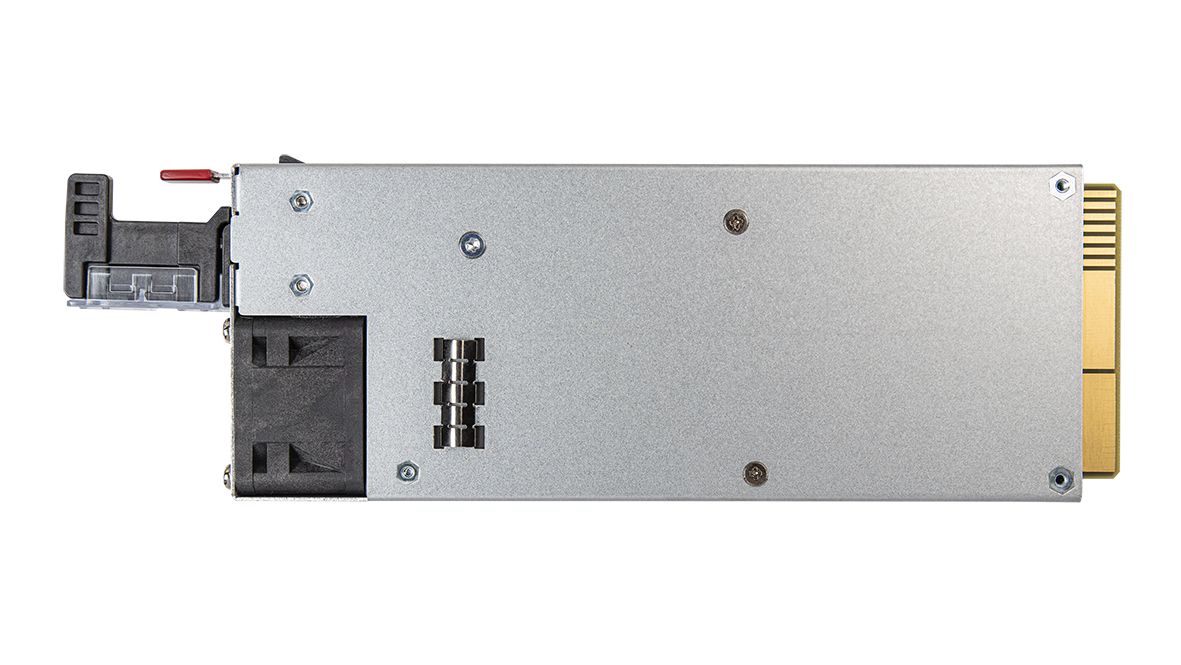

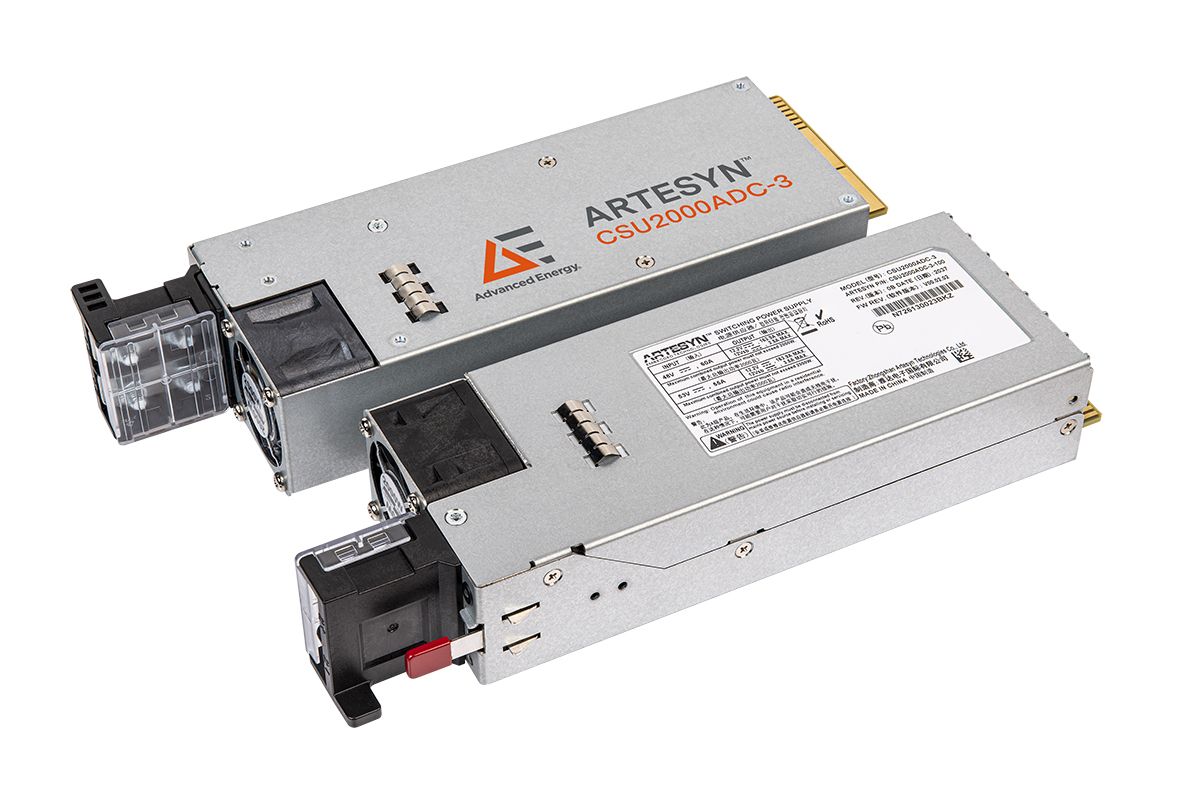

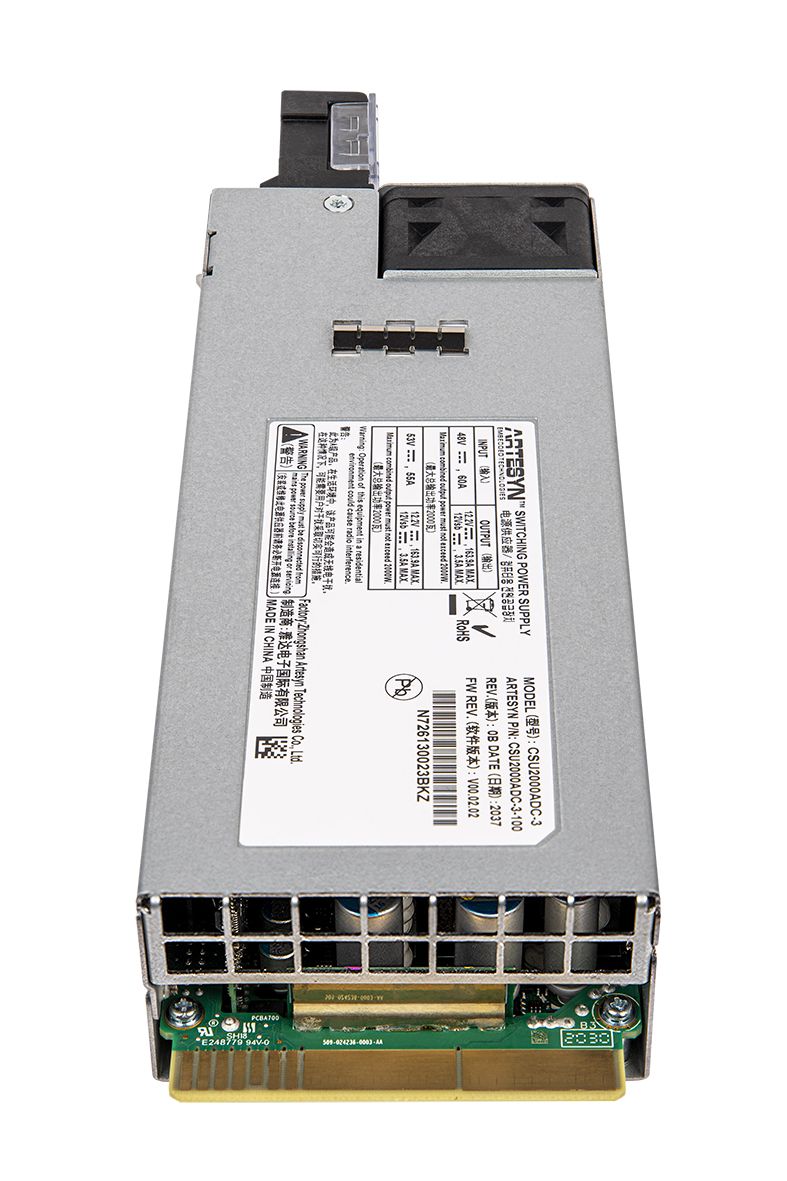

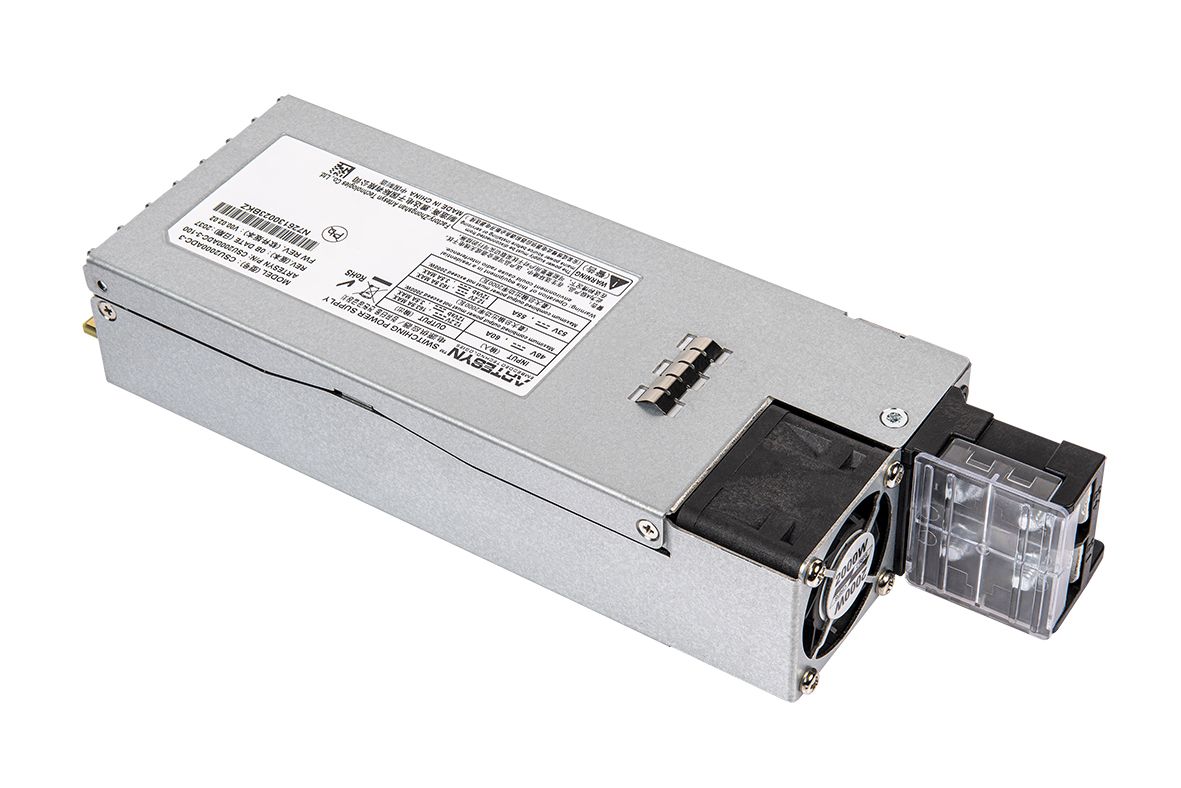

Advanced Energy's Artesyn CSU2000ADC is housed in the industry standard 1U x 73.5 x 185 mm form factor featuring -48 VDC input voltage. This DC-DC power supply belongs to the CRPS family of products, and matches the mechanical form and fit of Advanced Energy's AC-DC power supplies. The common form, fit, and function for all products in the family provides a path for power capacity flexibility, future proofing your system designs.


  • 1U power supply
  • 2000 W output power
  • High density design: 62 W/in3
  • N+M redundant N+M ‰¤ 4
  • Input Range -40 to -72Vdc
  • Main Output 12.2 V
  • Main Output Current 163.90 A
  • Standby Output 12.0 V
  • Standby Output Current 3.5 A
  • Max Continuous Power 2000W
  • Load Sharing Active load sharing within 6% of full load rating


  • Accurate input power reporting
  • Active current sharing
  • Compatible with Artesyn"™s Universal
  • Full digital control
  • High power and short form factor
  • Hotpluggable
  • Inrush current control
  • PMBus GUI
  • PMBus® compliant
  • Reverse airflow option
  • Uses twohole terminal lugs to handle high input current
  • Power Good Active High
  • Remote Enable Active Low
  • Digital Communication PMBus


Output Power (W): 2000
Length (Inches): 7.28
Width (Inches): 2.89
Height (Inches): 1.57
Mounting Type: Rack-mount
Minimum Output Current (A): 0
Maximum Output Current (A): 163.9
Output Voltage Range (V): 11.4V to 12.8V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
CSU2000ADC-3-100 Active, In Stock
CRPS 2000W 48V DC Input
11.6 12.8 163.9 12.2 2 Request Buy


Universal PMBus GUI Software Package

The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.
