ADN-C Single Phase Series


Din Rail Mounting Single-Phase AC-DC Power Supplies

The ADN-C series of single-phase DIN rail mounting AC-DC power supplies provides a compact, efficient and easy-to-use solution for industrial applications. Their slim form factor helps to maximize per-rail power density and front panel status LEDs facilitate diagnostics and troubleshooting. Features include active PFC, adjustable output, overvoltage with auto protection, parallel operation capability, and a five year warranty. This DIN rail power supply series is perfect for applications such as machine control, process control, conveying equipment, material handling, vending machines, and packaging equipment, as well as test and measurement and gaming applications.


  • Frequency 47-67 Hz, 400 Hz
  • Active PFC > 0.92
  • Input Range 85-264 VAC, 90-375 VDC
  • Inrush Current up to < 15 A
  • Initial Voltage Setting 24.5 VDC
  • PowerBoost 1.5x nominal current for 4 seconds
  • Line and load regulation < 0.5%
  • Voltage 24 VDC (22.5 to 28.5 VDC Adj)
  • OVP > 30.5 VDC but < 33 VDC with autorecovery
  • Hold-up time > 20ms
  • Time and Temperature drift < 1%


  • Slim Form Factor
  • High Efficiency up to 92%
  • High Quality through MTBF > 450,000h
  • Operating Temperature from -25°C (-10°C for some models) to 70°C. Derate starting at 60°C.
  • 3 LED providing 8 diagnostic status
  • PowerBoost to support high inrush loads
  • Active PFC > 0.92
  • Metal Case with DIN rail mounting clip
  • Warranty 5 years


Output Power (W): 960
Length (Inches): 4.37
Width (Inches): 1.97
Height (Inches): 4.85
Mounting Type: Din Rail
Minimum Output Current (A): 0
Maximum Output Current (A): 40
Output Voltage Range (V): 22.5V to 28.5V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy

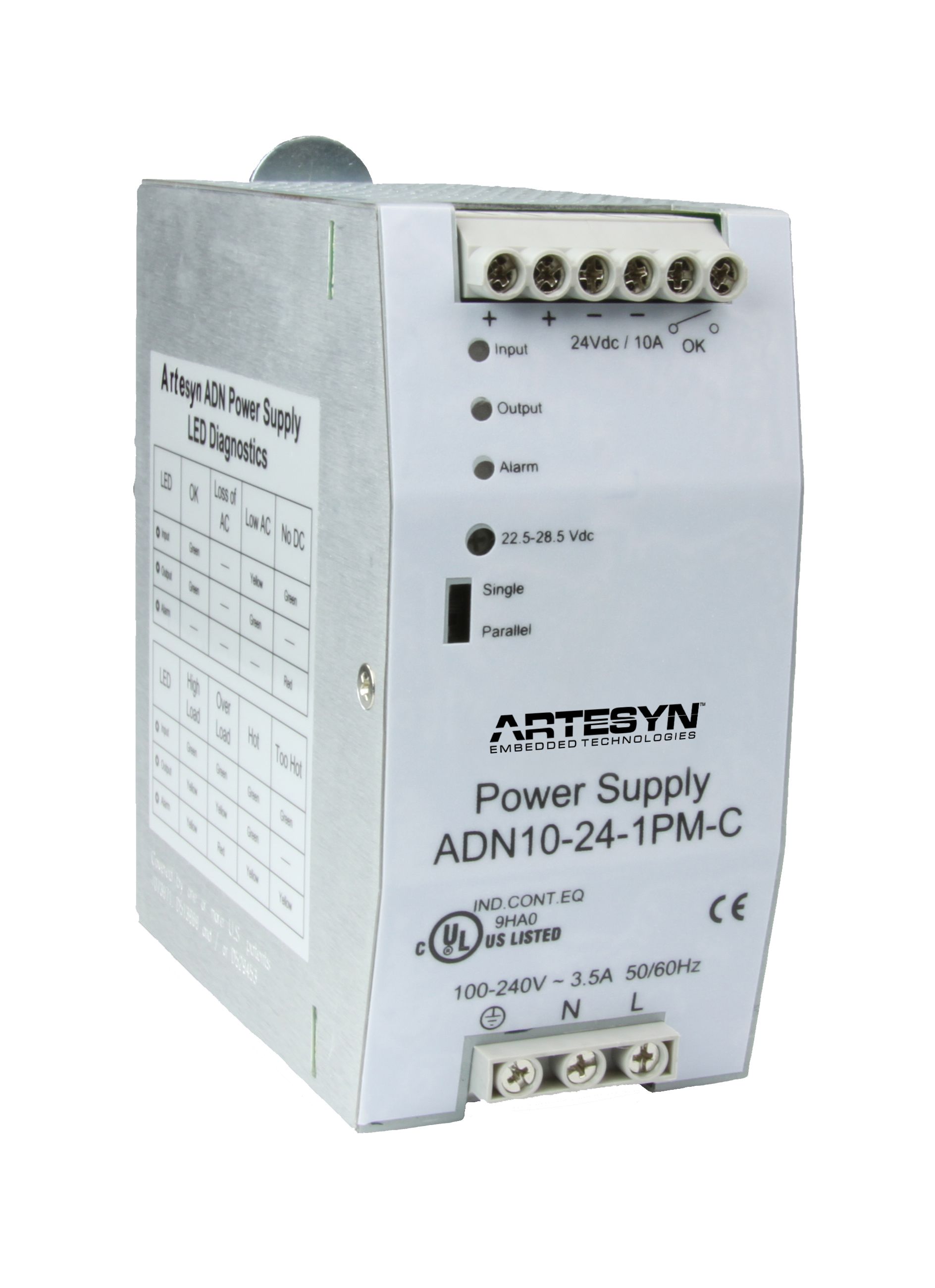

ADN10-24-1PM-C Active, In Stock
22.5 24 10 24 1 Request Buy

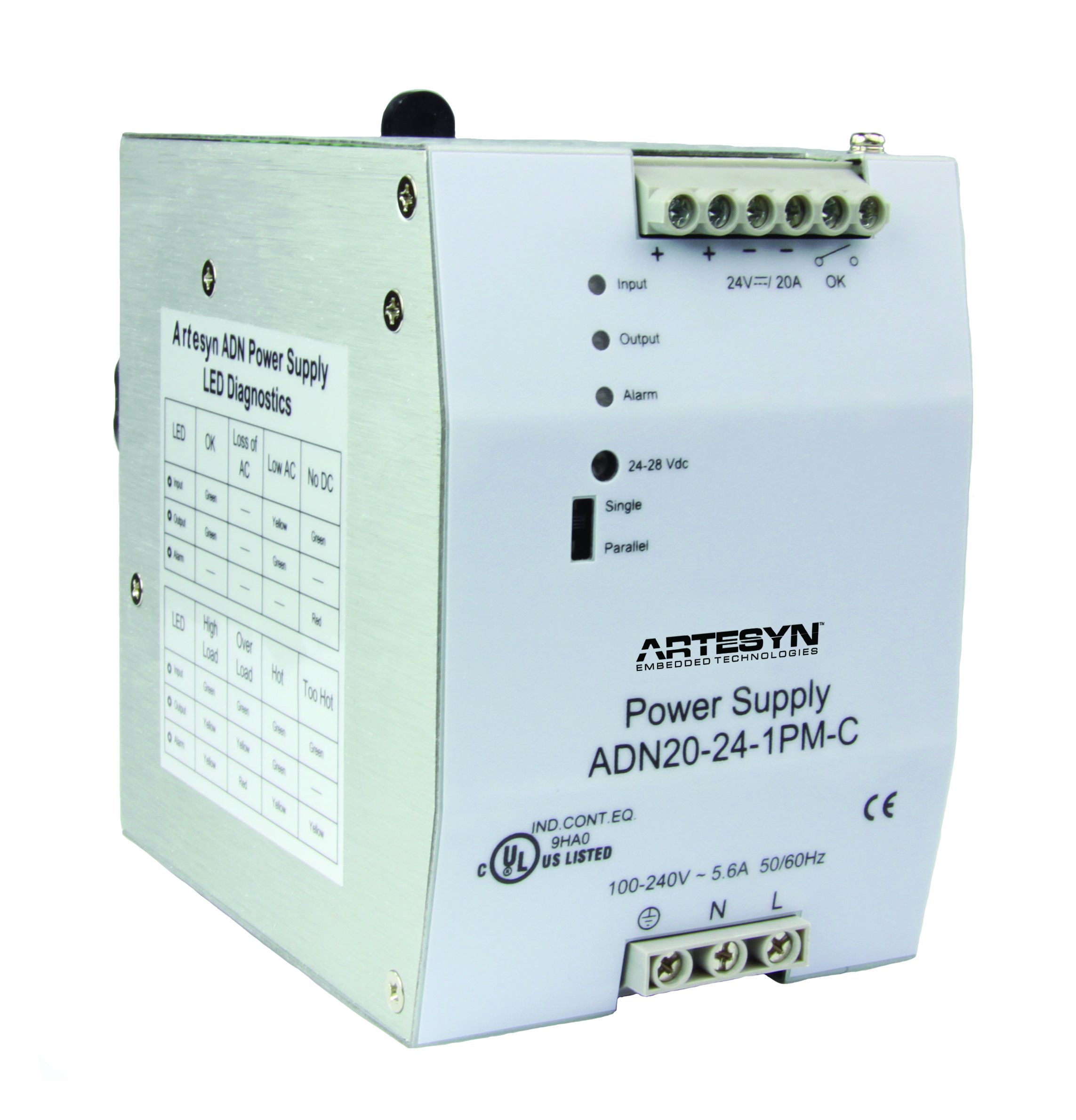

ADN20-24-1PM-C Active, In Stock
24 24 20 24 1 Request Buy
ADN40-24-1PM-C Active, In Stock
22.5 28.5 40 24 1 Request Buy

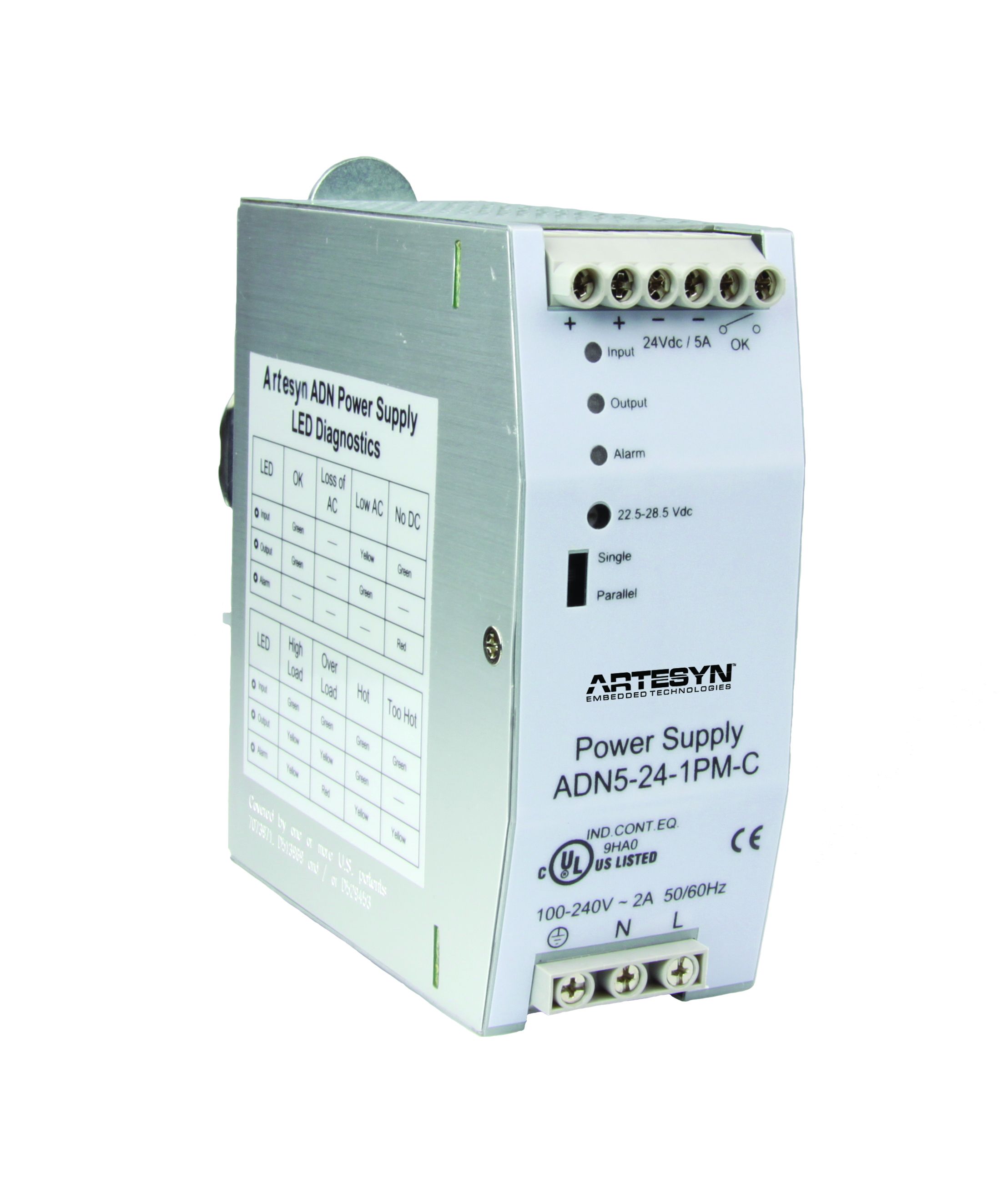

ADN5-24-1PM-C Active, In Stock
22.5 24 5 24 1 Request Buy
