AVD50B Series

Active

50 W 1/16th Brick

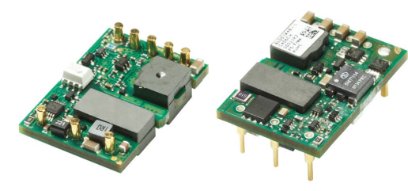

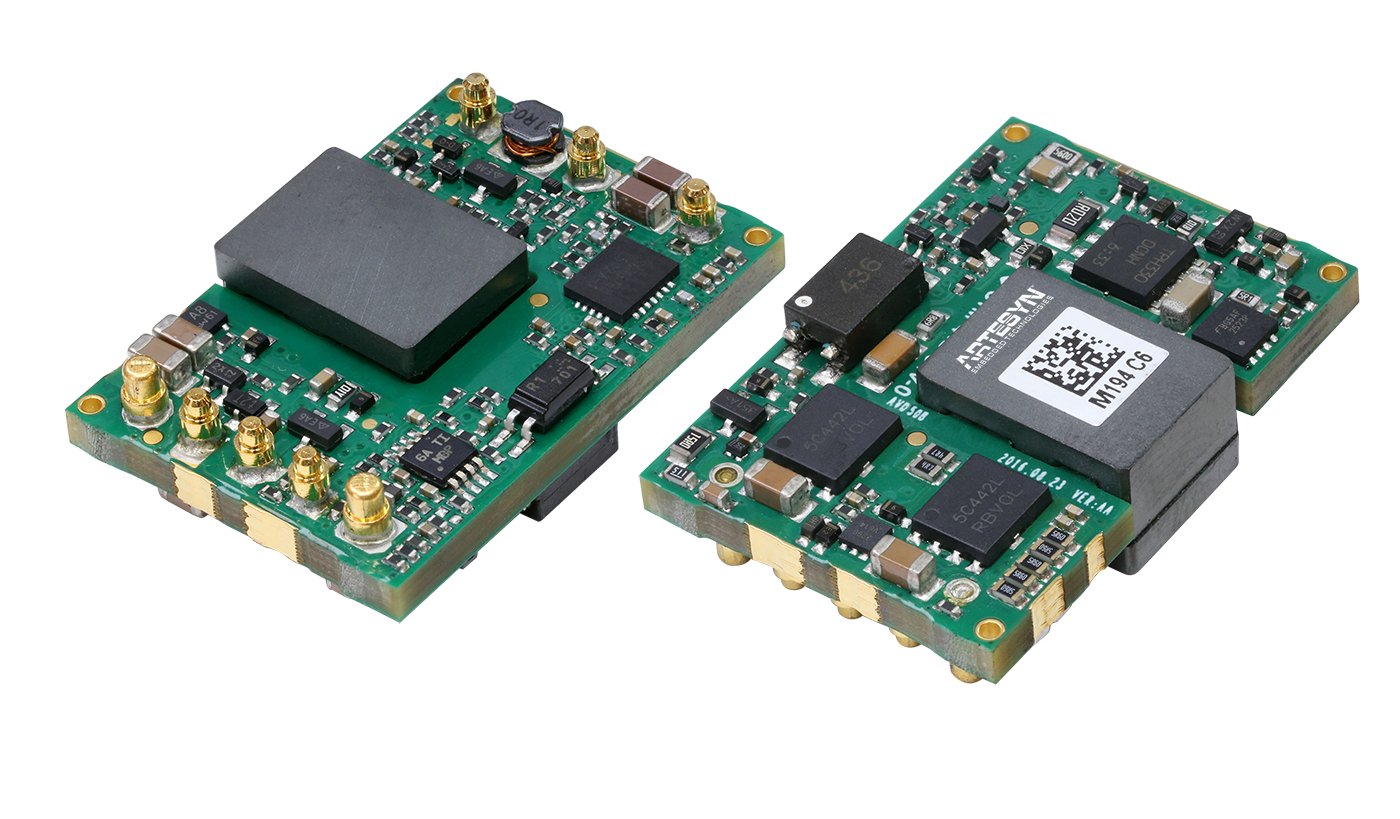

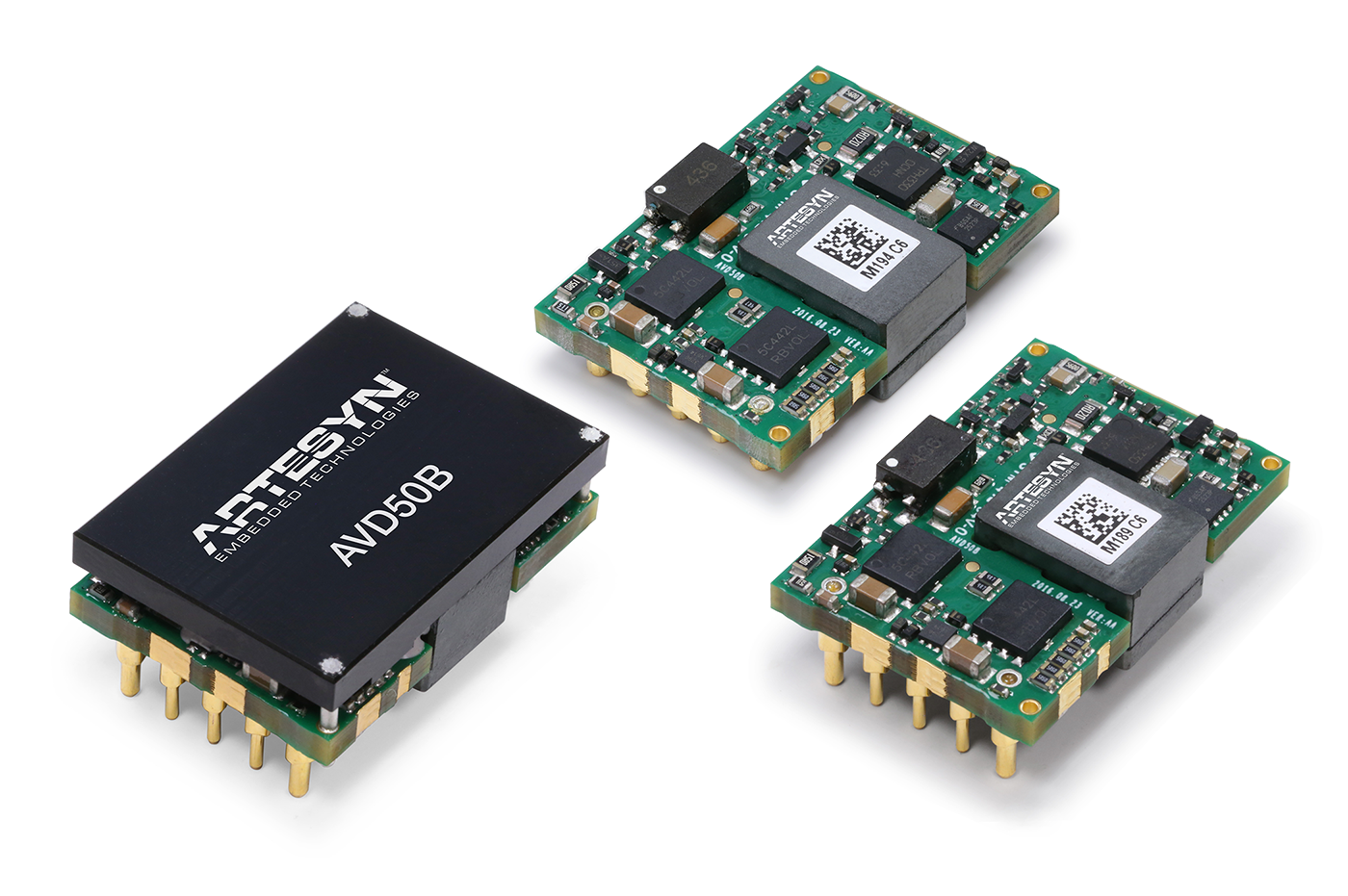

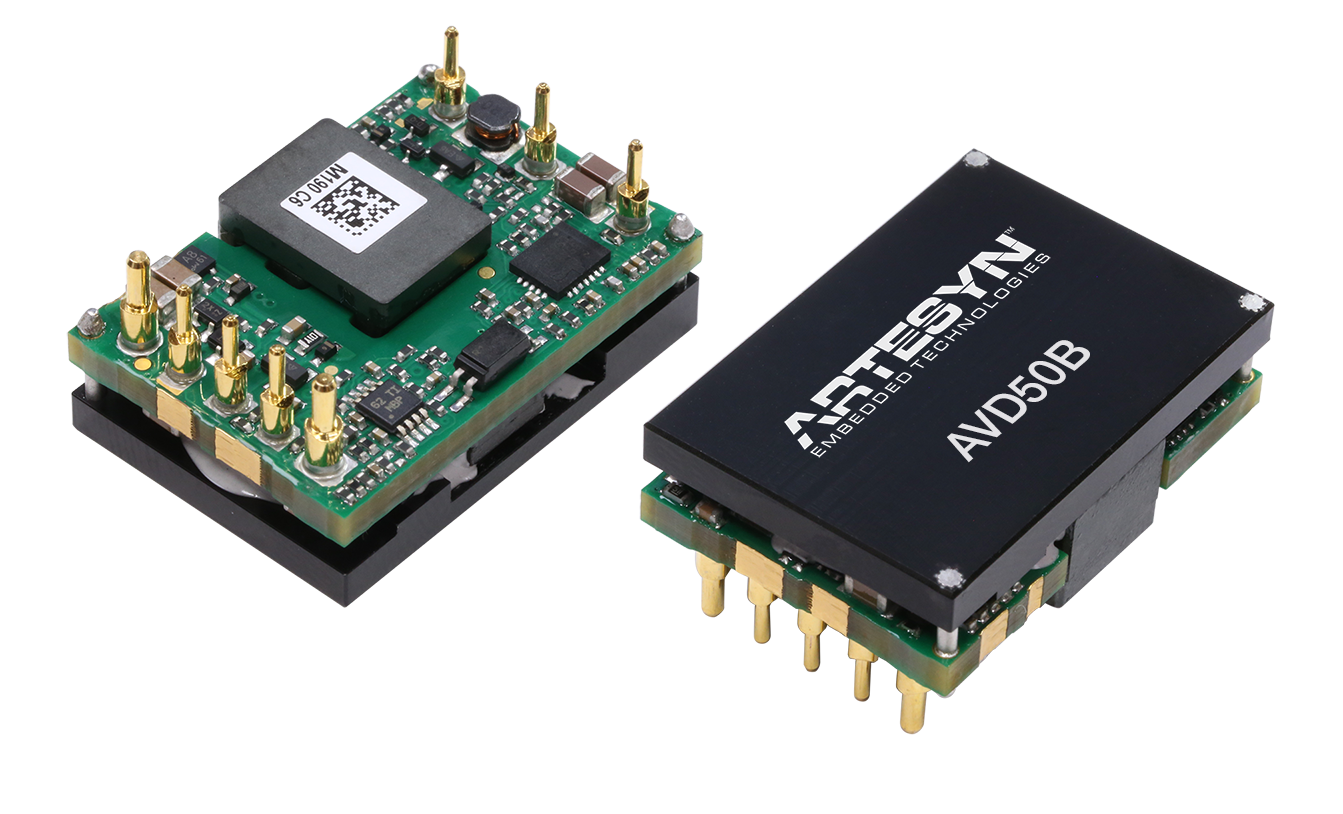

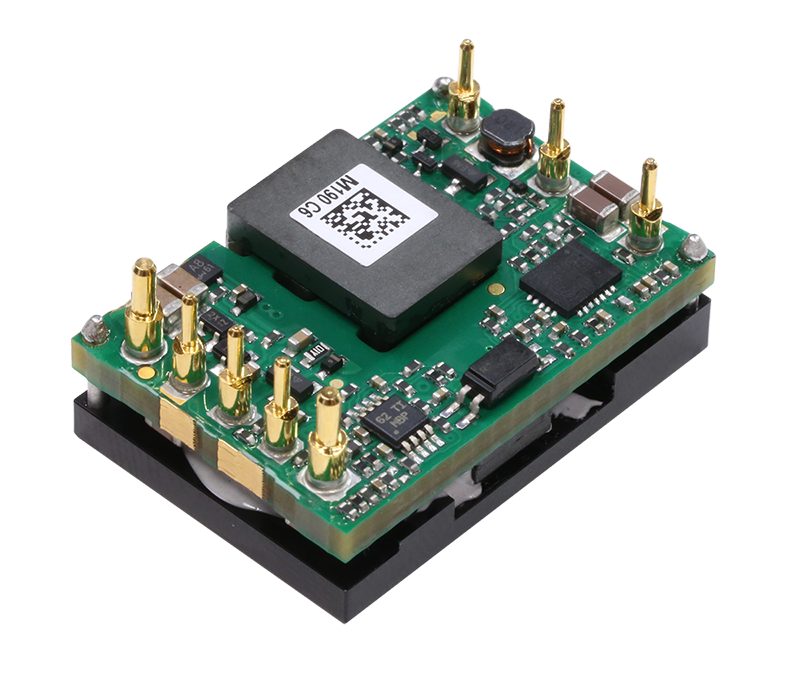

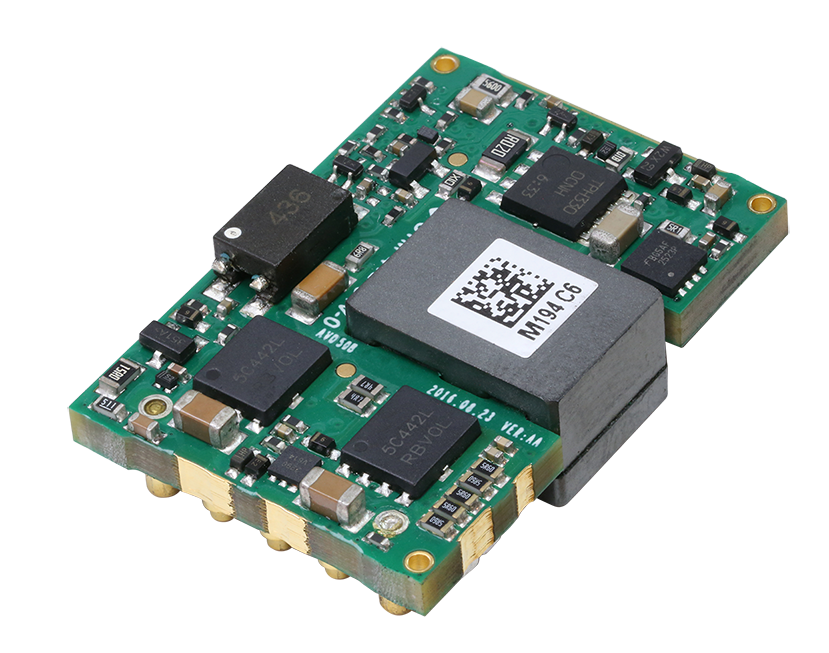

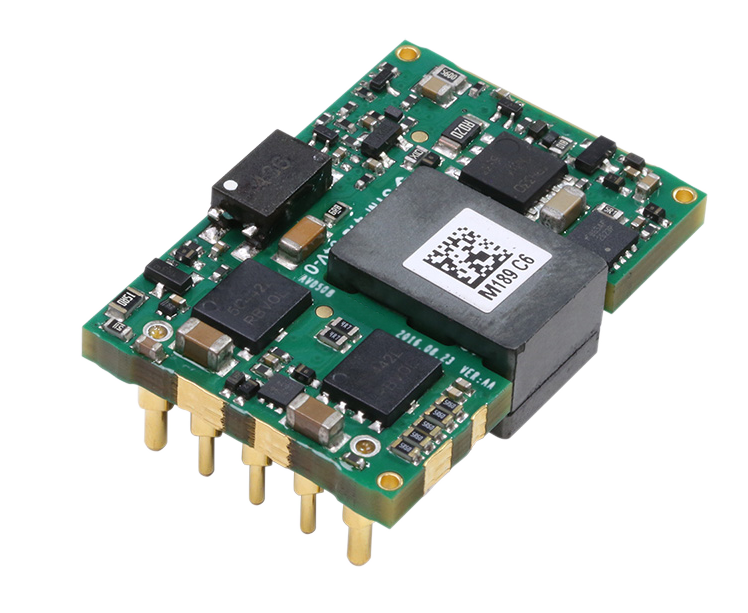

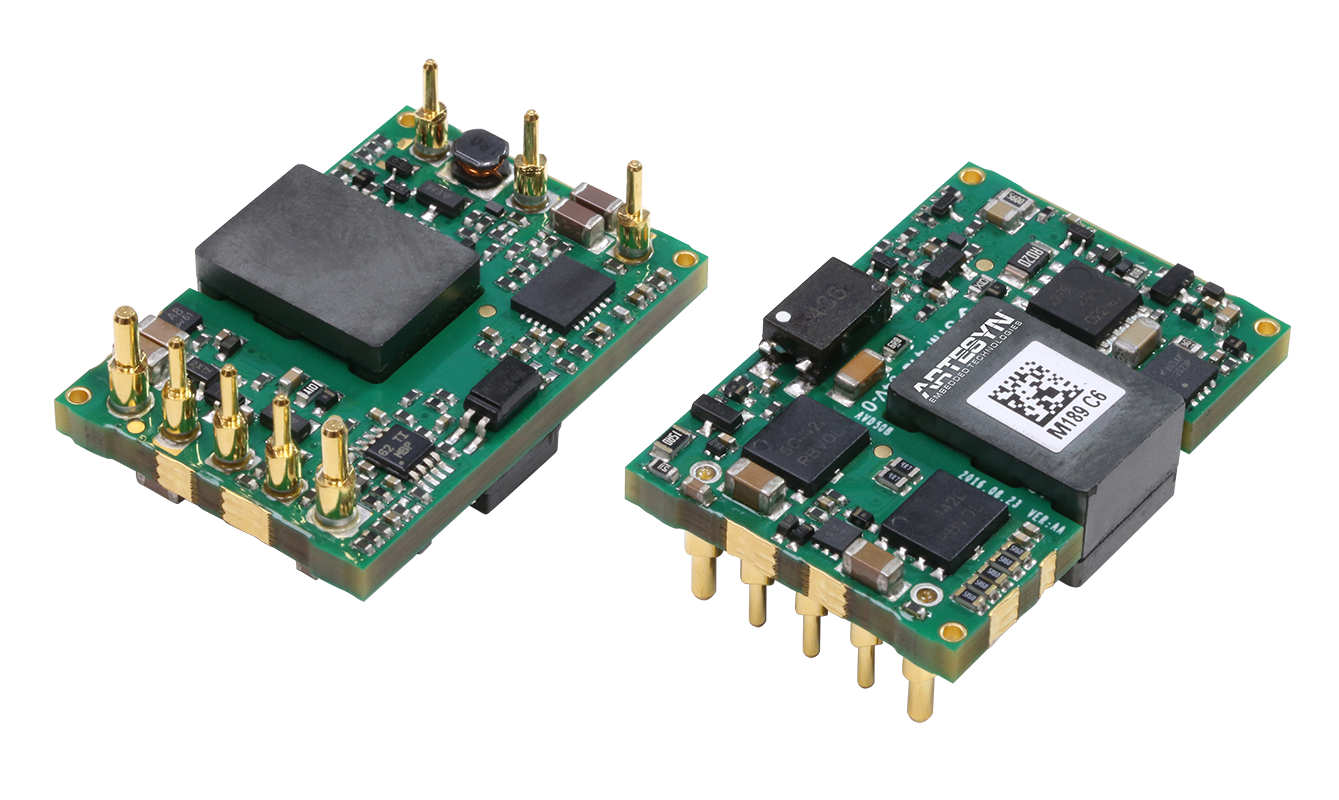

The AVD50B series sixteenth-brick isolated DC-DC converter provides a fully regulated single output at 3.3 V, 5 V or 12 V that is capable of delivering up to 50 W. It has a wide 2:1 input range of 36 to 75 VDC and is designed primarily for use with standard 48 V telecommunications equipment supplies. Rated at 50 W, the converter employs an open-frame construction, offers up to 93% efficiency and accommodates an ambient operating temperature range of -40 to 85ËšC. A baseplate option is available for enhanced thermal performance. SMT bullet pin with reel tape package is available for reflow processing. The converter uses fixed frequency switching to minimize the need for external EMI filtering.

Features

  • Delivers up to 50w rated power
  • RoHS 6 compliant
  • Ultrahigh efficiency 93% typ. at full load
  • Wide input range: 36V ~ 75V
  • Input Range 36V-75VDC
  • output voltage 3.3VDC-12VDC
  • output power 50W

Benefits

  • Basic isolation
  • Excellent thermal performance
  • High power density
  • Low output noise
  • No minimum load requirement
  • Reflow soldering enabled
  • isolation basic insulation

Specifications

Output Power (W): 50
Length (Inches): 1.3
Width (Inches): 0.9
Height (Inches): 0.36
Mounting Type: BMP; SMT &Through Hole
Minimum Output Current (A): 4.17
Maximum Output Current (A): 15
Output Voltage Range (V): 2.64V to 13.2V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
AVD50B-48S05-6L Active, In Stock
50W 5V1/16th brick
4 5.5 10 5 1 Request Buy
AVD50B-48S05B-6L Active, In Stock
50W 5V 1/16th brick
4 5.5 10 5 1 Request Buy
AVD50B-48S05TL Active, Contact Us
50W 5V 1/16th brick
4 5.5 10 5 1 Contact Us Buy
AVD50B-48S12-6L Active, In Stock
50W 12V 1/16th brick
9.6 13.2 4.17 12 1 Request Buy
AVD50B-48S12B-6L Active, In Stock
50W 12V 1/16th brick
9.6 13.2 4.17 12 1 Request Buy
AVD50B-48S12TL Active, Contact Us
50W 12V 1/16th brick
9.6 13.2 4.17 12 1 Contact Us Buy
AVD50B-48S3V3-6L Active, In Stock
50W 3.3V 1/16th brick
2.64 3.63 15 3.3 1 Request Buy
AVD50B-48S3V3B-6L Active, In Stock
50W 3.3V 1/16th brick
2.64 3.63 15 3.3 1 Request Buy
AVD50B-48S3V3TL Active, Contact Us
50W 3.3V 1/16th brick
2.64 3.63 15 3.3 1 Contact Us Buy
