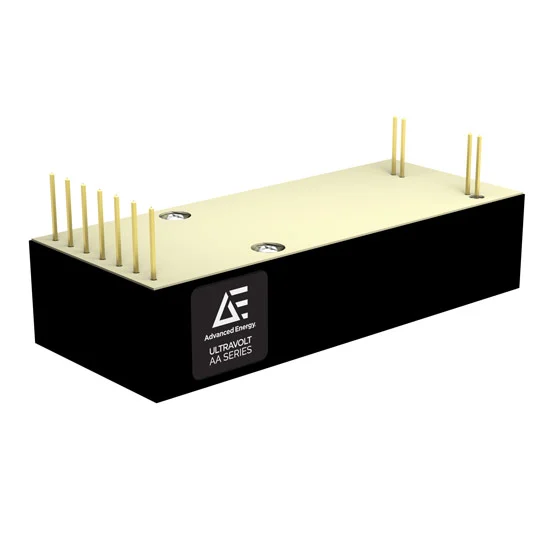

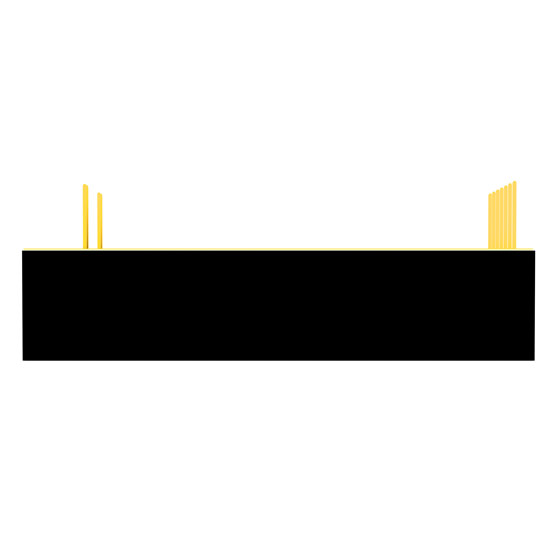

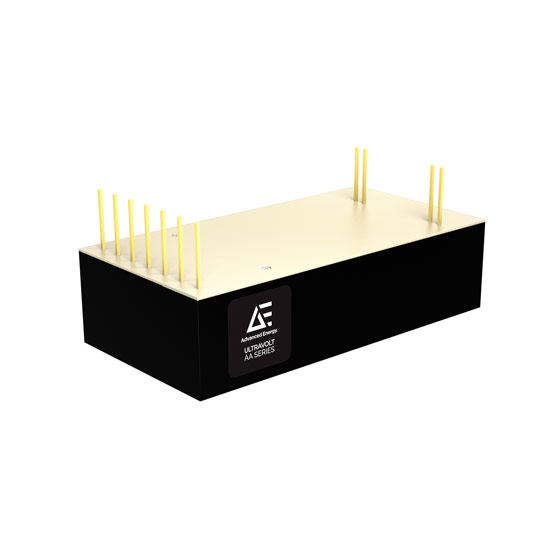

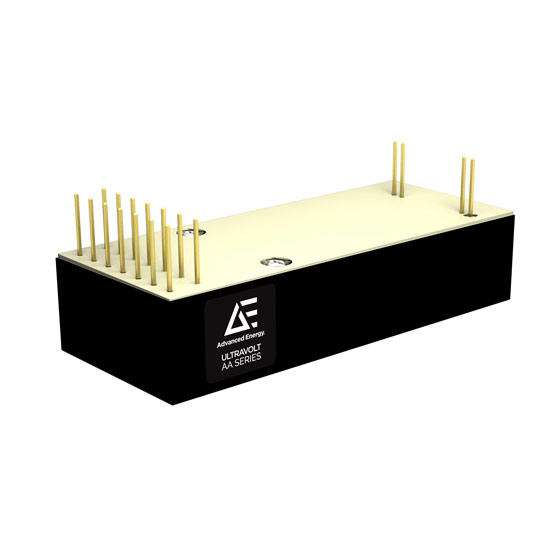

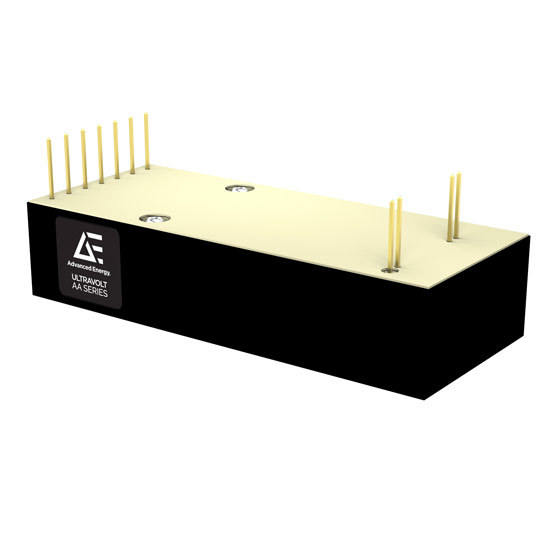

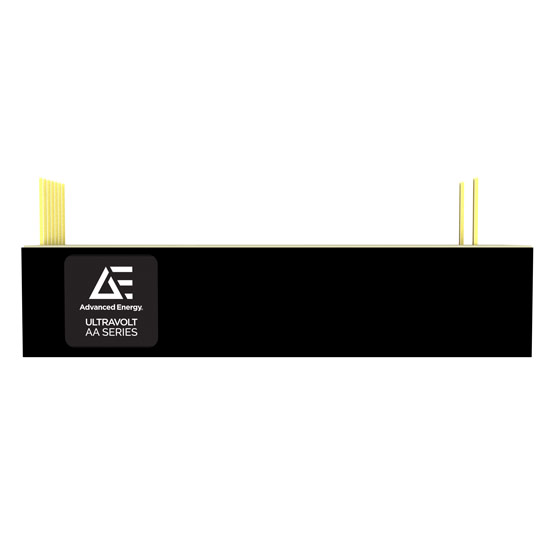

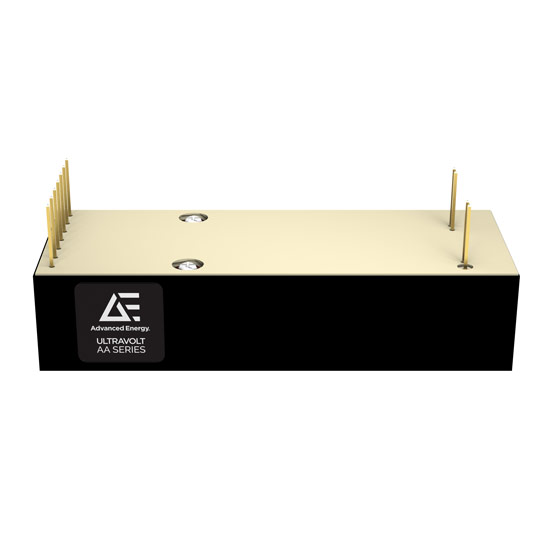

AA Series
Active
Miniature PCB-Mount, Regulated DC-DC Converters
Advanced Energy’s PCB-mount UltraVolt AA series regulated DC-DC converters offer 62 VDC to 6 kVDC up to 30 W, 100 ppm ripple output from 12 or 24 VDC input. The general-purpose high-voltage compact products are solutions for a wide range of applications, including analytical instrumentation, electrostatics and charging, mass spectrometry, and semiconductor manufacturing. With configurable high-voltage output, power, and polarity, the AA series is available with 0 to 5 VDC or 0 to 10 VDC (full-scale) analog interfaces for control and monitoring. Advanced Energy also offers factory-configured mechanical and electrical performance options, including interconnection and shielding, to meet your application needs.
特徴
- Configurable high voltage output, power, and polarity in a common footprint
- Available 0 to 5 VDC or 0 to 10 VDC (full-scale) analog interfaces
- Control and monitoring of high voltage output and current
- Selection of electrical, shielding, and mechanical integration options
- Ripple performance as low as 100 ppm (0.05 Vpp)
メリット
- Upgrade module and system performance without changing PCB layout
- Speed time-to-market by simplifying controls integration
- Improve responsive and control of high voltage output
- Expand mechanical integration, external RF protection, and interconnection possibilities
- Increase system repeatability, resolution, and long-term reliability
仕様
| 出力電力 (W): | 4 to 30 |
|---|---|
| 長さ（インチ）: | 3 |
| 幅（インチ）: | 1.5 |
| 高さ（インチ）: | 0.75 |
| マウントタイプ: | Through Hole, Surface Mount |
| 最小出力電流 (A): | 0.001 |
| 最大出力電流 (A): | 0.48 |
| 出力電圧範囲 (V): | 0 to 6000 |
| 最小出力（W）: | 4 |
| 最大出力（W）: | 30 |
| Minimum Input Voltage (V): | 12 |
| 最大入力電圧 (V): | 24 |
在庫チェック
|
モデル番号
サンプル
購入
|
制御タイプ | 最大出力（W） | 最大出力電圧 (V) | 出力数 | リップル（ppm） | 温度係数 | 出力タイプ | サンプル | 購入 |
|---|---|---|---|---|---|---|---|---|---|
| 1/16AA12-N4 Active, お問い合わせ | Analog | 4 | 63 | 1 | 300 | 50 | Unipolar | お問い合わせ | 購入 |
| 1/16AA12-N4-25PPM Active, お問い合わせ | Analog | 4 | 63 | 1 | 300 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/16AA12-P4 Active, お問い合わせ | Analog | 4 | 63 | 1 | 300 | 50 | Unipolar | お問い合わせ | 購入 |
| 1/16AA12-P4-25PPM Active, お問い合わせ | Analog | 4 | 63 | 1 | 300 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/16AA24-N20 Active, お問い合わせ | Analog | 20 | 63 | 1 | 600 | 50 | Unipolar | お問い合わせ | 購入 |
| 1/16AA24-N20-25PPM Active, お問い合わせ | Analog | 20 | 63 | 1 | 600 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/16AA24-N30 Active, お問い合わせ | Analog | 30 | 63 | 1 | 1500 | 50 | Unipolar | お問い合わせ | 購入 |
| 1/16AA24-N30-25PPM Active, お問い合わせ | Analog | 30 | 63 | 1 | 1500 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/16AA24-P20 Active, お問い合わせ | Analog | 20 | 63 | 1 | 600 | 50 | Unipolar | お問い合わせ | 購入 |
| 1/16AA24-P20-25PPM Active, お問い合わせ | Analog | 20 | 63 | 1 | 600 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/16AA24-P30 Active, お問い合わせ | Analog | 30 | 63 | 1 | 1500 | 50 | Unipolar | お問い合わせ | 購入 |
| 1/16AA24-P30-25PPM Active, お問い合わせ | Analog | 30 | 63 | 1 | 1500 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/2AA12-N4 アクティブ, 在庫あり | Analog | 4 | 500 | 1 | 100 | 50 | Unipolar | Request | 購入 |
| 1/2AA12-N4-25PPM Active, お問い合わせ | Analog | 4 | 500 | 1 | 100 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/2AA12-P4 アクティブ, 在庫あり | Analog | 4 | 500 | 1 | 100 | 50 | Unipolar | Request | 購入 |
| 1/2AA12-P4-25PPM Active, お問い合わせ | Analog | 4 | 500 | 1 | 100 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/2AA24-N20 アクティブ, 在庫あり | Analog | 20 | 500 | 1 | 100 | 50 | Unipolar | Request | 購入 |
| 1/2AA24-N20-25PPM Active, お問い合わせ | Analog | 20 | 500 | 1 | 100 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/2AA24-N30 Active, お問い合わせ | Analog | 30 | 500 | 1 | 110 | 50 | Unipolar | お問い合わせ | 購入 |
| 1/2AA24-N30-25PPM Active, お問い合わせ | Analog | 30 | 500 | 1 | 110 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/2AA24-P20 アクティブ, 在庫あり | Analog | 20 | 500 | 1 | 100 | 50 | Unipolar | Request | 購入 |
| 1/2AA24-P20-25PPM Active, お問い合わせ | Analog | 20 | 500 | 1 | 100 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/2AA24-P30 アクティブ, 在庫あり | Analog | 30 | 500 | 1 | 110 | 50 | Unipolar | Request | 購入 |
| 1/2AA24-P30-25PPM Active, お問い合わせ | Analog | 30 | 500 | 1 | 110 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/4AA12-N4 Active, お問い合わせ | Analog | 4 | 250 | 1 | 230 | 50 | Unipolar | お問い合わせ | 購入 |
| 1/4AA12-N4-25PPM Active, お問い合わせ | Analog | 4 | 250 | 1 | 230 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/4AA12-P4 Active, お問い合わせ | Analog | 4 | 250 | 1 | 230 | 50 | Unipolar | お問い合わせ | 購入 |
| 1/4AA12-P4-25PPM Active, お問い合わせ | Analog | 4 | 250 | 1 | 230 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/4AA24-N20 Active, お問い合わせ | Analog | 20 | 250 | 1 | 400 | 50 | Unipolar | お問い合わせ | 購入 |
| 1/4AA24-N20-25PPM Active, お問い合わせ | Analog | 20 | 250 | 1 | 400 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/4AA24-N30 Active, お問い合わせ | Analog | 30 | 250 | 1 | 500 | 50 | Unipolar | お問い合わせ | 購入 |
| 1/4AA24-N30-25PPM Active, お問い合わせ | Analog | 30 | 250 | 1 | 500 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/4AA24-P20 アクティブ, 在庫あり | Analog | 20 | 250 | 1 | 400 | 50 | Unipolar | Request | 購入 |
| 1/4AA24-P20-25PPM Active, お問い合わせ | Analog | 20 | 250 | 1 | 400 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/4AA24-P30 アクティブ, 在庫あり | Analog | 30 | 250 | 1 | 500 | 50 | Unipolar | Request | 購入 |
| 1/4AA24-P30-25PPM Active, お問い合わせ | Analog | 30 | 250 | 1 | 500 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/8AA12-N4 Active, お問い合わせ | Analog | 4 | 125 | 1 | 300 | 50 | Unipolar | お問い合わせ | 購入 |
| 1/8AA12-N4-25PPM Active, お問い合わせ | Analog | 4 | 125 | 1 | 300 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/8AA12-P4 アクティブ, 在庫あり | Analog | 4 | 125 | 1 | 300 | 50 | Unipolar | Request | 購入 |
| 1/8AA12-P4-25PPM Active, お問い合わせ | Analog | 4 | 125 | 1 | 300 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/8AA24-N20 Active, お問い合わせ | Analog | 20 | 125 | 1 | 380 | 50 | Unipolar | お問い合わせ | 購入 |
| 1/8AA24-N20-25PPM Active, お問い合わせ | Analog | 20 | 125 | 1 | 380 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/8AA24-N30 Active, お問い合わせ | Analog | 30 | 125 | 1 | 380 | 50 | Unipolar | お問い合わせ | 購入 |
| 1/8AA24-N30-25PPM Active, お問い合わせ | Analog | 30 | 125 | 1 | 380 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/8AA24-P20 アクティブ, 在庫あり | Analog | 20 | 125 | 1 | 380 | 50 | Unipolar | Request | 購入 |
| 1/8AA24-P20-25PPM Active, お問い合わせ | Analog | 20 | 125 | 1 | 380 | 25 | Unipolar | お問い合わせ | 購入 |
| 1/8AA24-P30 Active, お問い合わせ | Analog | 30 | 125 | 1 | 380 | 50 | Unipolar | お問い合わせ | 購入 |
| 1/8AA24-P30-25PPM Active, お問い合わせ | Analog | 30 | 125 | 1 | 380 | 25 | Unipolar | お問い合わせ | 購入 |
| 1AA12-N4 Active, お問い合わせ | Analog | 4 | 1000 | 1 | 260 | 50 | Unipolar | お問い合わせ | 購入 |
| 1AA12-N4-25PPM Active, お問い合わせ | Analog | 4 | 1000 | 1 | 260 | 25 | Unipolar | お問い合わせ | 購入 |
| 1AA12-P4 Active, お問い合わせ | Analog | 4 | 1000 | 1 | 260 | 50 | Unipolar | お問い合わせ | 購入 |
| 1AA12-P4-25PPM Active, お問い合わせ | Analog | 4 | 1000 | 1 | 260 | 25 | Unipolar | お問い合わせ | 購入 |
| 1AA24-N20 Active, お問い合わせ | Analog | 20 | 1000 | 1 | 480 | 50 | Unipolar | お問い合わせ | 購入 |
| 1AA24-N20-25PPM Active, お問い合わせ | Analog | 20 | 1000 | 1 | 480 | 25 | Unipolar | お問い合わせ | 購入 |
| 1AA24-N30 アクティブ, 在庫あり | Analog | 30 | 1000 | 1 | 730 | 50 | Unipolar | Request | 購入 |
| 1AA24-N30-25PPM Active, お問い合わせ | Analog | 30 | 1000 | 1 | 730 | 25 | Unipolar | お問い合わせ | 購入 |
| 1AA24-P20 Active, お問い合わせ | Analog | 20 | 1000 | 1 | 480 | 50 | Unipolar | お問い合わせ | 購入 |
| 1AA24-P20-25PPM Active, お問い合わせ | Analog | 20 | 1000 | 1 | 480 | 25 | Unipolar | お問い合わせ | 購入 |
| 1AA24-P30 アクティブ, 在庫あり | Analog | 30 | 1000 | 1 | 730 | 50 | Unipolar | Request | 購入 |
| 1AA24-P30-25PPM Active, お問い合わせ | Analog | 30 | 1000 | 1 | 730 | 25 | Unipolar | お問い合わせ | 購入 |
| 2AA12-N4 アクティブ, 在庫あり | Analog | 4 | 2000 | 1 | 100 | 50 | Unipolar | Request | 購入 |
| 2AA12-N4-25PPM Active, お問い合わせ | Analog | 4 | 2000 | 1 | 100 | 25 | Unipolar | お問い合わせ | 購入 |
| 2AA12-P4 アクティブ, 在庫あり | Analog | 4 | 2000 | 1 | 100 | 50 | Unipolar | Request | 購入 |
| 2AA12-P4-25PPM Active, お問い合わせ | Analog | 4 | 2000 | 1 | 100 | 25 | Unipolar | お問い合わせ | 購入 |
| 2AA24-N20 Active, お問い合わせ | Analog | 20 | 2000 | 1 | 110 | 50 | Unipolar | お問い合わせ | 購入 |
| 2AA24-N20-25PPM Active, お問い合わせ | Analog | 20 | 2000 | 1 | 110 | 25 | Unipolar | お問い合わせ | 購入 |
| 2AA24-N30 Active, お問い合わせ | Analog | 30 | 2000 | 1 | 460 | 50 | Unipolar | お問い合わせ | 購入 |
| 2AA24-N30-25PPM Active, お問い合わせ | Analog | 30 | 2000 | 1 | 460 | 25 | Unipolar | お問い合わせ | 購入 |
| 2AA24-P20 アクティブ, 在庫あり | Analog | 20 | 2000 | 1 | 110 | 50 | Unipolar | Request | 購入 |
| 2AA24-P20-25PPM Active, お問い合わせ | Analog | 20 | 2000 | 1 | 110 | 25 | Unipolar | お問い合わせ | 購入 |
| 2AA24-P30 アクティブ, 在庫あり | Analog | 30 | 2000 | 1 | 460 | 50 | Unipolar | Request | 購入 |
| 2AA24-P30-25PPM Active, お問い合わせ | Analog | 30 | 2000 | 1 | 460 | 25 | Unipolar | お問い合わせ | 購入 |
| 4AA12-N4 アクティブ, 在庫あり | Analog | 4 | 4000 | 1 | 420 | 50 | Unipolar | Request | 購入 |
| 4AA12-N4-25PPM Active, お問い合わせ | Analog | 4 | 4000 | 1 | 420 | 25 | Unipolar | お問い合わせ | 購入 |
| 4AA12-P4 Active, お問い合わせ | Analog | 4 | 4000 | 1 | 420 | 50 | Unipolar | お問い合わせ | 購入 |
| 4AA12-P4-25PPM Active, お問い合わせ | Analog | 4 | 4000 | 1 | 420 | 25 | Unipolar | お問い合わせ | 購入 |
| 4AA24-N20 アクティブ, 在庫あり | Analog | 20 | 4000 | 1 | 500 | 50 | Unipolar | Request | 購入 |
| 4AA24-N20-25PPM Active, お問い合わせ | Analog | 20 | 4000 | 1 | 500 | 25 | Unipolar | お問い合わせ | 購入 |
| 4AA24-N30 Active, お問い合わせ | Analog | 30 | 4000 | 1 | 700 | 50 | Unipolar | お問い合わせ | 購入 |
| 4AA24-N30-25PPM Active, お問い合わせ | Analog | 30 | 4000 | 1 | 700 | 25 | Unipolar | お問い合わせ | 購入 |
| 4AA24-P20 Active, お問い合わせ | Analog | 20 | 4000 | 1 | 500 | 50 | Unipolar | お問い合わせ | 購入 |
| 4AA24-P20-25PPM Active, お問い合わせ | Analog | 20 | 4000 | 1 | 500 | 25 | Unipolar | お問い合わせ | 購入 |
| 4AA24-P30 アクティブ, 在庫あり | Analog | 30 | 4000 | 1 | 700 | 50 | Unipolar | Request | 購入 |
| 4AA24-P30-25PPM Active, お問い合わせ | Analog | 30 | 4000 | 1 | 700 | 25 | Unipolar | お問い合わせ | 購入 |
| 6AA12-N4 Active, お問い合わせ | Analog | 4 | 6000 | 1 | 350 | 50 | Unipolar | お問い合わせ | 購入 |
| 6AA12-N4-25PPM Active, お問い合わせ | Analog | 4 | 6000 | 1 | 350 | 25 | Unipolar | お問い合わせ | 購入 |
| 6AA12-P4 アクティブ, 在庫あり | Analog | 4 | 6000 | 1 | 350 | 50 | Unipolar | Request | 購入 |
| 6AA12-P4-25PPM Active, お問い合わせ | Analog | 4 | 6000 | 1 | 350 | 25 | Unipolar | お問い合わせ | 購入 |
| 6AA24-N20 Active, お問い合わせ | Analog | 20 | 6000 | 1 | 240 | 50 | Unipolar | お問い合わせ | 購入 |
| 6AA24-N20-25PPM Active, お問い合わせ | Analog | 20 | 6000 | 1 | 240 | 25 | Unipolar | お問い合わせ | 購入 |
| 6AA24-N30 Active, お問い合わせ | Analog | 30 | 6000 | 1 | 460 | 50 | Unipolar | お問い合わせ | 購入 |
| 6AA24-N30-25PPM Active, お問い合わせ | Analog | 30 | 6000 | 1 | 460 | 25 | Unipolar | お問い合わせ | 購入 |
| 6AA24-P20 Active, お問い合わせ | Analog | 20 | 6000 | 1 | 240 | 50 | Unipolar | お問い合わせ | 購入 |
| 6AA24-P20-25PPM Active, お問い合わせ | Analog | 20 | 6000 | 1 | 240 | 25 | Unipolar | お問い合わせ | 購入 |
| 6AA24-P30 Active, お問い合わせ | Analog | 30 | 6000 | 1 | 460 | 50 | Unipolar | お問い合わせ | 購入 |
| 6AA24-P30-25PPM Active, お問い合わせ | Analog | 30 | 6000 | 1 | 460 | 25 | Unipolar | お問い合わせ | 購入 |
技術文書
Product Information Documents
Updated
Embedded Power Brochure
Updated
Advanced Energy has devoted more than four decades to perfecting power for its global customers. We design and manufacture highly engineered, precision power conversion, measurement, and control solutions for mission critical applications and processes
パンフレット
PDF
5 MB
3月18日, 2025
Medical Power Supplies Brochure
Updated
See our Medical Power Supplies Brochure to discover how AE broad medical portfolio meets your power supply needs.
パンフレット
PDF
11 MB
4月7日, 2025
UltraVolt I5-I10 Options Accessory Data Sheet
データシート
PDF
1006 KB
6月15日, 2023
Engineering Resources
Updated
Advanced Control and Monitoring with UltraVolt -I5 and -I10 Control Interface Options Application Note
アプリケーションノート
PDF
695 KB
6月15日, 2023
Derating of Aluminum Electrolytic Capacitors in High Voltage Power Supplies Application Note
アプリケーションノート
PDF
202 KB
6月15日, 2023
Electrical Termination and Mounting Configurations of High Voltage Power Supplies Application Notes
アプリケーションノート
PDF
307 KB
6月15日, 2023
Interfacing with High Voltage Power Supplies: A, AA, C, 10A-25A, 30A-40A, and F Series (TN-2)
アプリケーションノート
PDF
617 KB
6月15日, 2023
Performing Isolation Tests on High Voltage Power Supplies Application Note
アプリケーションノート
PDF
426 KB
6月15日, 2023
Protection of High Voltage Power Supplies in Single and Multiple Applications Application Note
アプリケーションノート
PDF
399 KB
6月15日, 2023
UltraVolt HVPS Polarity Reversing Configurations Application Note
アプリケーションノート
PDF
325 KB
6月15日, 2023
Insights & Studies
Updated
Advanced medical power supplies for pulsed field ablation system
Updated
Download Advanced medical power supplies for pulsed field ablation system Case Study to gain insights on how AE's UltraVolt® High Power C Series and SL Power™ NGB660 Family is the solution to meet the fast rise time required by novel pulsed field ablation applications utilizing state-of-the-art power conversion topology.
ケーススタディ
PDF
808 KB
4月7日, 2025
比較する
| Model |
AA Series
|
D Series
|
A Series
|

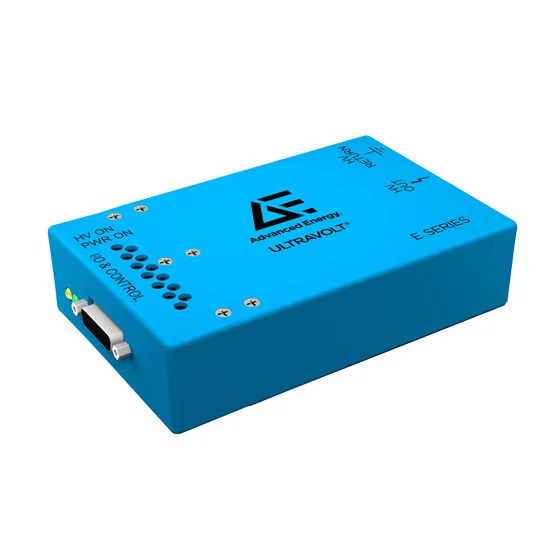

E Series
|
HVA Series
|
|---|---|---|---|---|---|
| 長さ（インチ） | 3 | 6 | |||
| 幅（インチ） | 1.5 | 3.8 | |||
| 高さ（インチ） | 0.75 | 1.5 | |||
| 出力電圧範囲 (V) | 0 to 6000 | 0 to 6000 | 0 to 40,000 | 0 to 15,000 | -20,000 to 20,000 |
| 最大出力（W） | 30 | 6 | 30 | 30 |
