Advanced energy’s global footprint helps ease customers’ tariff concerns. This series includes parts that are USMCA qualified.
SL Power™

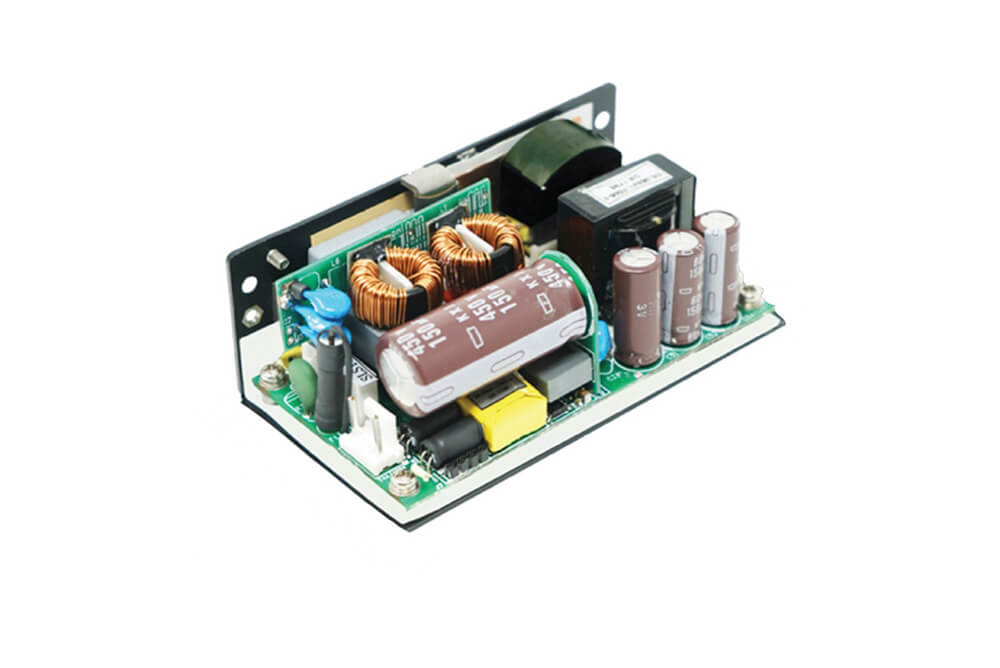

NGB250 Series
Active
250 W Single Output Medical and Industrial Grade
Advanced Energy’s SL Power NGB250 medically-approved AC-DC power supplies are available with a nominal main output of 12 V, 15 V, 24 V, 28 V, 48 V or 56 V. NGB250 power supplies provide up to 250 W of output power with air flow. All models have output overvoltage, short circuit and overload protection and a 4 x 2 x 1.5 inch form factor.
특징
- Output Power of up to 250 W with airflow, only derating to 180 W convection cooled
- 4” W x 2” L x 1.4” H Size
- Universal 85 to 264 VAC Input Range Less than 100 uA Leakage Current
혜택
- Meets Heavy Industrial/IEC60601-1-2 4th Edition EMC Requirements
- Meets Class B Emissions levels
- Class I and Class II Input versions available
- Greater than 7 years Electrolytic Capacitor Life
- 3 year warranty
- Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
사양
| 출력 전력(W): | 250 |
|---|---|
| 길이(인치): | 4.06 |
| 너비(인치): | 2.13 |
| 높이(인치): | 1.5 |
| 마운팅 유형: | Embedded PSU |
| 최소 출력 전류(A): | 5.2 |
| 최대 출력 전류(A): | 19.1 |
| 출력 전압 범위(V): | 12V to 56V |
Product Information Documents
Safety & Compliance Certificates
Insights & Studies
기술 동영상
Advanced Energy's NGB Series AC-DC PSUs
1월 29, 2025
Advanced Energy’s NGB series AC to DC power supplies operate in medical and industrial environments. Learn more about the product series features as well as the individual products including NGB150, NGB250, NGB425, NGB660, NGB800, and NGB1200.
Learn more: https://bit.ly/3UEjuiw
