LPP300 Series
Active

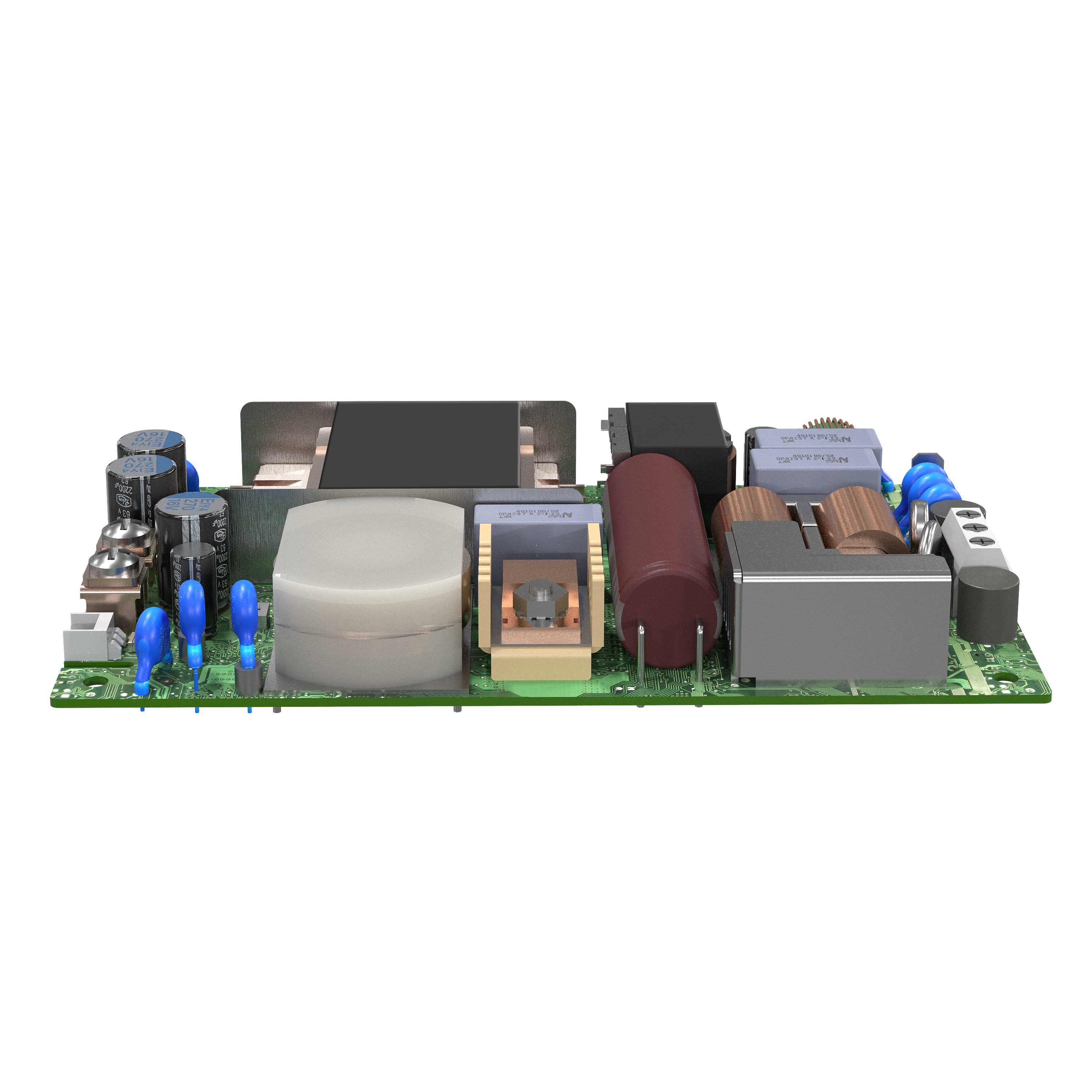

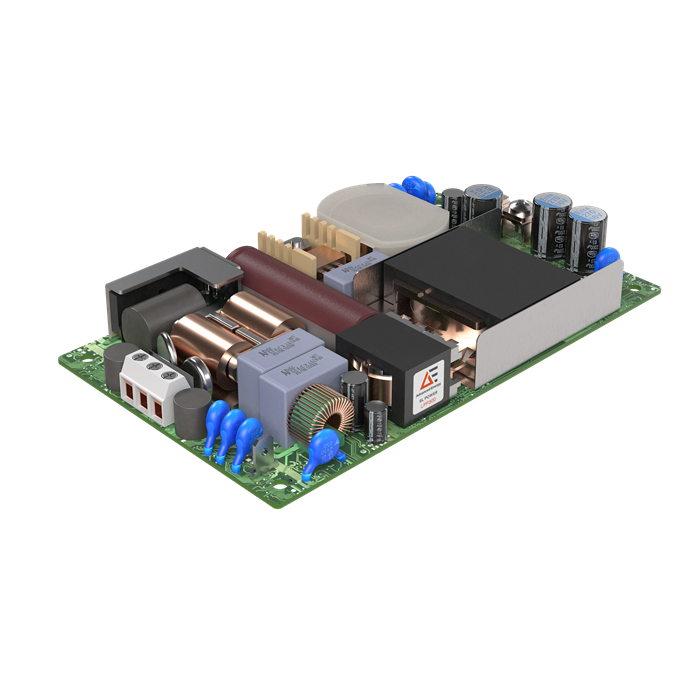

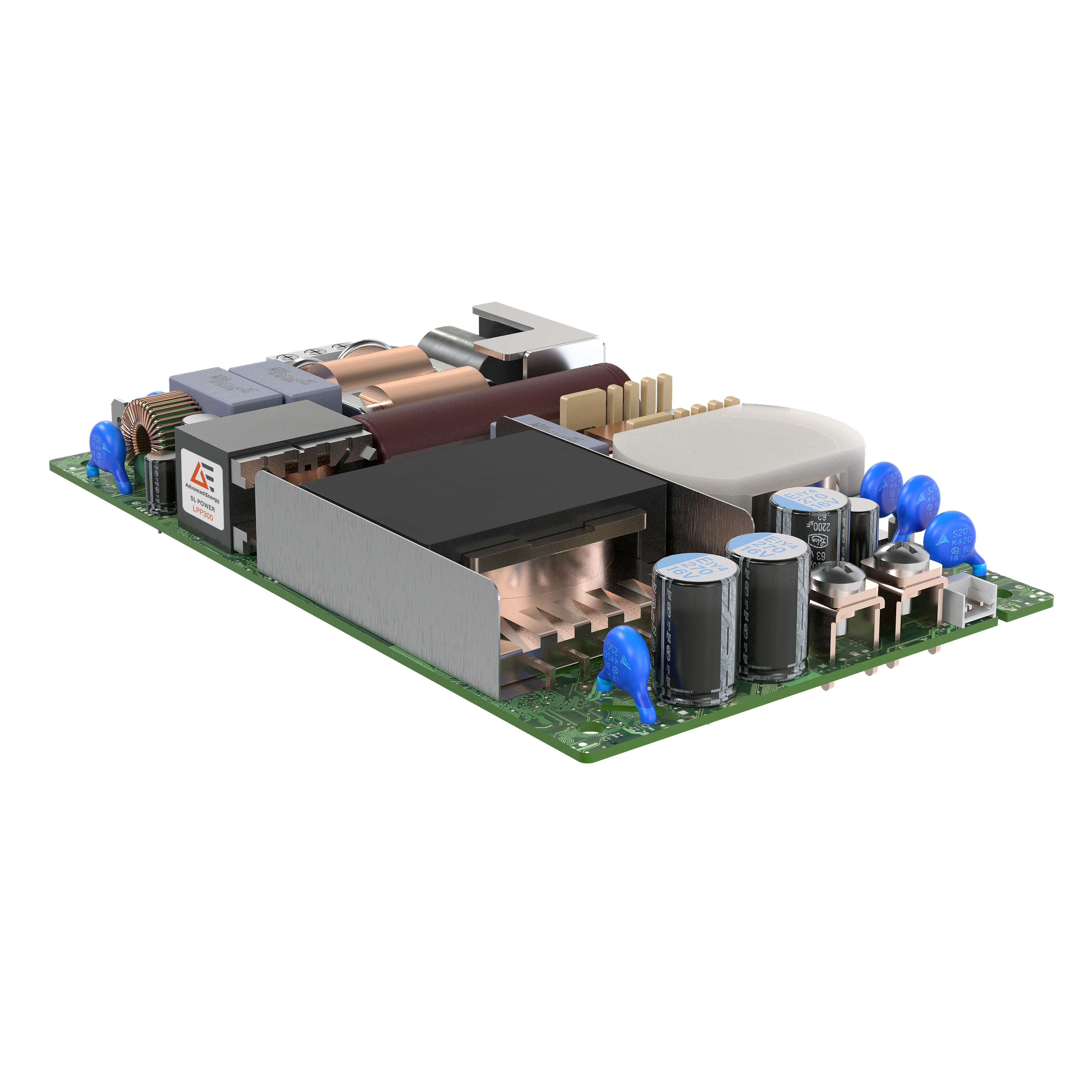

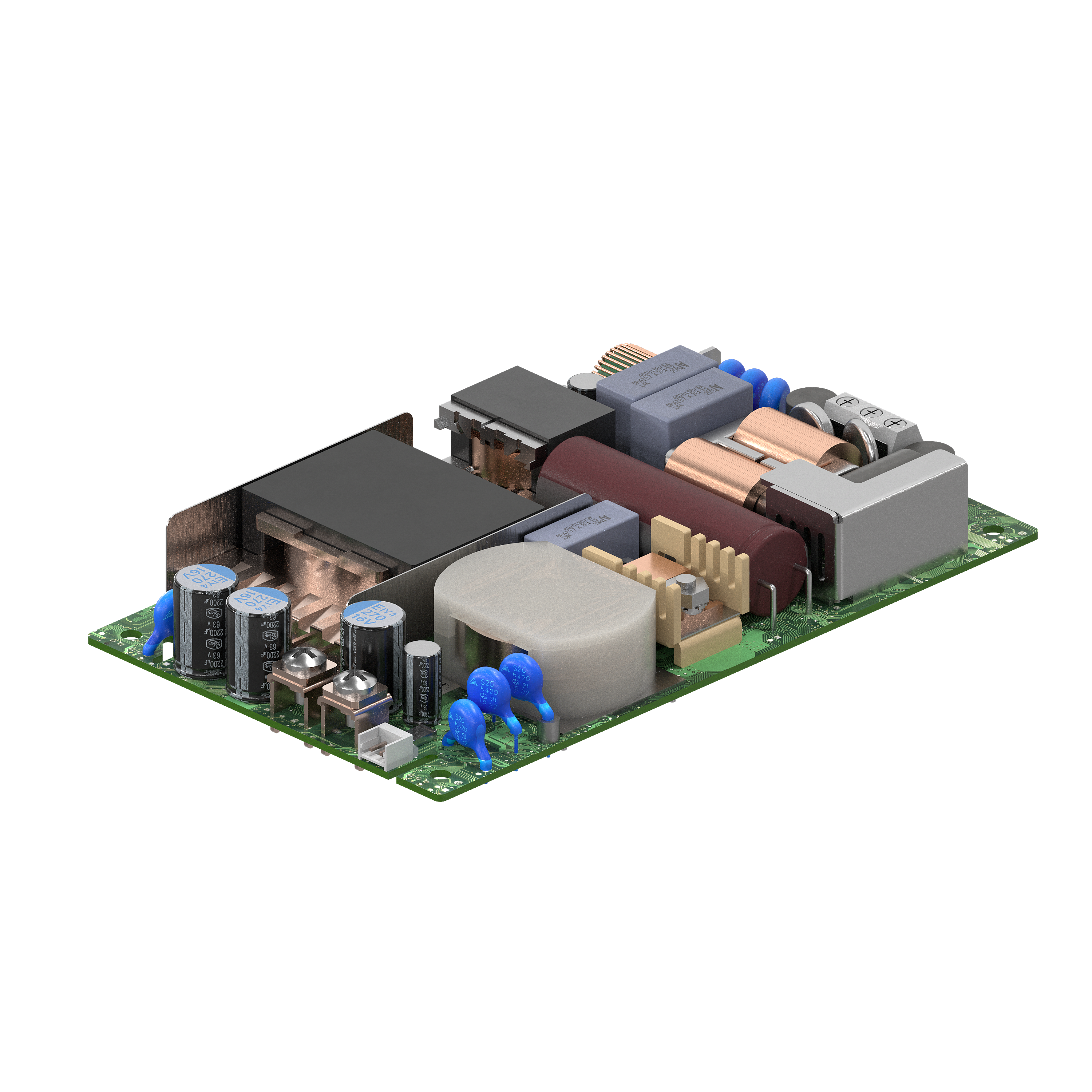

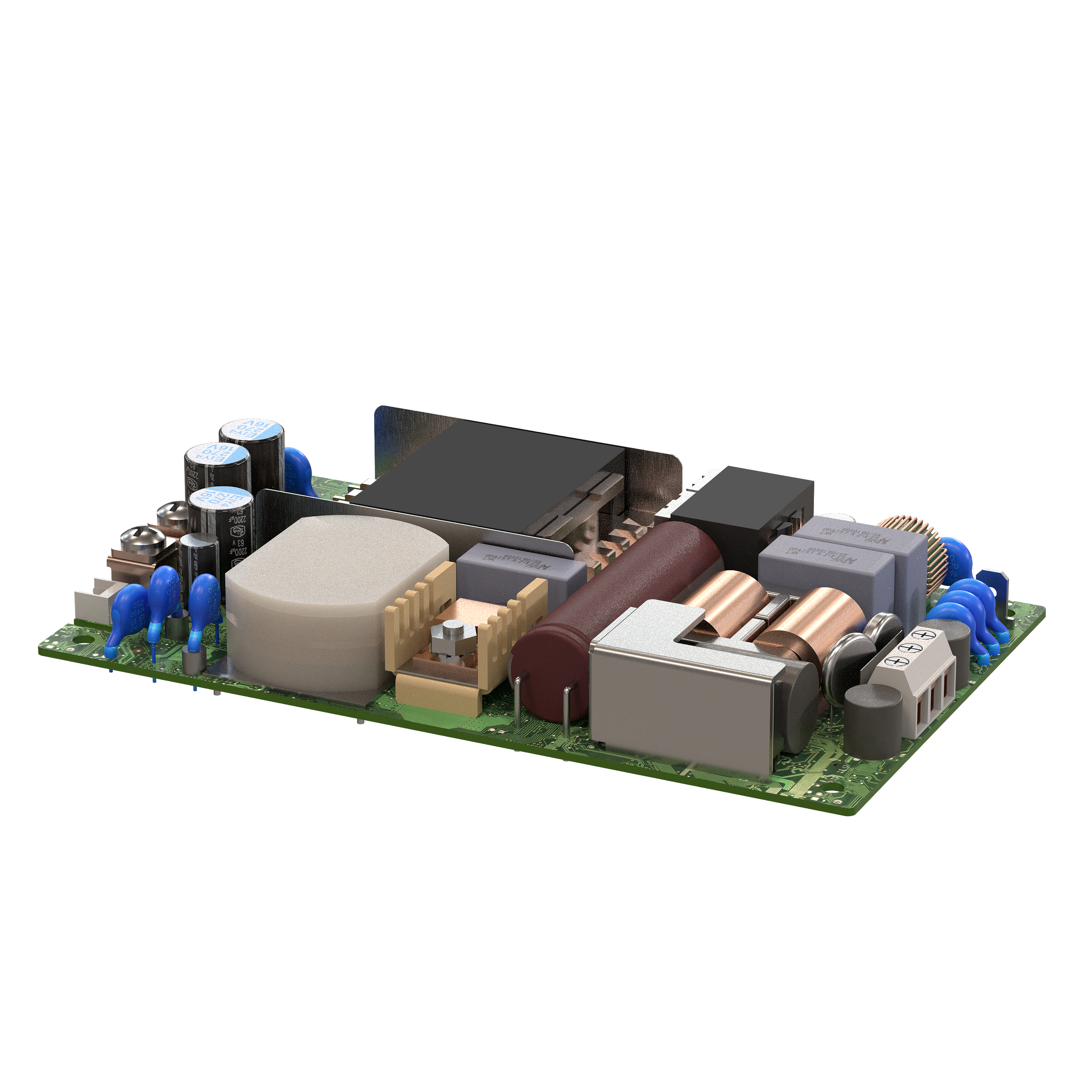

300 W Single Output Low Profile Industrial and Medical Grade PSU
Advanced Energy’s LPP300 series delivers exceptional AC-DC power performance and reliability in a compact, low-profile (0.75") open-frame design for power supplies, making them particularly well-suited for medical and industrial applications where space constraints are critical. The LPP300 series offers models with nominal main outputs of 12 V, 24 V, or 48 V, Class-B EMI, Type BF leakage, and supports up to 300 W of output power with airflow. Each unit incorporates comprehensive protection features, including output overvoltage, short circuit, and overload safeguards, all within a small 3" x 5" x 0.75" form factor.
Features
- Low profile height of 0.75"
- 300 W max output power
- 3" x 5" x 0.75" size
- Industrial/medical safety
- -20 to 70°C with derating
- 12 V fan output
- High efficiency 90% typical
- ±5% adjustment range
Benefits
- Low height allows designers to develop compact medical and industrial devices
- 4th Edition EMC and Class B emissions performance helps reduce development time and cost
- Suitable for type BF applications
- Exceptional reliability and EMI performance
Specifications
| Output Power (W): | 300 |
|---|---|
| Length (Inches): | 5 |
| Width (Inches): | 3 |
| Height (Inches): | 0.75 |
| Mounting Type: | Embedded PSU |
| Minimum Output Current (A): | 2.61 |
| Maximum Output Current (A): | 14.17 |
| Output Voltage Range (V): | 12V to 48V |
Technical Documentation
Product Information Documents
New
Safety & Compliance Certificates
New
Technical Videos
LPP300 Series - 300 W Single Output Low Profile Medical and Industrial Grade PSU
Apr 29, 2026
Advanced Energy’s LPP300 AC-DC power supplies of low-profile (0.75") open-frame design are particularly well-suited for medical and industrial applications where space constraints are critical. The LPP300 series offers models with nominal main outputs of 12 V, 24 V, or 48 V, Class-B EMI, Type BF leakage, and supports up to 300 W of output power with airflow.
