Advanced energy’s global footprint helps ease customers’ tariff concerns. This series includes parts that are USMCA qualified.
SL Power™
NGB800 Series
Active

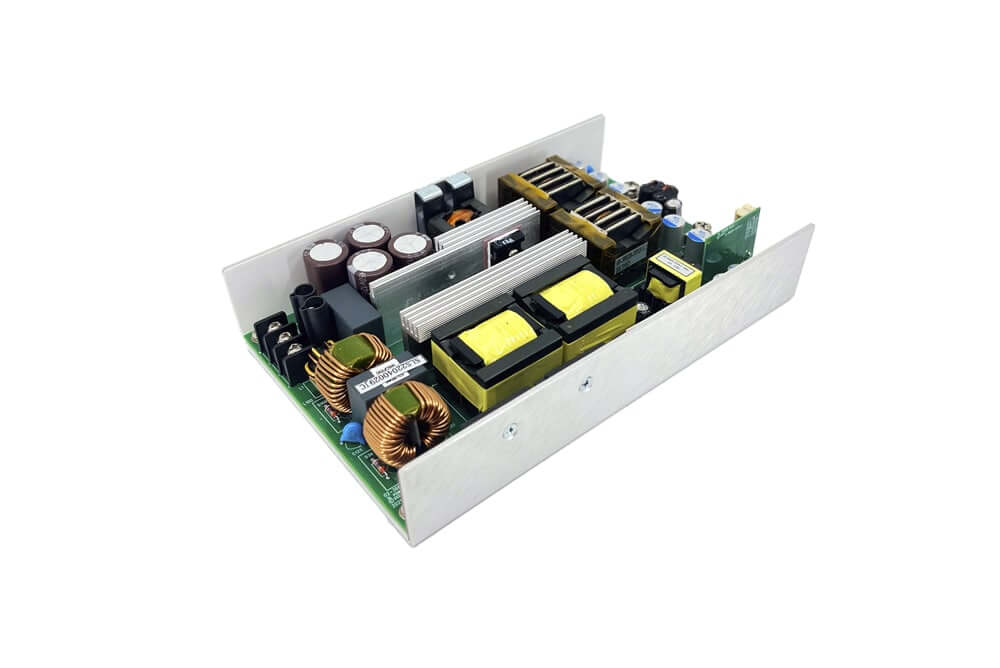

800 W Single Output Medical & Industrial Grade
Advanced Energy’s SL Power NGB800 series of open-frame AC-DC power supplies features ITE and medical safety approvals. The series offers a choice of four single output models, with voltages of 12 V, 15 V, 24 V, or 48 V. Each model also provides an isolated 12 V fan output, and 5 V standby output. NGB800 series power supplies provide 800 W of output power and provide industry leading convection power ratings.
특징
- Output Power of 800 W with airflow
- 650 W Convection Cooled
- -20ºC to 80ºC Operating Temperature Range
- 5” X 8” X 1.6” Size
- Less than 100 uA Leakage Current
- Universal 85 to 264 VAC Input Range
혜택
- UL/CSA/IEC/IEC60601-1, IEC62368-1 Approved
- Meets 4th Edition/Heavy Industrial EMC
- Class I Input versions available
- Meets Class B Emissions Levels
- 7+ Years Electrolytic Capacitor Life
- 3 Years Warranty
사양
| 출력 전력(W): | 800 |
|---|---|
| 길이(인치): | 8 |
| 너비(인치): | 5 |
| 높이(인치): | 1.6 |
| 마운팅 유형: | Embedded PSU |
| 최소 출력 전류(A): | 16.7 |
| 최대 출력 전류(A): | 57.5 |
| 출력 전압 범위(V): | 12V to 48V |
Product Information Documents
Engineering Resources
기술 동영상
Advanced Energy's NGB Series AC-DC PSUs
1월 29, 2025
Advanced Energy’s NGB series AC to DC power supplies operate in medical and industrial environments. Learn more about the product series features as well as the individual products including NGB150, NGB250, NGB425, NGB660, NGB800, and NGB1200.
Learn more: https://bit.ly/3UEjuiw
