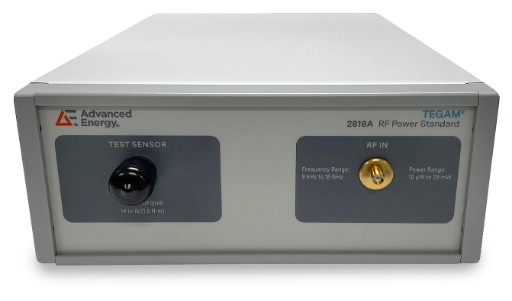

2818A RF Power Standard - Thermoelectric

Active

9 kHz to 18 GHz RF Power Transfer Standard

Built upon proven technologies the 2818A offers new features and advantages in a RF Power Transfer Standard. Utilizing TEGAM’s well established transfer standard techniques applied to a referenced thermoelectric sensor, the 2818A performs faster while retaining excellent performance and accuracy.

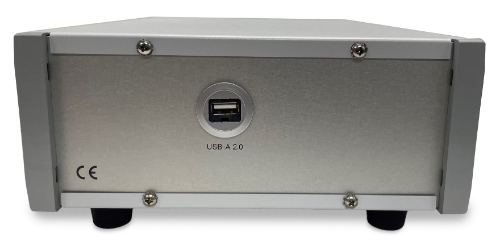

With a USB communication port, the 2818A operates without a power meter. Utilizing PS-CAL and a PC for data collection and as a digitized power meter, you retain the benefit of making manual measurement when you want them and collecting power readings automatically when a visual power reading is not needed. Eliminating a separate power meter also means less equipment to calibrate and less space needed on the bench
or in the rack.

The 2818A is EEPROM based with the calibration constants stored within the sensor, eliminating the need for a separate electronic data media. Connect the 2818A to the PC, apply RF power, and read the corrected power level without applying calibration factors separately.



特徴

  • Operates from 9 kHz to 18 GHz.
  • Tyical accuracy of 0.8 to 1.0%
  • Fast reading settling time of < 2s
  • 0.01 to 10mW typical usable range (-20 to +10 dBm), expandable with attenuators.
  • Rack mount option available
  • Operates with PS-Cal software
  • 3 year warranty
  • Assembled in the USA

メリット

  • Excellent calibration standard for power sensors in the 9kHz to 18GHz range
  • Increase throughput with less settling time
  • Compatible size and PS-Cal software platform allows integration into existing TEGAM systems (software update may be required)

仕様

Calibration Factor Accuracy (typical): +/-(0.8 to 1.0)% from 9 kHz to 18 GHz
Connector Type: N- female
Frequency Range: 9 kHz to 18 GHz
Power Range: 0.01 to 10 mW (-20 to +10 dBm)
Reflection Magnitude (typical): 0.03 to 0.07 from 9 kHz to 18 GHz
Required Power Meter: USB Virtual
RF Impedance (nominal): 50 Ohms
Sensor Type: Thermoelectric
すべての仕様 仕様の崩壊

在庫チェック

モデル番号
Calibration Factor Accuracy (typical) Connector Type Frequency Range Power Range Required Power Meter 購入
2818A Active, お問い合わせ
RF Transfer Standard
+/-(0.8 to 1.0)% from 9 kHz to 18 GHz N- female 9 kHz to 18 GHz 0.01 to 10 mW (-20 to +10 dBm) USB Virtual 購入

技術文書

タイトル タイプ
2818A Datasheet (429 KB) データシート
2818A RF Power Transfer Standard Manual (1 MB) マニュアル
