Impac 8 Series Pyrometers

Active

Fast and robust portable digital pyrometers for measurements on metals, pouring streams and ceramics. Temperature ranges between 250 and 2500 °C.

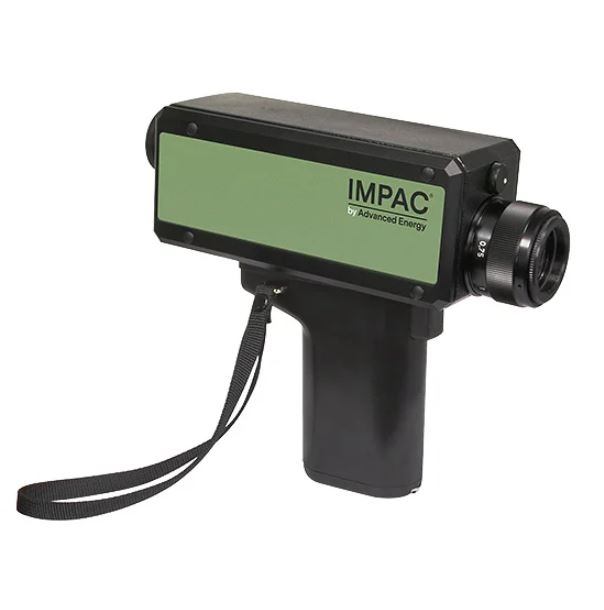

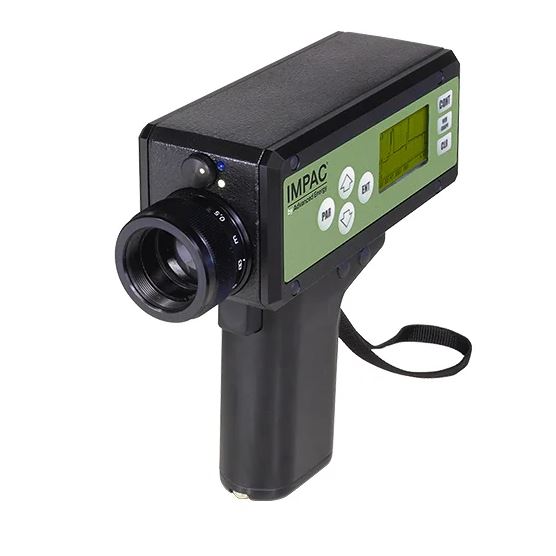

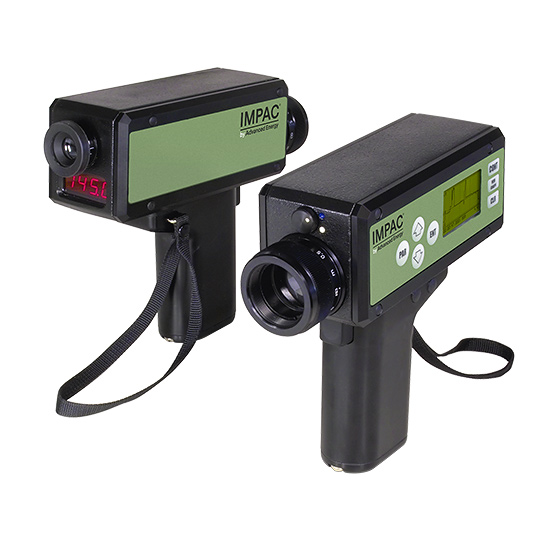

Impac® series 8 pro pyrometers are top-tier, battery-powered, portable devices for non-contact temperature measurement. Leveraging the power of full digital processing, they offer broad temperature ranges and heightened accuracy, enabling immediate on-site analysis of measurement results. The Impac IS 8 pro, designed for high temperatures, operates within two temperature ranges, from 600 to 2500 °C. The Impac IGA 8 pro, on the other hand, is ideal for medium temperatures with a range from 250 to 1600 °C. Additionally, the Impac IS 8-GS pro has been specifically engineered for use in foundries.

特徴

  • Very robust aluminum die-cast housing for use in harsh environments
  • Focusable precision optics for adjusting to the smallest spot sizes

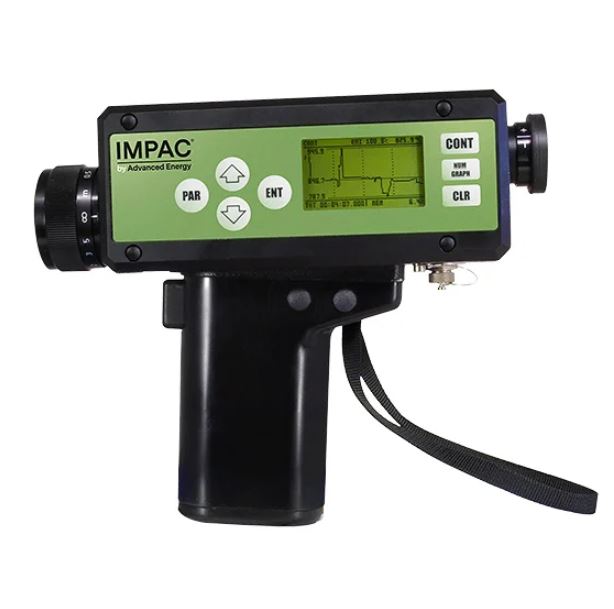

  • Temperature display on the housing, in the viewfinder and on the multifunctional display
  • Integrated maximum value storage to determine the peak value achieved during a measuring series
  • USB interface for using the optional analyzing software PortaWin

メリット

  • Use daily in rough industrial conditions
  • Easily adjust to small spot sizes
  • Enable short response times (1 ms) for exact measurement of fast-moving objects
  • Store large amounts of measuring data for subsequent analysis

仕様

動作温度範囲 (°C): 250 and 2500 °C (5 ranges in between)
スペクトル範囲 (µm): 0.55 and 1.8 (3 ranges in between)
測定の不確かさ (°C): 0.4% oR + 1 °C
光学系 (mm): Focusable optics
FOV(最小スポットサイズ)(mm): Min 500:1 (1)
アライメント/照準: Through-lens sighting
インターフェース/出力(mA): USB
露光時間 t90 (ms): 1 ms
すべての仕様 仕様の崩壊

在庫チェック

モデル番号
出力タイプ 光学 アライメント 応答時間 最低温度最低温度 (°C) 最高温度最高温度 (°C) アプリケーション サンプル 購入
3 807 300 Active, お問い合わせ USB Focusable Viewfinder 1 600 1800 Metal / Ceramics / Graphite お問い合わせ 購入
3 807 310 Active, お問い合わせ USB Focusable Viewfinder 1 750 2500 Metal / Ceramics / Graphite お問い合わせ 購入
3 807 350 Active, お問い合わせ USB Focusable Viewfinder 1 250 1600 Metal / Ceramics / Graphite お問い合わせ 購入
3 807 380 Active, お問い合わせ USB Focusable Viewfinder 500 1000 2000 Pouring Streams お問い合わせ 購入
3 807 410 Active, お問い合わせ USB Focusable Viewfinder 1 280 2000 Metal / Ceramics / Graphite お問い合わせ 購入

アクセサリー

Impac Other Electrical

Other Electrical Accessories Compatible With Impac Pyrometers

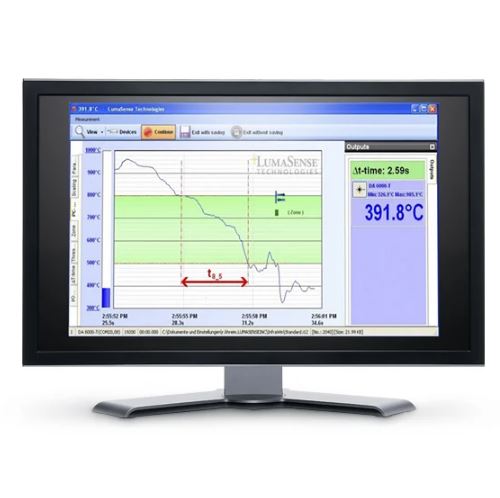

Impac PortaWin Software

Portable Pyrometer Analyzing Software (Series 8 and Series 15) Supplementary downloads only; contact sales for software
