LCM1500 Series

Active

1500 W Bulk Front-End

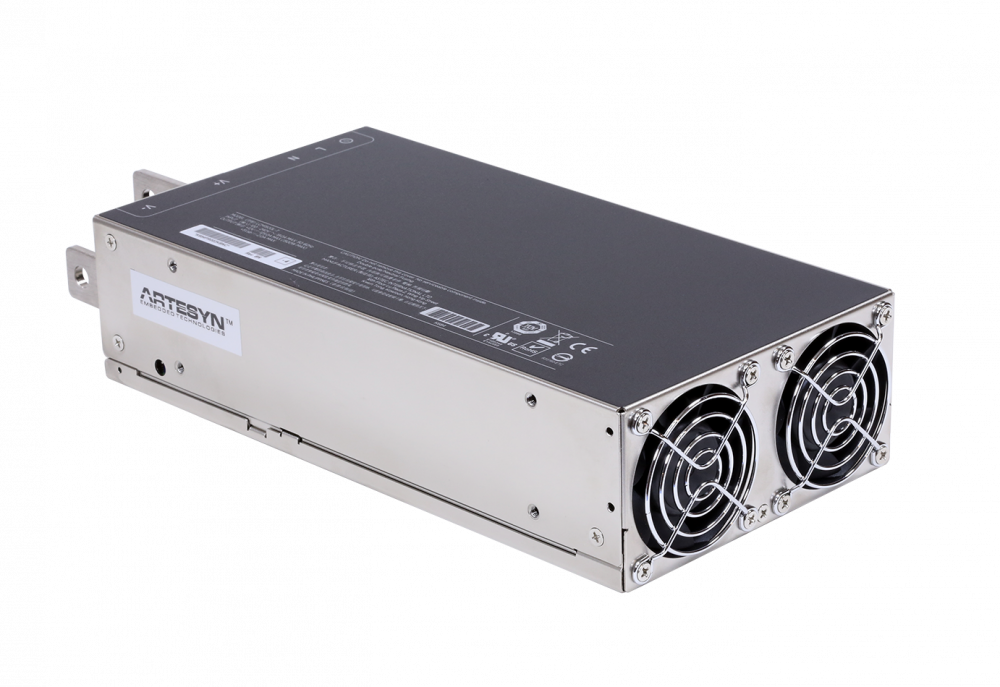

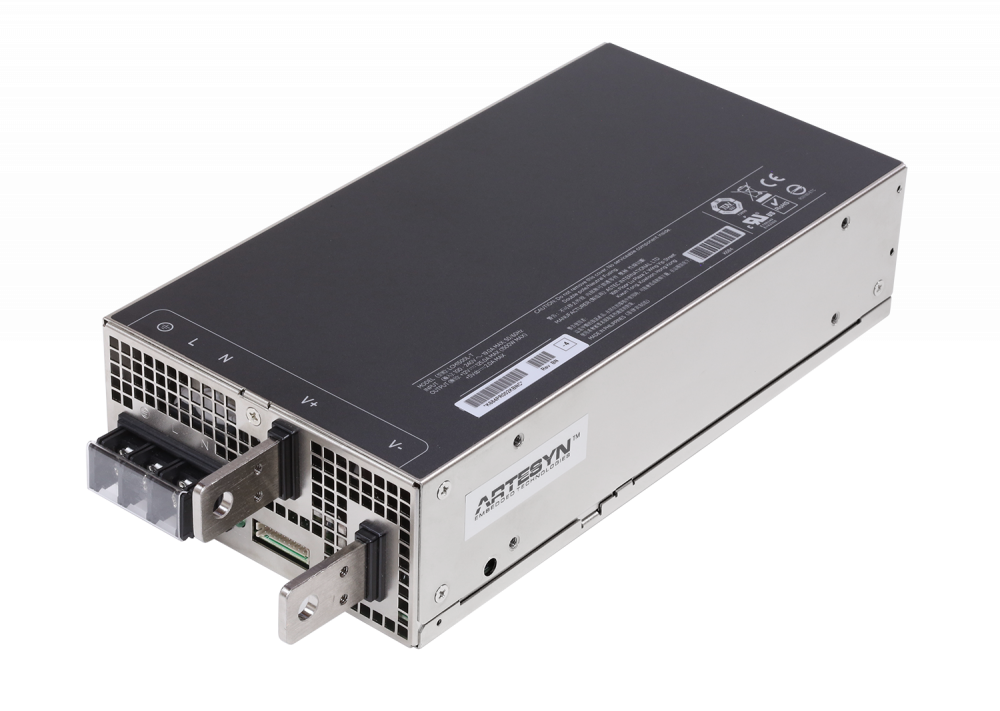

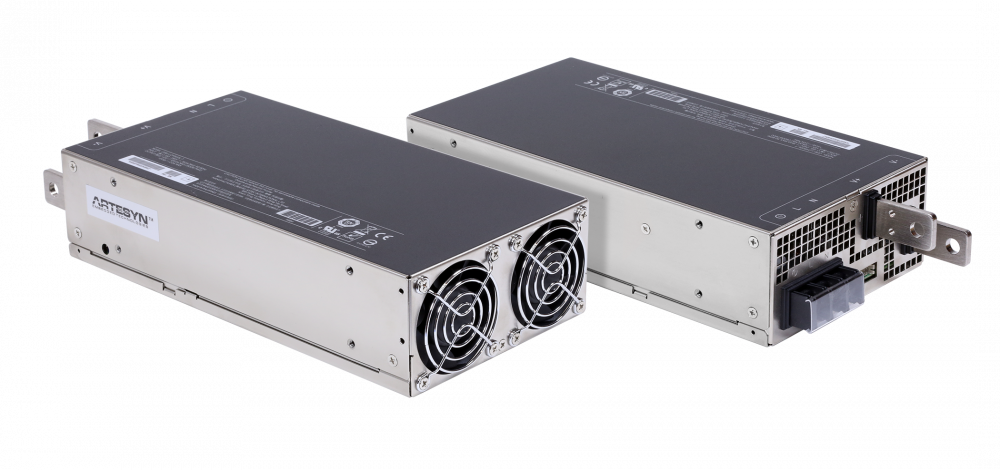

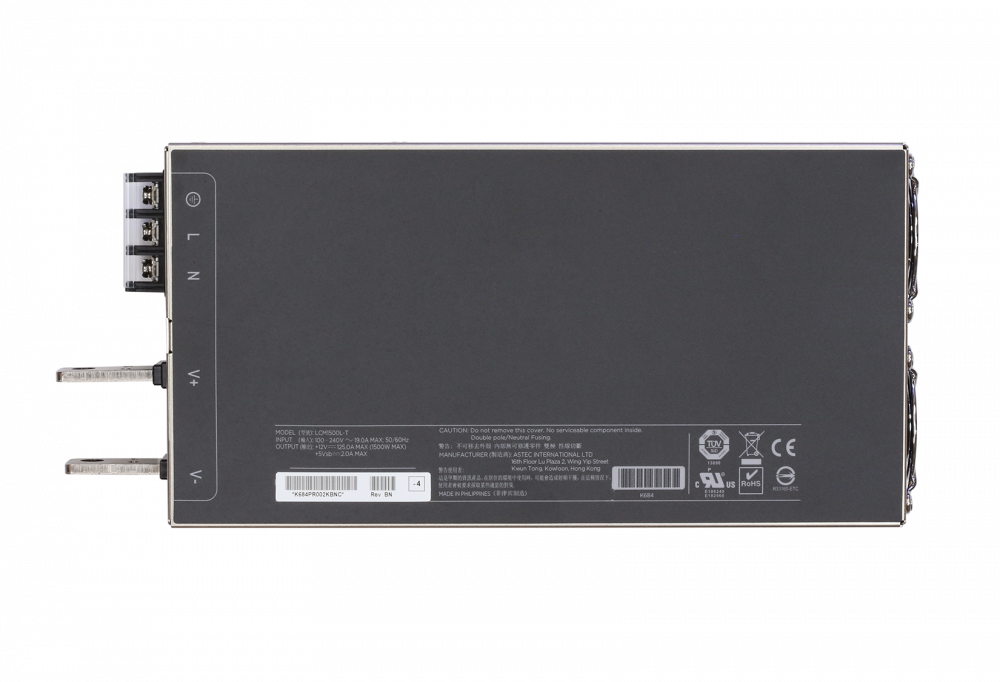

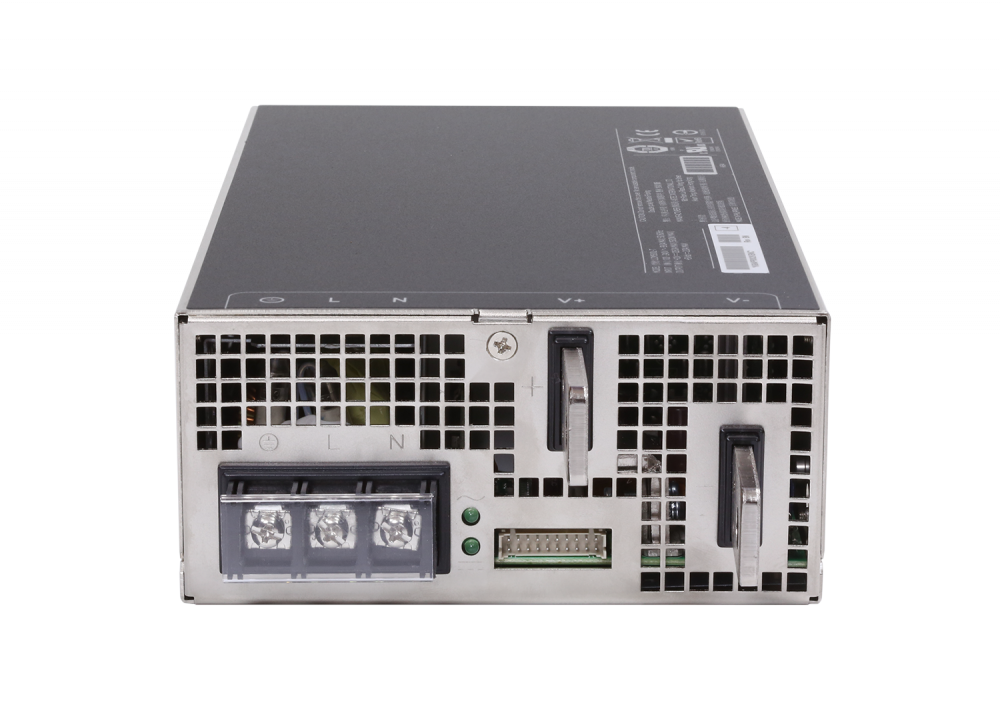

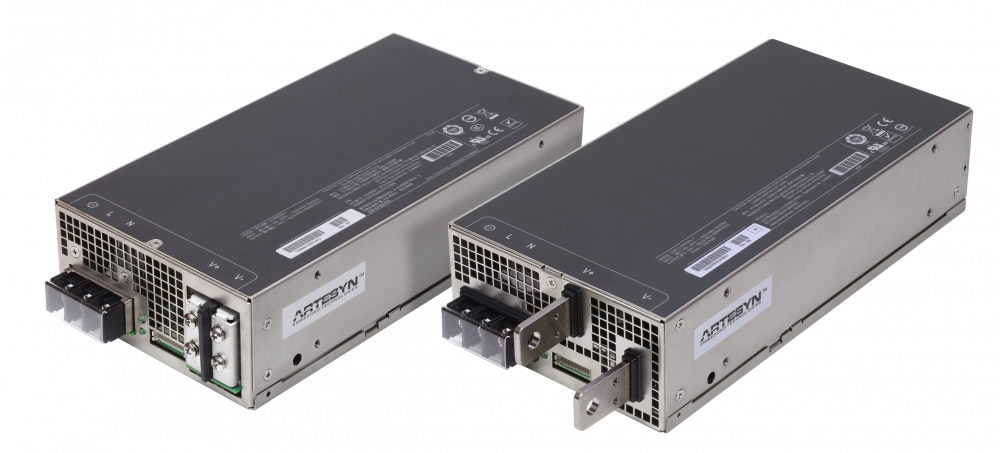

Advanced Energy's LCM1500 provides a low cost solution to Industrial and Medical single output high power requirements. Full featured, the 2.4" x 5" x 10" enclosed form factor utilizes a smart fan for self contained thermal management at very low acoustic noise levels. Digital DSP control allows for a high level of modification flexibility. Voltage output for the series ranges from 10.8 V to 52.8 V at a continuous output power of 1500 W. The LCM1500 also provides an optional 5 V standby and many optional I/O configurations.

특징 사양 재고 확인 Accessories 기술 문서 Support

특징

10% adjustment range
12 Watts per cubic inch
1500 Watts output power with no derating
40 °C to 70 °C with derating
High efficiency: 89% typical
Latest CCC approvals (5000m)
Optional 5V @ 2A housekeeping
RoHS 2
Hold-up Time 20 mSec
Power Factor 0.99 Typical
Inrush Currect <= 25A Peake
Frequency 47 - 440 Hz
Input Range 90-264 VAC
Leakage <0.3mA at 264 VAC
Efficiency >89% TYP
Adjust Range +/- 10%
Over Voltage Protection 125% to 145% of rated output
Over Current Protection 105% to 125% of rated output
Current Share Forced to within 10%
Max Units in Parallel 10
Noise (P-P) 1% max
Total Regulation +/- 2.0%
Fan Noise <45dBA, 80% load 30C, off with inhibit

혜택

Conformal coat option
DSP controlled
EMI Class A
Industrial/Medical Safety Approvals
Low cost
ORing FET
Remote margin programming
Variable speed smart fans

사양

출력 전력(W):	1500
길이(인치):	10
너비(인치):	5
높이(인치):	2.4
마운팅 유형:	Embedded PSU
최소 출력 전류(A):	0
최대 출력 전류(A):	133
출력 전압 범위(V):	0V to 52.8V
최소 출력 전력(W):	0
최대 출력 전력(W):	1500
Minimum Input Voltage (V):	90
최대 입력 전압(V):	264
보증(년):	3

모든 사양 사양 축소

액세서리

Universal PMBus GUI Software Package

The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.

기술 문서

Product Information Documents Updated

Safety & Compliance Certificates

Engineering Resources Updated

비교

Model	LCM1500	LCM1000	LCM300	LCM3000	LCM600
출력 전력(W)	1500	1000	300	3000	600
길이(인치)	10	10	7	10.9	7.5
너비(인치)	5	5	4	7	4.5
높이(인치)	2.4	2.4	1.61	2.5	2.4
마운팅 유형	Embedded PSU	Embedded PSU	Embedded PSU	Embedded PSU	Embedded PSU
최대 출력 전류(A)	133	83.3	25	250	54
출력 전압 범위(V)	0V to 52.8V	10.8V to 52.8V	9.6V to 57.6V	2.4V to 60V	0V to 57.6V
최대 출력 전력(W)	1500	1000	300	3000	600
Minimum Input Voltage (V)	90	90	90	90	90
최대 입력 전압(V)	264	264	264	264	264
보증(년)	3	3	3	5	3
