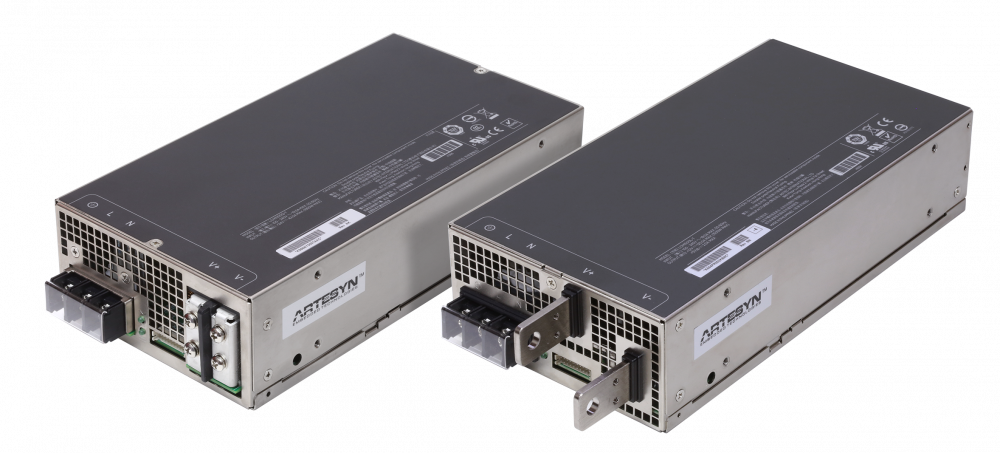

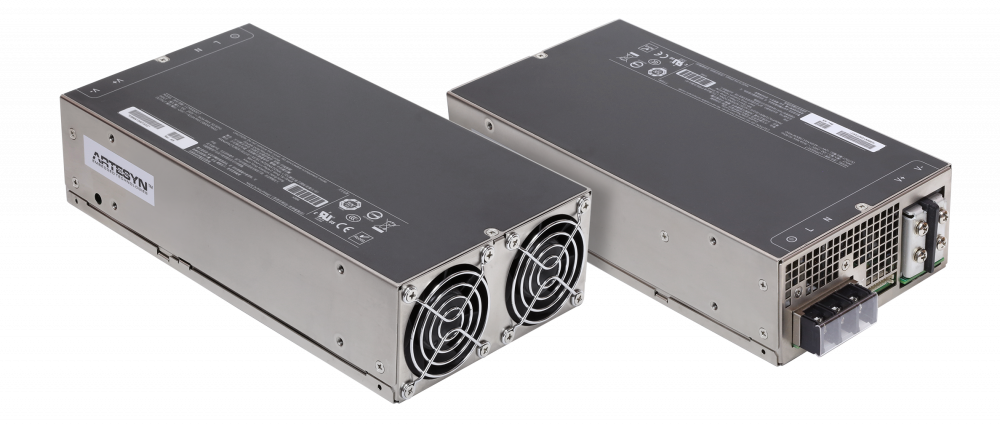

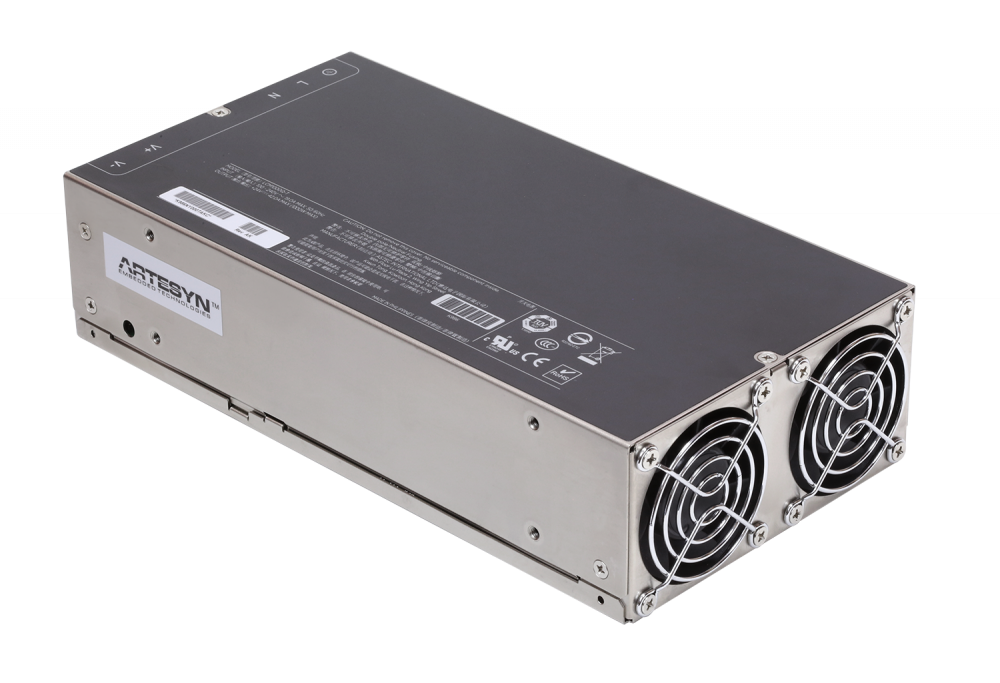

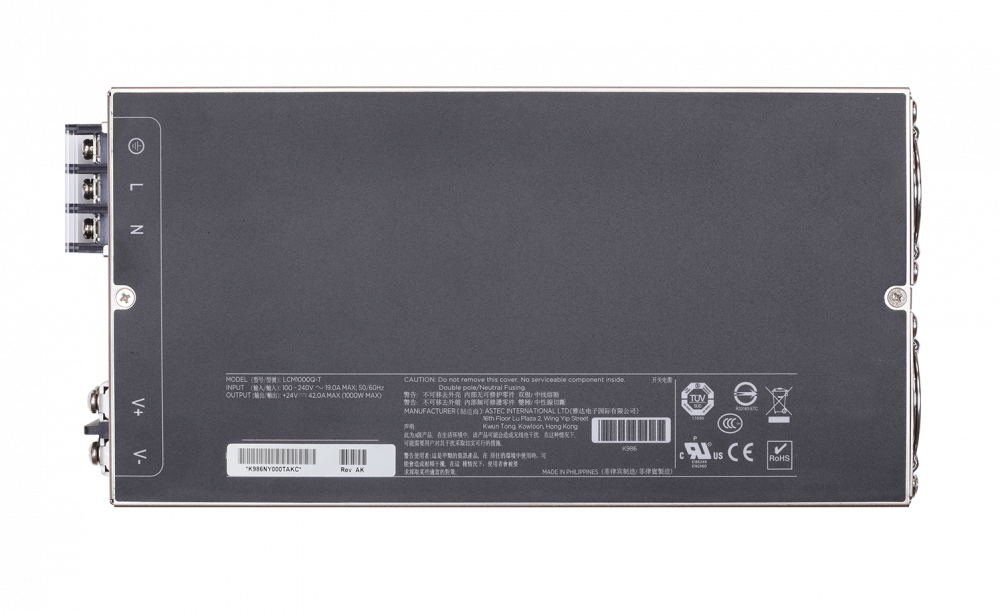

LCM1000 Series

Active

1000 W AC-DC Power Supply

Advanced Energy's LCM1000 provides a low cost solution to Industrial and Medical single output high power requirements. Full featured, the 2.4" x 5" x 10" enclosed form factor utilizes smart fans for self contained thermal management at very low acoustic noise levels. Digital Signal Processor control allows for a high level of modification flexibility. Voltage output for the series ranges from 10.8 V - 52.8 V at a continuous output power of 1000 W. The LCM1000 also provides an optional 5 V standby, conformal coating, and constant current operation.

特徴

  • +/ 10% adjustment range
  • 1000W Output Power with no derating
  • High Efficiency 90% typical
  • Optional 5V @ 2A standby output
  • Up to 70C operation with derating
  • Input Range 90-264 VAC
  • Leakage <0.3mA at 230 VAC
  • Efficiency >90% TYP
  • Hold-up Time 20 mSec
  • Power Factor 0.99 TYP
  • Inrush Current <= 25A Peak
  • Frequency 47 - 440 Hz
  • Adjustment Range +/- 10%
  • Over Voltage Protection 125% to 145% of rated output
  • Over Current Protection 105% to 125% of rated output
  • Current Share Forced to within 10%
  • Max Units in Parallel 10
  • Total Regulation +/- 2%

メリット

  • Conformal Coat Option
  • DSP Controlled
  • Industrial/Medical Safety Approvals
  • Latest CCC approvals
  • Low Cost
  • Optional Class B EMI
  • ORing FET
  • Remote programing

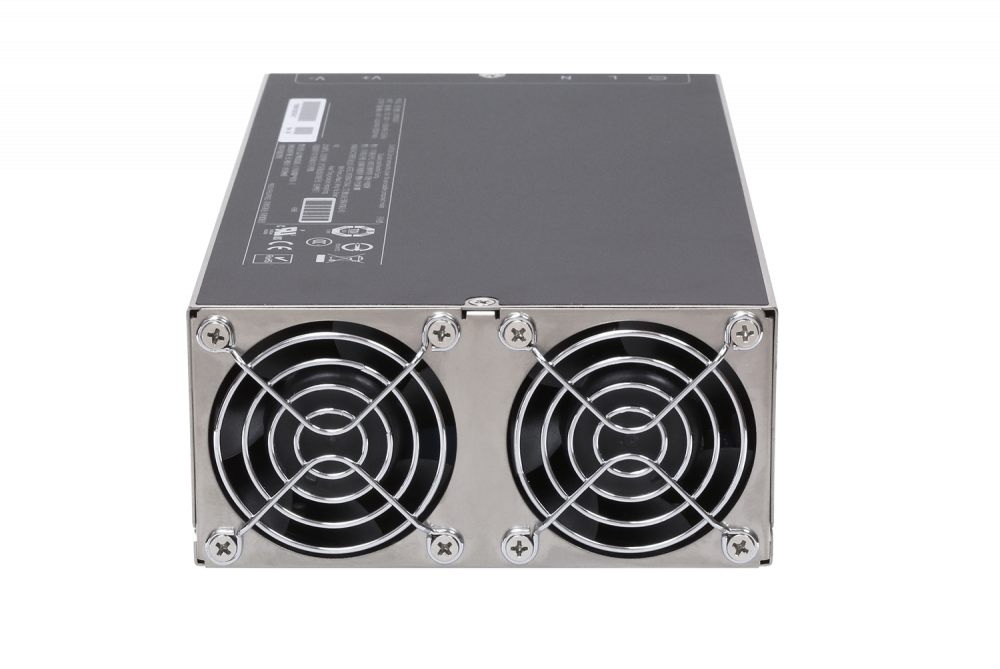

  • Variable Speed Smart Fans
  • Communication PMBus Compliant
  • Safety Approvals Medical and Industrial

仕様

出力電力 (W): 1000
長さ(インチ): 10
幅(インチ): 5
高さ(インチ): 2.4
マウントタイプ: Embedded PSU
最小出力電流 (A): 0
最大出力電流 (A): 83.3
出力電圧範囲 (V): 10.8V to 52.8V
すべての仕様 仕様の崩壊

在庫チェック

モデル番号
最小電圧 (V) 最大最大電圧 (V) 電流 (A) 公称電圧 (V) 出力数 サンプル 購入
LCM1000L-T アクティブ, 在庫あり

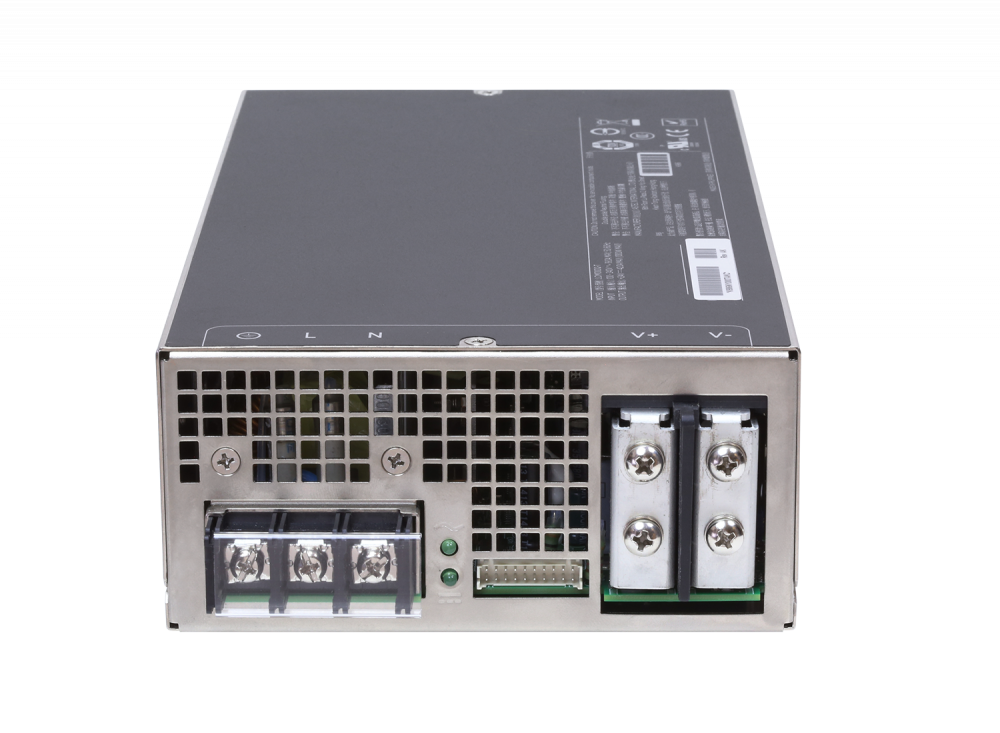

AC-DC 1000W 12V Term Blk
10.8 13.2 83.3 12 1 Request 購入
LCM1000N-T アクティブ, 在庫あり
AC-DC 1000W 15V Term Blk
13.5 16.5 66.7 15 1 Request 購入
LCM1000Q-T アクティブ, 在庫あり
AC-DC 1000W 24V Term Blk
21.6 26.4 41.7 24 1 Request 購入
LCM1000Q-T-4 アクティブ, 在庫あり 21.6 26.4 42 24 1 Request 購入
LCM1000Q-T-8 アクティブ, 在庫あり 21.6 26.4 42 24 1 Request 購入
LCM1000U-T アクティブ, 在庫あり
AC-DC 1000W 36V Term Blk
32.4 39.6 27.8 36 1 Request 購入
LCM1000W-T アクティブ, 在庫あり
AC-DC 1000W 48V Term Blk
43.2 52.8 20.8 48 1 Request 購入
