LCM300 Series

Active

310 to 350 W Front-End AC-DC Power Supplies

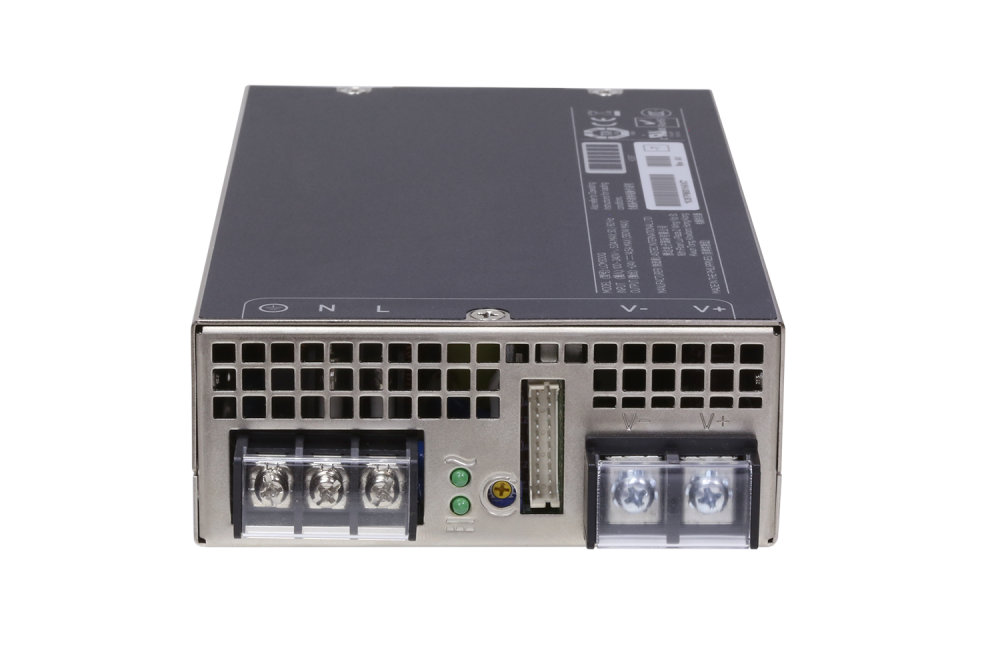

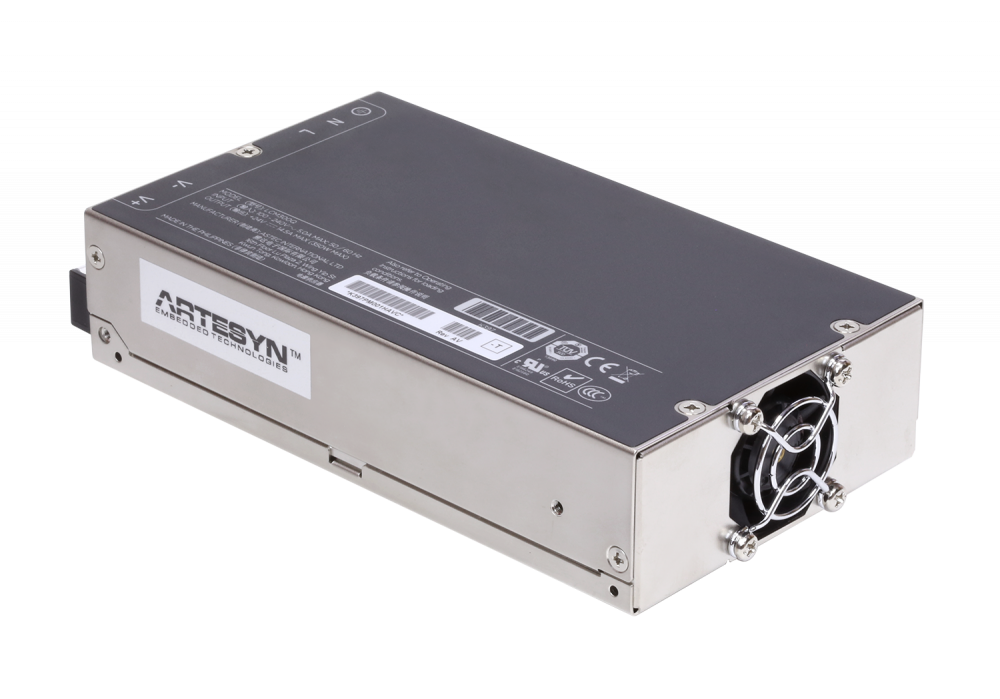

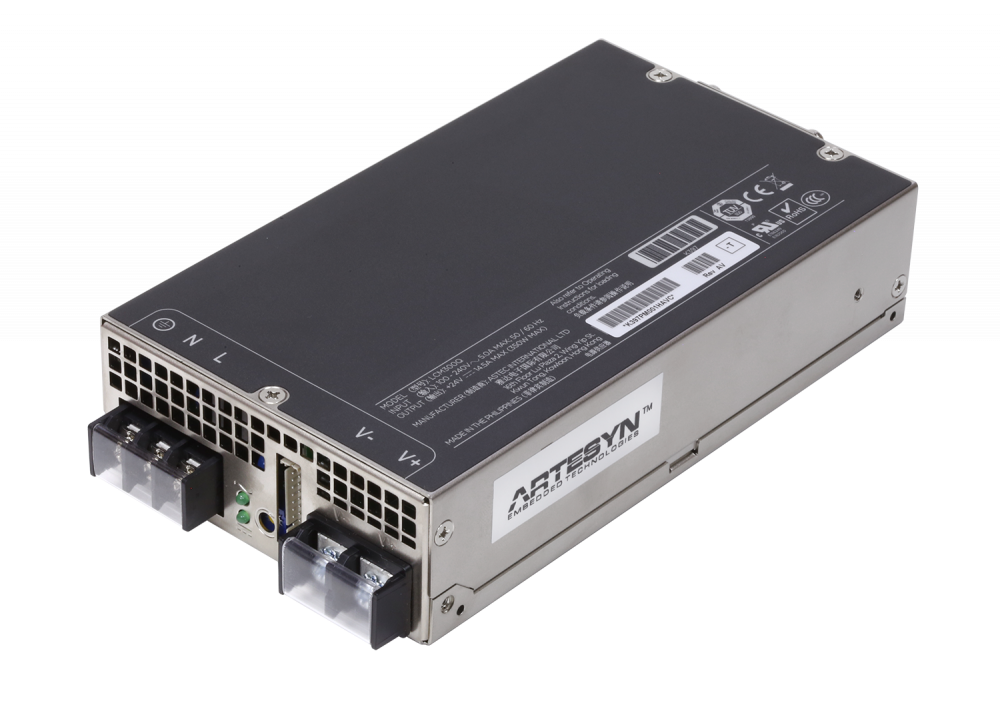

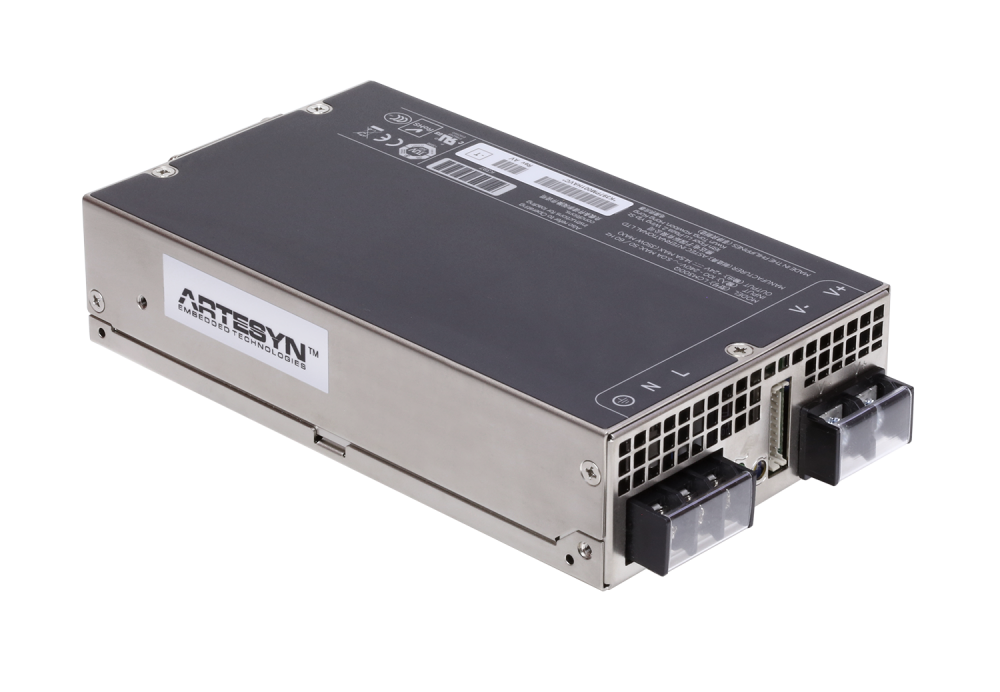

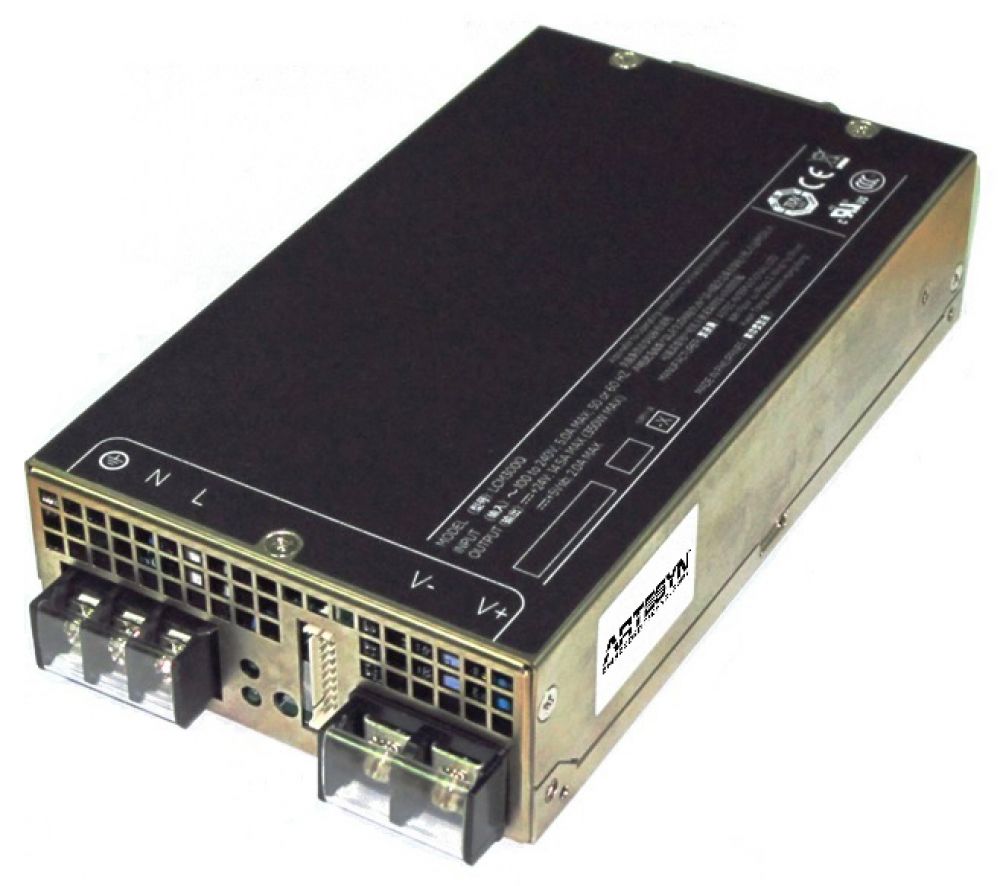

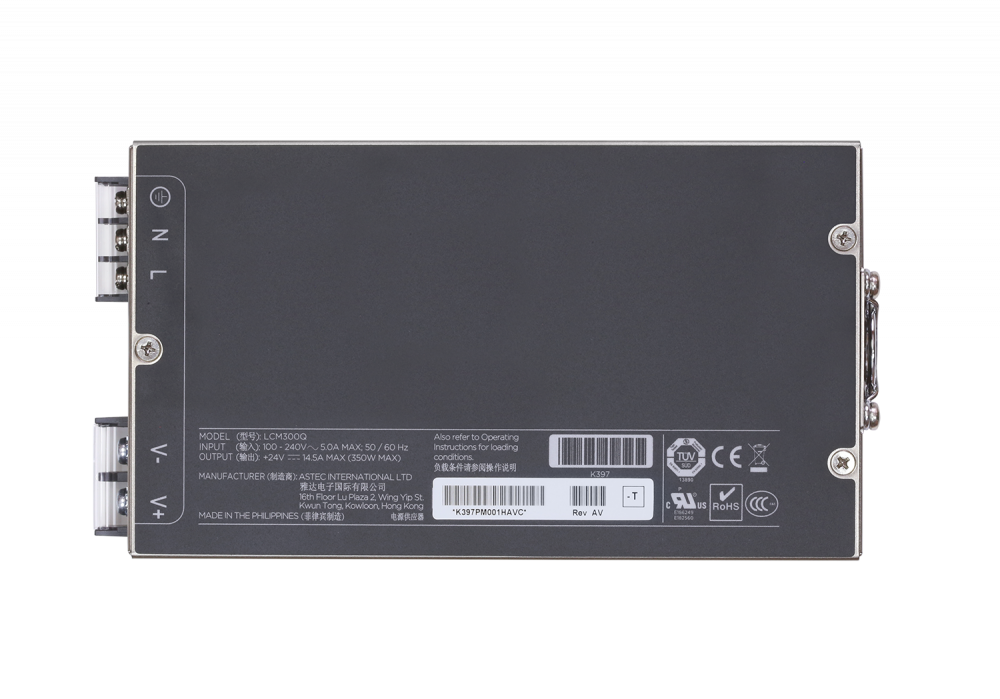

The LCM300 series of enclosed front-end AC-DC power supplies comprises five single-output models, providing standard voltages of 12 V, 15 V, 23 V, 36 V, or 48 V, plus a 5 V standby output. The series is medical-safety approved and accepts a universal input of 90 to 264 VAC with a full-load efficiency of 91%. These PMBus®-compliant digitally-controlled power supplies offer a high-level modification flexibility for application-specific functions such as special battery charging and management, peak load handling, voltage control, and fan speed profiles. Compactly housed in a 4 x 7 inches enclosure less than 1U high, the power supplies incorporate built-in smart fans for cooling and deliver up to 310 W of output power. The 24 V and 36 V models can deliver up to 350 W at operating temperatures up to 45˚C.

特徴

  • +/ 20% adjustment range
  • 350W peak power
  • 40 to +70 Dec C operation (with derating above 50 C)
  • High Efficiency 91%
  • Option 5V standby
  • Input Range 85-264 VAC 127-374 VDC
  • Frequency 47-63 Hz
  • Inrush Current <= 20 A Peak
  • Power Factor 0.98 TYP
  • Hold-up Time 20 mSec
  • Efficiency >91% TYP
  • Leakage <0.3 mA @ 264 VAC
  • Set Point +/- 0.5%
  • Total Regulation +/-2.0%
  • Noise (P-P) 0.01
  • Max Units in Parallel 10
  • Current Share Forced to within 10%
  • Over Current Protection 105% to 120% of rated output
  • Over Voltage Protection 125% to 145% of rated output
  • Fan Noise <45dBA, 80% load 40C Fan Off with Inhibit

メリット

  • Conformal Coat Option
  • DSP Controlled
  • EMI Level B
  • Industrial/Medical Safety
  • Integrated ORing FET
  • Low Cost
  • Margin Programming
  • Optional Conformal Coat
  • Optional Constant Current
  • PMBus Compliant

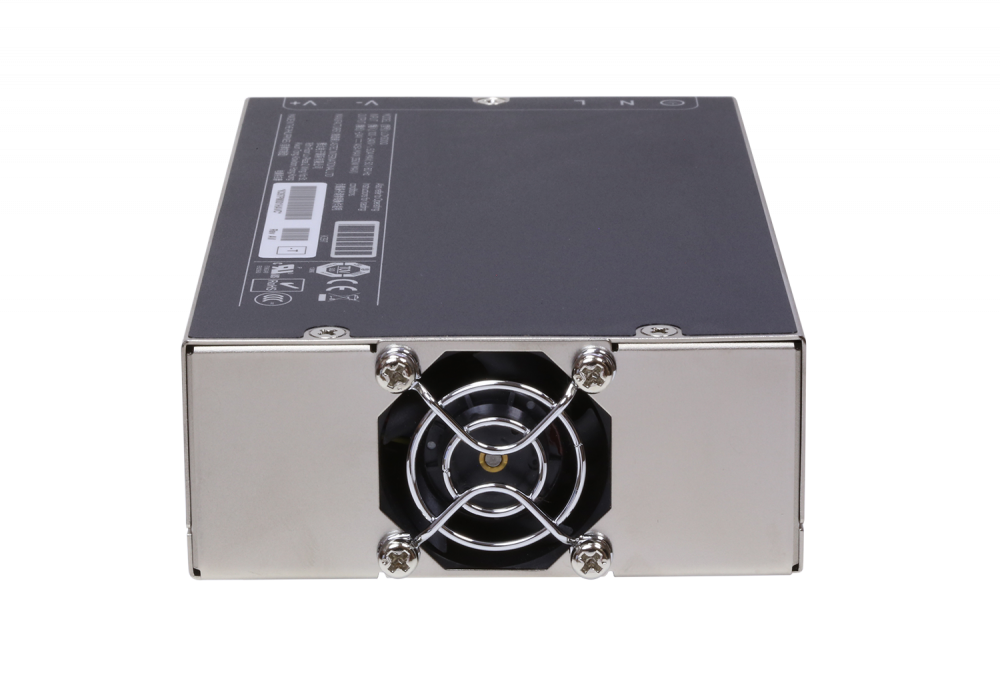

  • Variable Speed "Smart Fan"

仕様

出力電力 (W): 300
長さ(インチ): 7
幅(インチ): 4
高さ(インチ): 1.61
マウントタイプ: Embedded PSU
最小出力電流 (A): 0
最大出力電流 (A): 25
出力電圧範囲 (V): 9.6V to 57.6V
すべての仕様 仕様の崩壊

在庫チェック

モデル番号
最小電圧 (V) 最大最大電圧 (V) 電流 (A) 公称電圧 (V) 出力数 サンプル 購入
LCM300L-T アクティブ, 在庫あり
AC-DC 310W 12V Term Blk
9.6 14.4 25 12 1 Request 購入
LCM300L-T-4 アクティブ, 在庫あり 9.6 14.4 25 12 1 Request 購入
LCM300N-T アクティブ, 在庫あり
AC-DC 310W 15V Term Blk
12 18 20 15 1 Request 購入
LCM300N-T-4 アクティブ, 在庫あり 14.25 19.5 20 15 1 Request 購入
LCM300Q-T アクティブ, 在庫あり
AC-DC 310W 24V Term Blk
19.2 28.8 12.5 24 1 Request 購入
LCM300Q-T-4 アクティブ, 在庫あり 19.2 28.8 14.5 24 1 Request 購入
LCM300U-T アクティブ, 在庫あり
AC-DC 310W 36V Term Blk
28.8 43.2 8.4 36 1 Request 購入
LCM300U-T-4 アクティブ, 在庫あり 28.8 43.2 9.7 36 1 Request 購入
LCM300W-T アクティブ, 在庫あり
AC-DC 310W 48V Term Blk
38.4 57.6 6.3 48 1 Request 購入
LCM300W-T-4 アクティブ, 在庫あり 43 60 6.3 48 1 Request 購入
