CoolX1000
Active
Up to 1000 W Configurable, Fanless AC-DC Power Supplies

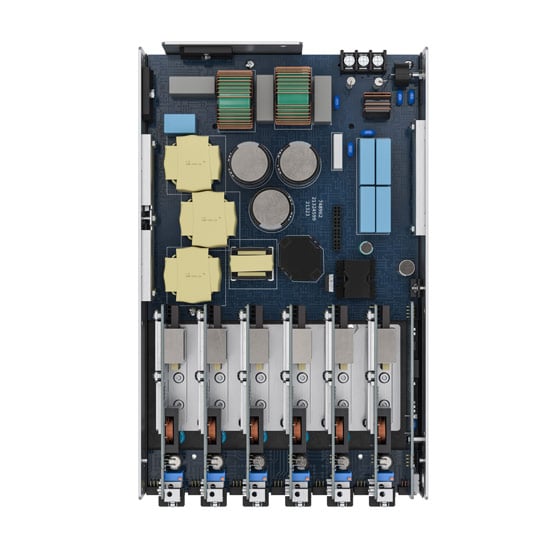

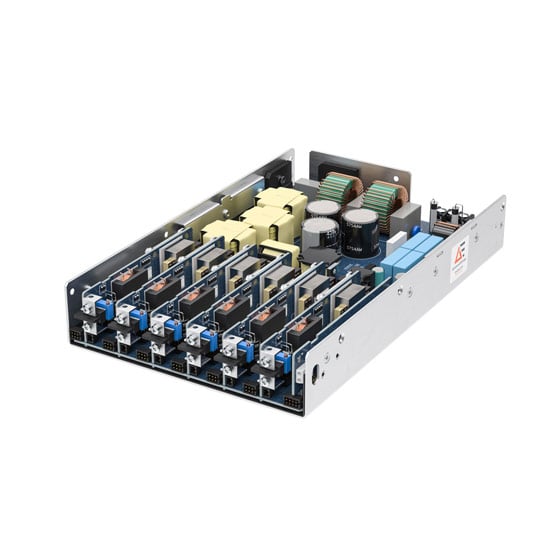

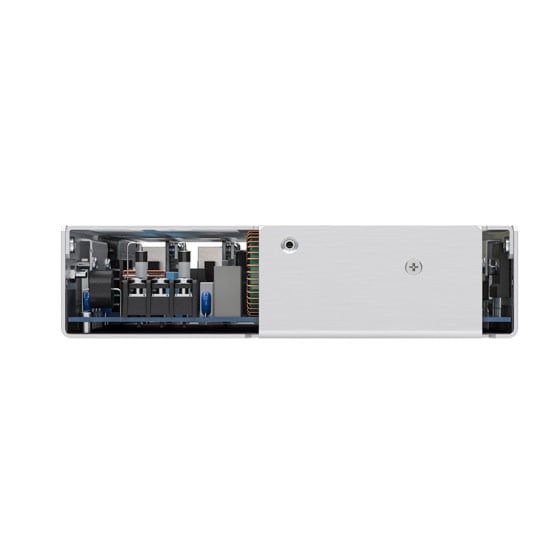

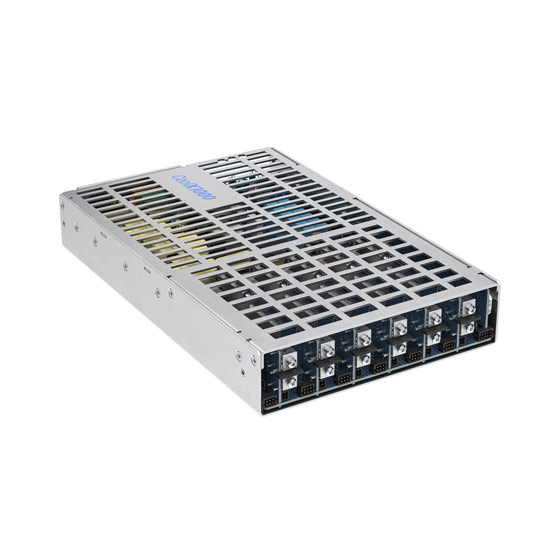

The Excelsys CoolX®1000 fanless, convection-cooled series provides up to 1000 W in a compact U-channel design. Its low noise makes it a smart choice for scientific, medical, and vibration-sensitive applications.
The CX10S is certified for industrial, audio/video, and communication uses. The CX10M is certified for medical applications. And CoolX-G lets you carry out the full 4kVAC and 5.6Kvdc primary to secondary isolation test as it will be used in applications.
The CX10S is certified for industrial, audio/video, and communication uses. The CX10M is certified for medical applications. And CoolX-G lets you carry out the full 4kVAC and 5.6Kvdc primary to secondary isolation test as it will be used in applications.
Eigenschaften
- 93% efficiency
- No fans, acoustic noise, or vibrations
- Outputs can be parallel connected for higher currents and series connected for higher voltages up to 615 VDC

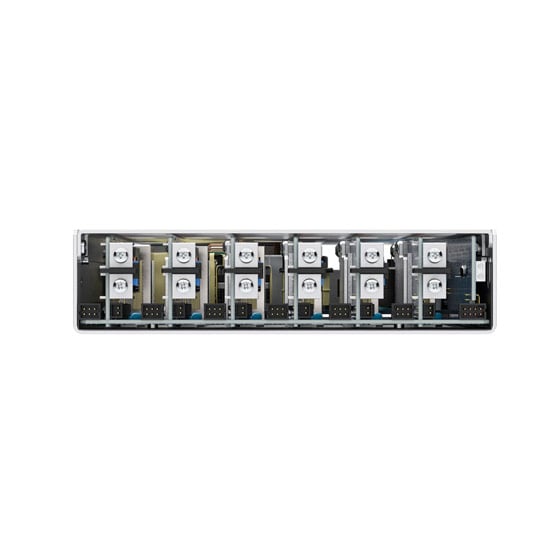

- The CoolX1000 offers up to six CoolMods, for up to twelve isolated DC outputs ranging from 1.0 to 58 V.
- Safety approved to 5000 m altitude
- MTBF > 400,000 hours
- Five-year warranty
Vorteile
- Higher power density consumes less physical space
- Intelligent digital power provides maximum flexibility with analog and digital PMBus® control
- Fast deployment with user- and field-configurability
- Confidence in reliability from the #1 configurable power supply manufacturer
- IEC60950 and IEC62368-1 certification (standard models)
- IEC60601-1 and IEC60601-1-2 certification (medical models)
Spezifikationen
| Länge (Zoll): | 10 |
|---|---|
| Breite (Zoll): | 6.5 |
| Höhe (Zoll): | 1.54 |
| Ausgangsspannungsbereich (V): | 1 to 615 |
| Maximale Ausgangsleistung (W): | 1000 |
| Minimum Input Voltage (V): | 85 |
| Maximale Eingangsspannung (V): | 264 |
Technische Dokumentation
Product Information Documents
Guides & Manuals
Updated
Engineering Resources
Updated
Insights & Studies
Updated
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
Vergleichen Sie
| Model | CoolX1000 | Ultimod UX6 | iMP4 | uMP09 Gen II | XFN |
|---|---|---|---|---|---|
| Länge (Zoll) | 10 | 10.23 | 10 | 10.11 | 10.55 |
| Breite (Zoll) | 6.5 | 5 | 5 | 3.5 | 5 |
| Höhe (Zoll) | 1.54 | 1.59 | 2.5 | 1.57 | 1.59 |
| Ausgangsspannungsbereich (V) | 1 to 615 | 1.15 to 348 | 1.8 to 300 | 0.9 to 240 | 1 to 232 |
| Maximale Ausgangsleistung (W) | 1000 | 1200 | 1100 | 1000 | 1000 |
| Minimum Input Voltage (V) | 85 | 85 | 85 | 90 | 85 |
| Maximale Eingangsspannung (V) | 264 | 264 | 264 | 264 | 264 |
