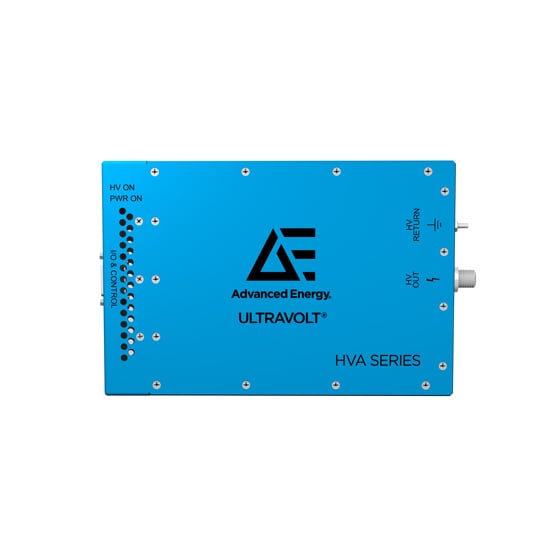

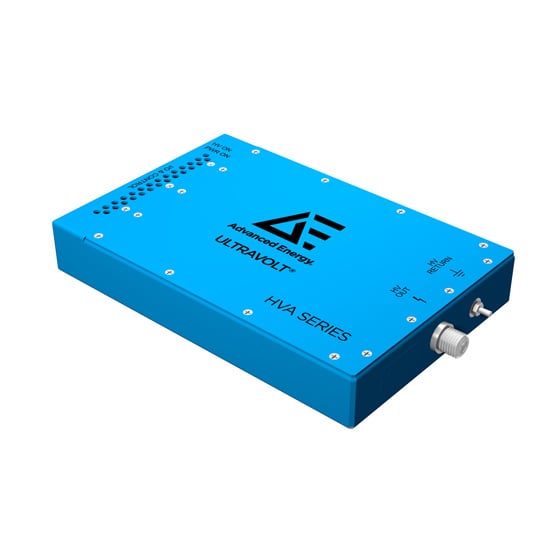

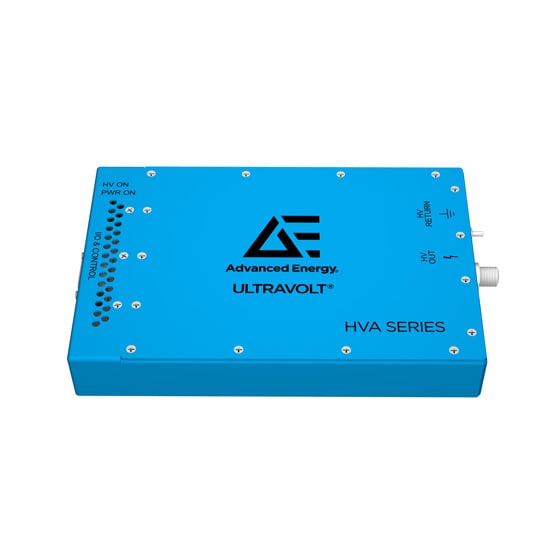

HVA Series
Active
Precision DC-DC High Voltage Amplifiers
Our UltraVolt HVA series includes fourteen single-output models. The models deliver 1000 to 20,000 VDC of maximum high voltage power in positive, negative, or bipolar polarity configurations. From a 24 VDC input, HVA models deliver up to 2 W of dynamic power. Across the full operation range, HVA models source and sink current at bandwidths up to 500 Hz. Select electrical and mechanical integration options to meet your specific application needs.
Eigenschaften
- Full-range two- and four-quadrant output of voltage and current for bias, amplification or reversing
- Fast voltage slew rates and broad bandwidths up to 500 Hz
- Sources and sinks output current through operating range
- High voltage output controlled using differential analog inputs
- Compact size with electrical performance and mechanical integration options
Vorteile
- Enable extreme control as high voltage output passes through 0 VDC regions
- More accurately track and reproduce fast-changing voltage control profiles
- Compensate for varying external loads by adaptively controlling both output voltage and current
- Enhance high voltage output performance by minimizing control signal noise and drift
- Reduce footprint and speeds both electrical and mechanical integration tasks
Spezifikationen
| Ausgangsleistung (W): | .25 to 2 |
|---|---|
| Maximaler Ausgangsstrom (A): | 0.00025 |
| Ausgangsspannungsbereich (V): | -20,000 to 20,000 |
| Maximale Eingangsspannung (V): | 24 |
Lagerbestand prüfen
|
Modellnummer
Proben
Kaufen
|
Kontrolle Typ | Maximale Ausgangsleistung (W) | Maximale Ausgangsspannung (V) | Anzahl der Ausgänge | Restwelligkeit (ppm) | Temperatur-Koeffizient | Ausgangstyp | Proben | Kaufen |
|---|---|---|---|---|---|---|---|---|---|
| 10HVA24-BP1 Aktiv, Vorrätig | Analog | 1 | 10 | 1 | 500 | 25 | Bipolar | Anfrage | Kaufen |
| 10HVA24-BP1-F Active, Kontakt | Analog | 1 | 10 | 1 | 125 | 25 | Bipolar | Kontakt | Kaufen |
| 10HVA24-N1 Active, Kontakt | Analog | 1 | 10 | 1 | 100 | 50 | Unipolar | Kontakt | Kaufen |
| 10HVA24-N1-25PPM Active, Kontakt | Analog | 1 | 10 | 1 | 100 | 25 | Unipolar | Kontakt | Kaufen |
| 10HVA24-N1-F Active, Kontakt | Analog | 1 | 10 | 1 | 25 | 50 | Unipolar | Kontakt | Kaufen |
| 10HVA24-N1-F-25PPM Active, Kontakt | Analog | 1 | 10 | 1 | 25 | 25 | Unipolar | Kontakt | Kaufen |
| 10HVA24-P1 Active, Kontakt | Analog | 1 | 10 | 1 | 100 | 50 | Unipolar | Kontakt | Kaufen |
| 10HVA24-P1-25PPM Active, Kontakt | Analog | 1 | 10 | 1 | 100 | 25 | Unipolar | Kontakt | Kaufen |
| 10HVA24-P1-F Aktiv, Vorrätig | Analog | 1 | 10 | 1 | 25 | 50 | Unipolar | Anfrage | Kaufen |
| 10HVA24-P1-F-25PPM Active, Kontakt | Analog | 1 | 10 | 1 | 25 | 25 | Unipolar | Kontakt | Kaufen |
| 15HVA24-BP1.5 Active, Kontakt | Analog | 1.5 | 15 | 1 | 500 | 25 | Bipolar | Kontakt | Kaufen |
| 15HVA24-BP1.5-F Active, Kontakt | Analog | 1.5 | 15 | 1 | 125 | 25 | Bipolar | Kontakt | Kaufen |
| 15HVA24-BP1.5-F-15PPM Active, Kontakt | Analog | 1.5 | 15 | 1 | 125 | 15 | Bipolar | Kontakt | Kaufen |
| 15HVA24-N1 Active, Kontakt | Analog | 1 | 15 | 1 | 500 | 25 | Unipolar | Kontakt | Kaufen |
| 15HVA24-N1-F Active, Kontakt | Analog | 1 | 15 | 1 | 125 | 25 | Unipolar | Kontakt | Kaufen |
| 15HVA24-N1-F-15PPM Active, Kontakt | Analog | 1 | 15 | 1 | 125 | 15 | Unipolar | Kontakt | Kaufen |
| 15HVA24-P1 Active, Kontakt | Analog | 1 | 15 | 1 | 500 | 25 | Unipolar | Kontakt | Kaufen |
| 15HVA24-P1-F Active, Kontakt | Analog | 1 | 15 | 1 | 125 | 25 | Unipolar | Kontakt | Kaufen |
| 15HVA24-P1-F-15PPM Active, Kontakt | Analog | 1 | 15 | 1 | 125 | 15 | Unipolar | Kontakt | Kaufen |
| 1HVA24-BP1 Aktiv, Vorrätig | Analog | 0.25 | 1 | 1 | 500 | 50 | Bipolar | Anfrage | Kaufen |
| 1HVA24-BP1-25PPM Active, Kontakt | Analog | 0.25 | 1 | 1 | 500 | 25 | Bipolar | Kontakt | Kaufen |
| 1HVA24-BP1-F Aktiv, Vorrätig | Analog | 0.25 | 1 | 1 | 125 | 50 | Bipolar | Anfrage | Kaufen |
| 1HVA24-BP1-F-25PPM Active, Kontakt | Analog | 0.25 | 1 | 1 | 125 | 25 | Bipolar | Kontakt | Kaufen |
| 1HVA24-N1 Active, Kontakt | Analog | 0.25 | 1 | 1 | 500 | 50 | Unipolar | Kontakt | Kaufen |
| 1HVA24-N1-25PPM Active, Kontakt | Analog | 0.25 | 1 | 1 | 500 | 25 | Unipolar | Kontakt | Kaufen |
| 1HVA24-N1-F Active, Kontakt | Analog | 0.25 | 1 | 1 | 125 | 50 | Unipolar | Kontakt | Kaufen |
| 1HVA24-N1-F-25PPM Active, Kontakt | Analog | 0.25 | 1 | 1 | 125 | 25 | Unipolar | Kontakt | Kaufen |
| 1HVA24-P1 Active, Kontakt | Analog | 0.25 | 1 | 1 | 500 | 50 | Unipolar | Kontakt | Kaufen |
| 1HVA24-P1-25PPM Active, Kontakt | Analog | 0.25 | 1 | 1 | 500 | 25 | Unipolar | Kontakt | Kaufen |
| 1HVA24-P1-F Active, Kontakt | Analog | 0.25 | 1 | 1 | 125 | 50 | Unipolar | Kontakt | Kaufen |
| 1HVA24-P1-F-25PPM Active, Kontakt | Analog | 0.25 | 1 | 1 | 125 | 25 | Unipolar | Kontakt | Kaufen |
| 20HVA24-BP2 Active, Kontakt | Analog | 2 | 20 | 1 | 500 | 25 | Bipolar | Kontakt | Kaufen |
| 20HVA24-BP2-F Active, Kontakt | Analog | 2 | 20 | 1 | 125 | 25 | Bipolar | Kontakt | Kaufen |
| 20HVA24-BP2-F-15PPM Active, Kontakt | Analog | 2 | 20 | 1 | 125 | 15 | Bipolar | Kontakt | Kaufen |
| 20HVA24-N1 Active, Kontakt | Analog | 1 | 20 | 1 | 500 | 25 | Unipolar | Kontakt | Kaufen |
| 20HVA24-N1-F Active, Kontakt | Analog | 1 | 20 | 1 | 125 | 25 | Unipolar | Kontakt | Kaufen |
| 20HVA24-N1-F-15PPM Active, Kontakt | Analog | 1 | 20 | 1 | 125 | 15 | Unipolar | Kontakt | Kaufen |
| 20HVA24-P1 Active, Kontakt | Analog | 1 | 20 | 1 | 500 | 25 | Unipolar | Kontakt | Kaufen |
| 20HVA24-P1-F Active, Kontakt | Analog | 1 | 20 | 1 | 125 | 25 | Unipolar | Kontakt | Kaufen |
| 20HVA24-P1-F-15PPM Active, Kontakt | Analog | 1 | 20 | 1 | 125 | 15 | Unipolar | Kontakt | Kaufen |
| 2HVA24-BP1 Active, Kontakt | Analog | 0.5 | 2 | 1 | 500 | 50 | Bipolar | Kontakt | Kaufen |
| 2HVA24-BP1-25PPM Active, Kontakt | Analog | 0.5 | 2 | 1 | 500 | 25 | Bipolar | Kontakt | Kaufen |
| 2HVA24-BP1-F Aktiv, Vorrätig | Analog | 0.5 | 2 | 1 | 125 | 50 | Bipolar | Anfrage | Kaufen |
| 2HVA24-BP1-F-25PPM Active, Kontakt | Analog | 0.5 | 2 | 1 | 125 | 25 | Bipolar | Kontakt | Kaufen |
| 2HVA24-N1 Active, Kontakt | Analog | 0.5 | 2 | 1 | 500 | 50 | Unipolar | Kontakt | Kaufen |
| 2HVA24-N1-25PPM Active, Kontakt | Analog | 0.5 | 2 | 1 | 500 | 25 | Unipolar | Kontakt | Kaufen |
| 2HVA24-N1-F Active, Kontakt | Analog | 0.5 | 2 | 1 | 125 | 50 | Unipolar | Kontakt | Kaufen |
| 2HVA24-N1-F-25PPM Active, Kontakt | Analog | 0.5 | 2 | 1 | 125 | 25 | Unipolar | Kontakt | Kaufen |
| 2HVA24-P1 Aktiv, Vorrätig | Analog | 0.5 | 2 | 1 | 500 | 50 | Unipolar | Anfrage | Kaufen |
| 2HVA24-P1-25PPM Active, Kontakt | Analog | 0.5 | 2 | 1 | 500 | 25 | Unipolar | Kontakt | Kaufen |
| 2HVA24-P1-F Active, Kontakt | Analog | 0.5 | 2 | 1 | 125 | 50 | Unipolar | Kontakt | Kaufen |
| 2HVA24-P1-F-25PPM Active, Kontakt | Analog | 0.5 | 2 | 1 | 125 | 25 | Unipolar | Kontakt | Kaufen |
| 4HVA24-BP1 Aktiv, Vorrätig | Analog | 1 | 4 | 1 | 500 | 50 | Bipolar | Anfrage | Kaufen |
| 4HVA24-BP1-25PPM Active, Kontakt | Analog | 1 | 4 | 1 | 500 | 25 | Bipolar | Kontakt | Kaufen |
| 4HVA24-BP1-F Aktiv, Vorrätig | Analog | 1 | 4 | 1 | 125 | 50 | Bipolar | Anfrage | Kaufen |
| 4HVA24-BP1-F-25PPM Active, Kontakt | Analog | 1 | 4 | 1 | 125 | 25 | Bipolar | Kontakt | Kaufen |
| 4HVA24-N1 Aktiv, Vorrätig | Analog | 1 | 4 | 1 | 500 | 50 | Unipolar | Anfrage | Kaufen |
| 4HVA24-N1-25PPM Active, Kontakt | Analog | 1 | 4 | 1 | 500 | 25 | Unipolar | Kontakt | Kaufen |
| 4HVA24-N1-F Active, Kontakt | Analog | 1 | 4 | 1 | 125 | 50 | Unipolar | Kontakt | Kaufen |
| 4HVA24-N1-F-25PPM Active, Kontakt | Analog | 1 | 4 | 1 | 125 | 25 | Unipolar | Kontakt | Kaufen |
| 4HVA24-P1 Active, Kontakt | Analog | 1 | 4 | 1 | 500 | 50 | Unipolar | Kontakt | Kaufen |
| 4HVA24-P1-25PPM Active, Kontakt | Analog | 1 | 4 | 1 | 500 | 25 | Unipolar | Kontakt | Kaufen |
| 4HVA24-P1-F Active, Kontakt | Analog | 1 | 4 | 1 | 125 | 50 | Unipolar | Kontakt | Kaufen |
| 4HVA24-P1-F-25PPM Active, Kontakt | Analog | 1 | 4 | 1 | 125 | 25 | Unipolar | Kontakt | Kaufen |
| 5HVA24-BP1 Aktiv, Vorrätig | Analog | 1 | 5 | 1 | 300 | 50 | Bipolar | Anfrage | Kaufen |
| 5HVA24-BP1-25PPM Active, Kontakt | Analog | 1 | 5 | 1 | 300 | 25 | Bipolar | Kontakt | Kaufen |
| 5HVA24-BP1-F Aktiv, Vorrätig | Analog | 1 | 5 | 1 | 75 | 50 | Bipolar | Anfrage | Kaufen |
| 5HVA24-BP1-F-25PPM Aktiv, Vorrätig | Analog | 1 | 5 | 1 | 75 | 25 | Bipolar | Anfrage | Kaufen |
| 6HVA24-N1 Active, Kontakt | Analog | 1 | 6 | 1 | 300 | 50 | Unipolar | Kontakt | Kaufen |
| 6HVA24-N1-25PPM Active, Kontakt | Analog | 1 | 6 | 1 | 300 | 25 | Unipolar | Kontakt | Kaufen |
| 6HVA24-N1-F Active, Kontakt | Analog | 1 | 6 | 1 | 75 | 50 | Unipolar | Kontakt | Kaufen |
| 6HVA24-N1-F-25PPM Active, Kontakt | Analog | 1 | 6 | 1 | 75 | 25 | Unipolar | Kontakt | Kaufen |
| 6HVA24-P1 Aktiv, Vorrätig | Analog | 1 | 6 | 1 | 300 | 50 | Unipolar | Anfrage | Kaufen |
| 6HVA24-P1-25PPM Active, Kontakt | Analog | 1 | 6 | 1 | 300 | 25 | Unipolar | Kontakt | Kaufen |
| 6HVA24-P1-F Active, Kontakt | Analog | 1 | 6 | 1 | 75 | 50 | Unipolar | Kontakt | Kaufen |
| 6HVA24-P1-F-25PPM Active, Kontakt | Analog | 1 | 6 | 1 | 75 | 25 | Unipolar | Kontakt | Kaufen |
Technische Dokumentation
Vergleichen Sie
| Model |
HVA Series
|
Dual Polarity C Series
|
E Series
|
|---|---|---|---|
| Länge (Zoll) | 8 | 6 | |
| Breite (Zoll) | 4.5 | 3.8 | |
| Höhe (Zoll) | 1.1 | 1.5 | |
| Ausgangsspannungsbereich (V) | -20,000 to 20,000 | 0 to 6000 | 0 to 15,000 |
| Maximale Ausgangsleistung (W) | 250 | 30 |
