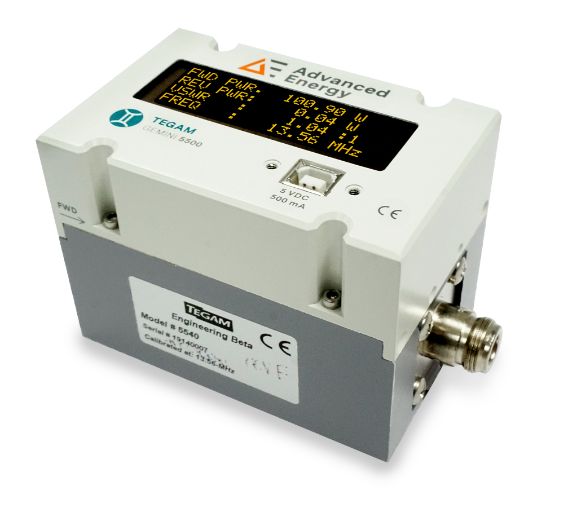

5540A Series RF Power Meters

Active

High Power, High-Accuracy RF Measurement in a Single Instrument

Advanced Energy's 5540A Series of RF power meters provide high power, high accuracy measurements with a sensor and meter that are built into one instrument. The 5540A also has the unique capability of being calibrated at multiple available frequency points, creating a single meter that can replace multiple existing power sensors. Offering rich functionality and an easy-to-use design, this series is ideal for use in semiconductor applications, for which measurement certainty and repeatability are imperative. It is powered by a standard USB 2.0 port, external battery, or AC power outlet using off-the-shelf USB adapters. Because the meter is built-in, there is less equipment, and fewer cables, to carry to the field or bench.



特徴

  • Accuracy: ±0.5% + 0.5 W at 2σ (at calibrated frequencies and power levels)
  • 0.2-200 MHz, 3 to 5,000 W
  • Meter and Sensor build into one instrument
  • One sensor can be calibrated at multiple frequencies

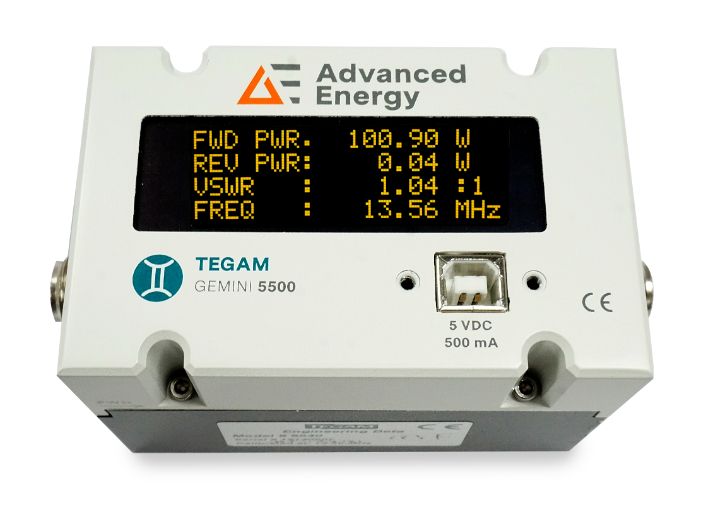

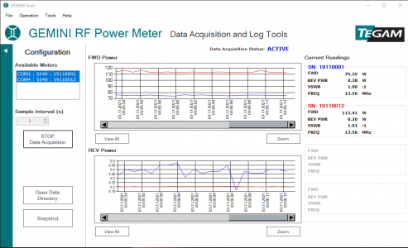

  • Read forward and reverse power, VSWR, and frequency simultaneously on the integrated display
  • 1 year calibration interval

メリット

  • Exceptional accuracy makes the 5540A ideal for RF generator calibration
  • Multiple frequencies in one instrument reduces the number of required sensors
  • An all in one meter/sensor reduces equipment required for use and maintenance
  • A longer calibration interval increases the time your power meter is at your facility ready for use

仕様

Basic Accuracy: +/- (0.5% of Rdg + 0.5 W)
Communication: USB
Frequency Range: 200 kHz to 200 MHz
Power Range: 3 W to 5 kW
Power Range (typical): 3 W to 5 kW
Power Requirements: 5VDC, 500 mA USB Type B

在庫チェック

モデル番号
Basic Accuracy Communication Frequency Range Power Range (typical) Power Requirements 購入
5540A-7/16F-7/16F Active, お問い合わせ
5540A with Two Female 7/16 Connectors
+/- (0.5% of Rdg + 0.5 W) USB 200 kHz to 200 MHz 3 W to 5 kW 5VDC, 500 mA USB Type B 購入
5540A-7/16F-7/16M Active, お問い合わせ
5540A with One Female 7/16 Connector and One Male 7/16 Connector
+/- (0.5% of Rdg + 0.5 W) USB 200 kHz to 200 MHz 3 W to 5 kW 5VDC, 500 mA USB Type B 購入
5540A-7/16F-NF Active, お問い合わせ
5540A with one Female 7/16 Connector and One Female N Connector
+/- (0.5% of Rdg + 0.5 W) USB 200 kHz to 200 MHz 3 W to 5 kW 5VDC, 500 mA USB Type B 購入
5540A-HNF-7/16F Active, お問い合わせ
5540A with a Female HN Connector and a Female 7/16 Connector
+/- (0.5% of Rdg + 0.5 W) USB 200 kHz to 200 MHz 3 W to 5 kW 5VDC, 500 mA USB Type B 購入
5540A-HNF-HNF Active, お問い合わせ
5540A with Two Female HN Connectors
+/- (0.5% of Rdg + 0.5 W) USB 200 kHz to 200 MHz 3 W to 5 kW 5VDC, 500 mA USB Type B 購入
5540A-HNF-HNM Active, お問い合わせ
5540A with One Female HN Connector and One Male HN Connector
+/- (0.5% of Rdg + 0.5 W) USB 200 kHz to 200 MHz 3 W to 5 kW 5VDC, 500 mA USB Type B 購入
5540A-HNM-HNF Active, お問い合わせ
5540A with One Male HN Connector and One Female HN Connector
+/- (0.5% of Rdg + 0.5 W) USB 200 kHz to 200 MHz 3 W to 5 kW 5VDC, 500 mA USB Type B 購入
5540A-LCF-LCM Active, お問い合わせ
5540A with One Female LC Connector and One Male LC Connector
+/- (0.5% of Rdg + 0.5 W) USB 200 kHz to 200 MHz 3 W to 5 kW 5VDC, 500 mA USB Type B 購入
5540A-NF-NF Active, お問い合わせ
5540A with Two Female N Connectors
+/- (0.5% of Rdg + 0.5 W) USB 200 kHz to 200 MHz 3 W to 5 kW 5VDC, 500 mA USB Type B 購入
5540A-NF-NM Active, お問い合わせ
5540A with One Female N Connector and One Male N Connector
+/- (0.5% of Rdg + 0.5 W) USB 200 kHz to 200 MHz 3 W to 5 kW 5VDC, 500 mA USB Type B 購入
5540A-NM-NM Active, お問い合わせ
5540A with Two Male N Connectors
+/- (0.5% of Rdg + 0.5 W) USB 200 kHz to 200 MHz 3 W to 5 kW 5VDC, 500 mA USB Type B 購入

Accessories Stock Check

Calibration to the Input Port. 13.56 MHz, 3W to 5000W
Calibration to the Input Port. 2MHz, 3W to 5000W
Calibration to the Input Port. 60MHz, 3W to 5000W
Calibration to the Input Port. 380 KHz, 3W to 5000W
Calibration to the Input Port. 1MHz, 3W to 5000W
Calibration to the Input Port. 27.12MHz, 3W to 5000W
Calibration to the Input Port. 0.20MHz, 3W to 2500W
Calibration to the Input Port. 0.40MHz, 3W to 5000W
Calibration to the Input Port. 40.68 MHz, 3W to 5000W

5540A Power Sensor Accessories

5540A Power Sensor Accessories
