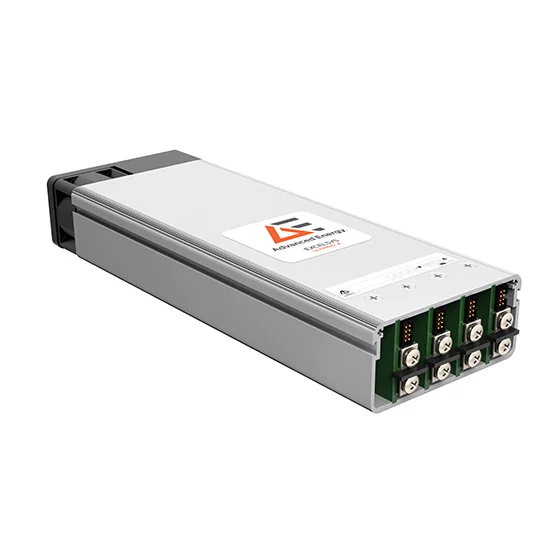

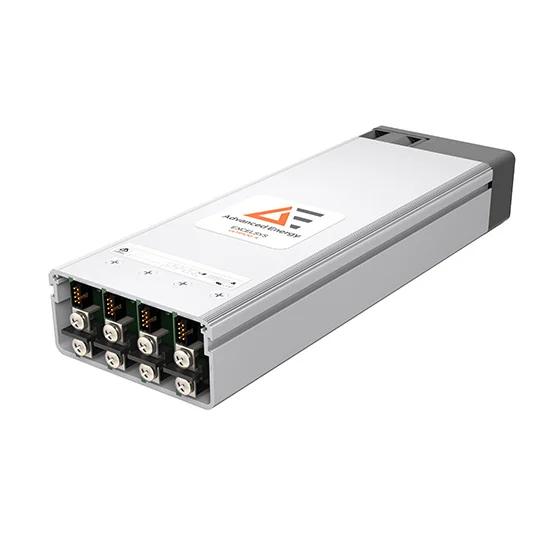

Ultimod Series

Active

Modular Power Supplies With High Efficiency and High Reliability

Advanced Energy's Excelsys Ultimod AC-DC modular power supplies combine high reliability, efficiency, and user flexibility to provide low-cost solutions for medical, life science, and industrial applications. The Ultimod series is available in two package sizes. The UX4 offers up to 600 W and accommodates up to four powerMods, and the UX6 delivers up to 1200 W and takes a maximum of six powerMods. With up to 12 isolated output voltages, you can parallel the outputs for higher current and series connect them for voltages as high as 348 VDC. Housed in a compact 1U form factor, the Ultimod comes with IEC 60601-1 (3rd Edition) and IEC 60950 (2nd Edition) safety approvals and SEMI F47 compliance.

Eigenschaften

  • 92% efficiency
  • Five-year warranty
  • SEMI F47 compliant
  • Up to 12 isolated DC outputs
  • Low acoustic noise for noise-sensitive applications

Vorteile

  • High Power Density: Up to 1200 W output power in a compact 1U form factor
  • Full Safety Agency Approvals: UL/EN60950 (second edition) and UL/EN60601-1 (third edition) compliant
  • User- and Field-Configurable: Suite of output signals and user-configurable functions increase design-in flexibility
  • High Reliability and Efficiency: 92% efficiency guarantees increased system reliability

Spezifikationen

Ausgangsleistung (W): 600 to 1200
Länge (Zoll): 10
Breite (Zoll): 5
Höhe (Zoll): 1.75
Montage Typ: Base/Side Mounting
Ausgangsspannungsbereich (V): 1 to 348
Minimale Ausgangsleistung (W): 600
Maximale Ausgangsleistung (W): 1200
Alle Spezifikationen Spezifikationen zusammenklappen

Lagerbestand prüfen

Modellnummer
Wirkungsgrad (%) Min. Spannung (V) Max. Spannung (V) Stromstärke (A) Nennspannung (V) Maximale Ausgangsleistung (W) Anzahl der Ausgänge Proben Kaufen
UX4 Aktiv, Vorrätig
UltiMod 600W Standard/Medical powerPac, 4 Slots, must be used with powerMods
89 85 VAC Input 264 VAC Input 600 8 Anfrage Kaufen
UX4-02 Aktiv, Vorrätig
UltiMod 600W Standard/Medical powerPac, Reverse fan, 4 Slots, must be used with powerMods
89 85 VAC Input 264 VAC Input 600 8 Anfrage Kaufen
UX4-04 Aktiv, Vorrätig
UltiMod 600W Standard/Medical powerPac, Low Leakage, 4 Slots, must be used with powerMods
89 85 VAC Input 264 VAC Input 600 8 Anfrage Kaufen
UX4-06 Aktiv, Vorrätig
UltiMod 600W Standard/Medical powerPac, Reverse Fan, Low Leakage, 4 Slots, must be used with powerMods
89 85 VAC Input 264 VAC Input 600 8 Anfrage Kaufen
UX6 Aktiv, Vorrätig
UltiMod 1200W Standard/Medical powerPac, 6 Slots, must be used with powerMods
90 85 VAC Input 264 VAC Input 1200 12 Anfrage Kaufen
UX6-02 Aktiv, Vorrätig
UltiMod 1200W Standard/Medical powerPac, Reverse fan, 6 Slots, must be used with powerMods
90 85 VAC Input 264 VAC Input 1200 12 Anfrage Kaufen
UX6-04 Aktiv, Vorrätig
UltiMod 1200W Standard/Medical powerPac, Low Leakage, 6 Slots, must be used with powerMods
90 85 VAC Input 264 VAC Input 1200 12 Anfrage Kaufen
UX6-06 Aktiv, Vorrätig
UltiMod 1200W Standard/Medical powerPac, Reverse Fan, Low Leakage, 6 Slots, must be used with powerMods
90 85 VAC Input 264 VAC Input 1200 12 Anfrage Kaufen
UX6D0 Aktiv, Vorrätig
UltiMod 1200W Standard/Medical powerPac, Cable input, 6 Slots, must be used with powerMods
90 85 VAC Input 264 VAC Input 1200 12 Anfrage Kaufen
Xg1 Aktiv, Vorrätig
PowerMod 1.5V-3.6V/50A , must be used with Xgen/UltiMod powerPac
90 1.5 3.6 50 2.5 125 1 Anfrage Kaufen
Xg2 Aktiv, Vorrätig
PowerMod 3.2V–6.0V/40A , must be used with Xgen/UltiMod powerPac
90 3.2 6 40 5 200 1 Anfrage Kaufen
Xg3 Aktiv, Vorrätig
PowerMod 6.0V-15.0V/20A , must be used with Xgen/UltiMod powerPac
90 6 15 20 12 240 1 Anfrage Kaufen
Xg4 Aktiv, Vorrätig
PowerMod 12.0V-30.0V/10A , must be used with Xgen/UltiMod powerPac
90 12 30 10 24 240 1 Anfrage Kaufen
Xg5 Aktiv, Vorrätig
PowerMod 28.0V-58.0V/6A , must be used with Xgen/UltiMod powerPac
90 28 58 6 48 288 1 Anfrage Kaufen
Xg7C Aktiv, Vorrätig
PowerMod 5.0V-28.0V/5A , Conformal Coated, must be used with Xgen/UltiMod powerPac
90 5 28 3 24 120 1 Anfrage Kaufen
Xg8C Aktiv, Vorrätig
PowerMod Dual 5.0V-28.0/3A , Conformal Coatedmust be used with Xgen/UltiMod powerPac
90 144 2 Anfrage Kaufen
XgA Aktiv, Vorrätig
PowerMod 10.8V-15.6V/12.5A , must be used with Xgen/UltiMod powerPac
90 10.8 15.6 12.5 12 150 1 Anfrage Kaufen
XgAC Aktiv, Vorrätig
PowerMod 10.8V-15.6V/12.5A , Conformal Coated, must be used with Xgen/UltiMod powerPac
90 10.8 15.6 12.5 12 150 1 Anfrage Kaufen
XgB Aktiv, Vorrätig
PowerMod 19.2V-26.4V/8.3A , must be used with Xgen/UltiMod powerPac
90 19.2 26.4 8.3 24 200 1 Anfrage Kaufen
XgC Aktiv, Vorrätig
PowerMod 28.8V-39.6V/5.6A , must be used with Xgen/UltiMod powerPac
90 28.8 39.6 5.6 24 200 1 Anfrage Kaufen
XgCC Aktiv, Vorrätig
PowerMod 28.8V-39.6V/5.6A , Conformal Coated, must be used with Xgen/UltiMod powerPac
90 28.8 39.6 5.6 24 200 1 Anfrage Kaufen
XgD Aktiv, Vorrätig
PowerMod 38.5V-50.4V/4.2A , must be used with Xgen/UltiMod powerPac
90 38.5 50.4 4.2 48 200 1 Anfrage Kaufen
XgE Aktiv, Vorrätig
PowerMod 5.0V-28.0V/5A , must be used with Xgen/UltiMod powerPac
90 5 28 3 24 120 1 Anfrage Kaufen
XgEC Aktiv, Vorrätig
PowerMod 5.0V-28.0V/5A , Conformal Coated, must be used with Xgen/UltiMod powerPac
90 144 2 Anfrage Kaufen
XgF Aktiv, Vorrätig
PowerMod Dual 5.0V-28.0/3A , must be used with Xgen/UltiMod powerPac
90 144 2 Anfrage Kaufen
XgGC Aktiv, Vorrätig
PowerMod 1.5V-3.6V/40A , Conformal Coated, must be used with Xgen/UltiMod powerPac
90 1.5 3.6 50 2.5 100 1 Anfrage Kaufen
XgHC Aktiv, Vorrätig
PowerMod 3.2V–6.0V/36A , Conformal Coated, must be used with Xgen/UltiMod powerPac
90 3.2 6 40 5 180 1 Anfrage Kaufen
XgMC Aktiv, Vorrätig
PowerMod Wide Trim 1.0V-6.0V, Conformal Coated, must be used with Xgen/UltiMod powerPac
90 1 6 40 5 200 1 Anfrage Kaufen
XgNC Aktiv, Vorrätig
PowerMod Wide Trim 1.0V-15.0V, Conformal Coated, must be used with Xgen/UltiMod powerPac
90 1 15 20 12 240 1 Anfrage Kaufen
XgP Aktiv, Vorrätig
PowerMod Wide Trim 1.0V-30.0V, must be used with Xgen/UltiMod powerPac
90 1 30 10 24 240 1 Anfrage Kaufen
XgPC Aktiv, Vorrätig
PowerMod Wide Trim 1.0V-30.0V, Conformal Coated, must be used with Xgen/UltiMod powerPac
90 1 30 10 24 240 1 Anfrage Kaufen
XgQ Aktiv, Vorrätig
PowerMod Wide Trim 1.0V-58.0V, must be used with Xgen/UltiMod powerPac
90 1 58 6 48 288 1 Anfrage Kaufen
XgQC Aktiv, Vorrätig
PowerMod Wide Trim 1.0V-58.0V, Conformal Coated, must be used with Xgen/UltiMod powerPac
90 1 58 6 48 288 1 Anfrage Kaufen
XgR Aktiv, Vorrätig
PowerMod Reactive Load 12.0V-30.0V, must be used with Xgen/UltiMod powerPac
90 12 30 10 24 240 1 Anfrage Kaufen
XgRC Aktiv, Vorrätig
PowerMod Reactive Load 12.0V-30.0V, Conformal Coated, must be used with Xgen/UltiMod powerPac
90 12 30 10 24 240 1 Anfrage Kaufen
XgT Aktiv, Vorrätig
PowerMod Reactive Load 28.0-58.0V, must be used with Xgen/UltiMod powerPac
90 28 58 6 48 288 1 Anfrage Kaufen
XgTC Aktiv, Vorrätig
PowerMod Reactive Load 28.0-58.0V, Conformal Coated, must be used with Xgen/UltiMod powerPac
90 28 58 6 48 288 1 Anfrage Kaufen
XP1 Aktiv, Vorrätig
Xgen/UltiMod Parallel Links
Anfrage Kaufen
XS1 Aktiv, Vorrätig
Xgen/UltiMod Series Links
Anfrage Kaufen

Zubehör

CoolXPMBus GUI

The CoolX series PMBus interface facilitates operating parameter communications (e.g. output voltage, output current, and internal temperature) with other PMBus enabled devices.

Technische Dokumentation

Titel Typ
Audible Noise in Switch Power Supply Application Note (199 KB) Anwendungshinweis
Driving Halogen Lamps Application Note (275 KB) Anwendungshinweis
Interpretation of MTBF Application Note (273 KB) Anwendungshinweis
Low Leakage Medical Power Supplies Application Note (242 KB) Anwendungshinweis
Medical Imaging Application Note (261 KB) Anwendungshinweis
Methods of Protection, MOOPs and MOPPs on the Xgen and UltiMod Platforms Application Note (169 KB) Anwendungshinweis
Reinforced Isolation Testing on a Power Supply Application Note (3 MB) Anwendungshinweis
Semi F47-0706 Compliance: Voltage Sag Immunity Application Note (96 KB) Anwendungshinweis
Thermal Management Application Note (180 KB) Anwendungshinweis
Using the UltiMod to Charge Capacitors for Laser Driving Applications Report Application Note (852 KB) Anwendungshinweis
Using the Xgen and UltiMod Platforms in Harsh Environments and the Use of Conformal Coating Application Note (158 KB) Anwendungshinweis
Vtrim and Paralleling Application Note (511 KB) Anwendungshinweis
Embedded Power (5 MB) Broschüre
Low Voltage Medical Power Supplies Brochure (1 MB) Broschüre
Medical Power Supplies Brochure (11 MB) Broschüre
Rapid Modification & Value-Added Engineering Solutions (2 MB) Broschüre
DIN-Rail Bracket (998 KB) Datenblatt
UltiMod and Xgen 2x Standard 2x Dual IEC STEP File (15 MB) Zeichnung
UltiMod and Xgen 3x Standard 3x Dual IEC Hi-Speed Fan STEP File (17 MB) Zeichnung
UltiMod and Xgen 3x Standard 3x Dual IEC STEP File (16 MB) Zeichnung
UltiMod and Xgen 4-Slot STEP File (2 MB) Zeichnung
UltiMod and Xgen 4x Standard IEC Hi-Speed Fan STEP File (5 MB) Zeichnung
UltiMod and Xgen 4x Standard Scew Terminal STEP File (5 MB) Zeichnung
UltiMod and Xgen 6-Slot STEP File (2 MB) Zeichnung
UltiMod and Xgen 6x Standard IEC Hi-Speed Fan STEP File (7 MB) Zeichnung
UltiMod and Xgen Xmod 1 STEP File (301 KB) Zeichnung
Xg 8 Modules STEP File (10 MB) Zeichnung
AC/DC Modular Designer Manual (4 MB) Handbuch
Ultimod Instruction Manual (1 MB) Handbuch
CoolX Pmbus GUI (275 KB) Software
Designing for a Medical Application: Choosing the Right Power Partner White Paper (238 KB) Weißbuch
Redundant Power Supplies in Mission-Critical Applications White Paper (671 KB) Weißbuch

Vergleichen Sie

Model Ultimod CoolX1000 Coolx600
Länge (Zoll) 10 10 8.5
Breite (Zoll) 5 6.5 4.5
Höhe (Zoll) 1.75 1.539 1.539
Maximale Ausgangsleistung (W) 1200 1000 600
