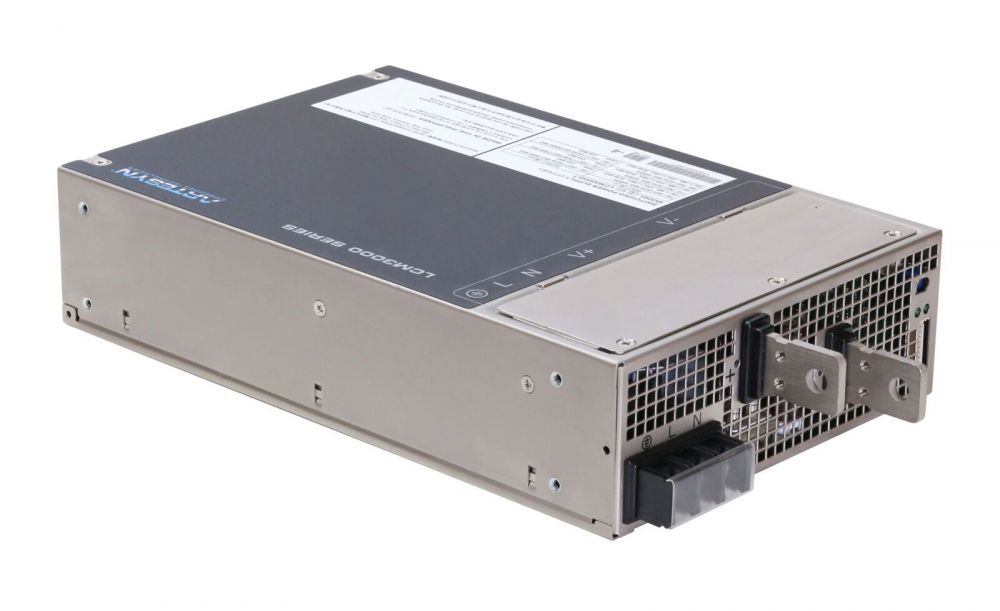

LCM3000 Series

Active

3000 W AC-DC Power Supply

The LCM3000 series AC-DC single-output enclosed power supplies, which can supply up to 3000 W output power with medical and industrial safety approvals. Cost-effective forced-air bulk front end power supply, offers configurable nominal outputs of 12, 24, 36, or 48 V with output adjustability of plus or minus 25% and maximum current of 250 A. A standard 5 V/2 A housekeeping output enables OEM standby functions even when the equipment is nominally off.

Standard features including power factor correction, variable speed ‘smart fans’, digital control, a five-year warranty and a typical efficiency of greater than 90%.

Artesyn’s LCM3000 series is ideal for industrial applications such as test and measurement equipment, industrial robotics, laser-carving machines, and factory automation; non-patient contact and non-patient critical medical, dental and laboratory applications; as well as for telecom and datacom equipment. With simple firmware options, the LCM3000 can be used for battery charging and driving LED's.

Eigenschaften

  • +/ 25% adjustment range
  • 40C to +70C with derating
  • 5Year Warranty
  • VProgram from 20% to 125%
  • Input Range 90-264, Derate to 1500W <180V
  • Input Frequency 50/60 nominal
  • Fusing 30A both lines
  • Inrush Current <=60A peak @ 230VAC
  • Power Factor 0.95 typical
  • Input Current 20A RMS max @ 100VAC
  • Efficiency >90%
  • Leakage Current <500uA @ 240VAC
  • Set point +/-0.5%
  • Total Regulation Main +/-1%; 5VSB +/-5%
  • Output Noise (PARD) 1% max p-p
  • Forced Load Sharing to within 10% of all Outputs
  • PRI-Chassis 2KVAC / 2828VDC
  • PRI-SEC 3KVAC / 4242VDC 2xMOPP
  • SEC-Chassis 500VDC
  • # units in Parallel Up to 8

Vorteile

  • DSP Controlled
  • High Efficiency
  • Low Cost
  • Smart Fans
  • VAR configurable to any voltage from a single unit Part Number
  • Output Rating See Datasheet

Spezifikationen

Ausgangsleistung (W): 3000
Länge (Zoll): 10.9
Breite (Zoll): 7
Höhe (Zoll): 2.5
Montage Typ: Embedded PSU
Minimaler Ausgangsstrom (A): 0
Maximaler Ausgangsstrom (A): 250
Ausgangsspannungsbereich (V): 2.4V to 60V
Alle Spezifikationen Spezifikationen zusammenklappen

Lagerbestand prüfen

Modellnummer
Min. Spannung (V) Max. Spannung (V) Stromstärke (A) Nennspannung (V) Anzahl der Ausgänge Proben Kaufen
LCM30007-T Aktiv, Vorrätig 14.4 96 41.7 72 1 Anfrage Kaufen
LCM3000L-T Aktiv, Vorrätig
3KW ACDC 12V
2.4 15 250 12 1 Anfrage Kaufen
LCM3000Q-T Aktiv, Vorrätig
3KW ACDC 24V
4.8 30 125 24 1 Anfrage Kaufen
LCM3000U-T Aktiv, Vorrätig
3KW ACDC 36V
7.2 45 83.3 36 1 Anfrage Kaufen
LCM3000W-T Aktiv, Vorrätig
3KW ACDC 48V
9.6 60 62.5 48 1 Anfrage Kaufen
