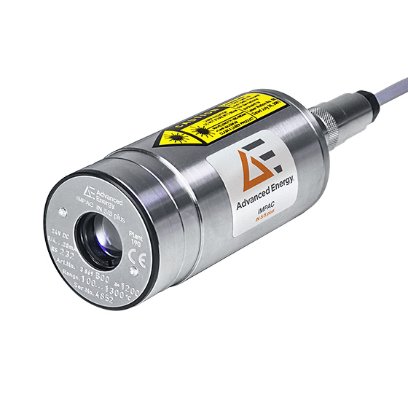

Impac IN 5/5 Series Pyrometers
2-wire pyrometer with fixed optics for non-contact temperature measurement of glass and quartz glass surfaces. Temperature ranges between 100 and 2500 °C.
Eigenschaften
- Pyrometers in two wire form with analog output 4 to 20 mA
- High accuracy due to digital linearization of the output
- Small spot sizes, min. 2.5 mm
- Adjustable exposure time
- Compact housing
Vorteile
- Achieve high accuracy due to output digital linearization
- Adjust parameters on the instrument
- Utilize various optics available for optimal matching of the instrument to the application
- Operate in rough industrial environment
Spezifikationen
Betriebstemperaturbereich (°C): | 100 and 2500 °C (4 ranges in between) |
---|---|
Spektralbereich (µm): | 5.14 |
Messunsicherheit (°C): | From 0.6% oR or 2 °C |
Optik (mm): | Fixed optics |
FOV (minimale Punktgröße) (mmm): | 50:1 (2.5) |
Ausrichten / Sichten: | None |
Schnittstelle / Ausgang (mA): | 0/4 to 20 mA |
Belichtungszeit t90 (ms): | Multiple specifications. Please refer to Datasheet. |
Zubehör
Impac Other Electrical
Other Electrical Accessories Compatible With Impac Pyrometers
Impac DA 4000
Digital LED Display With 2-Wire Supply Voltage
Impac Mechanical Accessories
Other Mechanical Accessories Compatible With Impac Pyrometers
Impac Power Supplies
Impac Pyrometer DC and AC Power Supply Units
Impac PI 6000 Controller
Extremely Fast, Digital, and Programmable PID Controller
Impac DA 6000
Digital LED Display With 2-Wire Supply Voltage
Technische Dokumentation
Vergleichen Sie
Model | Impac IN 5/5 Series | Impac IN 5/5 plus Series | Impac IN 140/5 Series | Series Impac IN 6/78 | Impac 600 Series |
---|---|---|---|---|---|
Spektralbereich (µm) | 5.14 | 5.14 | 5.14 | 7.8 | 0.7 and 14 (5 ranges in between) |
Messunsicherheit (°C) | From 0.6% oR or 2 °C | From 0.6% oR or 2 °C | From 0.6% oR or 2 °C | 0.7% oR or 3.5 °C | From 0.5% oR or 0.8 °C |
Optik (mm) | Fixed optics | Fixed optics | Fixed optics, Focusable optics | Fixed optics | Fixed optics |
FOV (minimale Punktgröße) (mmm) | 50:1 (2.5) | Min. 100:1 (1.1) | Min 180:1 (0.9) | Min 75:1 (5) | Min. 70:1 |
Ausrichten / Sichten | None | Laser targeting | Laser targeting or through lens sighting | None | None |
Schnittstelle / Ausgang (mA) | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA |
Belichtungszeit t90 (ms) | Multiple specifications. Please refer to Datasheet. | 80 ms | Multiple specifications. Please refer to Datasheet. | Multiple specifications. Please refer to Datasheet. | Multiple specifications. Please refer to Datasheet. |
Anzeige | Illuminated LC display for temperature indication or parameter settings | Color LCD, 262,000 colors (optional) | |||
Emissionsgrad | 0.2 to 1.0 adjustable | 0.2 to 1.0 adjustable | 10 to 120% adjustable in the instrument or via interface in 0.1% steps | 10 to 125% adjustable in 0.1% steps |
