tegam ®

Intrinsically Safe Thermometers

Active

Intrinsically Safe, Factory Tough, Lab Accurate, ATEX-Compliant

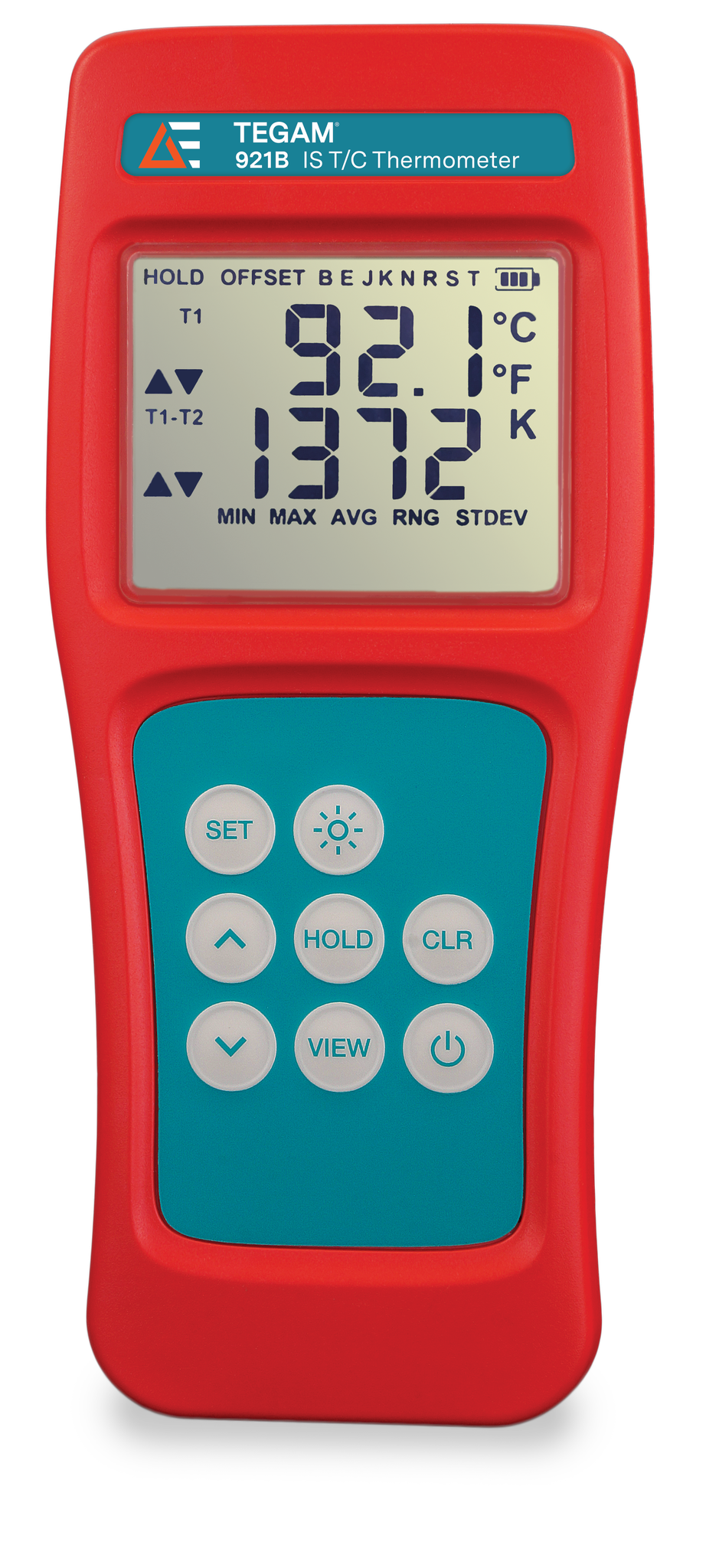

Advanced Energy's TEGAM 900 Series Intrinsically Safe Thermocouple Thermometers are instruments you can rely on daily. The intrinsically safe single-channel Model 921B and dual-channel 922B boast 2,000–hour battery life using three off-the-shelf AA batteries for convenient, dependable, uninterrupted, low-cost portable measurement capability. Safety in hazardous environments is our top priority. The low-energy intrinsically Safe 921B and 922B will protect against ignition when used in environments where flammable liquids, gases, vapors, and dust are present.




Eigenschaften

  • Accuracy: ±(0.04% rdg + 0.3 °C)
  • Thermocouple Thermometer Range : -418 °F to 2502 °F
  • Resolution : 0.1/1 °C/°F/K
  • Input Type : K, J, T,E, N, R, S  or B
  • 2000 Hour Battery Life
  • 4-digit Auto-Resolution (0.1/1) with Backlight and Function Annuciators
  • Certified Intrinsically Safe (UL, CE, ATEX-Compliant)
  • Probe Offset
  • Displays Real-Time Statistical Data
  • Creative Ergonomic Design
  • Three Year Warranty
  • Two Year Calibration Guarantee
  • Optional ISO 17025 Calibration Available
  • Assembled  in the USA

Vorteile

  • High-performance and probe offset function assure you are accurately monitoring your processes
  • Designed for continuous in the presence of flammable liquids, gases, and mists; certified for use worldwide
  • Use one thermometer to support eight different thermocouple types
  • Ultra-long battery life means your thermometer is always ready; educed operating costs over product lifecycle
  • Easy one-hand operation and convenience
  • 2-year calibration cycle means less downtime and lower costs
  • Supported by a wide range of intrinsically safe temperature probe options

Spezifikationen

Genauigkeit: ±(0.04% rdg +0.3 ⁰C)
Connector Type: Mini-TC
Intrinsically Safe: Yes
Messbereich: -250 to 1767 ⁰C
No. of Inputs: 1, 2
Betriebstemperatur (°C): -20 to 50 ⁰C
Probes Supported: J,K,T,E,B,N,R,S
Auflösung (°C): 0.1⁰ C/F/K
Alle Spezifikationen Spezifikationen zusammenklappen

Lagerbestand prüfen

Modellnummer
Connector Type No. of Inputs Probes Supported Temp. Scale Kaufen
921B Active
Intrinsically Safe Thermocouple Thermometer, Single Input, °C &°F (K, J , T, E, B, N, R & S)
Mini-TC 1 J,K,T,E,B,N,R,S C, F, K Kaufen
922B Active
Intrinsically Safe Thermocouple Thermometer, Dual Input, °C &°F (K, J , T, E, B, N, R & S)
Mini-TC 2 J,K,T,E,B,N,R,S C, F, K Kaufen
OPT-900-17025 Active
17025 Calibration Option 900 Thermometer Series
Kaufen

Recommended Probes (Note, thermometers do not include temperature probes.)

Accessories Stock Check

ISO 17025 Calibration Option, 900 Series Thermometers

ISO 17025 is an International Standard and grew out of ISO Guide 25. In 2002 ISO started assessing all calibration labs to 17025. It has been updated several times since then, cleaning ambiguities, strengthening traceability requirements and expanding its overall coverage of processes. The premise of ISO 17025 is that traceability and a fully developed uncertainty statement are required to establish confidence in the calibration. Traceability is required to SI Standards (international standards based on the new SI units of measure). ISO 17025 also requires a full total uncertainty statement for the laboratory to prove the accuracy of the calibration. Its procedures assess the training and competencies of the lab personnel and the calibration procedures. ISO 17025 also requires accreditation by an internationally recognized authority.

Thermometry Accessories

Accessories for thermometers and Calibrators

GSAmart

Click here for government agency procurement support.
Visit GSAmart

Technische Dokumentation

Dienstleistungen

Repair

Our worldwide service centers provide fast cycle times, use only AE-qualified parts, and follow the original product's specifications and test procedures for the highest quality repair or calibration.

Agreement Term Options

Calibration and Alignment

Advanced Energy has the tools and processes to ensure your equipment continues to meet its original specifications.  Our products are calibrated at global AE service sites with proprietary technology designed to exceed industry standards​.

Agreement Term Options
